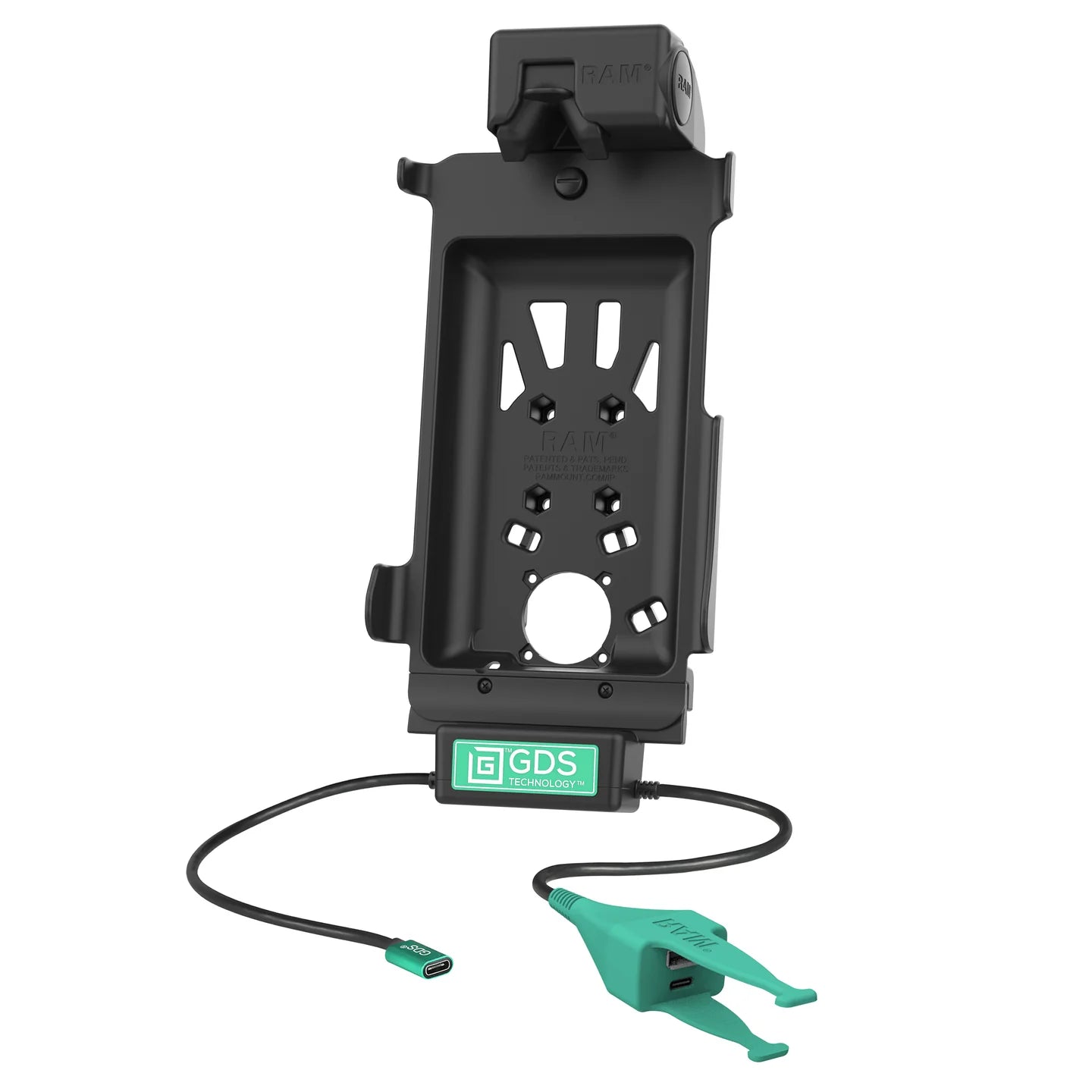

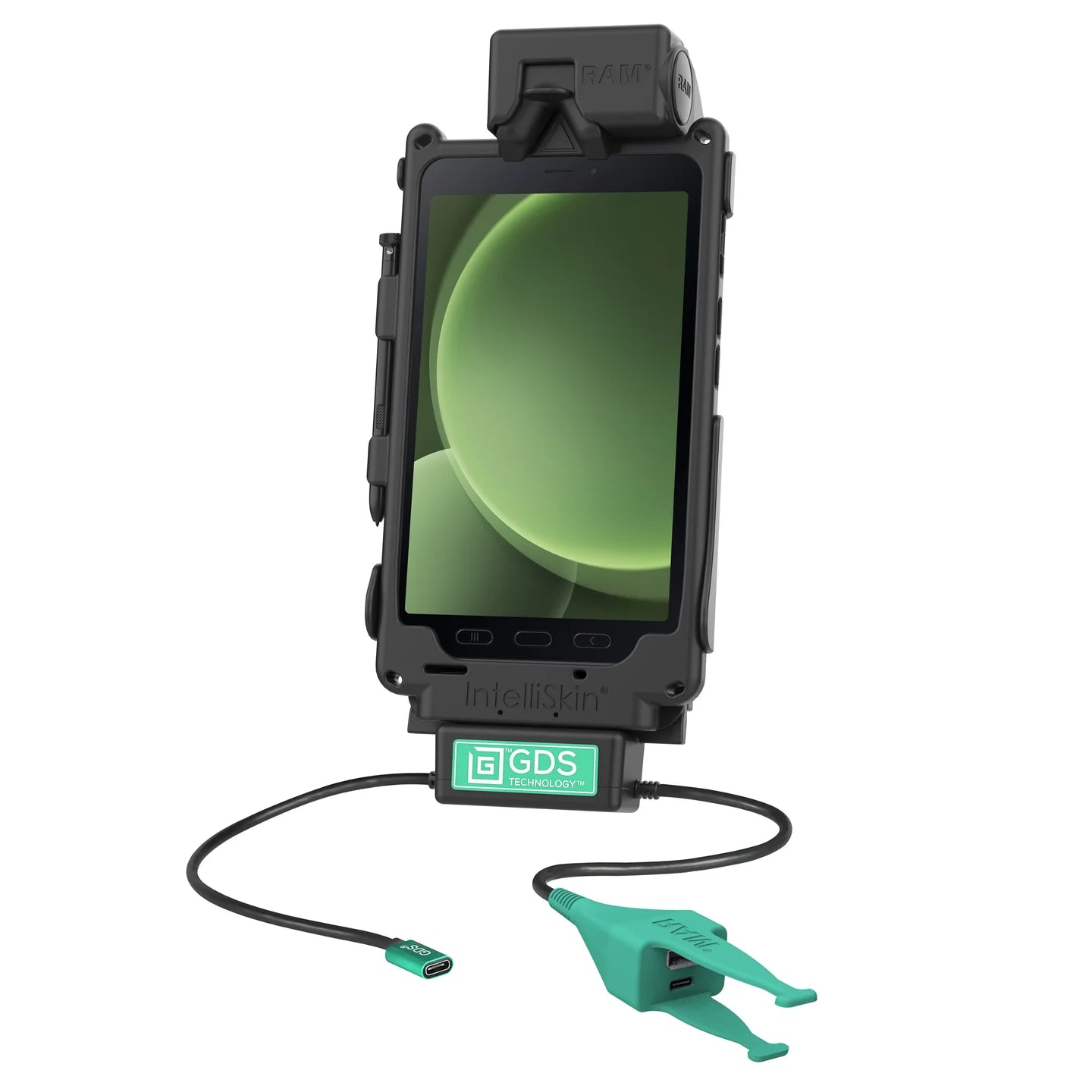

GDS® Tough-Dock™ + Dual USB-A & USB-C for Samsung Tab Active5 & 3 - RAM-GDS-DOCK-SAM62C-CAU

The GDS® Tough-Dock™ + Dual USB-A & USB-C for Samsung Tab Active5 & 3 (RAM-GDS-DOCK-SAM62C-CAU) is designed to support the Samsung Galaxy Tab Active5, Tab Active3 and 2 in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A and USB-C connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more.

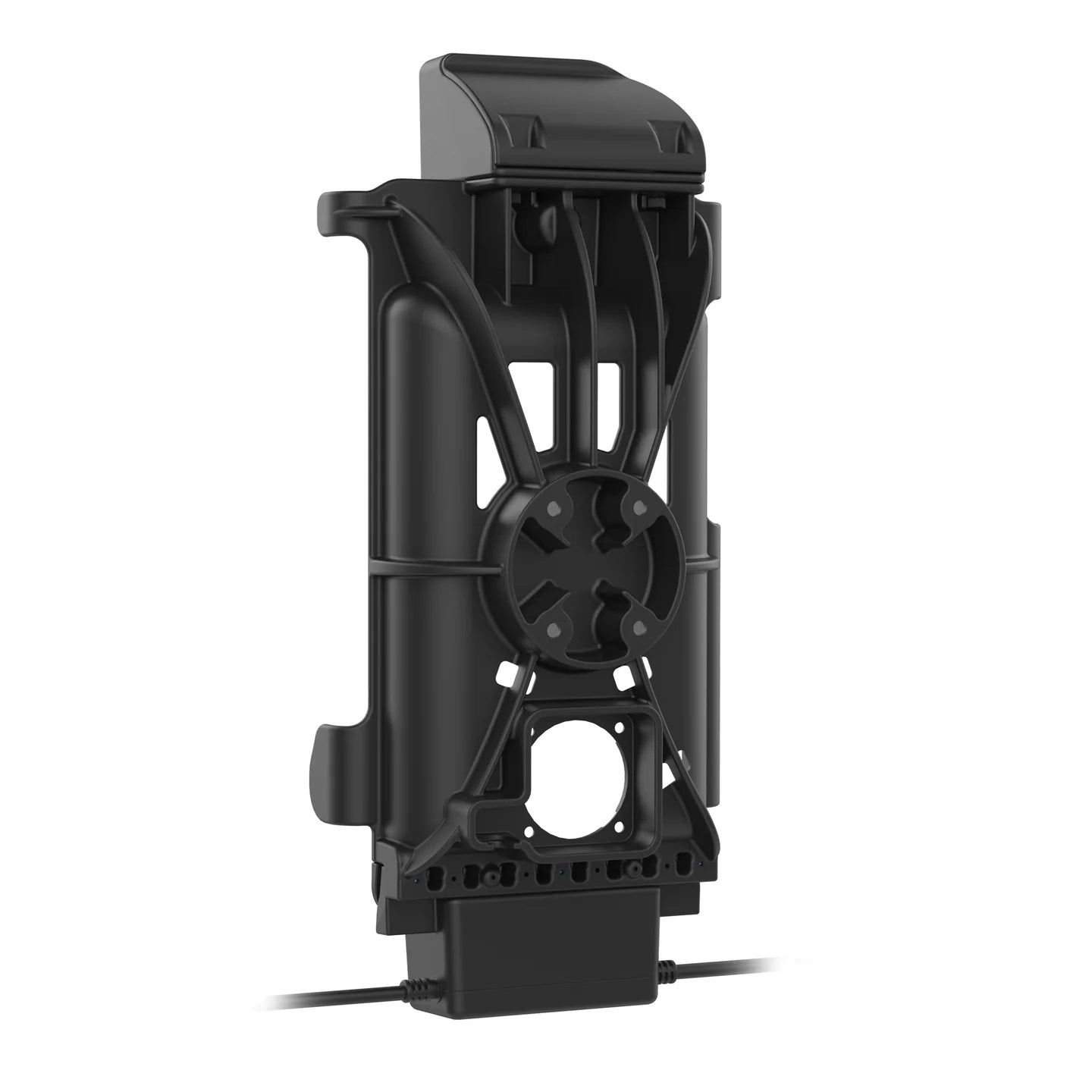

The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

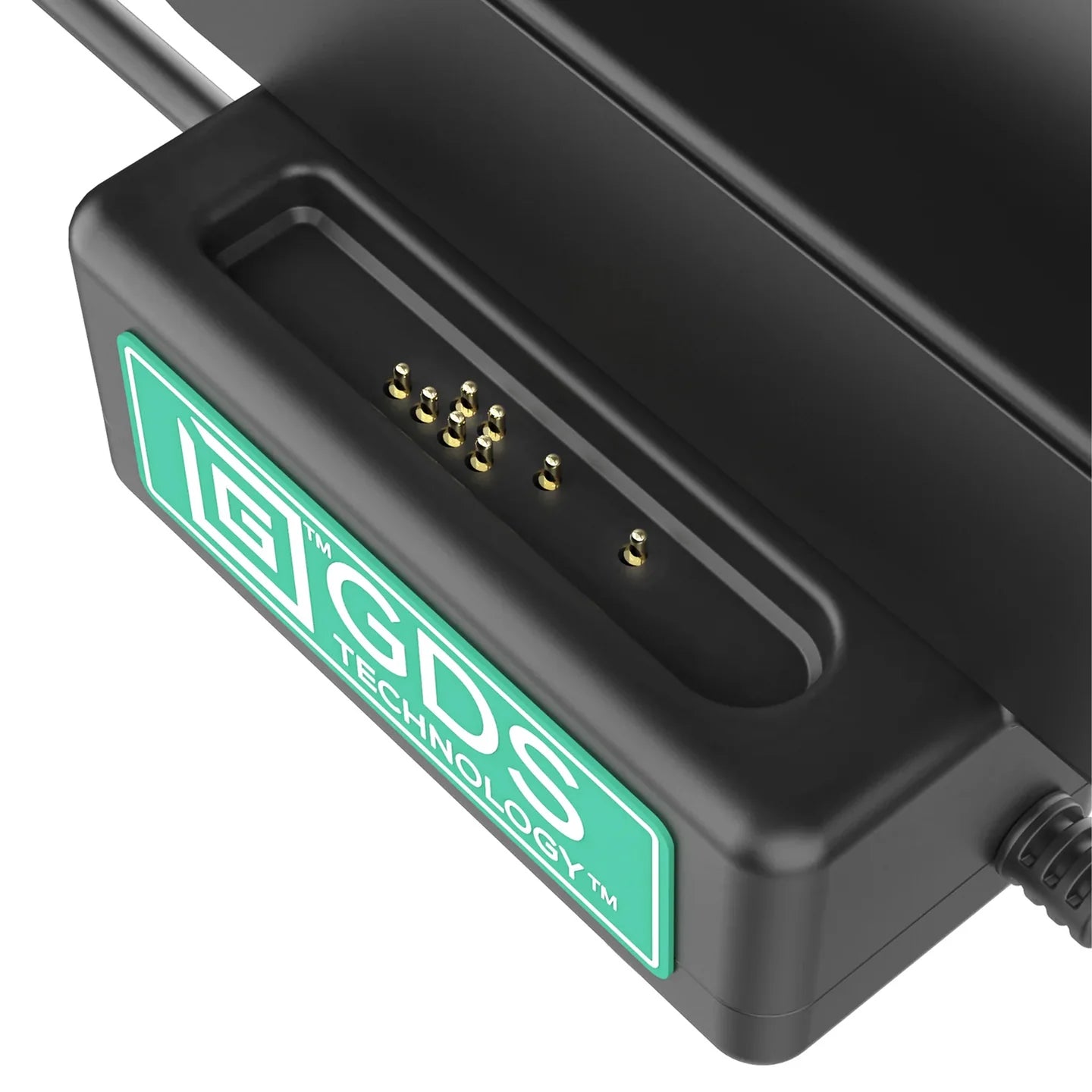

• Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection for up to two additional USB peripherals

• Designed specifically for the Samsung Galaxy Tab Active5, Tab Active3 and 2 wrapped in an IntelliSkin® Next Gen protective sleeve

• Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A and USB-C connector

• RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment

• Backed by a 3-year warranty

 HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

OUTPUT VOLTAGE
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max

POWER OUTPUT
15W

INPUT CONNECTOR
USB Type-C (Power In)

INPUT CABLE LENGTH
215mm

OUTPUT CONNECTOR
(1) USB Type-C & (1) USB Type-A (Peripheral)

OUTPUT CABLE LENGTH
215mm

PERIPHERAL OUTPUT
900mAh (per port)

WARRANTY
3 year warranty

IMPORTANT INFORMATION
This product will not support the "No Battery Mode" function of the Tab Active3.
