GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab A9 -

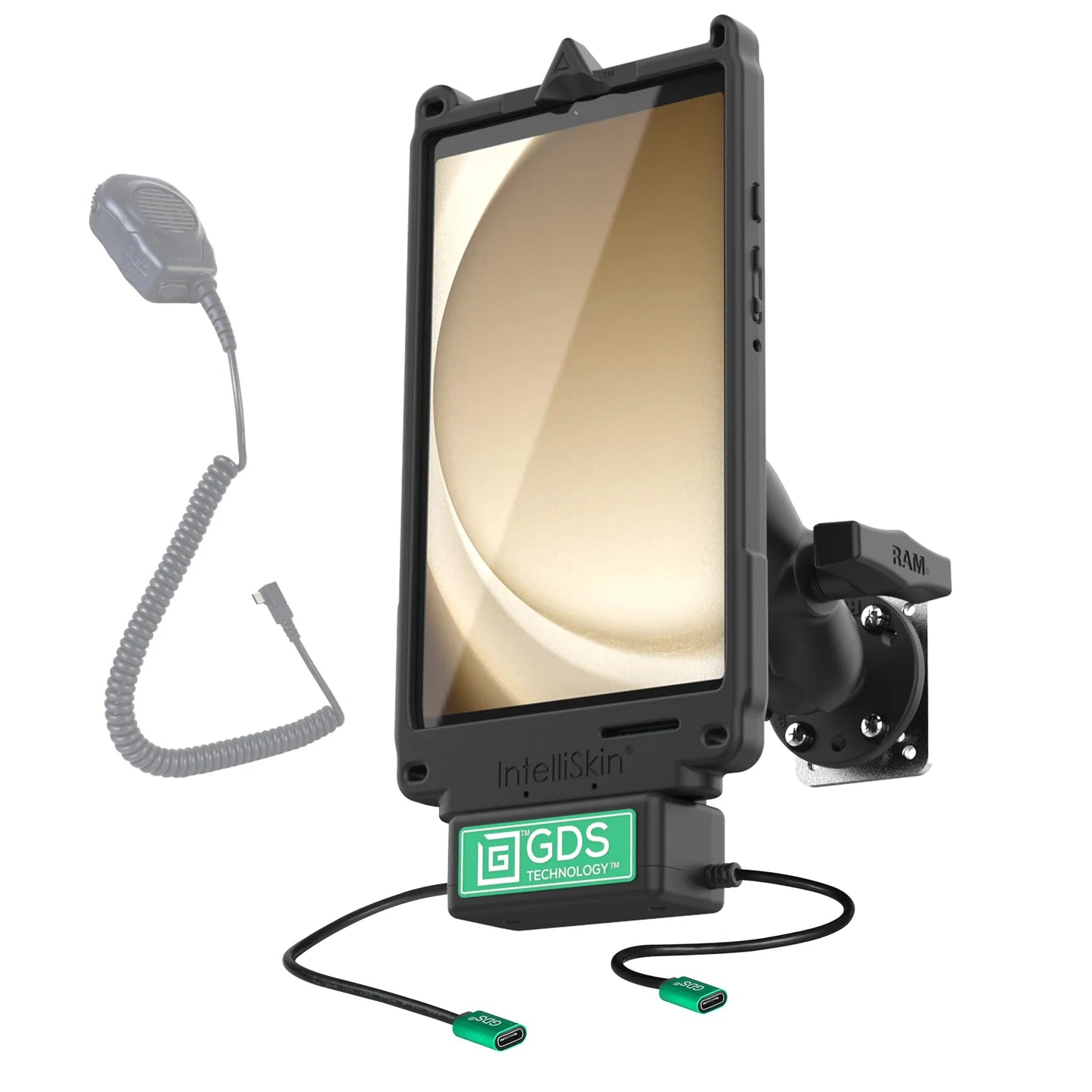

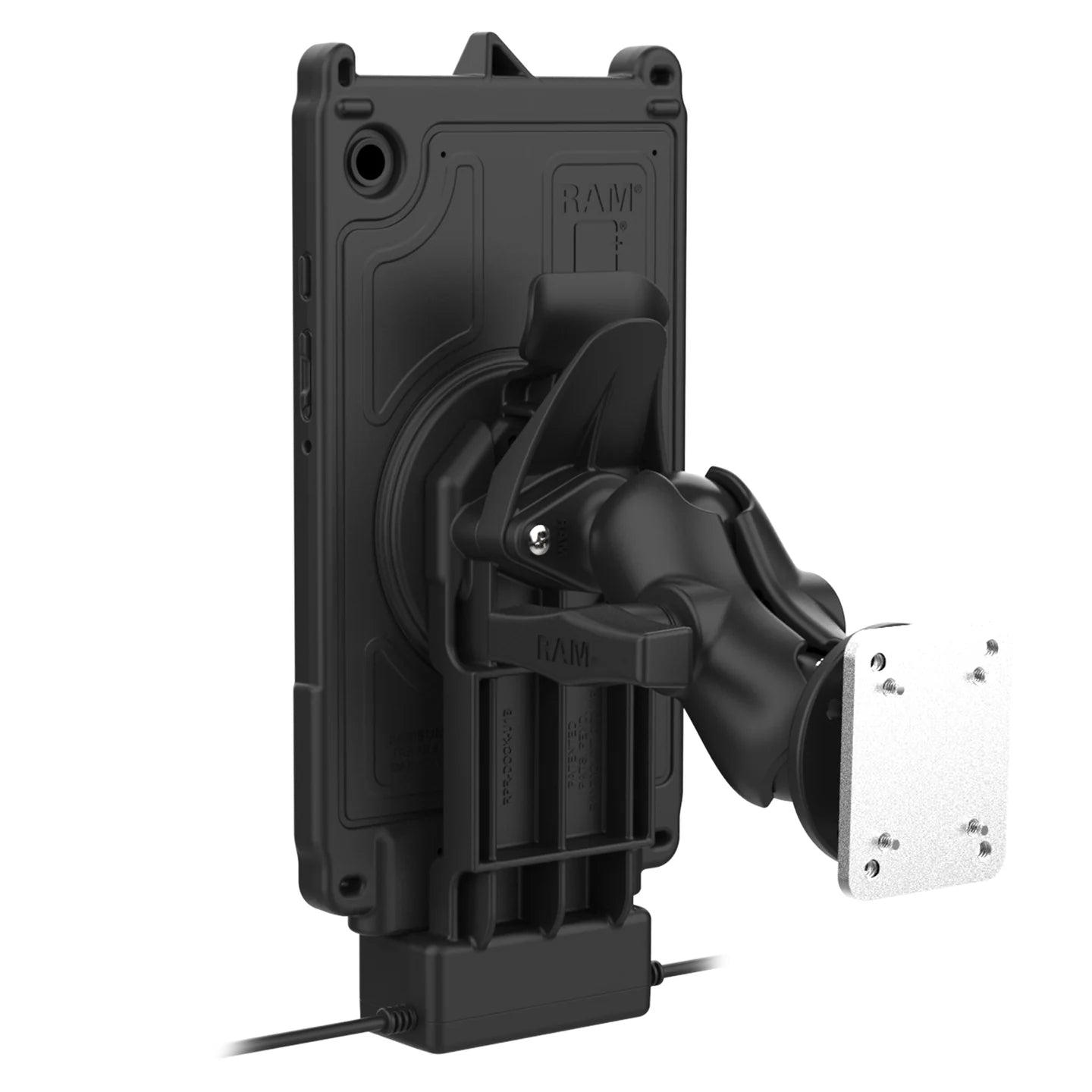

The GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab A9 (RAM-GDS-U1-SAM95-KIT4) is a comprehensive kit of everything needed to deploy the Tab A9 in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab A9, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-C pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more.

The integrated pogo pins connect to the IntelliSkin®-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™

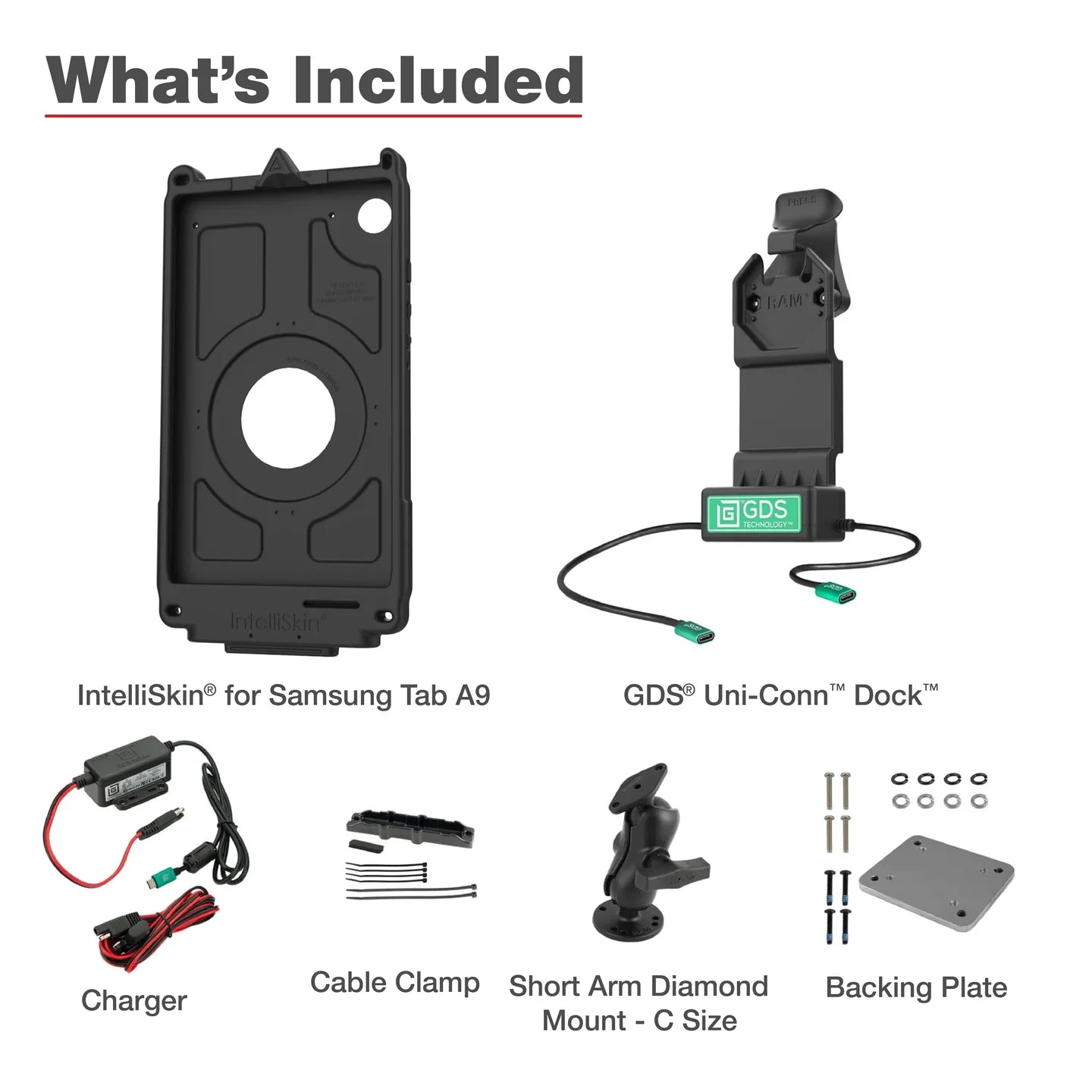

• Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab A9, C size double ball mount with short arm, backing plate adapter, and cable clamp

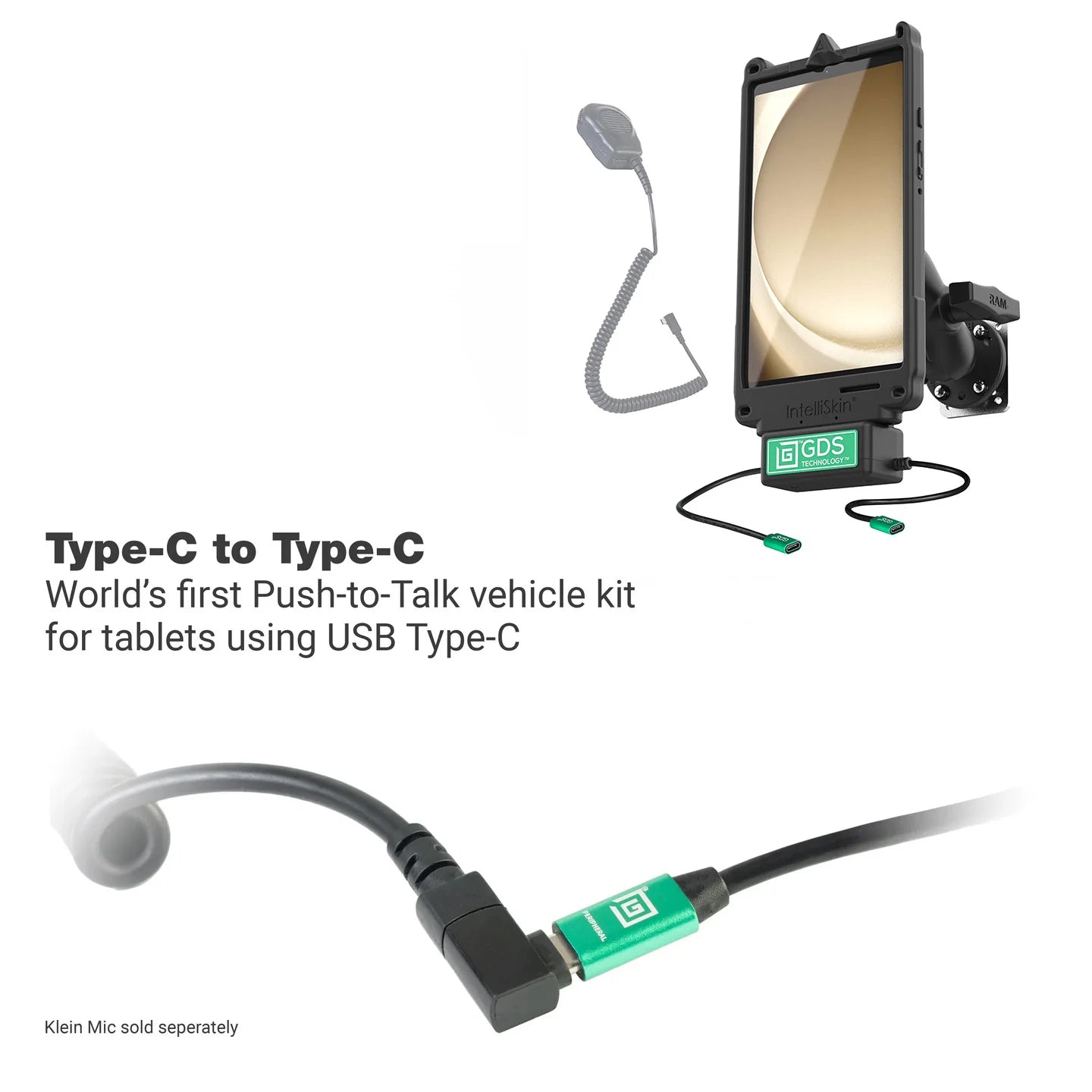

• Dock features GDS® Technology™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device

• Uni-Conn™ dock features an easy device insertion and removal

• RAM® Mounts Compatible™ and compatible with the GDS® Uni-Conn™ Adapter with Hand Strap

• Backed by a 3-year warranty

hardware included:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger

socket to socket length:
2.5"

hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:
C Size (1.5")

materials:
Steel
Marine-grade aluminum
High strength composite

packaging type:
Box

output voltage:
5V - 12V @ 3A max

power output:
15W

input connector:
USB Type-C (Power In)

input cable length:
215mm

output connector:
USB Type-C (Peripheral)

output cable length:
215mm

Weight:
3.9 lb

IntelliSkin® Next Gen for Samsung Tab A9 - RAM-GDS-SKIN-SAM95-NG

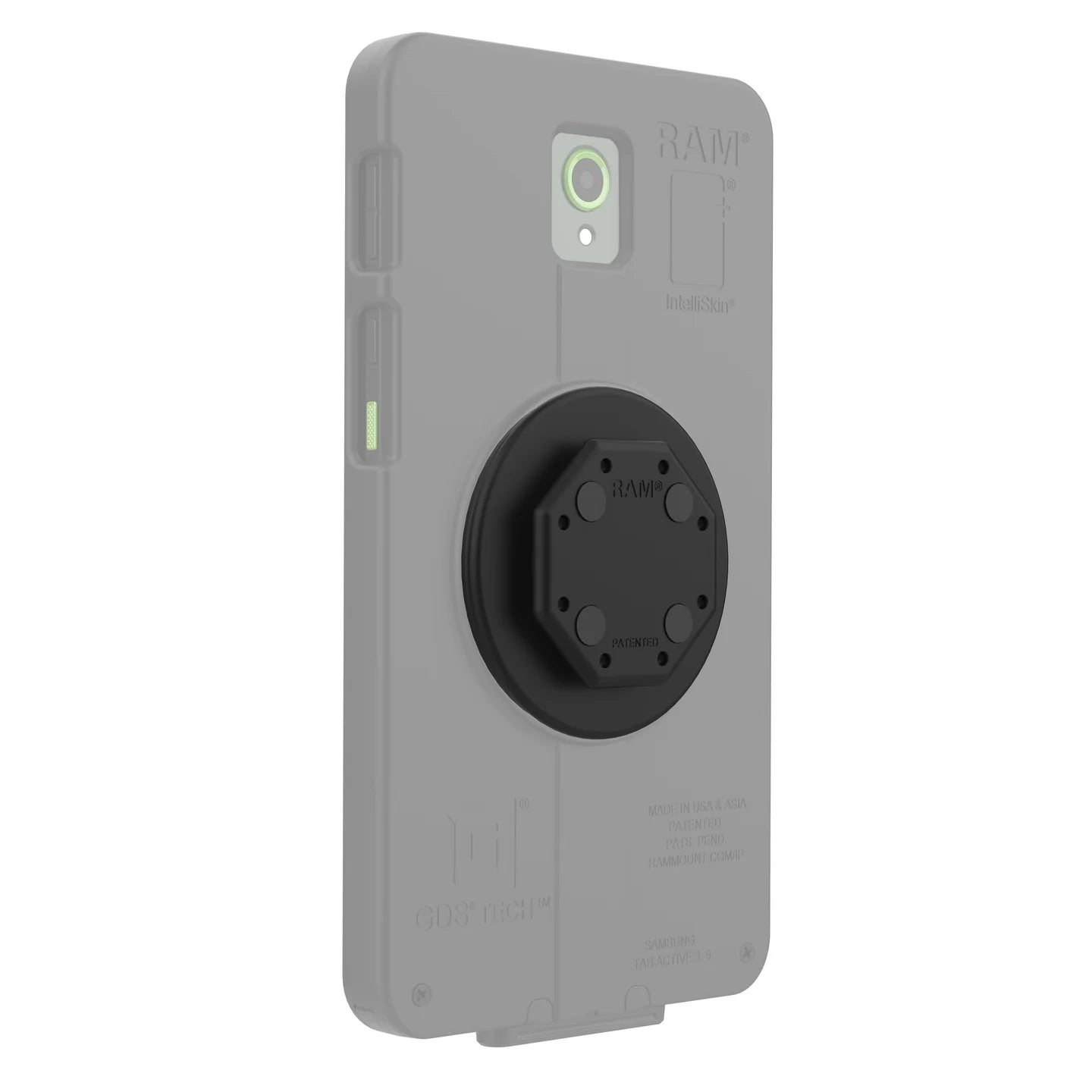

GDS® Uni-Conn™ Adapter for IntelliSkin® - RAM-GDS-U1U

GDS® Uni-Conn™ Powered Dock - RAM-GDS-DOCK-U1CPU

RAM® Double Ball Mount with Diamond Plate Adapter - RAM-138U-B

GDS® Modular 10-30V Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V7CU

GDS® USB Type-A Male & Type-A Female Clamp - RAM-GDS-CAB-CLAMP2U

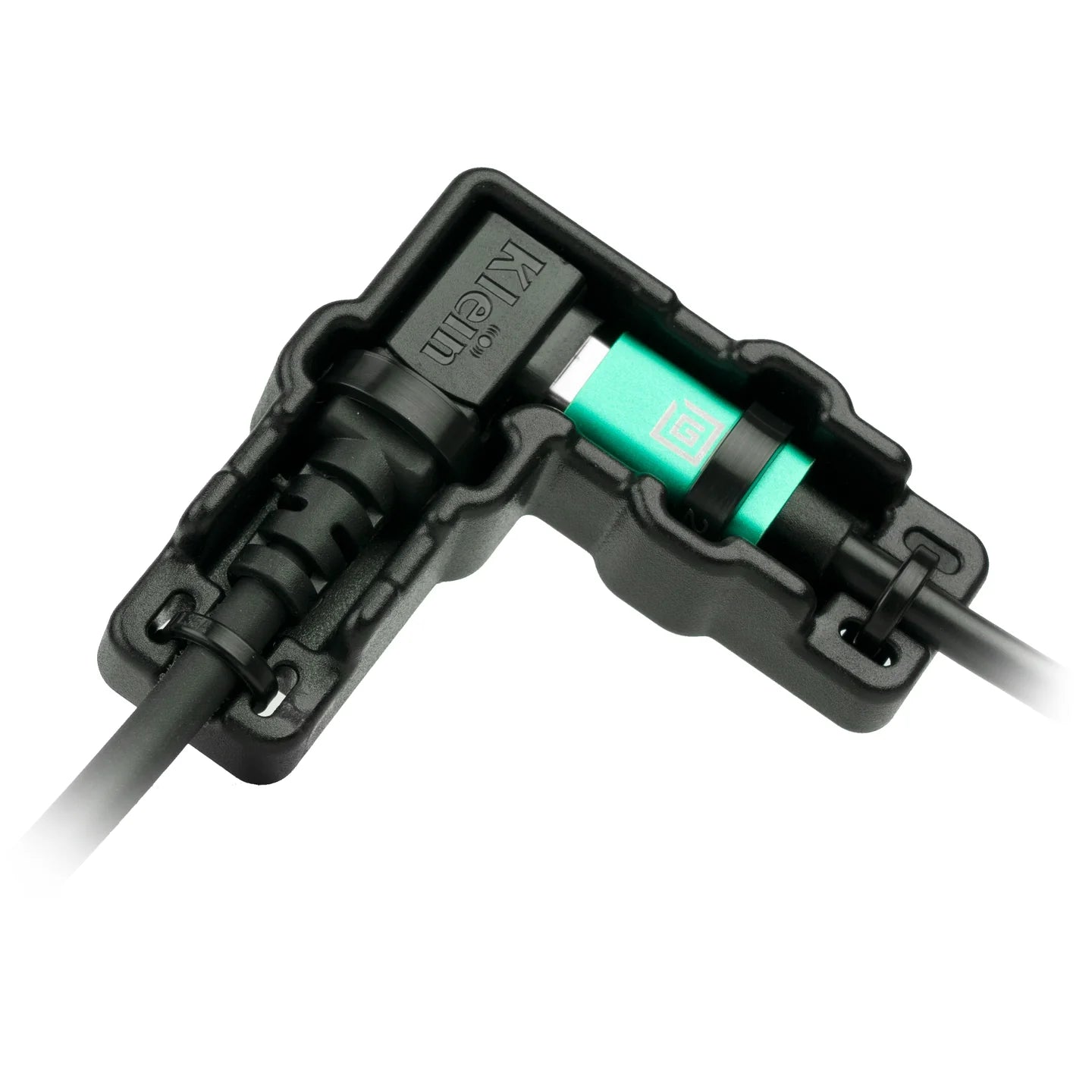

GDS® Cable Clamp for USB Type-C Klein PTT Mic Adapter - RAM-GDS-CAB-CLAMP-KL1U

Samsung Galaxy Tab A9

Cable Clamp Instructions
