RAM® Double Ball Mount with Diamond Plate Adapter - RAM-138U-B

OVERVIEW

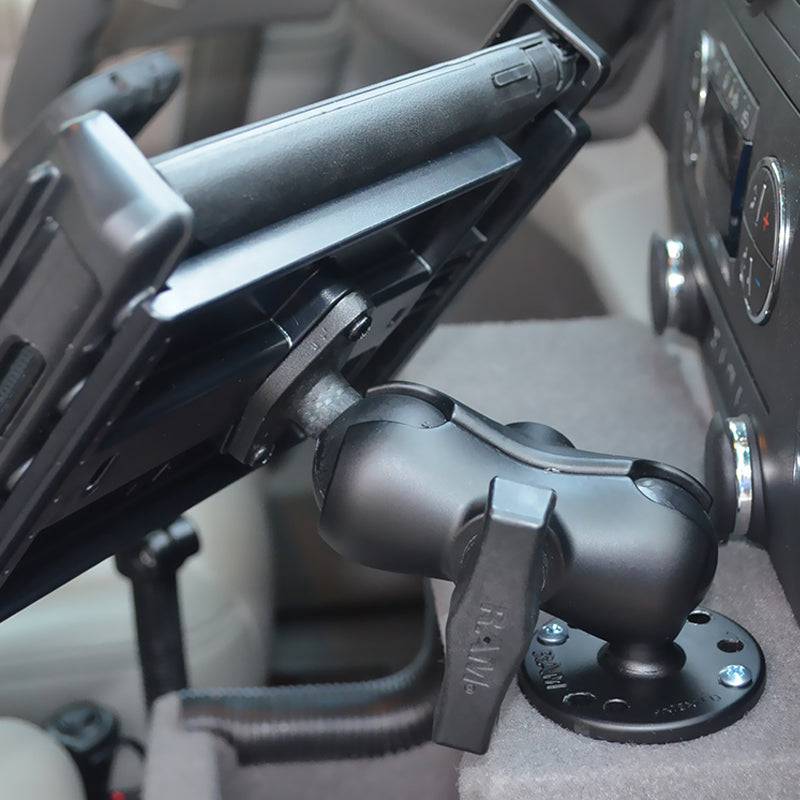

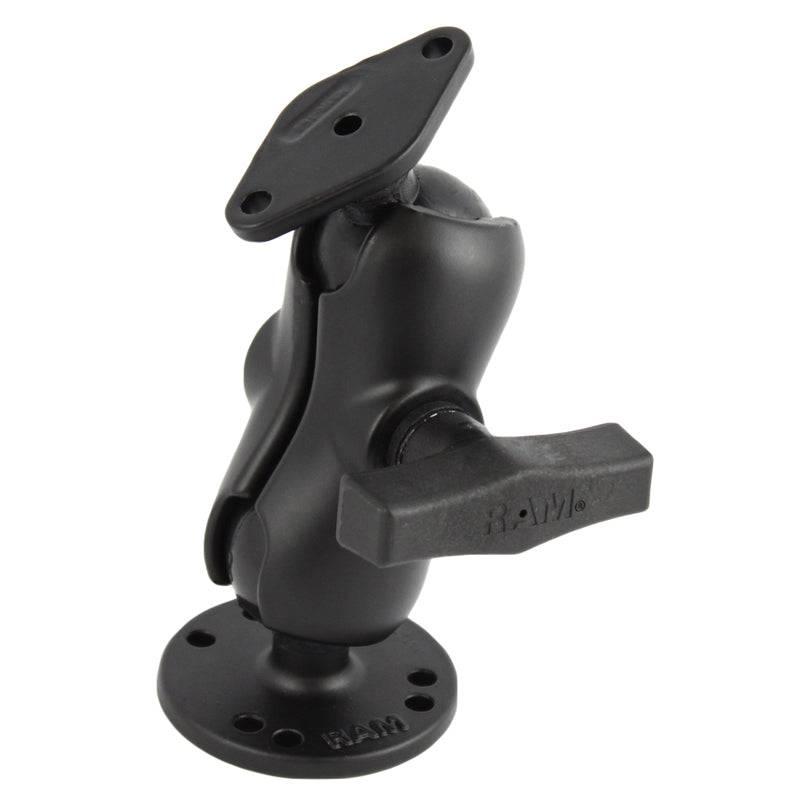

The RAM-138U-B consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, short double socket arm and diamond base adapter. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

PRODUCT DIMENSIONS

Overall Height: 5.225"

SOCKET-TO-SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
2-Hole AMPS 1.912"

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.9 lbs.

RAM 2.5" Round Plate With AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U

RAM Short Double Socket Arm for C Size 1.5" Balls - RAM-201U-B

RAM 2.43" x 1.31" Diamond Base with 1.5" - Ball - RAM-238U

RAM Small Cable Manager For 2 5/8" Round Plates With AMPs Hole Pattern - RAP-403U
