GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab Active5 - RAM-GDS-U1-SAM90-KIT4

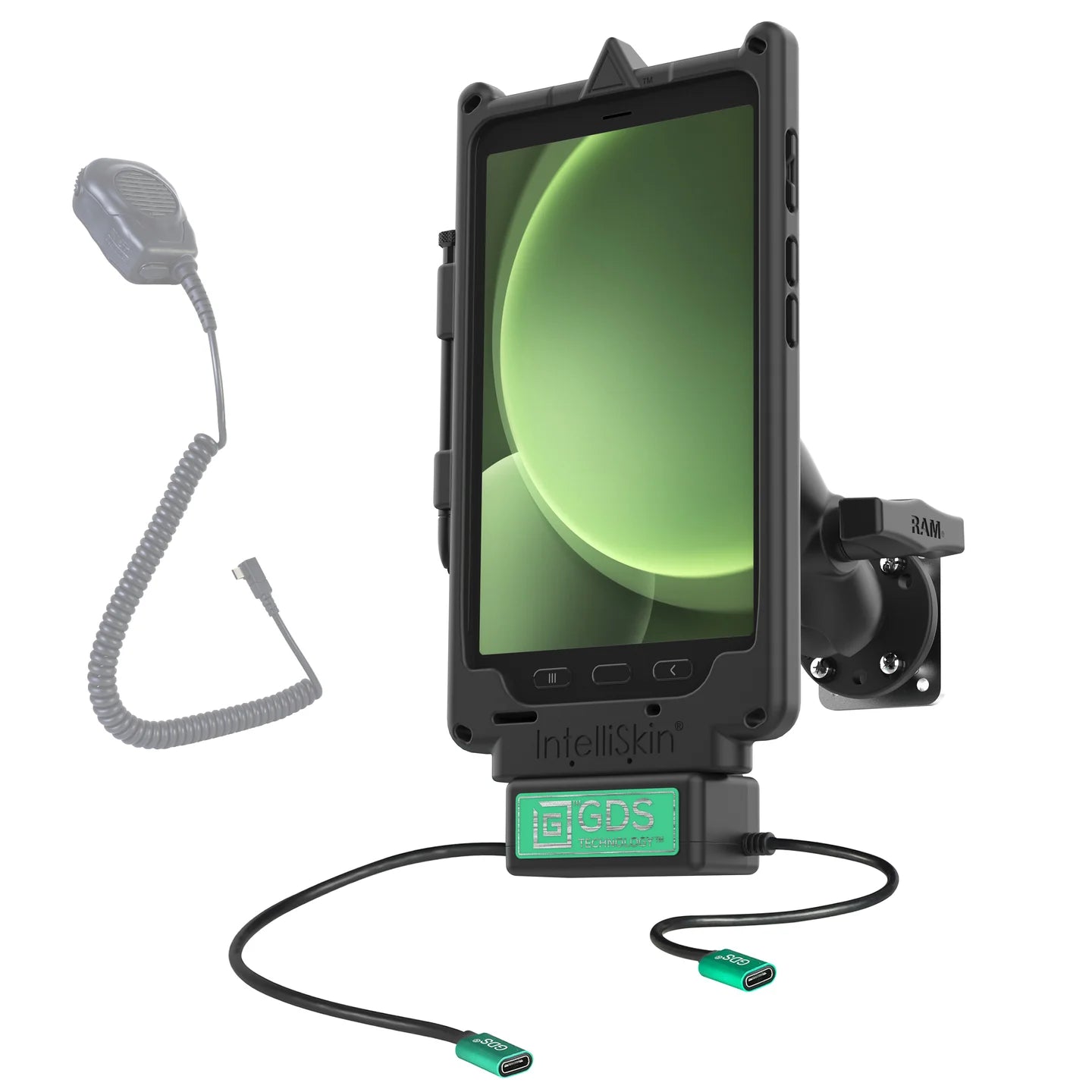

The GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT4) is a revolutionary vehicle dock capable of facilitating push-to-talk communications via a USB Type-C connection, made in partnership with Klein Electronics, Inc. Designed to support the Samsung Galaxy Tab Active5 in an IntelliSkin® Next Gen protective sleeve, enabling users to take advantage of the entire GDS® Ecosystem™.

The GDS® Uni-Conn™ dock uses a USB Type-C power connector to support high speed charging capabilities for the Tab Active5. This solution includes the GDS® Uni-Conn™ dock, Uni-Conn™ Adapter, IntelliSkin® Next Gen for Samsung Tab Active5, GDS® Modular 10-30V Hardwire Charger, C size double ball mount with short arm, backing plate adapter, and cable clamp. Klein Electronics Valor Remote Speaker Microphone (RSM) sold separately. The GDS® Uni-Conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®

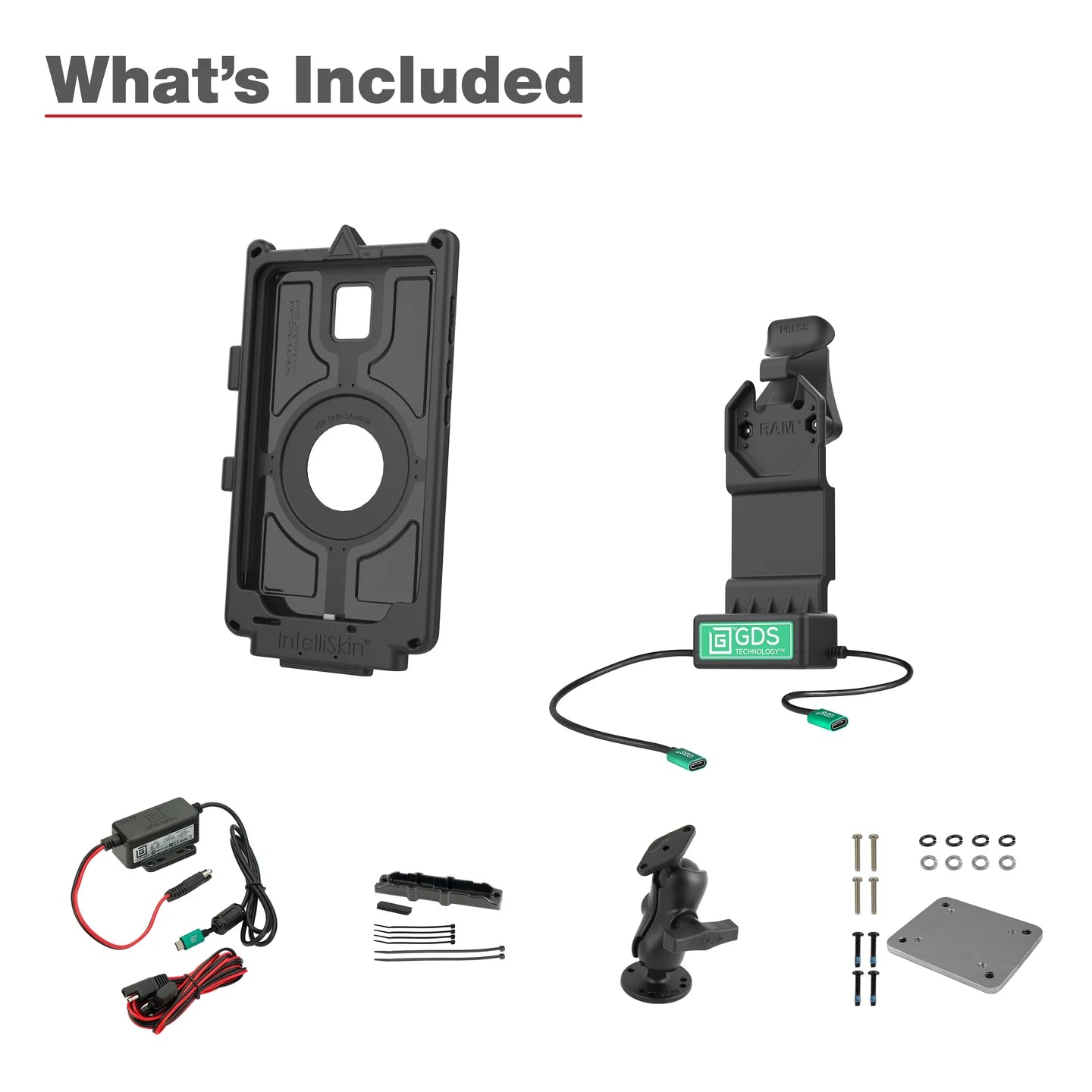

• Bundle includes the GDS® Uni-Conn™ dock, IntelliSkin® Next Gen for Samsung Tab Active5, GDS® Modular 10-30V Hardwire Charger, C size double ball mount with short arm, backing plate adapter, and cable clamp

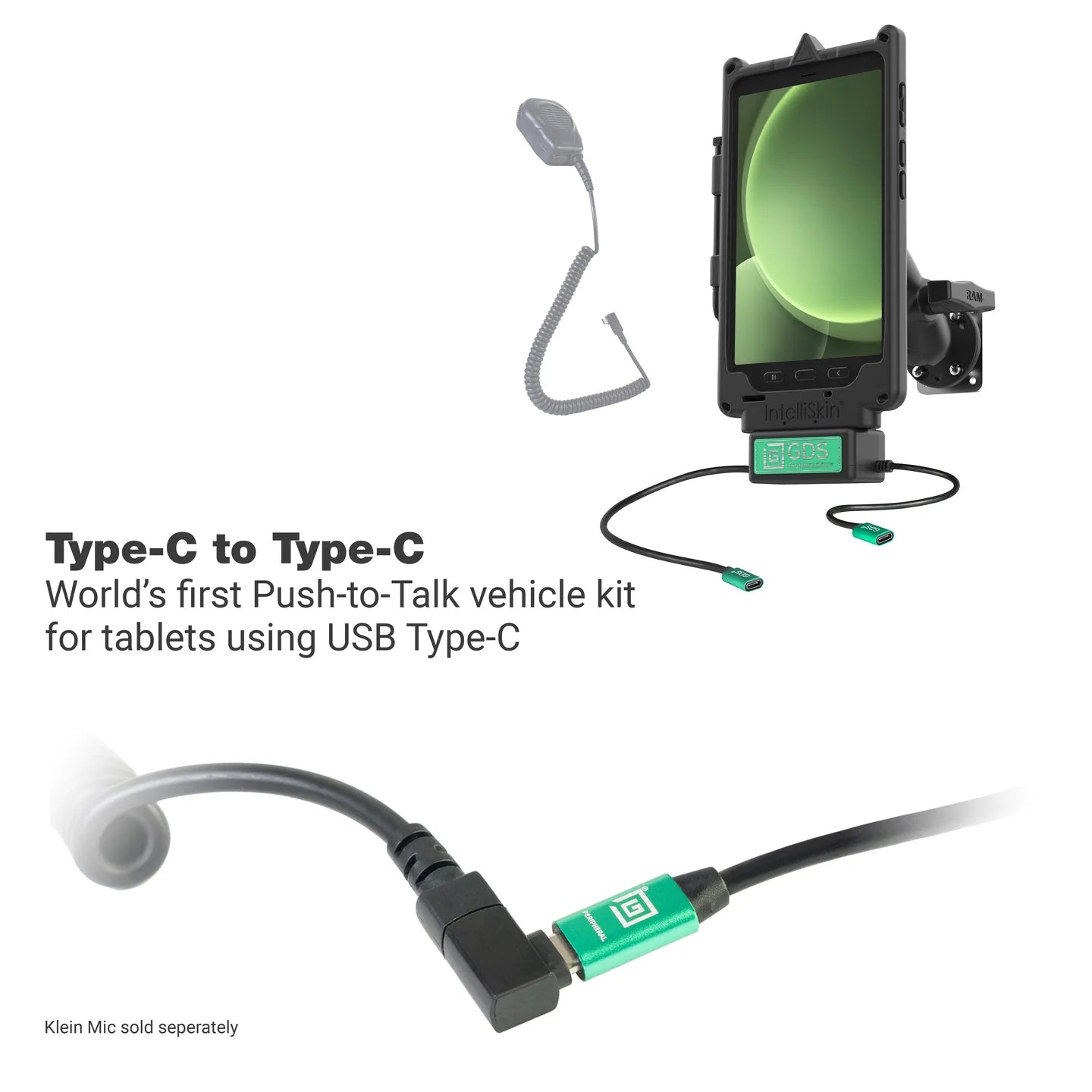

• Capable of Push-To-Talk via USB Type-C connection; compatible with the Klein Electronics Valor Microphone

• Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power

• RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment

• Backed by a 3-year warranty

HARDWARE INCLUDED
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger

SOCKET TO SOCKET LENGTH
2.5"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL SIZE
C Size (1.5")

MATERIALS
Steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Box

OUTPUT VOLTAGE
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max

POWER OUTPUT
15W

INPUT CONNECTOR
USB Type-C (Power In)

INPUT CABLE LENGTH
215mm

OUTPUT CONNECTOR
USB Type-C (Peripheral)

OUTPUT CABLE LENGTH
215mm

Samsung Tab Active5

IntelliSkin^® Next Gen for Samsung Tab Active5 - RAM-GDS-SKIN-SAM90-NG

GDS^® Uni-Conn^™ Power + Single USB-C Dock - RAM-GDS-DOCK-U1CP-CU

RAM^® Double Ball Mount with Diamond Plate Adapter - Short - RAM-138U-B

GDS^® Modular 10-30V Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V7CU

Cable Clamp Instructions
