GDS® Uni-Conn™ Powered Dock with USB-A & RJ45 Data - RAM-GDS-DOCK-U1CP-RJ45AU

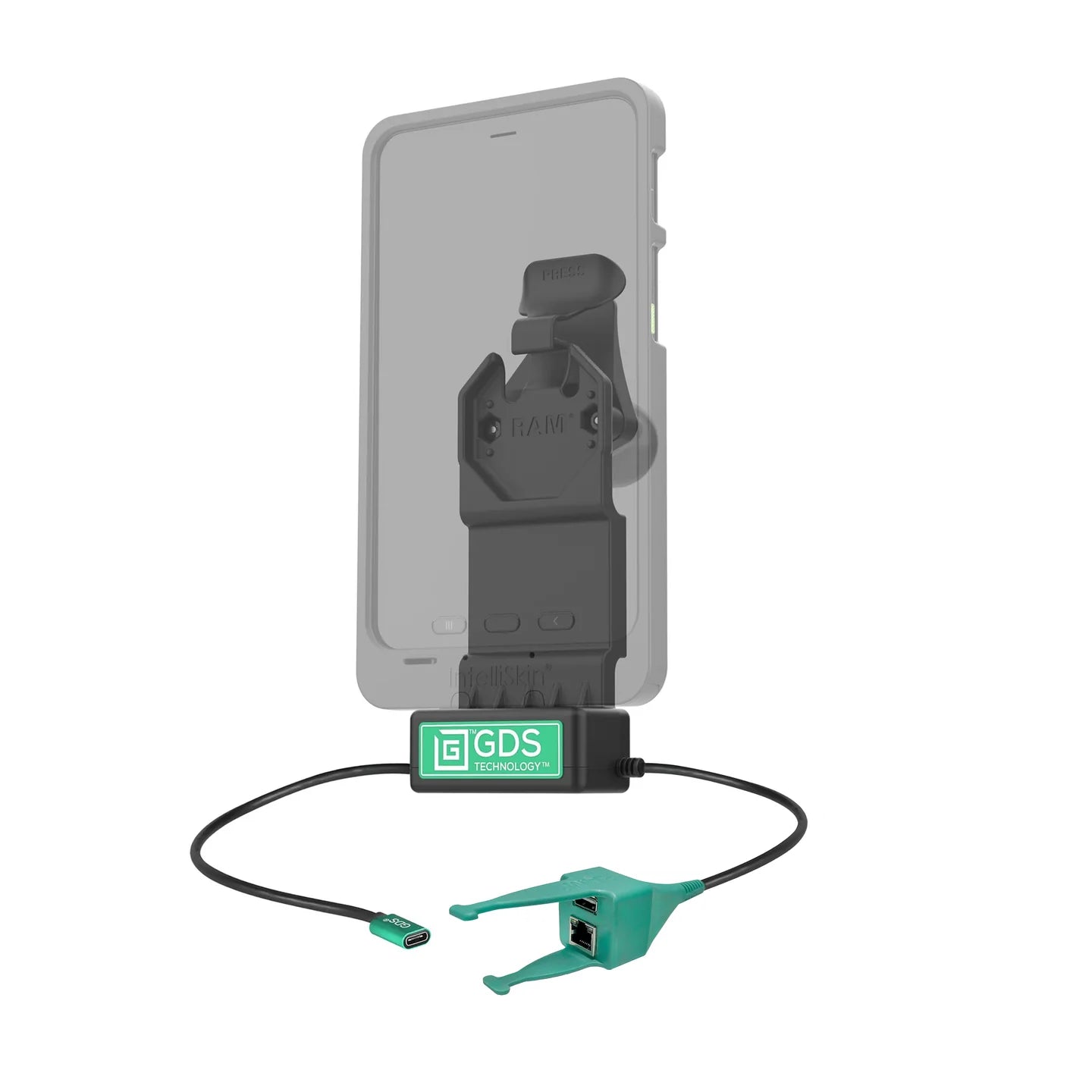

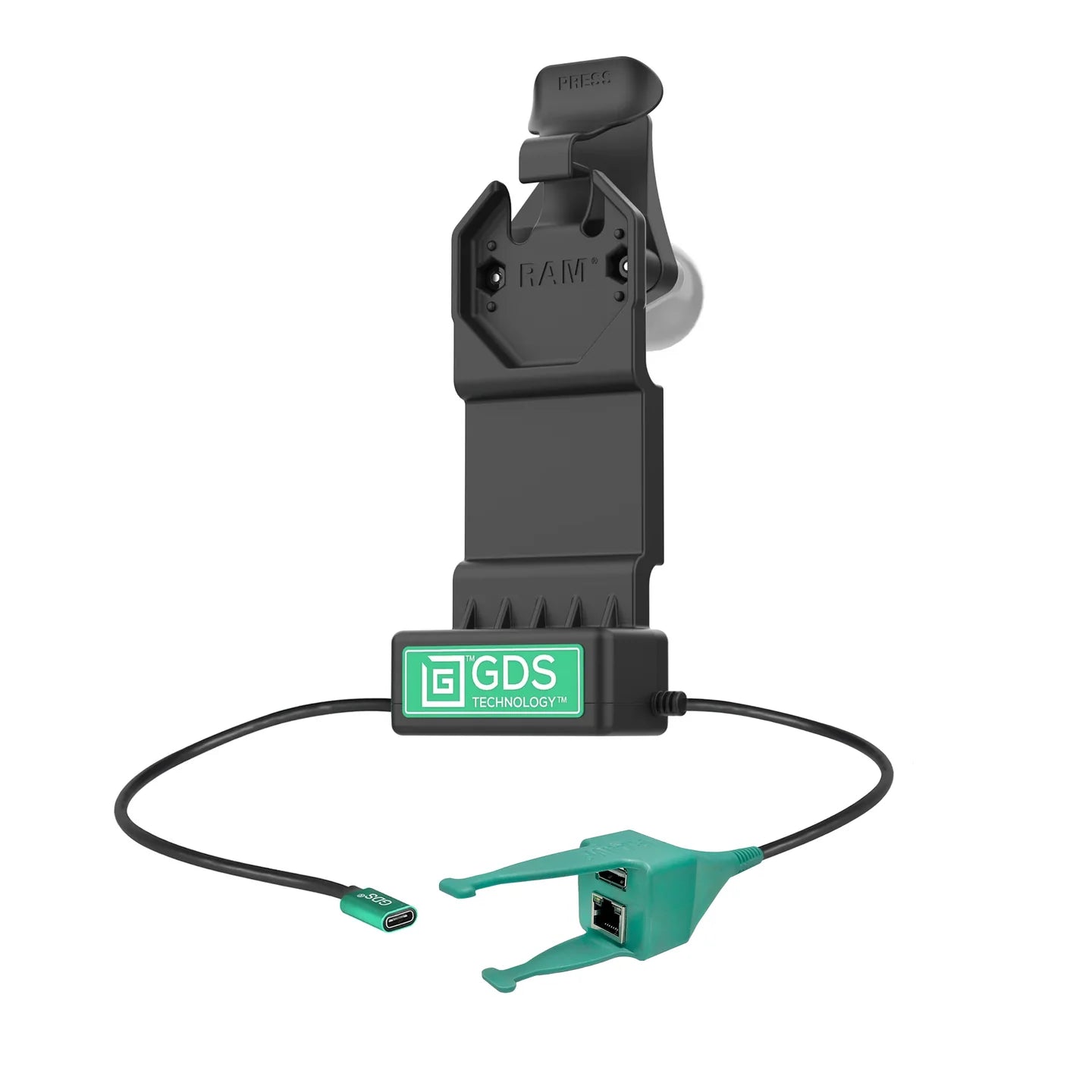

The GDS® Uni-Conn™ Powered Dock with USB-A & RJ45 Data (RAM-GDS-DOCK-U1CP-RJ45AU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It also includes a dual-input pigtail that features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals to your tablet.

It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device.

The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.

• Clip-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB-A peripheral

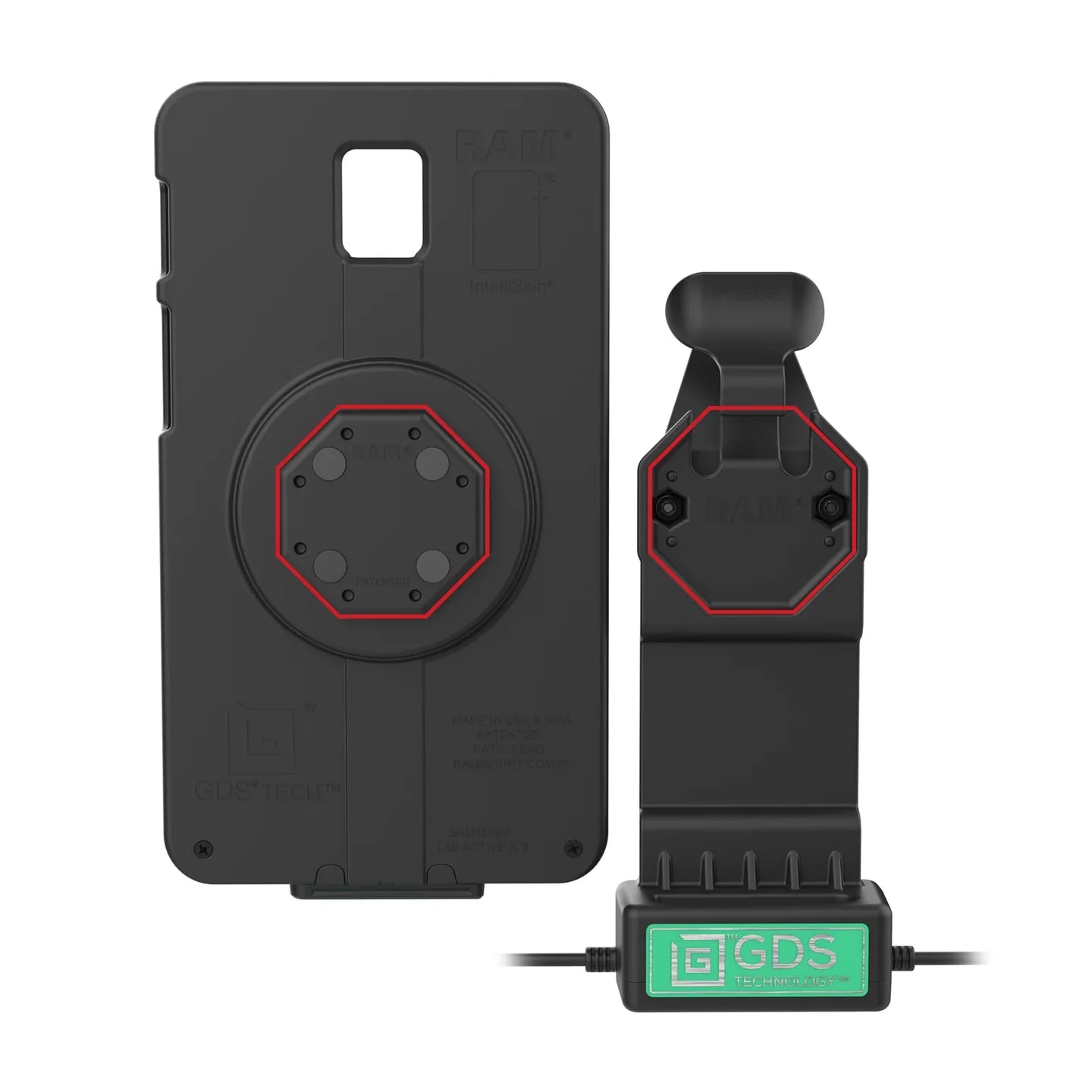

• Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed

• Power delivered via USB-C connector; data and ethernet connects to dual USB-A and RJ45 connector

• RAM® Mounts Compatible™

• Backed by a 3-year warranty

HARDWARE INCLUDED

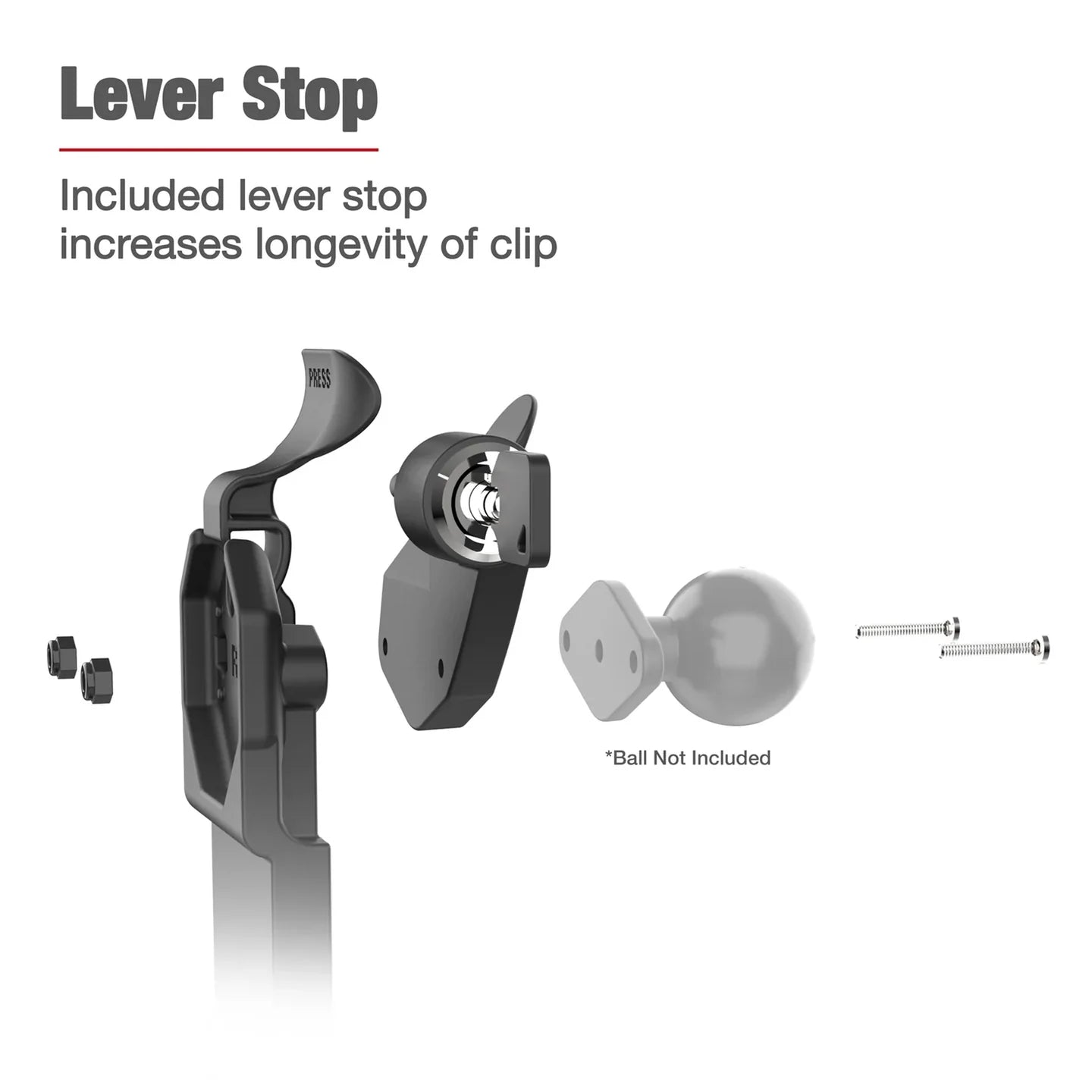

(1) Lever Stop
(2) #8-32 x 1" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit

PRODUCT DIMENSIONS
Overall Width: 3.16"
Overall Height: 8.44"
Overall Depth: 3.03"

HOLE PATTERN
2-Hole AMPS: 1.912"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

OUTPUT VOLTAGE
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max

POWER OUTPUT
15W

INPUT CONNECTOR
USB Type-C (Power In)

INPUT CABLE LENGTH
215mm

OUTPUT CONNECTOR
(1) USB Type-A & (1) RJ45 Female

OUTPUT CABLE LENGTH
215mm

PERIPHERAL OUTPUT
900mAh

WARRANTY
3 year warranty

IMPORTANT INFORMATION
The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts.
