GDS® Uni-Conn™ PTT Vehicle Bundle for Samsung Tab A9 - RAM-GDS-U1-SAM95-KIT3

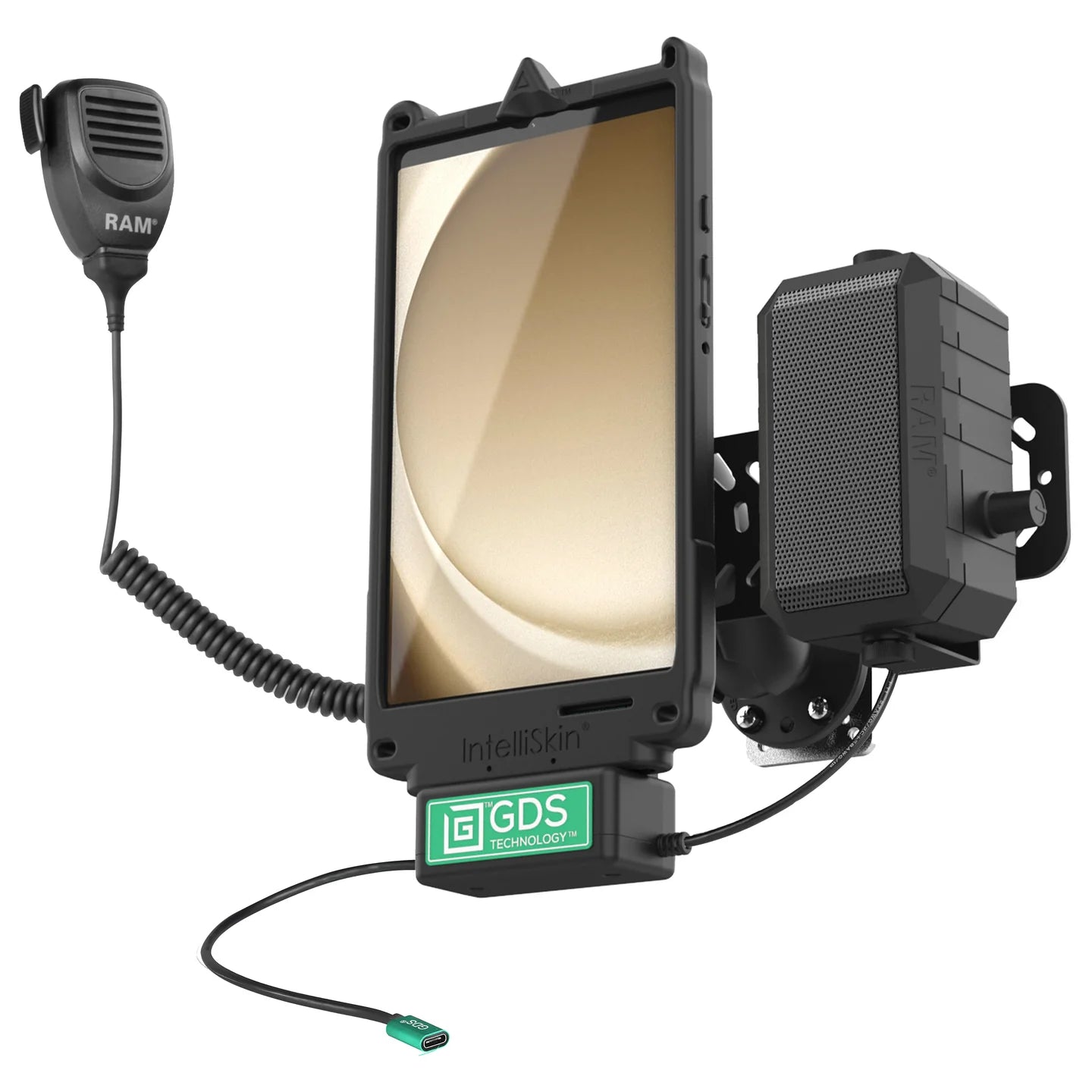

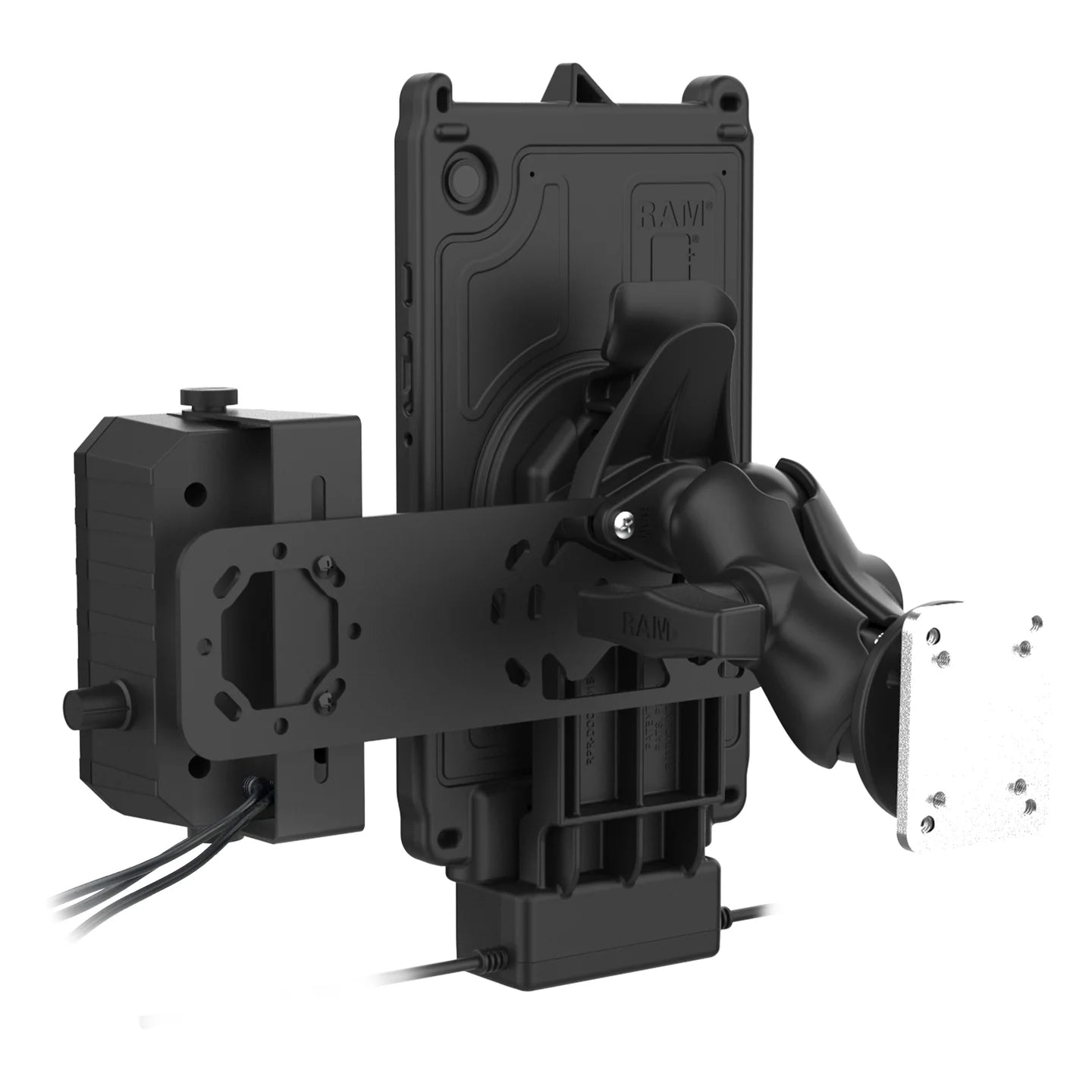

The GDS® Uni-Conn™ PTT Vehicle Bundle for Samsung Tab A9 (RAM-GDS-U1-SAM95-KIT3) is a vehicle dock designed to support the Samsung Galaxy Tab A9 in an IntelliSkin® Next Gen and provide push-to-talk capabilities, ideal for fleets of vehicles. The GDS® Uni-Conn™ uses a USB Type-C power connector to support high speed charging capabilities for the Tab A9 and a single USB Type-A peripheral connector for the RAM® microphone.

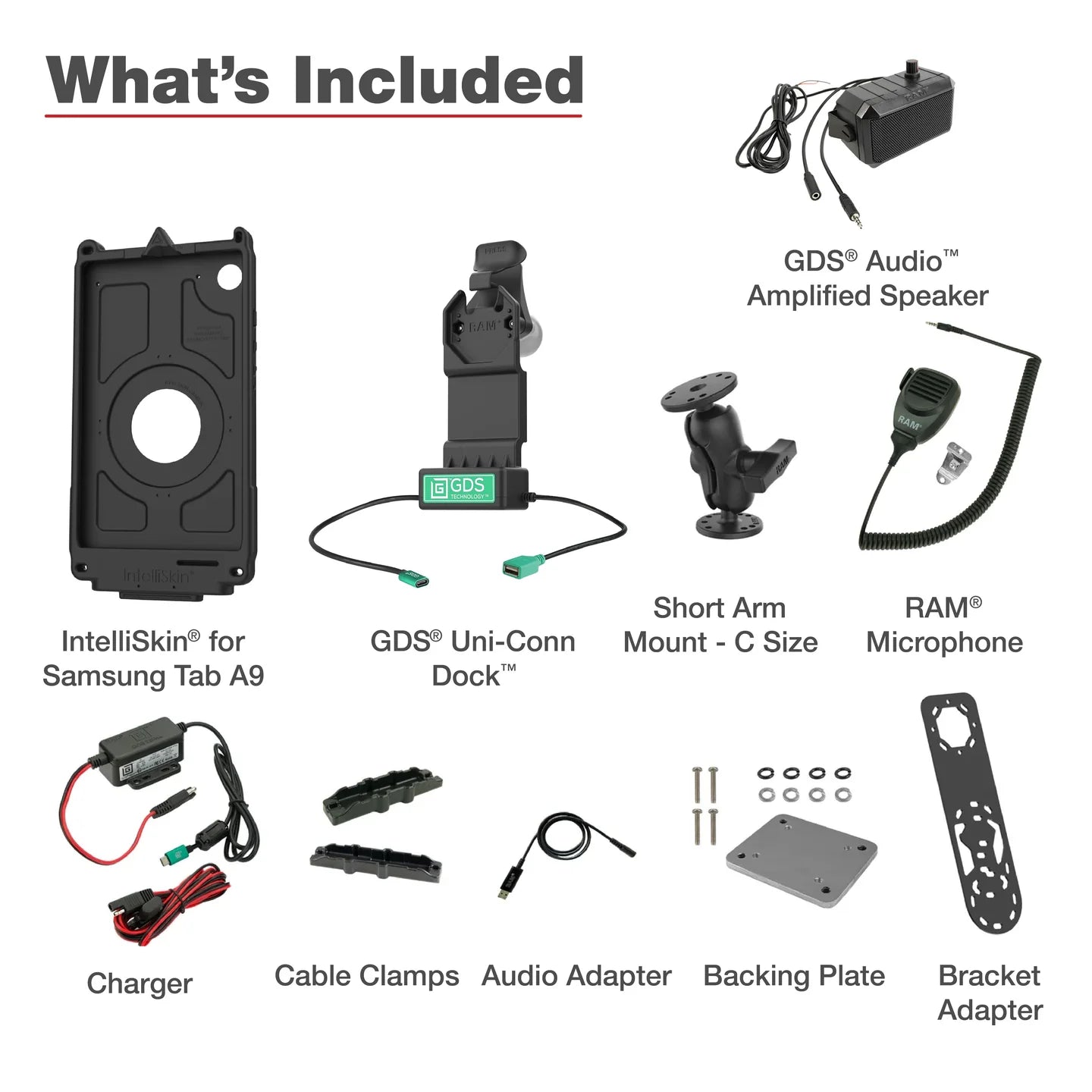

This turnkey solution includes the GDS® Uni-Conn™ dock, Uni-Conn™ Adapter IntelliSkin® Next Gen for Samsung Tab A9, GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps. The GDS® Uni-Conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®

• Bundle includes the GDS® Uni-Conn™ dock, IntelliSkin® Next Gen for Samsung Tab A9, GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps

• Features Push-To-Talk capabilites via GDS® Audio™ Amplified Speaker with PTT Breakout Feature

• Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power

• RAM® Mounts Compatible™ and compatible with the GDS® Uni-Conn™ Adapter with Hand Strap

• Back by a 3-year warranty

hardware included:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger

socket to socket length:
2.5"

hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:
C Size (1.5")

materials:
Steel
Marine-grade aluminum
High strength composite

packaging type:
Box

output voltage:
5V - 12V @ 3A max

power output:
15W

input connector:
USB Type-C
USB Type A for 1 Peripheral

input cable length:
215mm

output cable length:
215mm

Warranty:
3 year warranty

Weight:
5.99 lb

IntelliSkin® Next Gen for Samsung Tab A9 - RAM-GDS-SKIN-SAM95-NG

GDS® Uni-Conn™ Adapter for IntelliSkin® - RAM-GDS-U1U

GDS® Uni-Conn™ Powered Dock - RAM-GDS-DOCK-U1CPU

Short RAM® Speaker/Microphone Bracket Adapter - RAM-101-MIC1U

RAM® Microphone with Steel Mounting Clip - RAM-MIC-A01

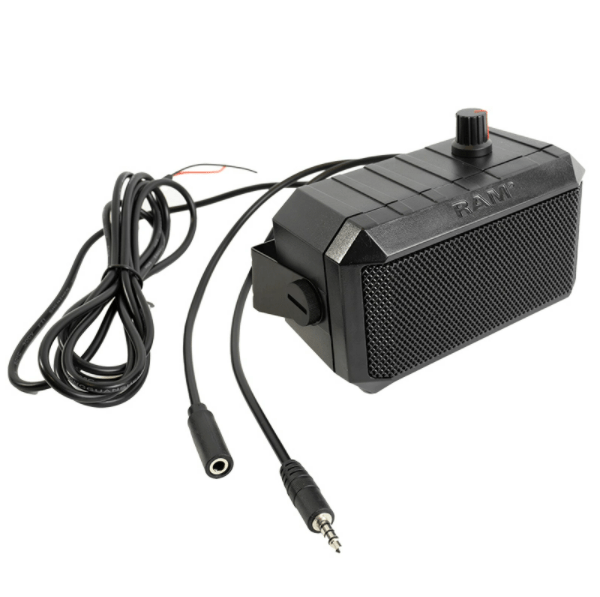

GDS® Audio™ Amplified Speaker with PTT Breakout Feature - RAM-SPEAK-A02

RAM® Double Ball Mount with Diamond Plate Adapter - RAM-138U-B

GDS® Modular 10-30V Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V7CU

Samsung Galaxy Tab A9

Cable Clamp Instructions

Push To Talk Vehicle Bundle Assembly Guide
