GDS® Uni-Conn™ PTT Vehicle Bundle for Samsung Tab Active5 - RAM-GDS-U1-SAM90-KIT3

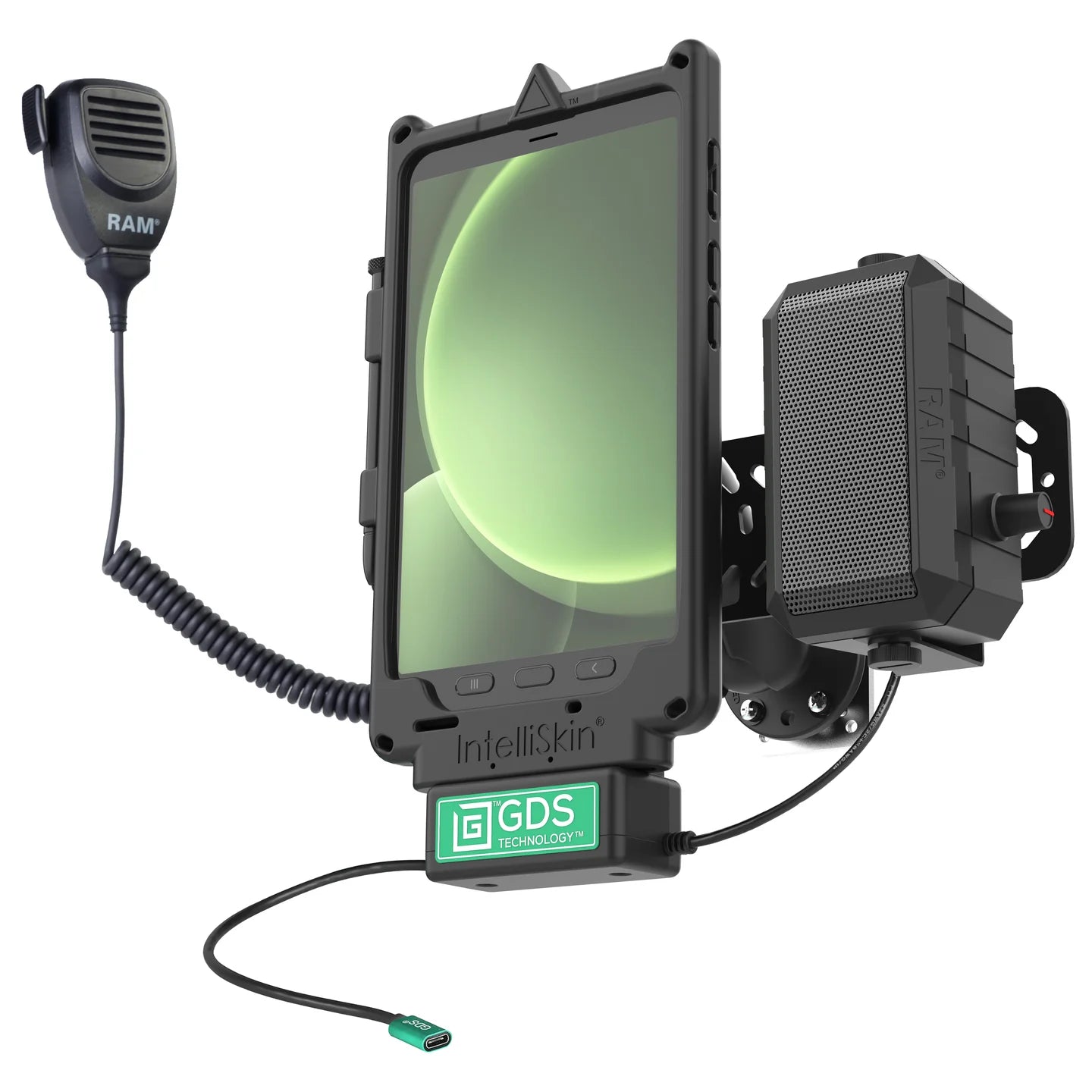

The GDS® Uni-Conn™ PTT Vehicle Bundle for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT3) is a vehicle dock designed to support the Samsung Galaxy Tab Active5 in an IntelliSkin® Next Gen and provide push-to-talk capabilities, ideal for fleets of vehicles. The GDS® Uni-Conn™ uses a USB Type-C power connector to support high speed charging capabilities for the Tab Active5 and a single USB Type-A peripheral connector for the RAM® microphone.

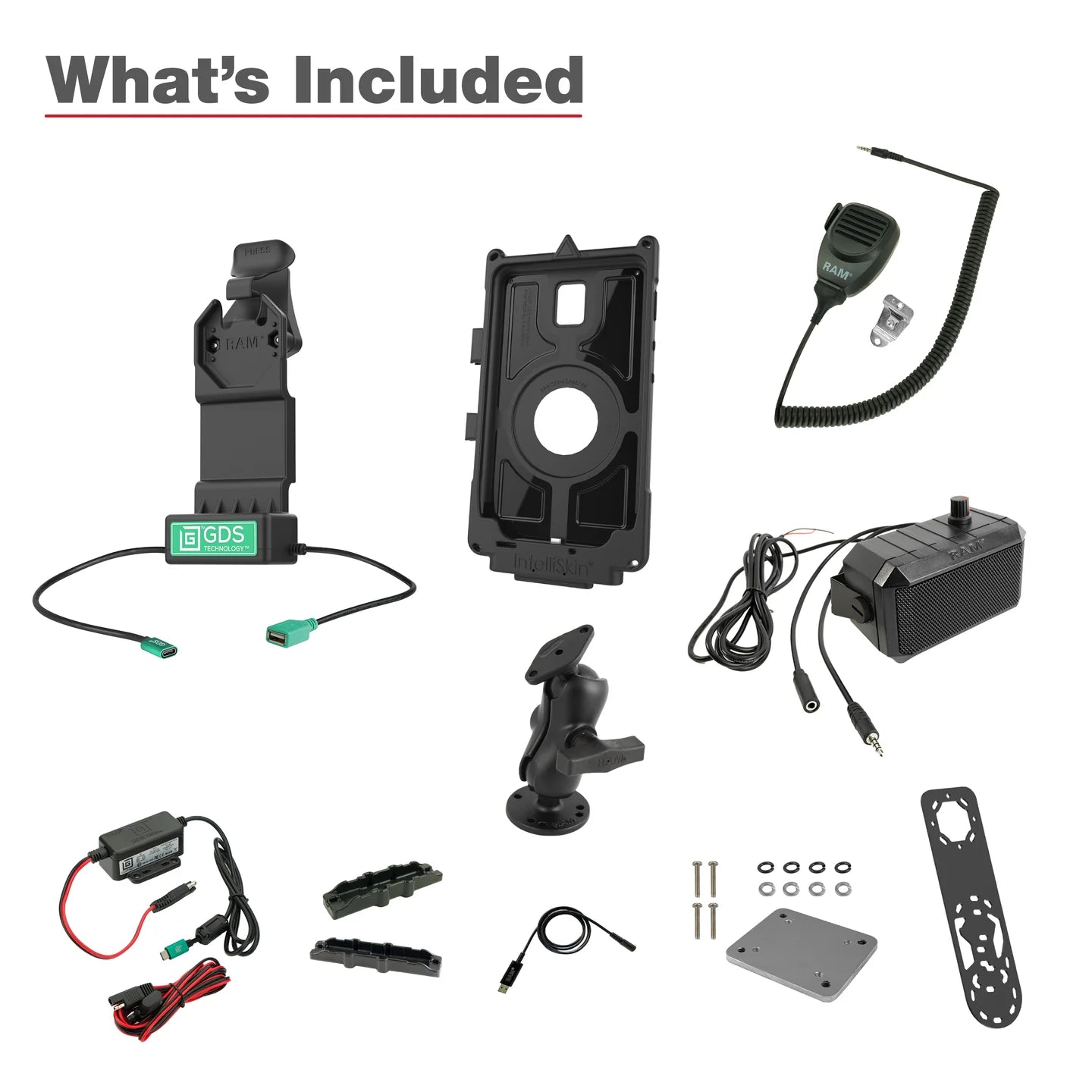

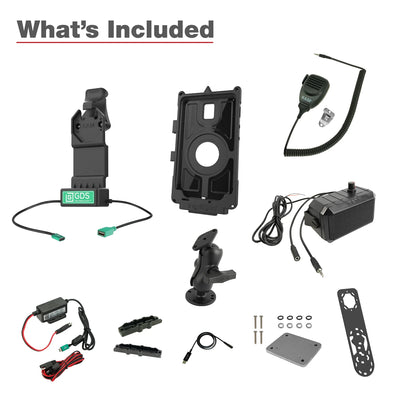

This turnkey solution includes the GDS® Uni-Conn™ dock, Uni-Conn™ Adapter IntelliSkin® Next Gen for Samsung Tab Active5, GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps. The GDS® Uni-Conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®

• Bundle includes the GDS® Uni-Conn™ dock, IntelliSkin® Next Gen for Samsung Tab Active5, GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps

• Features Push-To-Talk capabilites via GDS® Audio™ Amplified Speaker with PTT Breakout Feature

• Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power

• RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment

• Back by a 3-year warranty

HARDWARE INCLUDED
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger

SOCKET TO SOCKET LENGTH
2.5"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL SIZE
C Size (1.5")

MATERIALS
Steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Box

OUTPUT VOLTAGE
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
Peripheral: 5V @ 900mA max

POWER OUTPUT
15W

INPUT CONNECTOR
USB Type-C
USB Type A for 1 Peripheral

INPUT CABLE LENGTH
215mm

OUTPUT CABLE LENGTH
215mm

Samsung Tab Active5

IntelliSkin^® Next Gen for Samsung Tab Active5 - RAM-GDS-SKIN-SAM90-NG

GDS^® Uni-Conn^™ Power + Single USB-C Dock - RAM-GDS-DOCK-U1CP-CU

RAM^® Short Bracket Adapter for Speakers & Microphones - RAM-101-MIC1U

RAM^® Microphone with Steel Mounting Clip - RAM-MIC-A01

GDS^® Audio^™ Amplified Speaker with PTT Breakout Feature - RAM-SPEAK-A02

RAM^® Double Ball Mount with Diamond Plate Adapter - Short - RAM-138U-B

GDS^® Modular 10-30V Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V7CU

Cable Clamp Instructions
