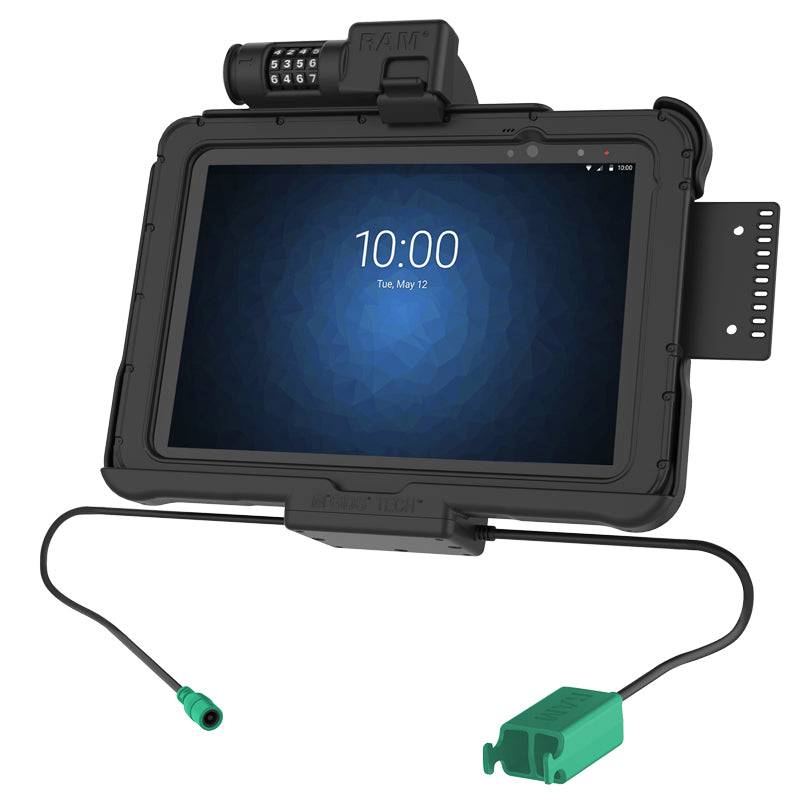

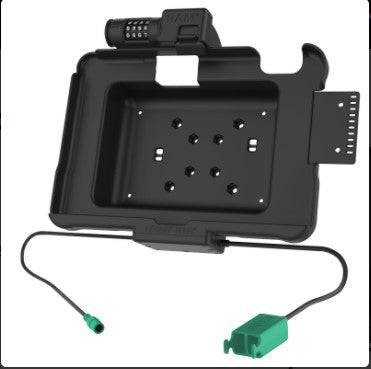

GDS® Combo Locking Power + Dual USB Dock for Zebra ET5x 10.1" Series - RAM-HOL-ZE11PD2CLU

• Combination locking powered dock featuring GDS® Technology™ for data and charging capabilities for the Zebra ET5x 10.1" series tablets with Rugged Frame via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals
• When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked

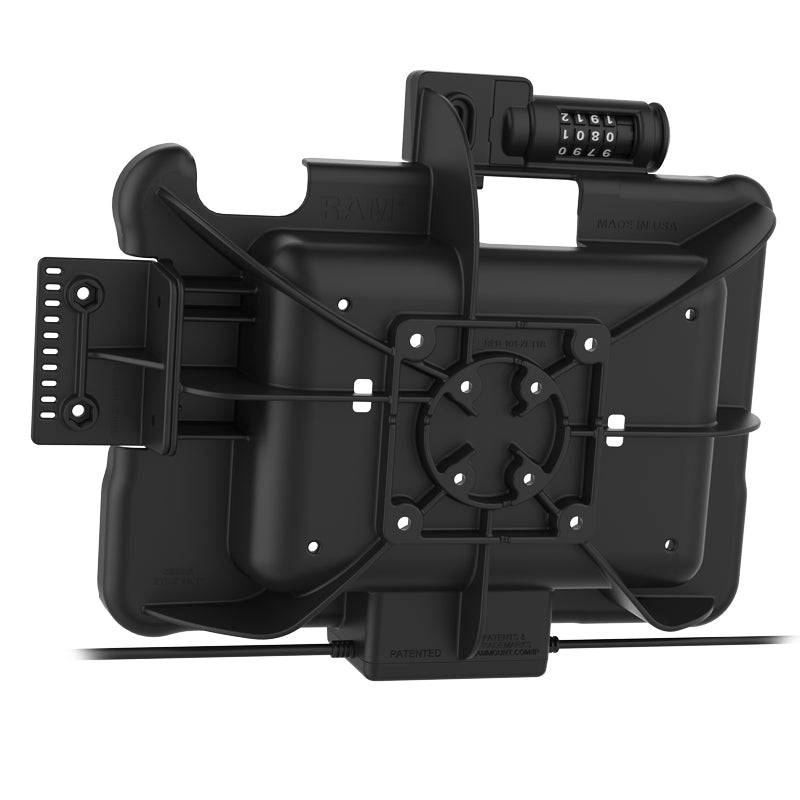

• Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
• Backed by a 3-year warranty

OVERVIEW

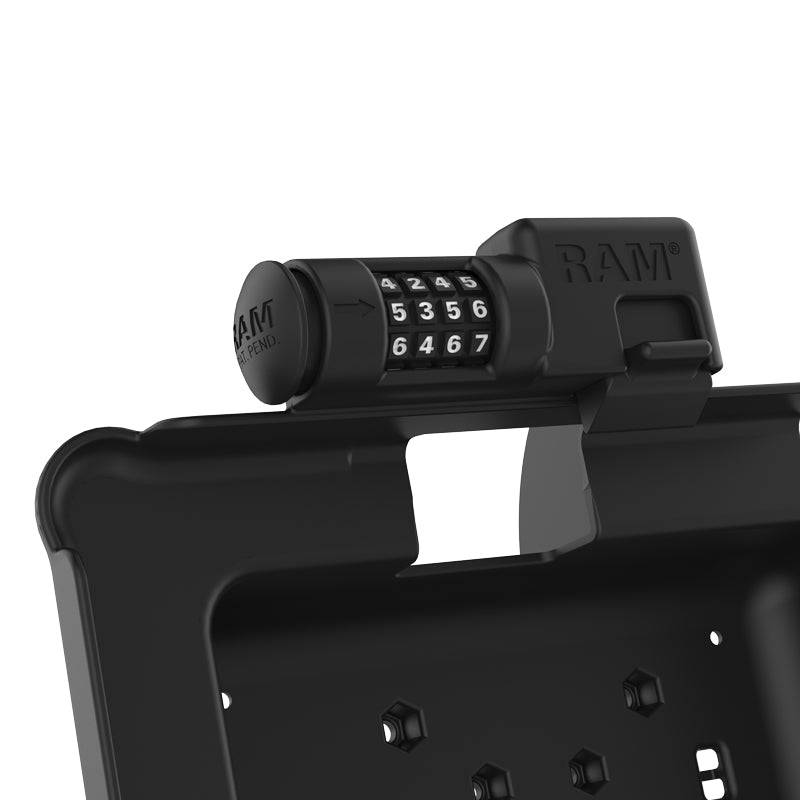

Featuring GDS^® Technology^™ for data and charging capabilities and a combination lock for theft deterrence, the GDS^® Vehicle Dock for Zebra ET5x 10.1" series tablets allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type A cable. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM^® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM^® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM^® 2-hole diamond bases for device mounting and features a cable management system.

HARDWARE INCLUDED

(1) Side bracket for accessory mounting and strain relief
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(6) Small Cable Ties
(2) Large Cable Ties

HOLL PATTERN

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT CONNECTOR

5.5mm DC Connector

OUTPUT CONNECTOR

(2) USB 2.0 Type A

TRANSFER SPEED

12Mbps

WARRANTY STATUS

3 year warranty

Zebra

 Sell Sheet - PDF

 Assembly Instructions for Zebra Dock - PDF

 Combination Lock Instructions - PDF

 Dual USB Data Cable Management Instructions - PDF

RAM® 4" Square Post Clamp Mount With 75x75mm VESA Plate - RAM-D-2461U-C-247-4

RAM C Size 1.5" Ball Mount With 2.5" Round Plate AMPs Hole Pattern & 3.625" Square Plate VESA 75mm X 75mm Hole Pattern - RAM-101U-2461

RAM 1.5" Ball Mount, Long Double Socket Arm, 2.5" Round Plate w/AMPs Hole Pattern & 3.625" Square Plate VESA 75mm Hole Pattern - RAM-101U-D-2461

RAM 1.5" Ball Mount, Short Double Socket, 2.5" Round Plate AMPs Hole & 3.625" Square Plate VESA 75mmx75mm Pattern - RAM-101U-B-2461

RAM® Tele-Pole™ with 8" & 9" Poles, Swing Arm & 75x75mm VESA Plate - RAM-VP-SW2-89-2461

RAM® Tele-Pole™ With 8” & 9” Poles And Double Ball 75x75mm VESA Mount - RAM-VP-SW2F-89-2461

RAM® Tele-Pole™ with 4” & 5” Poles and Double Ball 75x75mm VESA Mount - RAM-VP-SW2F-45-2461

RAM D Size 2.25" Ball Mount with 3.68" Round Plate, Medium Length Double Socket Arm & 3.625" Square Plate VESA 75mm X 75mm - RAM-D-101U-2461
RAM® Universal Backing Plate Mount with 75x75mm VESA Plate - RAM-101-2461-225BU

RAM 1.5" Ball Medium Length Double Socket Arm with 2.5" Round Base AMPs Hole Pattern) - RAM-103U

RAM 1.5" Ball Short Length Double Socket Arm with 2.5" Round Base AMPs Hole Pattern) - RAM-103U-B

RAM® Double Socket Arm with Round Ball Plate - RAM-103U-D

RAM 1.5" Ball Short Length Double Socket Arm with 75mm X 75mm VESA 3.625" Plate - RAM-103U-B-2461

RAM 1.5" Ball Long Length Double Socket Arm with 75mm X 75mm VESA 3.625" Plate - RAM-103U-D-2461

RAM 2.5" Round Base AMPs Hole Pattern, Steel Reinforced Post & C Size 1.5" Ball - RAM-202U-IN1

RAM Double U-Bolt Base With 1.5" Ball For Rails From .75" To 1.25" In Diameter - RAM-235U

RAM Medium Tough-Claw™ with 1.5" Diameter Rubber Ball - RAP-404U

RAM Large Tough-Claw™ With 1.5" Diameter Rubber Ball - RAP-401U

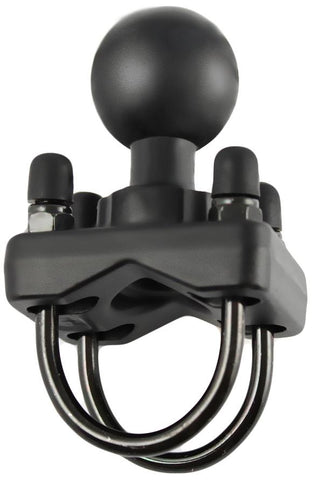

RAM Zinc Coated U-Bolt Base With 1.5" Ball For Rails From 1.25" To 1.5" In Diameter - RAM-235-1U
