Hardwire charger includes USB Type-A female connector and 1m long USB Type C extension cord; 30V-64V input range, 5V output
When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
Backed by a 3-year warranty
PRODUCT INFORMATION
OVERVIEW

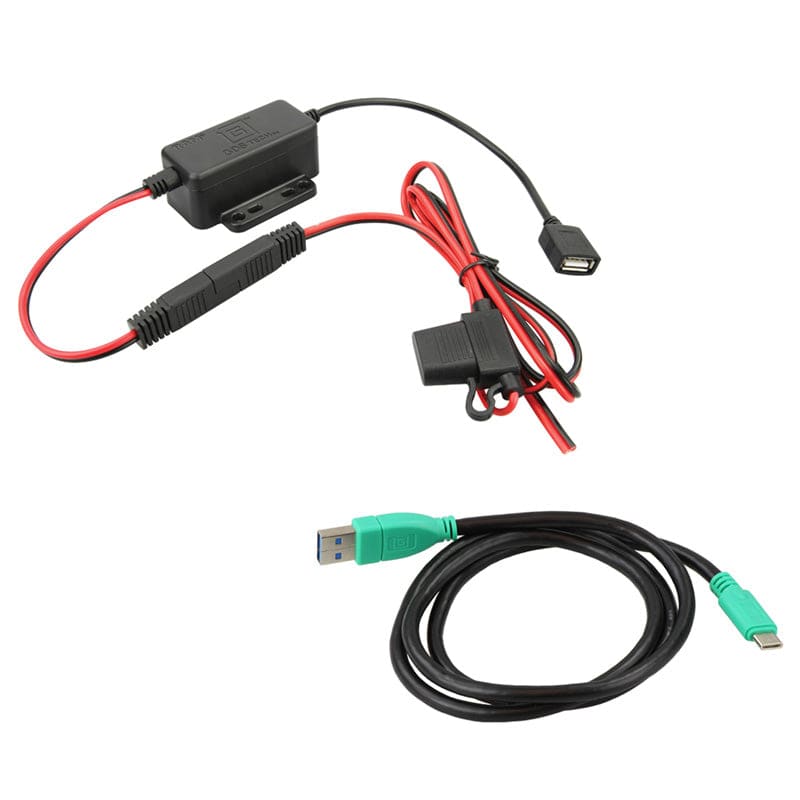

The GDS®Modular Hardwire Charger with Female USB Type A Connector is the ideal solution for providing power to any GDS®vehicle solution. With the quick disconnect feature you can avoid rewiring with it comes to to upgrade by simply unplugging the SAE connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Includes 1 meter long USB Type C extension cord.
PACKAGING TYPE
Poly Bag
INPUT VOLTAGE
30V-64V DC
OUTPUT VOLTAGE
5-9VDC
OUTPUT CURRENT
2.5A max
INPUT CONNECTOR
USB Type-C
INPUT CABLE LENGTH
1.2 Meters including 2 Pole Flat Marine Connector
OUTPUT CABLE LENGTH
.2 Meters
OPERATING TEMPERATURE
-10°C to +70°C
STORAGE TEMPERATURE
-40°C to +70°C
COMPLIANCE
Over Voltage Protection Short Circuit Protection Reverse Polarity Protection RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture Resistant
CERTIFICATIONS
CE Certification e-Mark Certification RCM Certification FCC Certification
