RAM® Aqua Box® Pro 20 Mount with Drill-Down Base - RAM-B-138-AQ7-2

OVERVIEW

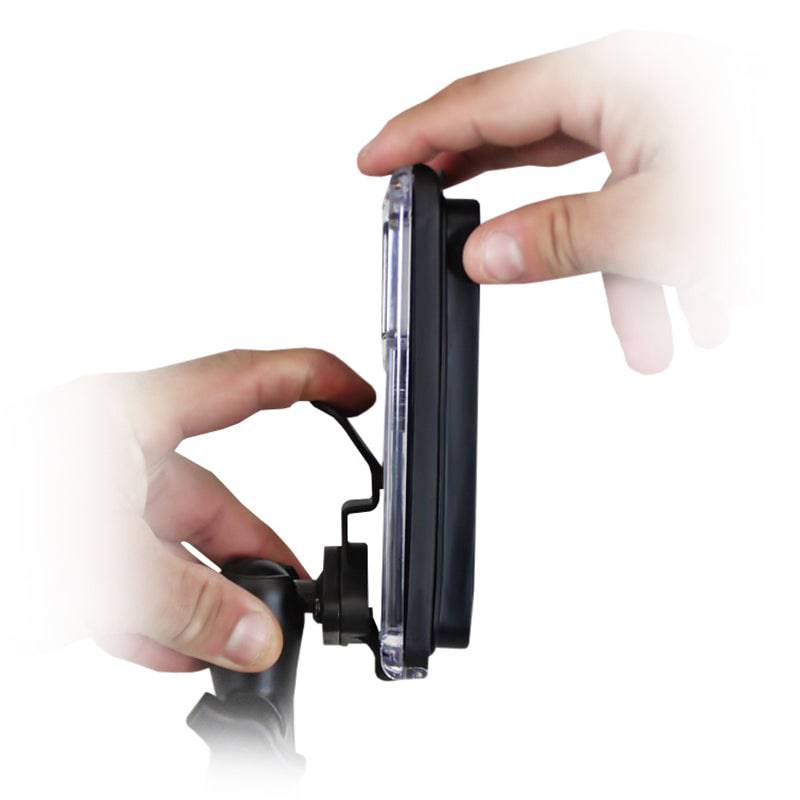

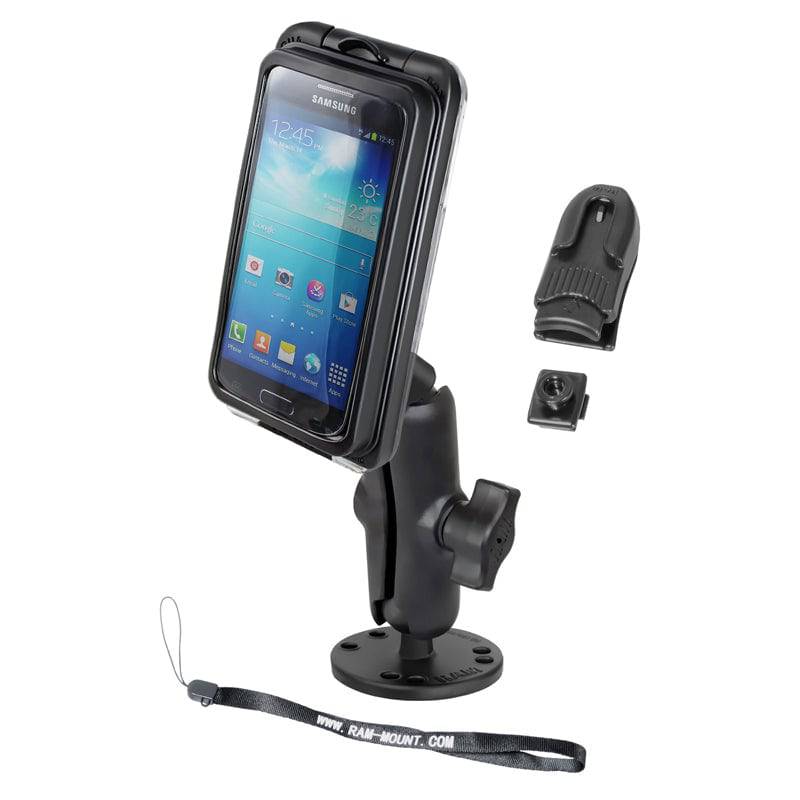

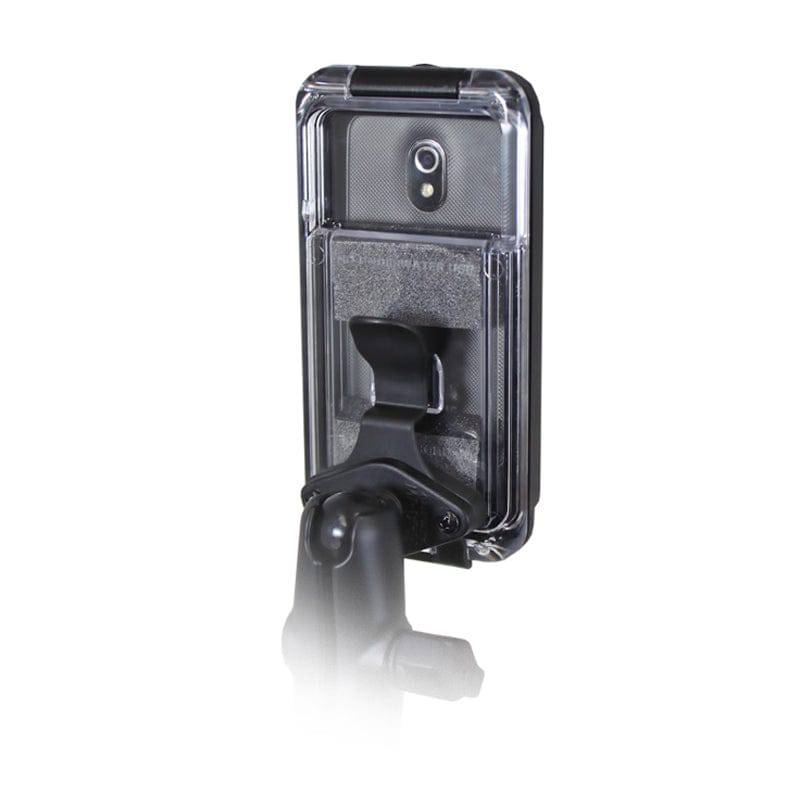

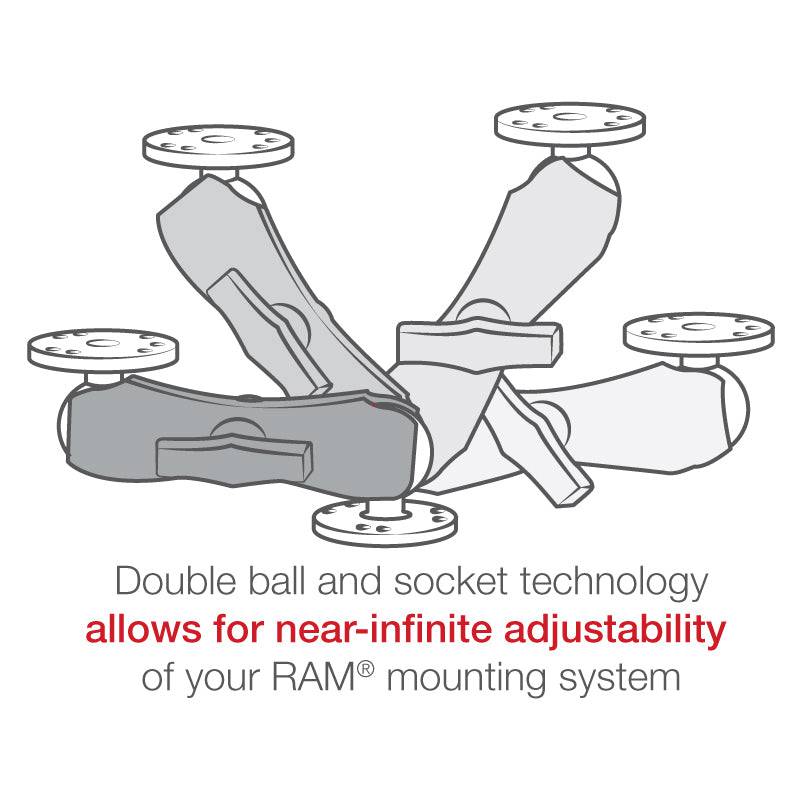

The RAM-B-138-AQ7-2 consists of a 2.5" diameter round base that contains the universal AMPS hole pattern, double socket arm, diamond adapter base and AQUA BOX^® Pro 20 case. The included cradle clip attaches directly to the mount, and serves as a quick release mechanism, allowing you to quickly insert or release the AQUA BOX^® case. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

Assembly Hardware
(1) Belt Clip Adapter
(1) Wrist Strap
(1) 1" x 5" Foam Strip

INTERNAL DIMENSIONS

Width: 2.8"
Height: 5.38"
Depth: 0.55"

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Retail Bag

WEIGHT

1.5 lbs.
