RAM® ATV/UTV Double Ball Rail Mount with 9mm Angled Bolt Head Adapter - RAM-B-180-231Z-2NUBU

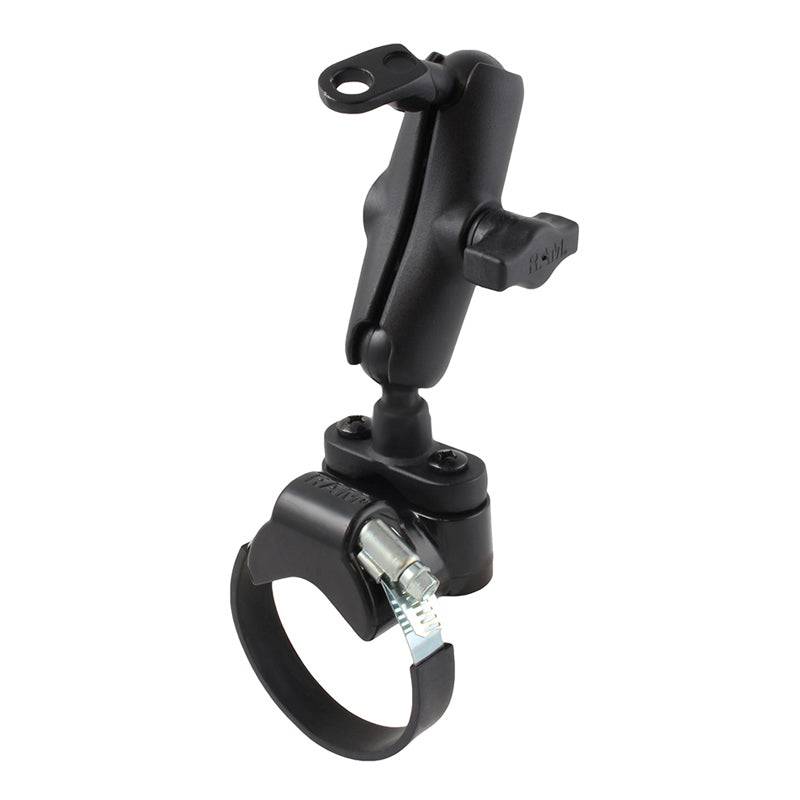

The RAM-B-180-231Z-2NUBU consists of a steel strap base, u-bolt bases, double socket arm and 1" diameter ball base with 9mm hole. Designed for a clean installation, the RAM strap mount will accommodate most common rollbar sizes on UTV's, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATV's using the included hardware. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip

CLAMP RANGE

1.57" - 3.15"

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.7 lbs.
