RAM Double Socket Arm for B Size 1" Balls - RAM-B-201U

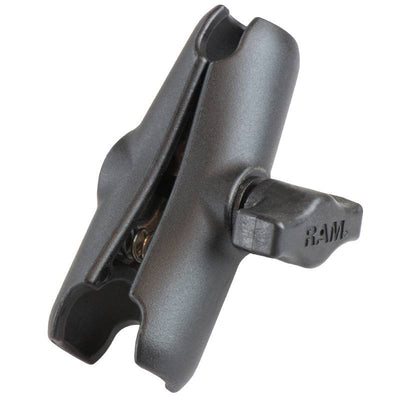

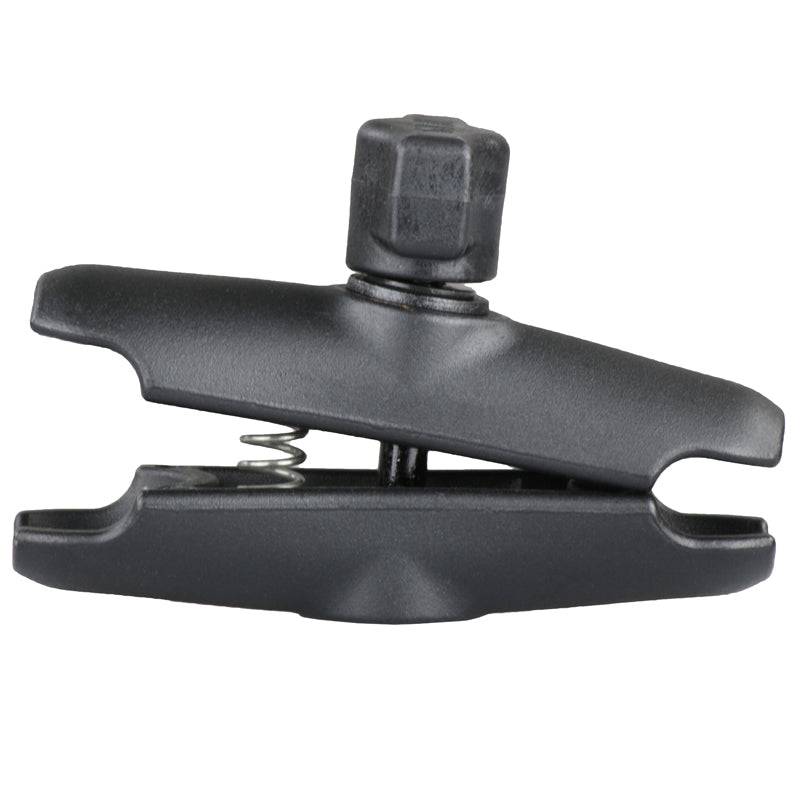

The RAM-B-201U, Medium length double socket arm, has a socket at both ends that accommodates B Size 1" balls. A single spring inside the arm, keeps the socket open, allowing you to incert the ball in to the socket connection. RAM's socket technology allows for almost infinite adjustment to achieve the perfect viewing angle.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
0.31 lbs.

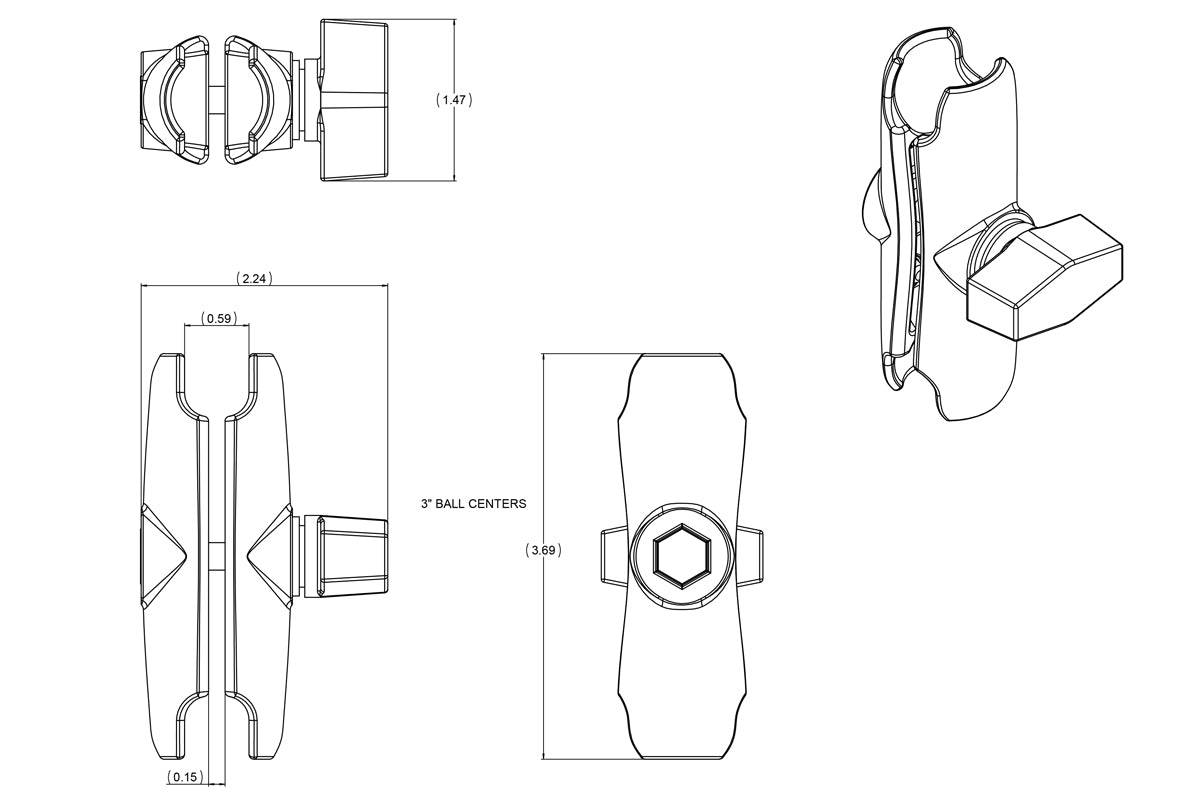

Dimensions:
Overall Length: 3.69"
Socket-To-Socket Length: 3"

RAM® Standard Length Double Socket Arm B-Size

RAM Double Socket Arm for 1" Ball Bases. Overall Length: 3.69"

RAM® Mounts: Ball Sizes & Weight Capacities

Compatible Bases

RAM Rail Base with B Size 1" Ball. Zinc Coated U-Bolt for Rails from 0.5" to 1.25" in Diameter - RAM-B-231ZU

RAM Motorcycle Brake/Clutch Reservoir Base with 1" Ball - RAM-B-309-1U

RAM V-Shape Base with 1" Ball for Rails and Yokes - RAM-B-108BU

RAM 3.3" Diameter Suction Cup Base with B Size 1" Ball - RAM-B-224-1U

RAM Motorcycle Handlebar Clamp Base with M8 Screws - RAM-B-367U

RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U

RAM Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1" Ball for Rails to 3.15" in Diameter - RAM-B-231Z-2U

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

RAM 2.25" x 0.87" Motorcycle Base with 11mm Hole and 1" Ball - RAM-B-252U

RAM Motorcycle Brake/Clutch Reservoir Cover Base with 1" Ball Offset - RAM-B-346U

RAM T-KNOB, BOLT, WASHERS & SPRING - RAM-B-2-1

RAM Double Socket Arm Without Bolt, Knob Or Spring For B Size 1" Balls - RAM-B-201U-WD1
