      RAP-B-138-GA12U

      RAM® Composite Drill-Down Mount for Garmin GPSMAP 60 Series + More - RAP-B-138-GA12U

      More on the way!    ( Chat Live to get an ETA )

      Low Price Guarantee: Submit a price match for this RAM Mount Item.

      OVERVIEW

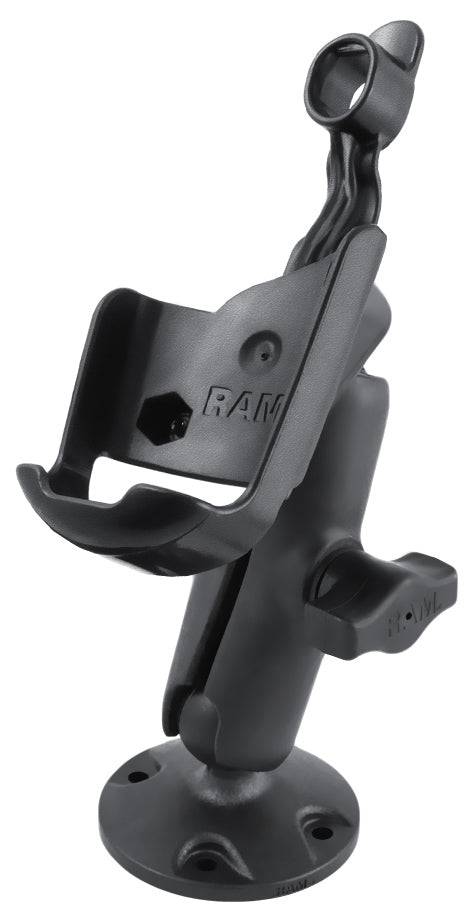

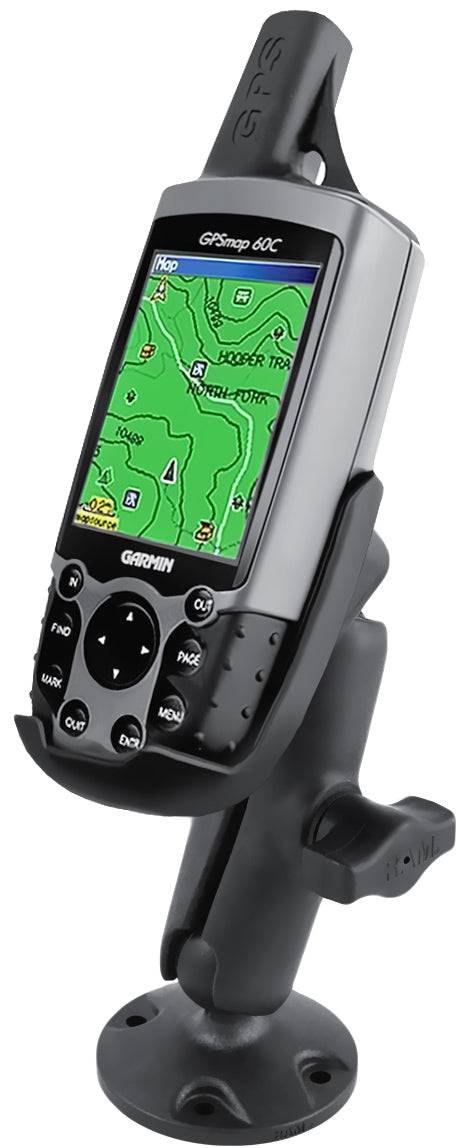

      The RAP-B-138-GA12 consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm, diamond adapter base and high strength composite cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

      HARDWARE INCLUDED

       Assembly Hardware


      SOCKET-TO-SOCKET LENGTH

       3"


      HOLE PATTERN

       4-Hole AMPS: 1.181" x 1.496"


      PLATE SIZE

       2.5" Diameter


      BALL/SOCKET SIZE

       B Size (1")


      WEIGHT CAPACITY

       Standard Use: 2 lbs
      Heavy-Duty Use: 1 lb


      MATERIALS

       High strength composite


      PACKAGING TYPE

       Poly Bag


      WEIGHT

       0.76 lbs.


      ADDITIONAL INFORMATION
      • This mount requires the standard belt clip button which is included with the purchase of the GPS unit from Garmin.

      RAM Composite 1" Diameter Ball Mount With Double Socket Arm, 2.5" Round Base & Diamond Base - RAP-B-138U

      RAM Cradle For The Garmin Astro 220, GPS 60, GPSMAP 60, 60C, 60CS, 60CSx And 60Cx - RAM-HOL-GA12U

      Garmin

      Astro 220

      GPS 60

      GPSMAP 60

      GPSMAP 60C

      GPSMAP 60CS

      GPSMAP 60CSx

      GPSMAP 60Cx

      Mixed Combination RAM® Pin-Lock™ Security Knob And Key Knob For 1" Diameter B Size Arms - RAP-S-KNOB3U

      RAM 1" Add-A-Ball™ Accessory Base For Any B-Size Socket Arm - RAM-B-273U

      RAM Small Cable Manager For 2 5/8" Round Plates With AMPs Hole Pattern - RAP-403U

      RAM® Mari-Rivet™ Aluminum Pop Rivets - RAM-MARI-RIVET-4U

      RAM Mari-Nut™ Rubber Expansion Brass Nuts (4 QTY) - RAM-MARI-NUT-4U

      RAM Locking Knob With 1/4-20 Brass Hole For B Size Arms - RAM-KNOB3LU

      3 X 3 Backer Plate W/ AMPS And 1.5" X 2" Hole Patterns With Hardware - RAM-202-225BU
