RAM-B-101B-TAB12U
$68.49 $72.49
In Stock

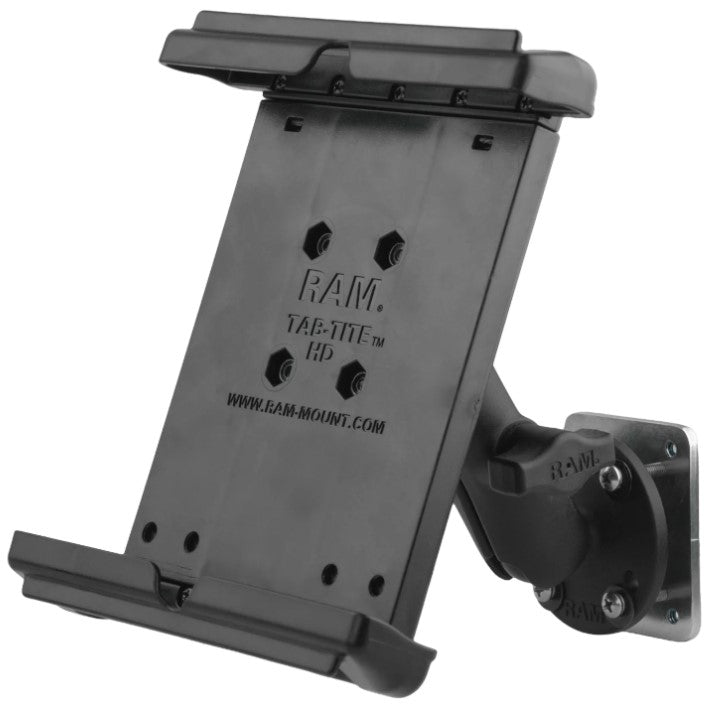

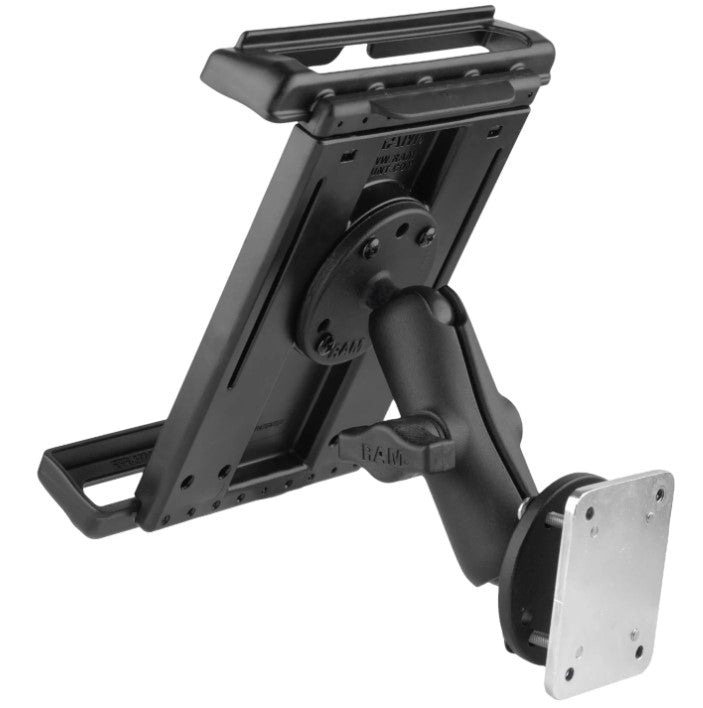

- Ships for Free! * Same Item, Similar Backing Plate: RAM-B-101B2-TAB12U Spring-loaded holder secures most 8" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices Includes 4-hole AMPS pattern ball adapter, B size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty This vehicle kit consists of a RAM® Tab-Tite™ spring loaded holder for 8" tablets with a case, medium B size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter B size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles. iPad mini 6 with Case Fire 7 Kids Fire HD 8 Kids Fire HD 8 with Case MeMO Pad 8 with Case VivoTab 8 with Case Venue 8 with Case Venue 8 (2014) with Case Venue 8 7840 with Case Venue 8 Pro with Case MediaPad M3 with Case MediaPad M3 Lite with Case MediaPad T1 8.0 with Case MediaPad T3 8 with Case Ideapad Miix 300 with Case IdeaTab A2107 with Case Tab 2 A8 with Case Tab 4 8 with Case Tab 4 8 Plus with Case Tab A8-50 with Case Tab S8 with Case Tab3 8 with Case G Pad F 8.0 (2nd Gen) with Case G Pad F2 8.0 with Case G Pad II 8.0 with Case G Pad X II 8.0 with Case Shield Tablet with Case Toughpad FZ-M1 Galaxy Tab 2 7.0 with Case Galaxy Tab 3 8.0 with Case Galaxy Tab A 8.4 with Case Galaxy Tab E 8.0 with Case Galaxy Tab Pro 8.4 with Case
Description
INFORMATION
OVERVIEW
HARDWARE INCLUDED
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate (New smaller backing plate.)
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
Height Range: 7.125" - 9.5"
HOLDER DIMENSIONS
Width Range: 5.06" - 5.68"
Depth Range: .13" - 1"
3"
SOCKET-TO-SOCKET LENGTHHOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
2.5" Diameter
PLATE SIZE
B Size (1")
BALL/SOCKET SIZE
Standard Use: 2lbs
WEIGHT CAPACITY
Heavy-Duty Use: 1lbs
Marine-grade aluminum
MATERIALS
High strength composite
Powder coated steel
Poly Bag
PACKAGING TYPE
1.36lbs.
WEIGHT
COMPONENTS COMPATIBLE DEVICES
Apple
Amazon
ASUS
Dell
Huawei
Lenovo
LG
Nvidia
Panasonic
Samsung
INSTRUCTIONS
