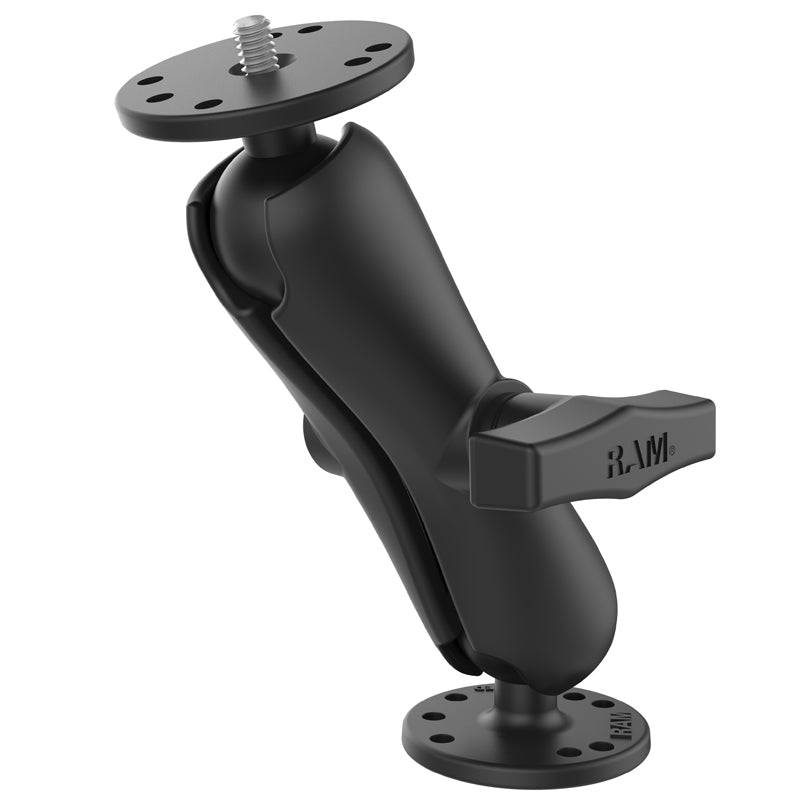

RAM® Double Ball Mount with 1/4"-20 Male Thread - RAM-101AU

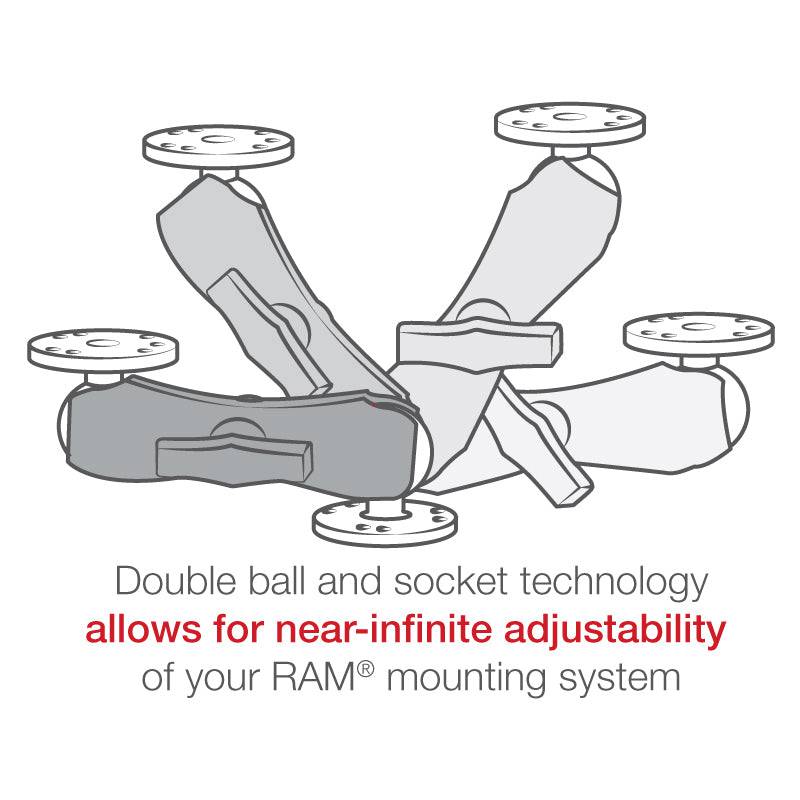

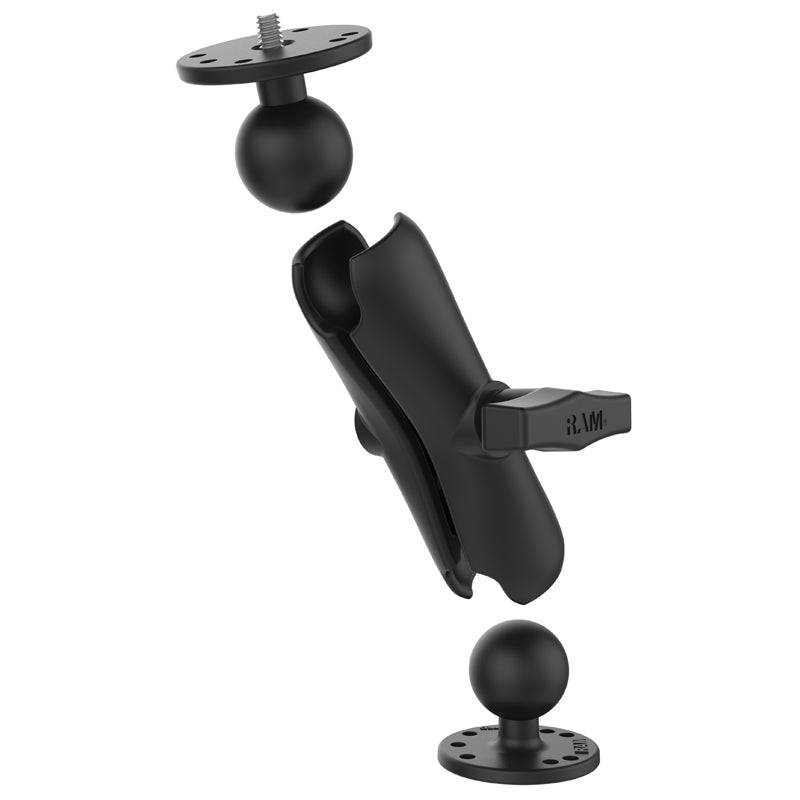

The RAM-101AU consists of a double socket arm mount, one round 2.5" diameter base with the universal AMPS hole pattern and round base with a 1/4"-20 threaded steel stud. The round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.

PRODUCT DIMENSIONS

Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH

4.66"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.1 lbs.
