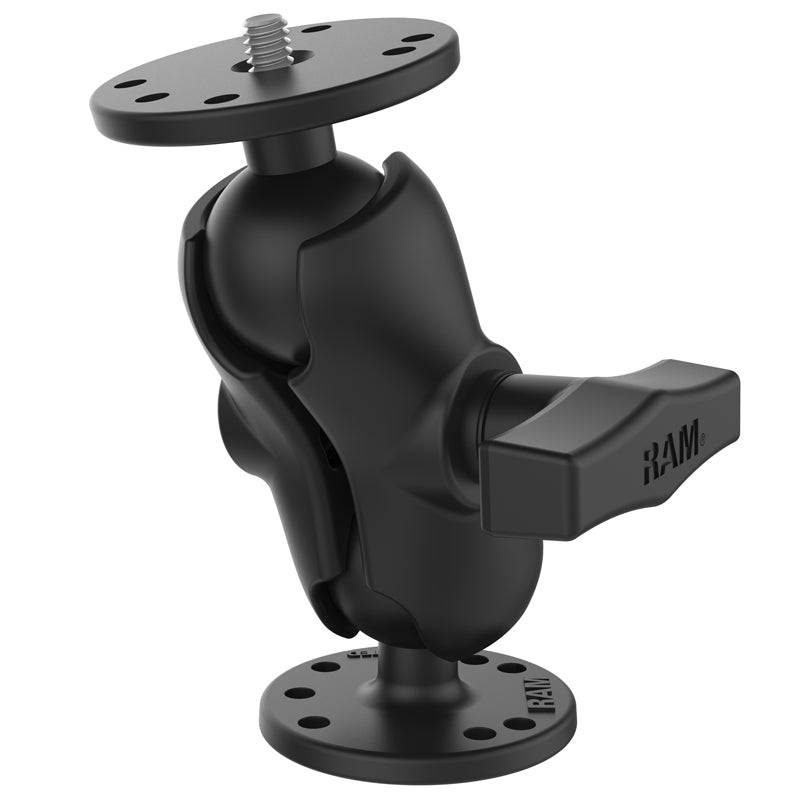

RAM® Double Ball Mount with 1/4"-20 Male Thread - RAM-101AU-B

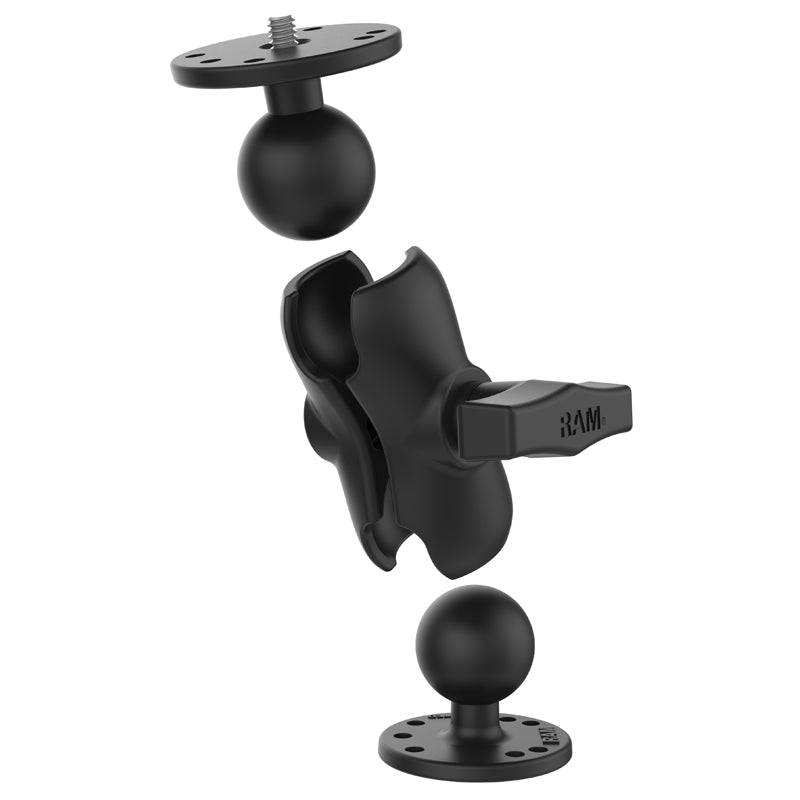

The RAM-101AU-B, powder coated marine grade aluminum mount, consists of a SHORT double socket arm mount, one round 2.5" diameter base with the universal AMPS hole pattern and round base with a 1/4"-20 threaded steel stud. The round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.

PRODUCT DIMENSIONS

Overall Height: 5.225"

SOCKET-TO-SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.9 lbs.
