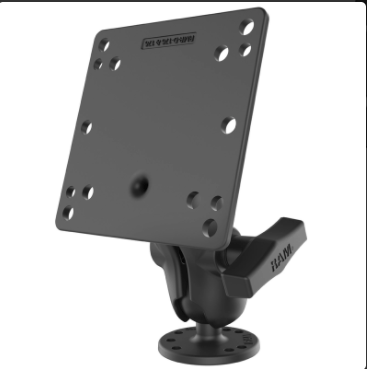

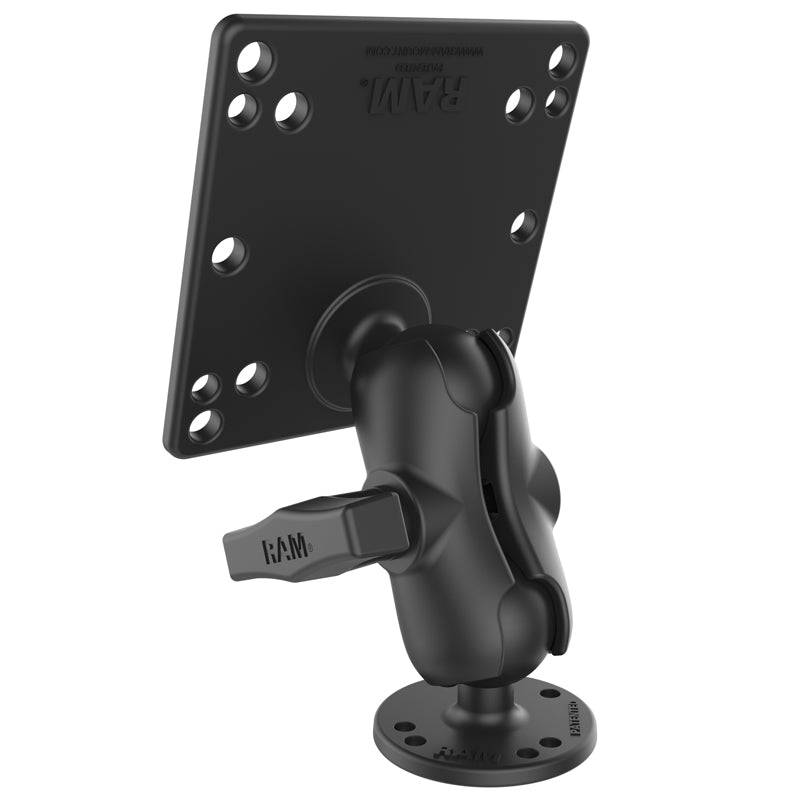

RAM® Double Ball Mount with 100x100mm VESA Plate - RAM-101U-B-246

The RAM-101U-B-246 consists of a 2.5" diameter round base with the universal AMPS hole pattern, SHORT length double socket arm and 4.75" square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern.

Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS

Overall Height: 5.225"

SOCKET-TO-SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.31 lbs.

RAM 4.75" Square Base with VESA (4 X 75mm) (4 X 100mm) Hole Patterns & 1.5" Ball - RAM-246U

RAM Short Double Socket Arm for C Size 1.5" Balls - RAM-201U-B

RAM 2.5" Round Plate with AMPs Hole Pattern & C Size 1.5" Ball - RAM-202U

 Drawing File - 100 x 100mm VESA Plate - PDF
