RAM® Double Ball Strap Hose Clamp Mount with Round Plate - RAM-B-108U-A

OVERVIEW

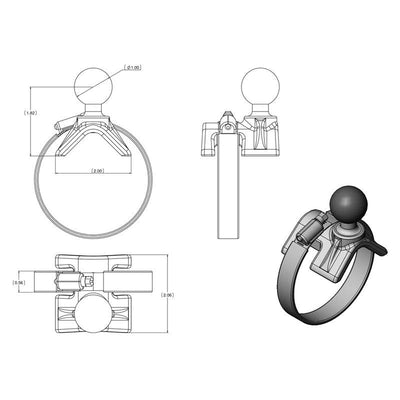

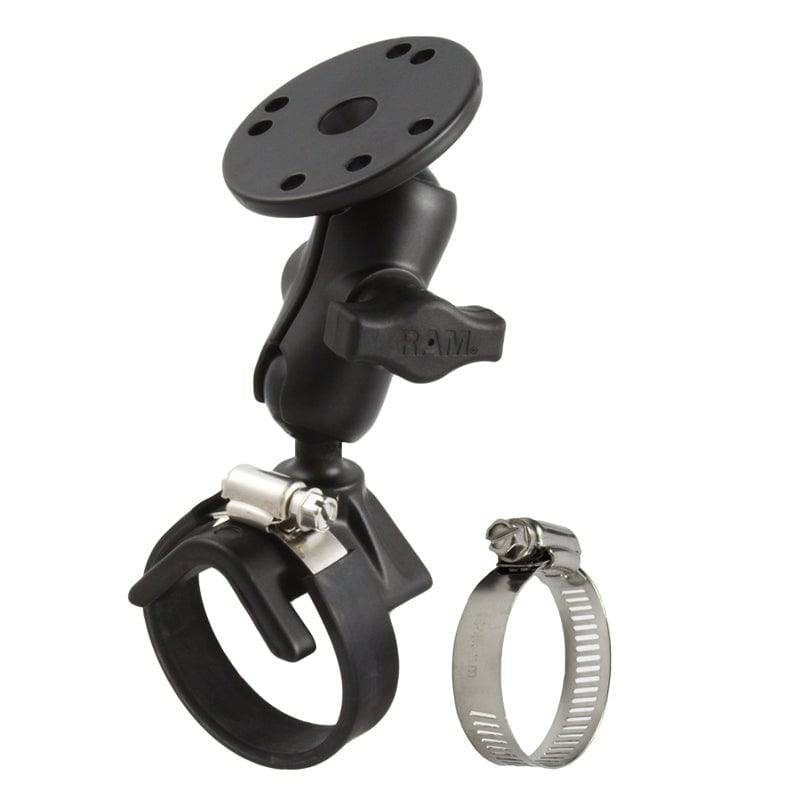

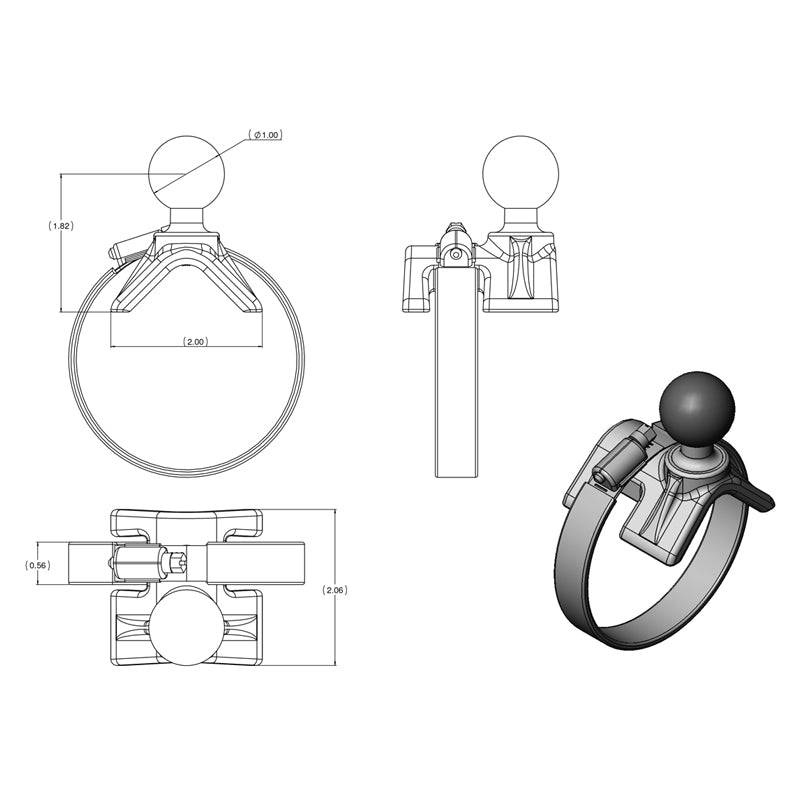

The RAM-B-108U-A consists of a 1" diameter rubber ball connected at a right angle to a v-shaped base, SHORT length double socket arm and 2.5" base that contains the universal AMPs hole pattern. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

CLAMP RANGE

1" - 2.1" diameter

SOCKET-TO-SOCKET LENGTH

1.75"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.6 lbs.
