      Home / Products / RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U
      RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U
      RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U - OC Mounts
      RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U
      RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U - OC Mounts
      RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U
      RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U - OC Mounts
      RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U
      RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U - OC Mounts

      RAM-B-202U

      RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U

      $9.99 $10.99

      In Stock  - Ships for $3.99

      • 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
      • Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
      • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
      • Backed by a lifetime warranty

      OVERVIEW

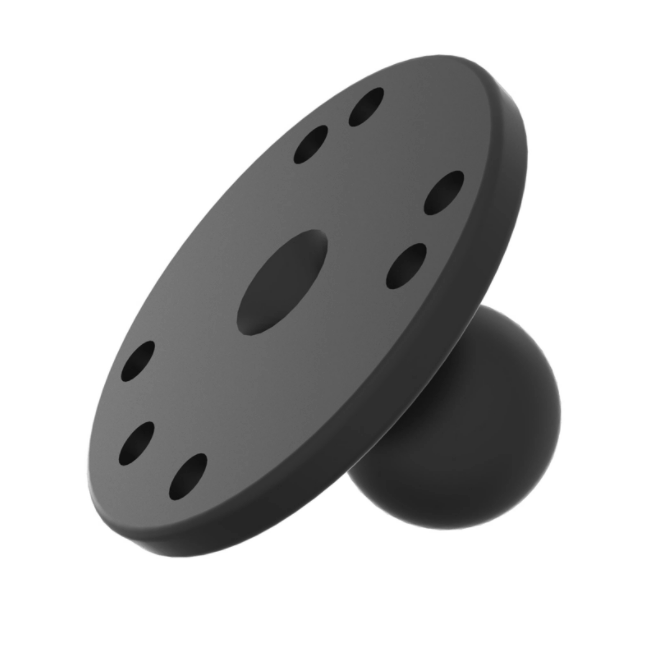

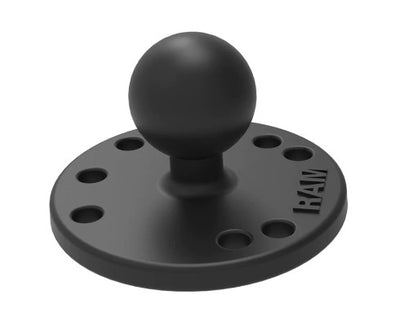

      The RAM-B-202U consists of a 1" B size rubber ball connected to a 2.5" diameter round plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern.

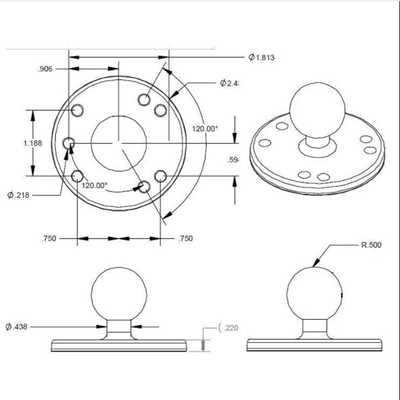

      HOLE PATTERN

       4-Hole AMPS: 1.181" x 1.496"
      3-Hole 120-Degree: 1.812" Diameter


      PLATE SIZE

       2.5" Diameter


      BALL/SOCKET SIZE

       B Size (1")


      WEIGHT CAPACITY

       Standard Use: 2 lbs
      Heavy-Duty Use: 1 lb


      MATERIALS

      Marine-grade aluminum

      PACKAGING TYPE

       Poly Bag

      WEIGHT

      0.15
