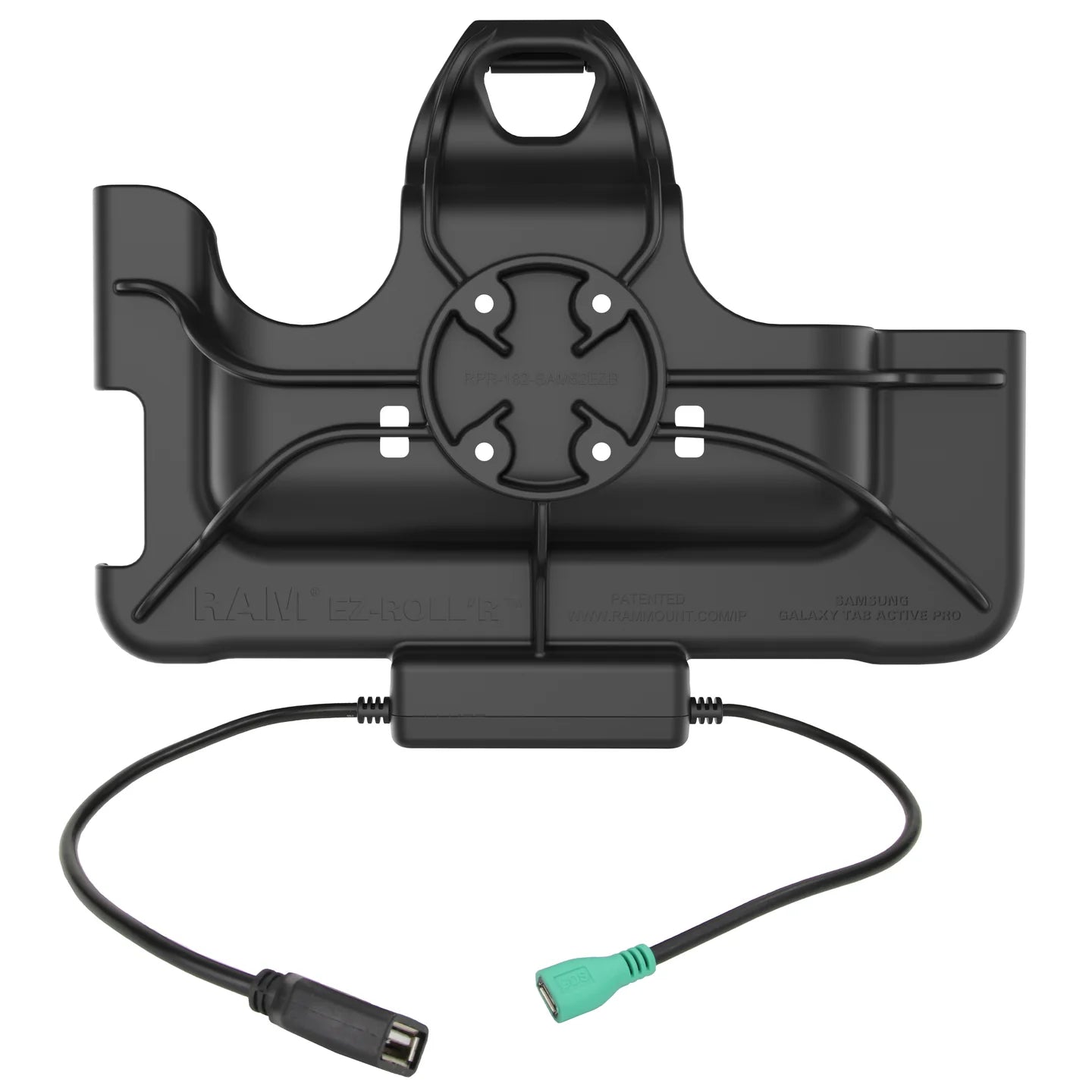

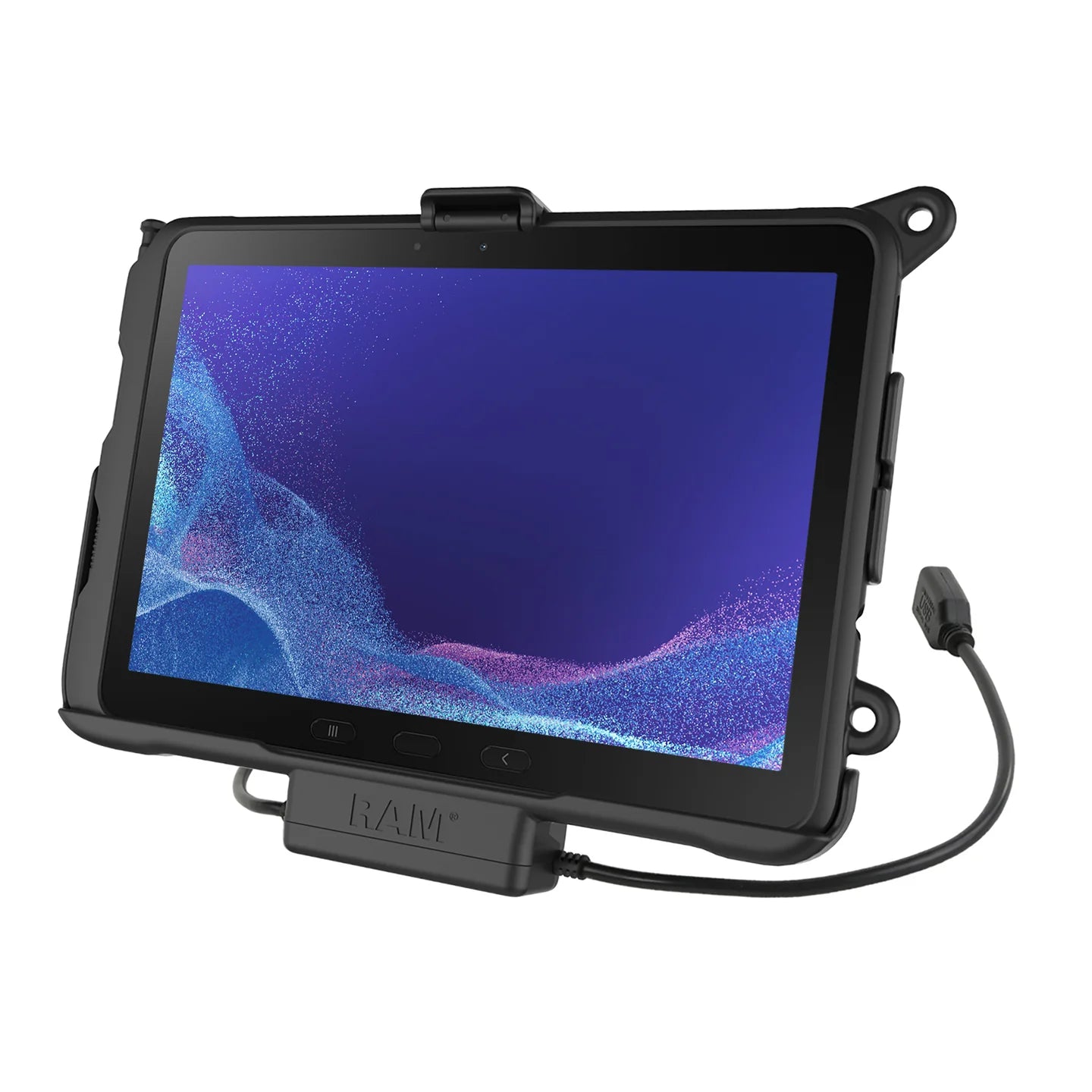

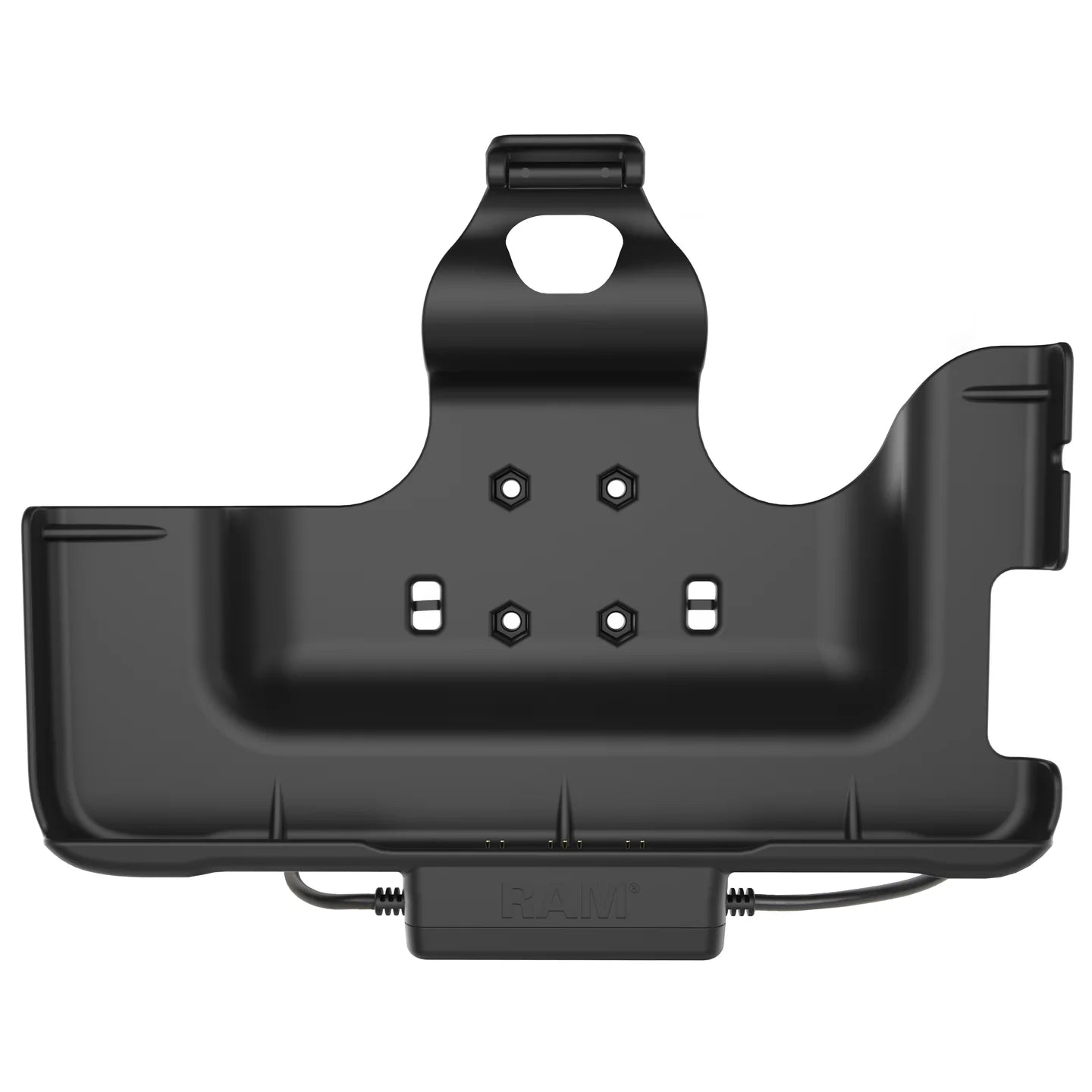

RAM® EZ-Roll'r™ Power & Data Dock for Tab Active4 Pro & Tab Active Pro - RAM-HOL-SAM52PDU

The RAM® EZ-Roll’r™ powered/data cradle for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active4 Pro and Tab Active Pro and the factory Samsung skin that’s included with the device.

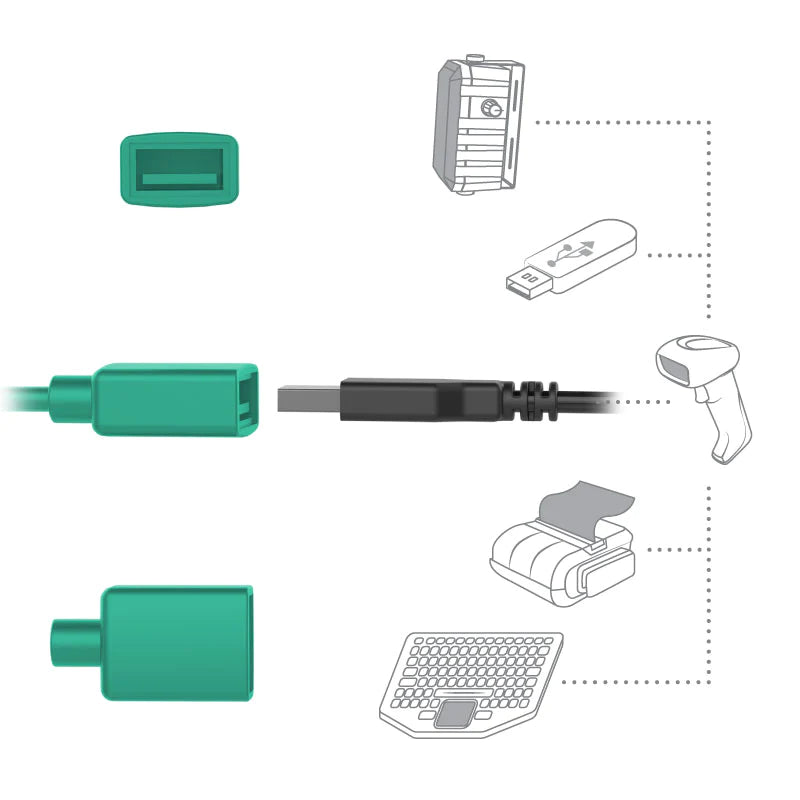

In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a Type-A female pigtail connector for data or to connect a USB peripheral such as a scanner, as well as a mUSB male to Type-A male cable and cable clamp.

• Powered dock provides charging and data transfer capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only

• Access to speakers, mics, and headphone jack remain while device is docked

• Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand

• Compatible with factory skin and RAM® Skin™

• Backed by a 3-year warranty

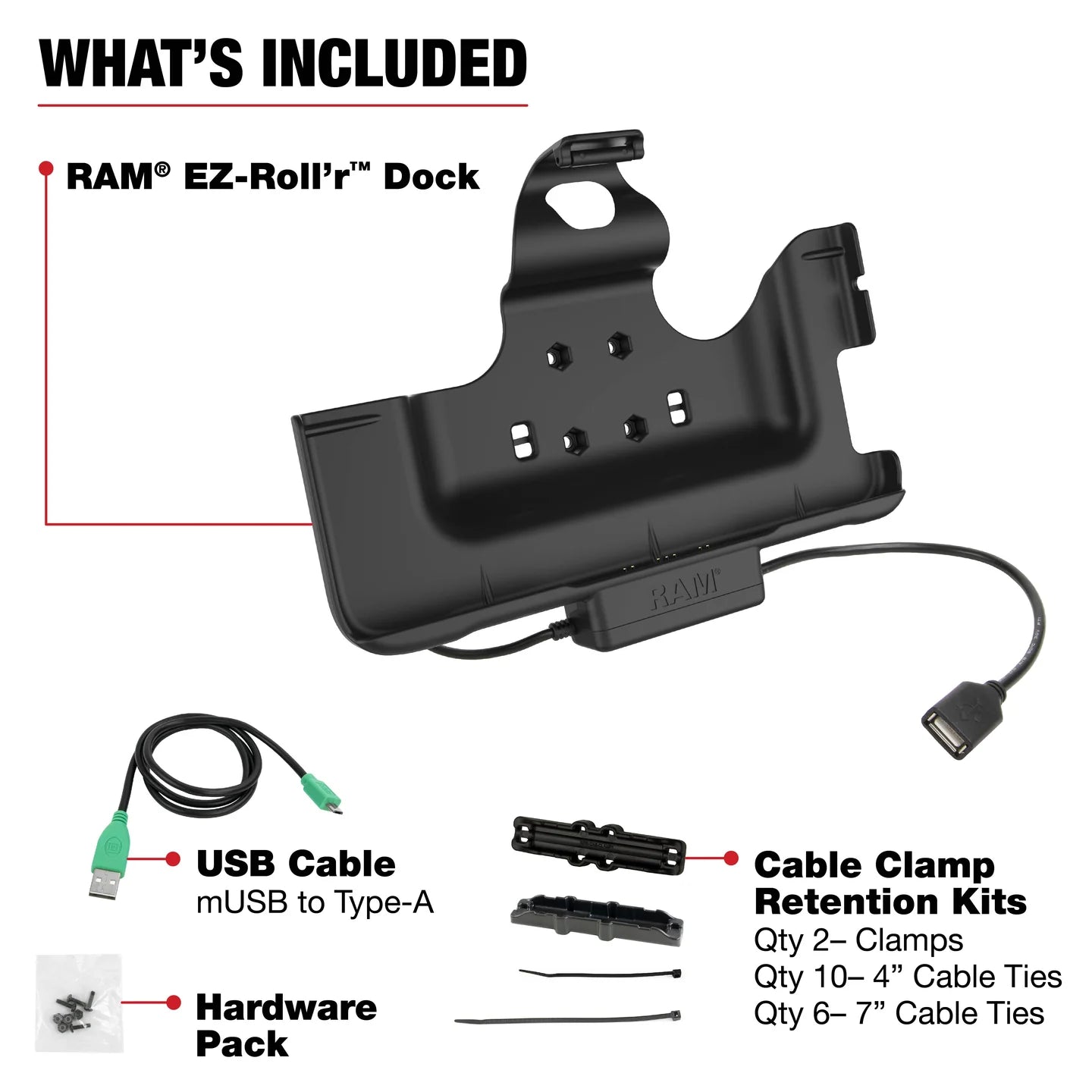

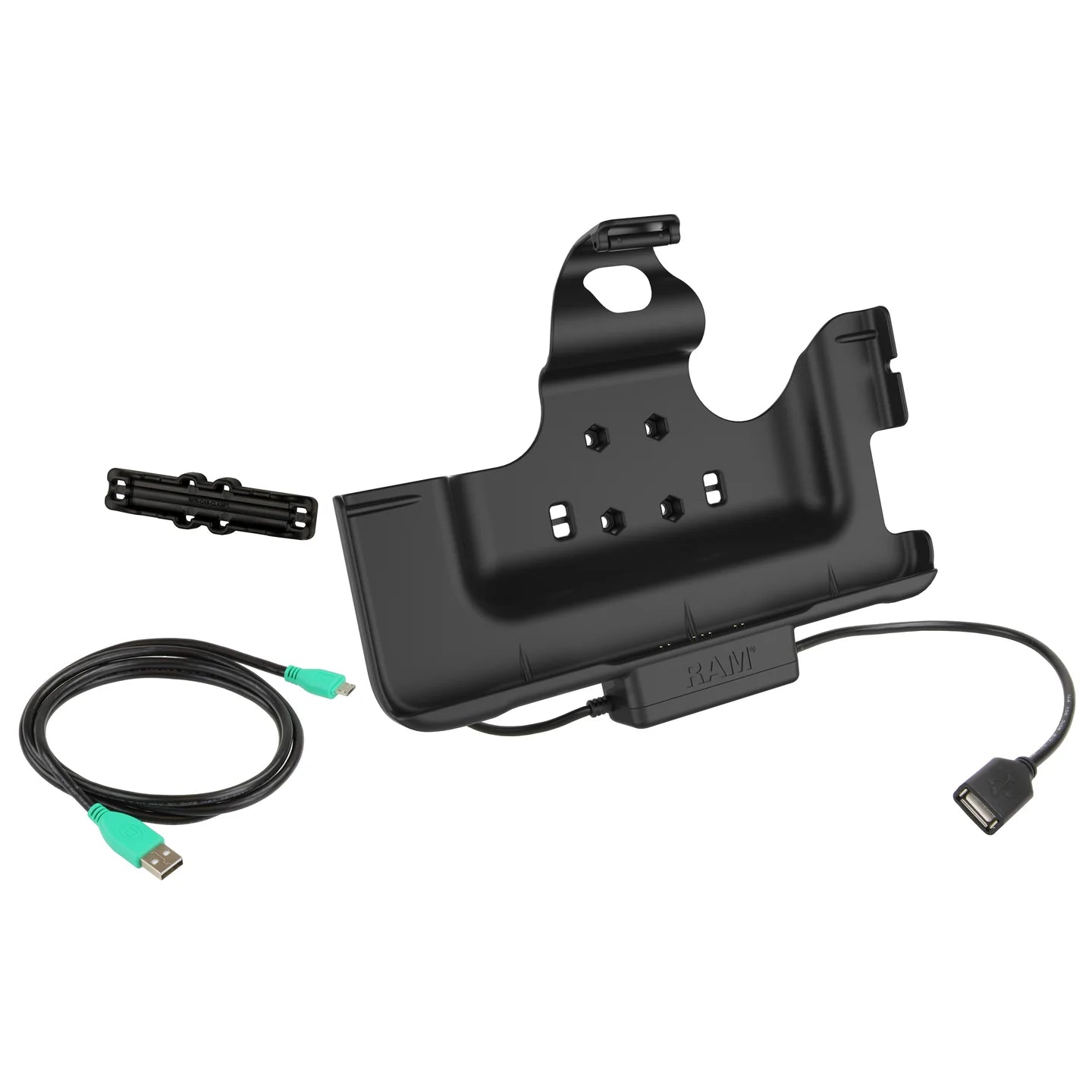

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

INPUT VOLTAGE
4.4-5.4VDC (USB power source dependent)

OUTPUT VOLTAGE
5.20VDC

POWER OUTPUT
500mA

INPUT CONNECTOR
mUSB 2.0 Female

INPUT CABLE LENGTH
214mm

OUTPUT CONNECTOR
USB 1.1 Type A

OUTPUT CABLE LENGTH
215mm

PERIPHERAL OUTPUT
500mAh

TRANSFER SPEED
12Mbps

WARRANTY
3 year warranty

WEIGHT
0.8 lb

GDS^® Genuine USB 2.0 Straight .75M Cable - RAM-GDS-CAB-MUSB2-2U

GDS^® Cable Clamp for mUSB & USB Type-C Cables - RAM-GDS-CAB-CLAMP1U

Samsung

Galaxy Tab Active Pro

Galaxy Tab Active4 Pro

 RAM® Double Ball Mount with Two Round Plates - C Size Medium - RAM-101U

  RAM® Tough-Claw™ Large Clamp Double Ball Mount with Round Plate - RAP-401-202U

RAM^® Drill-Down Dashboard Mount with Backing Plate - C Size Short - RAM-101-B-225B2U

GDS^® Modular 10-30V Hardwire Charger with Female USB Type A Connector - RAM-GDS-CHARGE-V7B1U

GDS^® 2-Port USB Cigarette Charger with Qualcomm^® Quick Charge^{™ -}RAM-GDS-CHARGE-USB2QCCIG

GDS^® Cable Clamp for USB Type-A Cables - RAM-GDS-CAB-CLAMP2U

RAM^® Vent-Temp^™ with Front Dock Connection for Round Vents -RAM-VENT2-RND-50U

RAM^® Vent-Temp^™ with Front Dock Connection for Rectangular Vents - RAM-VENT2-RCT-50U

This holder is intended only for light-duty applications in landscape mode. For heavy duty applications and/or operating in portrait mode, see locking options here.

This product will not support the "No Battery Mode" function of the Tab Active4 Pro.
