RAM® Fork Stem Mount with RAM® Finger-Grip™ GPS/Radio Holder - RAM-B-176-UN4U

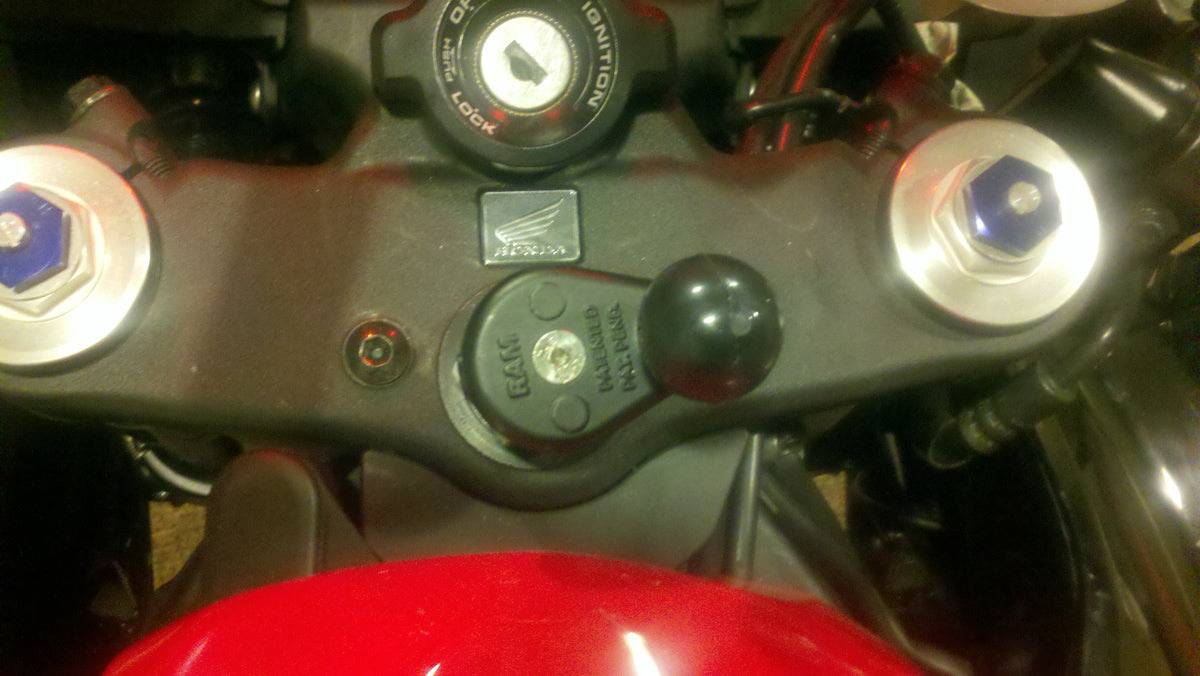

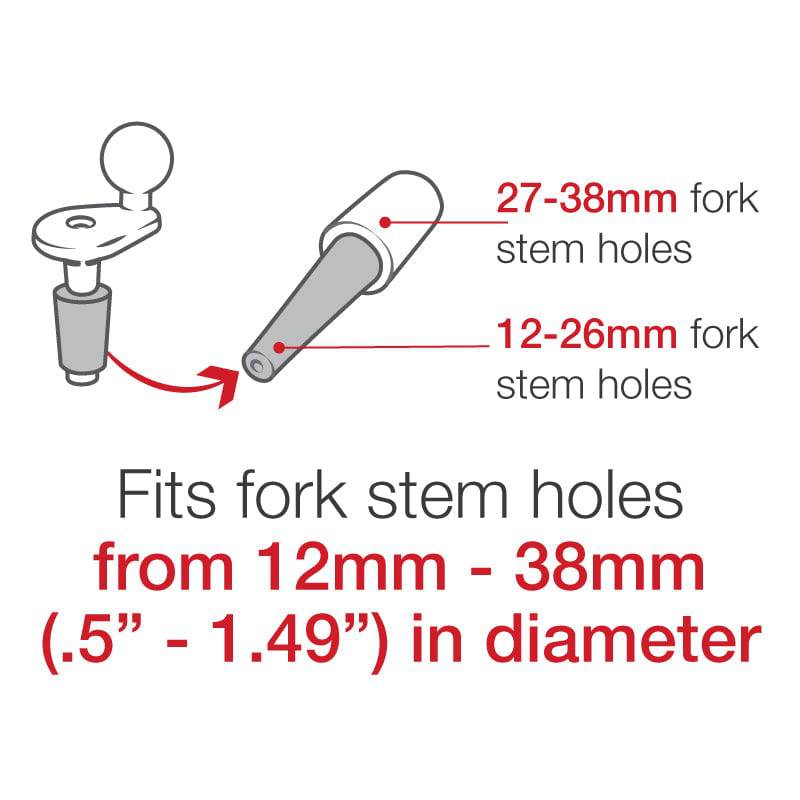

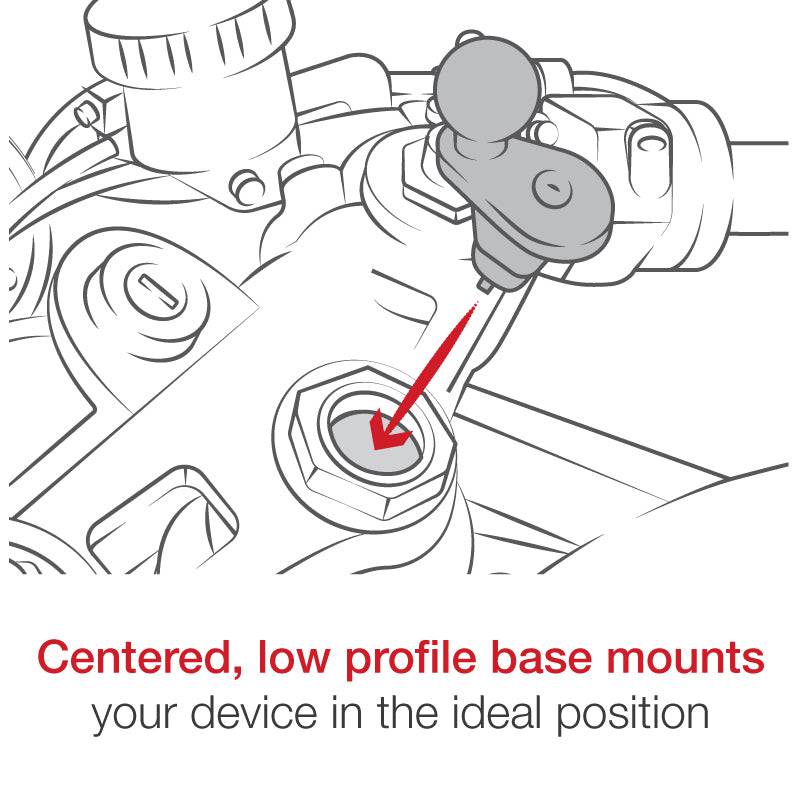

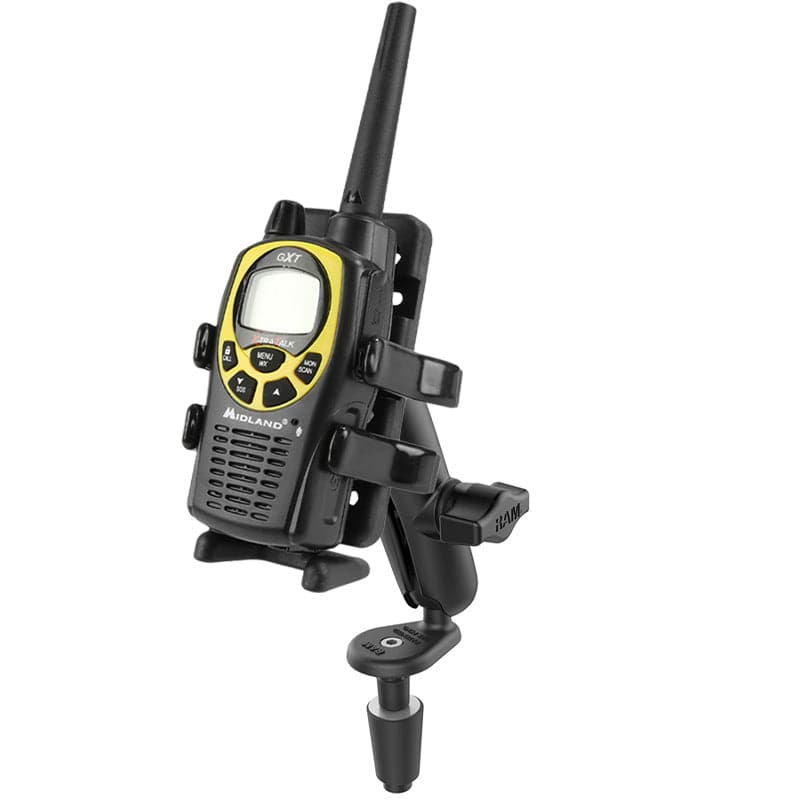

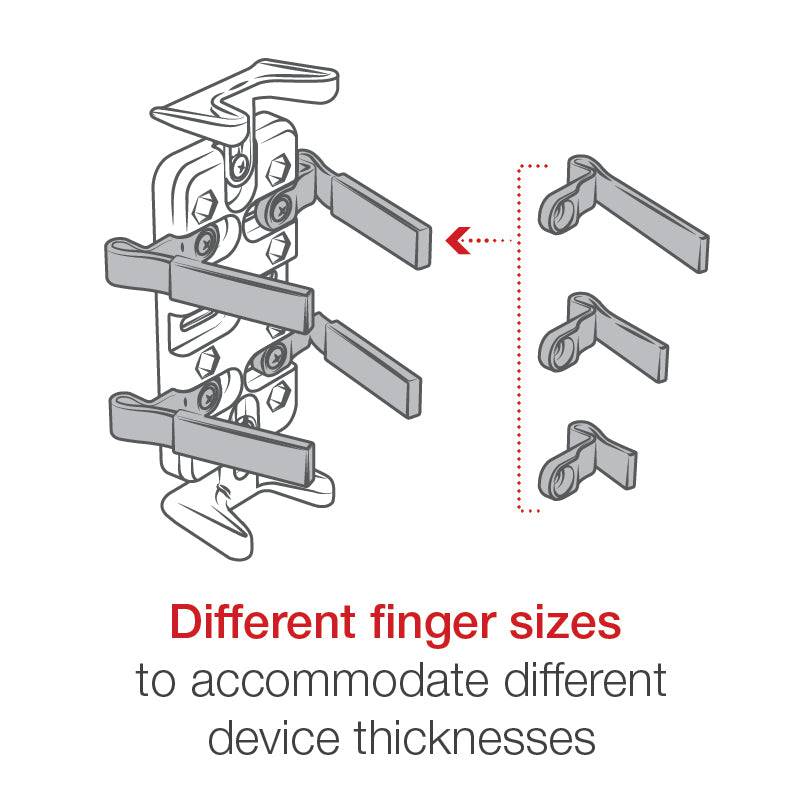

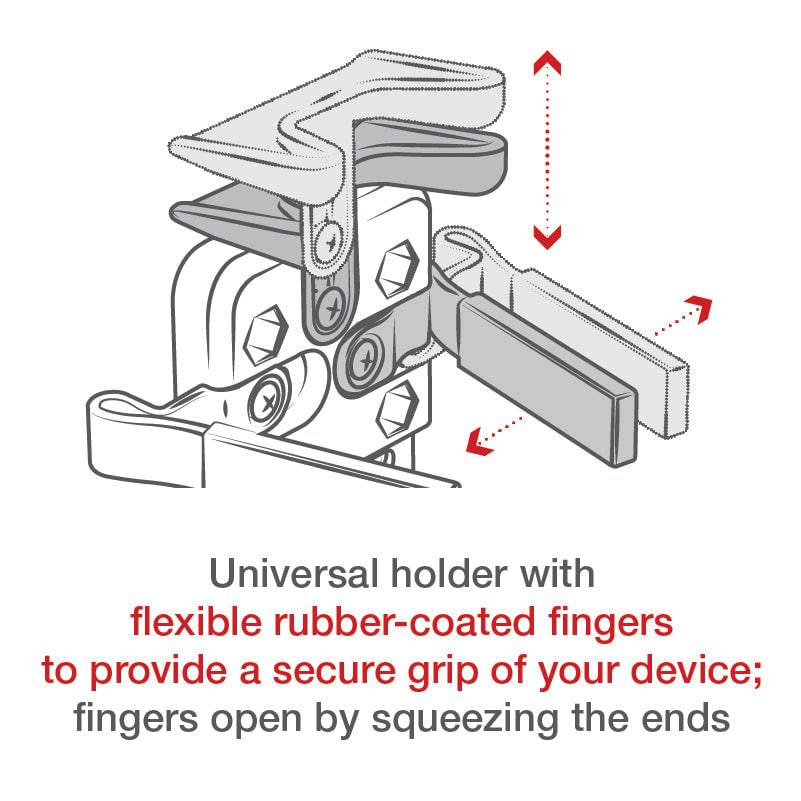

The RAM-B-176-UN4 consists of a fork stem base, double socket arm, diamand adapter base and high strength universal Finger Grip^™ cradle. This part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12 - 38mm (.5” – 1.49”).

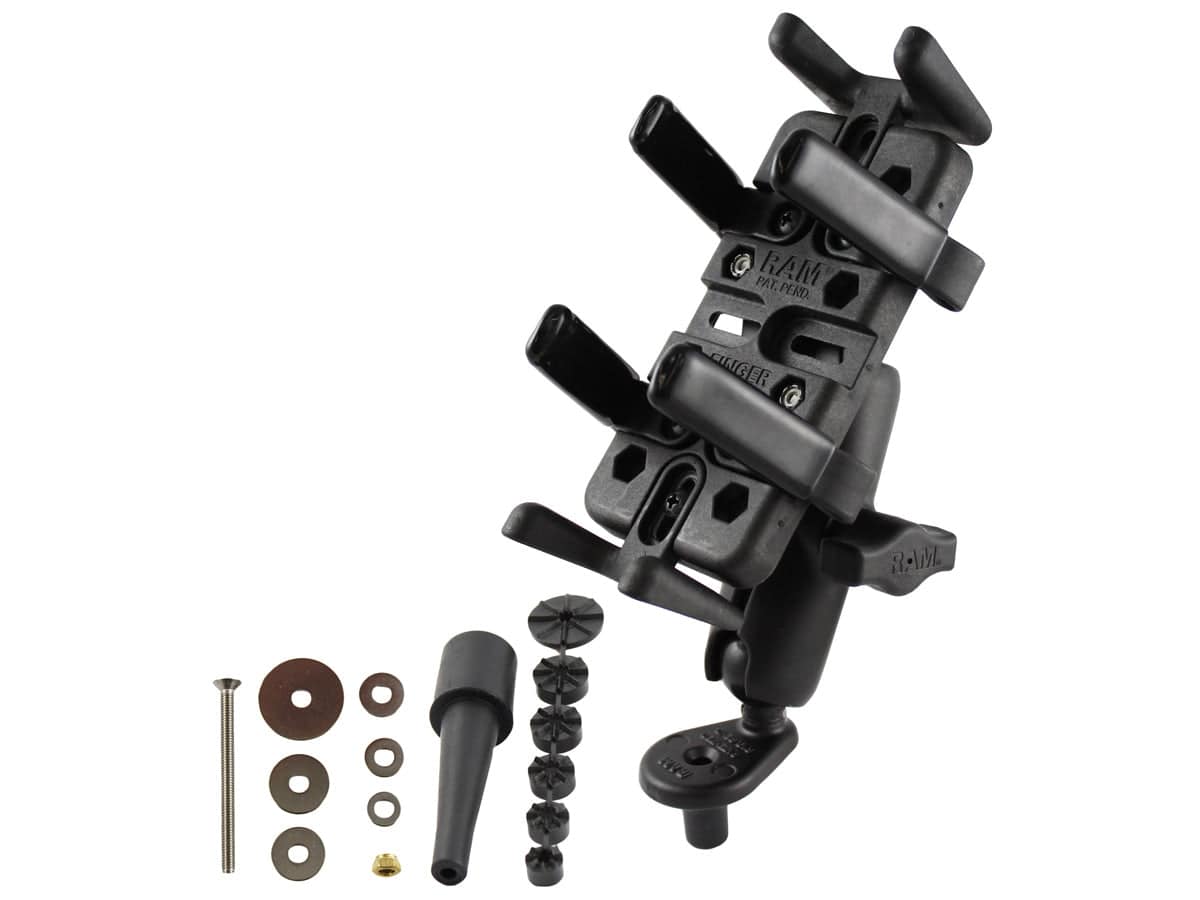

HARDWARE INCLUDED

Assembly Hardware
(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut

HOLDER DIMENSIONS

Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.05 lbs.
