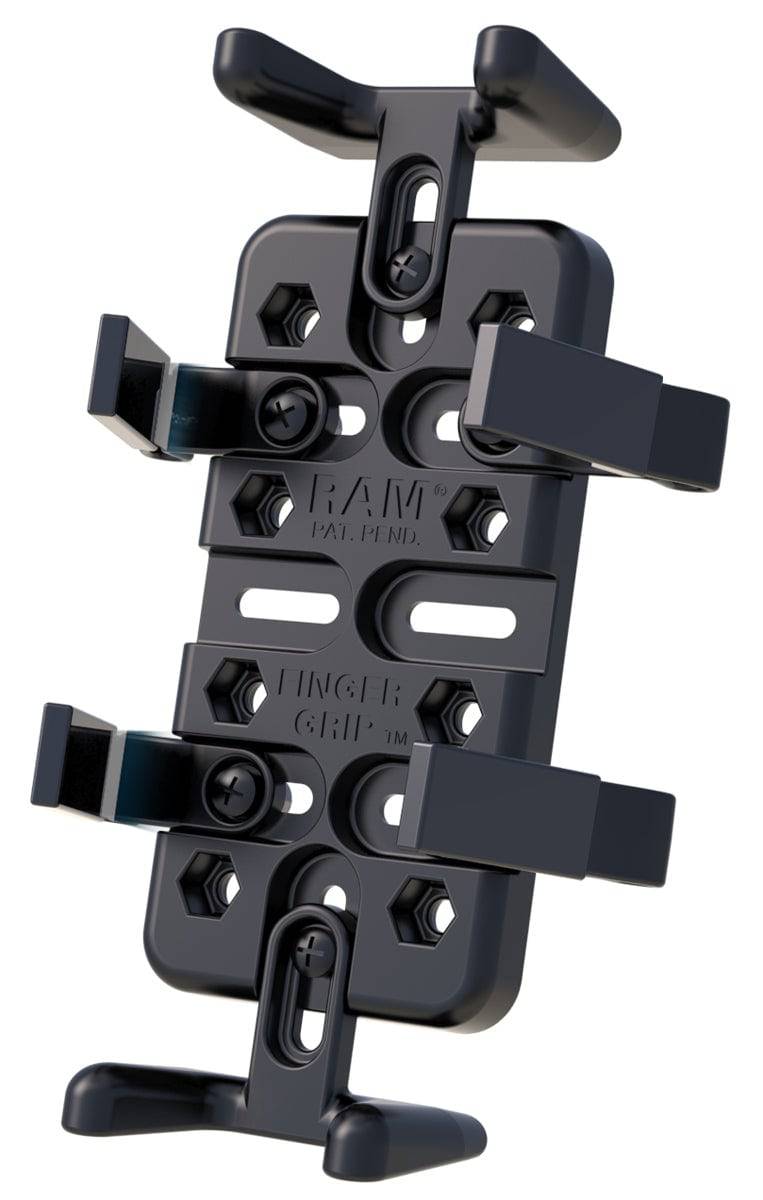

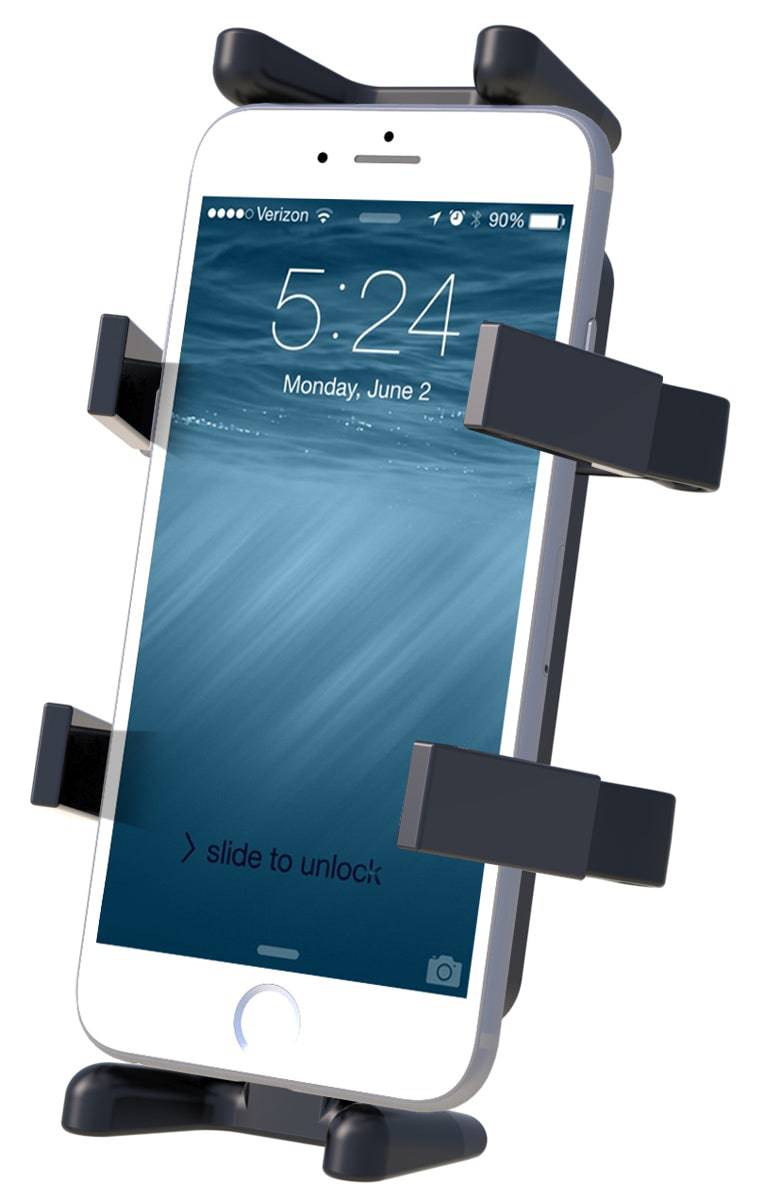

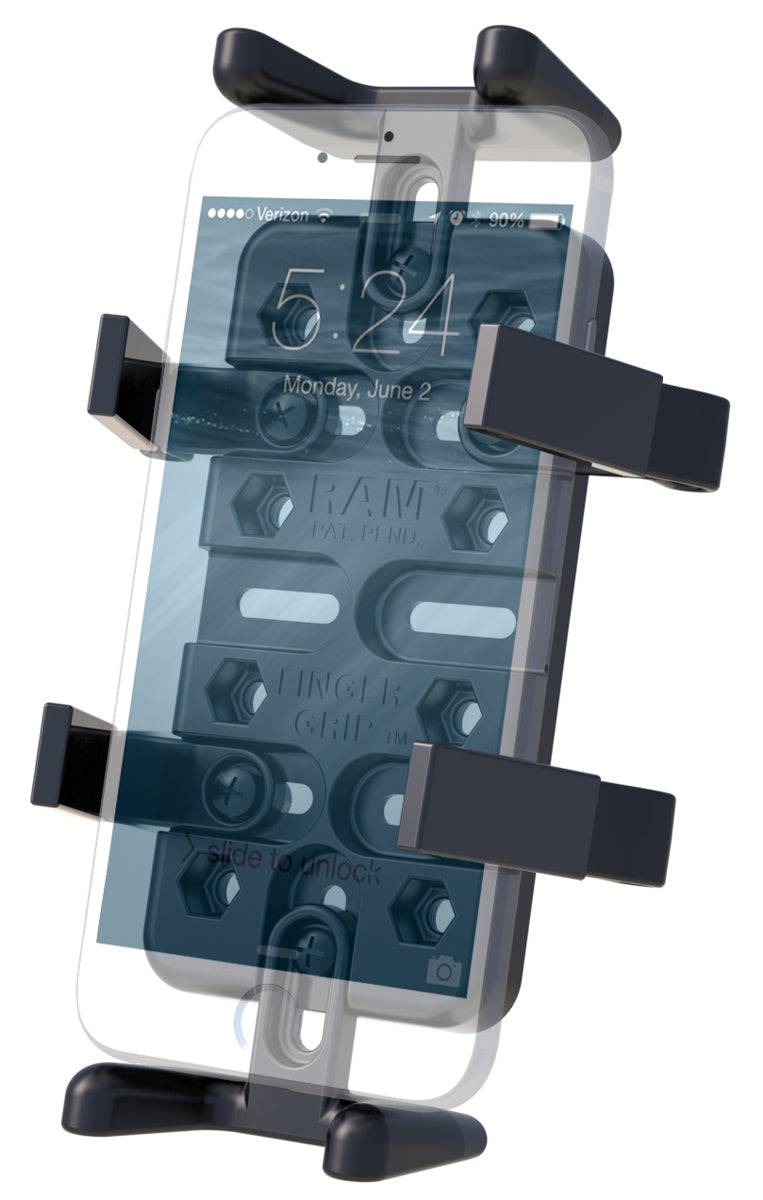

The RAM-HOL-UN4U is designed to hold a large amount of cell phones and electronic devices. The cradle comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount. The perfect solution that is the best phone mount, car mount, motorcycle mount and can be used with several other phone accessories including samsung accessories and lg accessories. The spine plate contains the universal AMPs and 1.5" x 2" hole patterns.

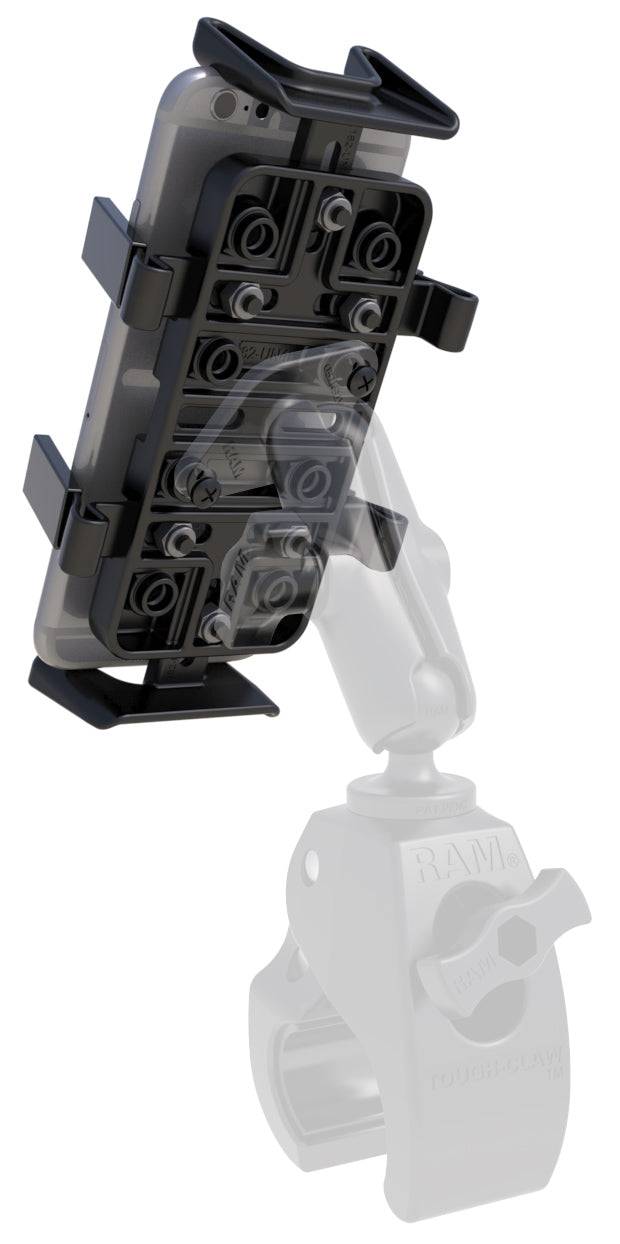

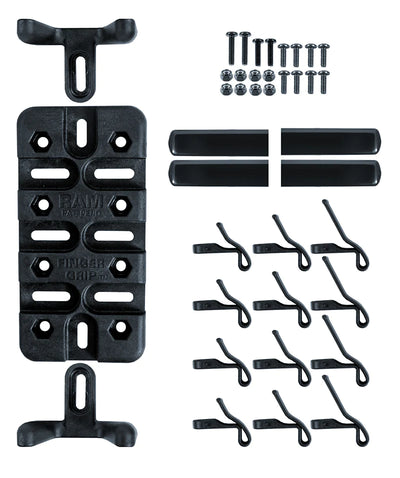

Included is a set of two nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
Height Dimensions: Minimum with Top and Bottom Plates: 5.25" Maximum with Top and Bottom Plates: 6.0" The top and bottom plates can be removed for larger devices.
Spine Plate Dimensions: 2.5" Width x 5" Height
Using Short Arm Side Clamps: Maximum Depth: 0.75" Minimum Width: 1.25" Maximum Width: 3.0"
Using Medium Arm Side Clamps: Maximum Depth: 1.25" Minimum Width: 1.5" Maximum Width: 3.5"
Using Long Arm Side Clamps: Maximum Depth: 1.6" Minimum Width: 2.25" Maximum Width: 3.5"
Material: High Strength Composite
Note: The "U" in the part number reflects product packaged in poly bag.
