      Home / Products / RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - RAM-B-101-C-231ZU
      RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - RAM-B-101-C-231ZU - OC Mounts

      RAM-B-101-C-231ZU

      RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - RAM-B-101-C-231ZU

      Out of Stock    ( Chat Live to get an ETA )

      OVERVIEW

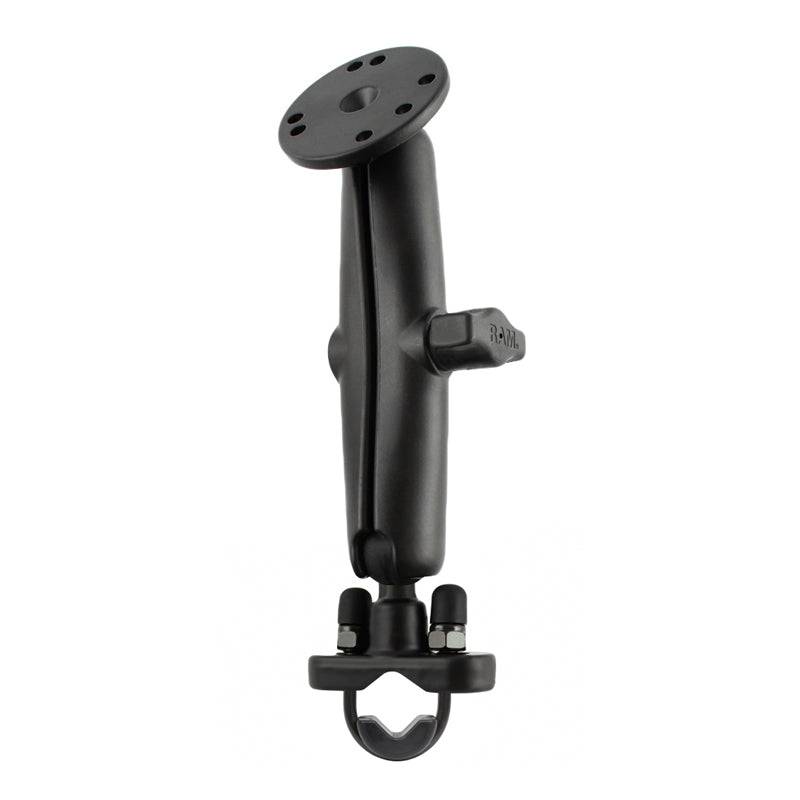

      The RAM-B-101-C-231ZU consists of a zinc coated u-bolt base, 6" long double socket arm and 2.5" diameter round base that contains the universal AMPs hole pattern. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

      HARDWARE INCLUDED

       (1) 1/4"-20 U-Bolt for .5" - 1" Rails
      (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
      (2) 1/4"-20 Nylock Nuts
      (2) Rubber Caps
      (1) U-Bolt Spacer


      CLAMP RANGE

       .5" - 1.25" diameter


      SOCKET-TO-SOCKET LENGTH

       5.31"


      HOLE PATTERN

       4-Hole AMPS: 1.181" x 1.496"
      3-Hole 120-Degree: 1.812" Diameter


      BALL/SOCKET SIZE

       B Size (1")


      WEIGHT CAPACITY

       Standard Use: 2 lbs
      Heavy-Duty Use: 1 lb


      MATERIALS

       Marine-grade aluminum


      PACKAGING TYPE

       Poly Bag


      WEIGHT

       1.0 lbs.

      RAM 2.5" Round Plate With The AMPs Hole Pattern With B Size 1" Ball - RAM-B-202U

      RAM Long Length Double Socket Arm For B Size 1" Balls - RAM-B-201U-C

      RAM Rail Base With B Size 1" Ball. Zinc Coated U-Bolt For Rails From 0.5" To 1.25" In Diameter - RAM-B-231ZU

      Drawing File - U-Bolt Ball Base - PDF

      RAM® U-Bolt Base Assembly Guide - PDF

      Mixed Combination RAM® Pin-Lock™ Security Knob And Key Knob For 1" Diameter B Size Arms - RAP-S-KNOB3U RAM Locking Knob With 1/4-20 Brass Hole For B Size Arms - RAM-KNOB3LU
