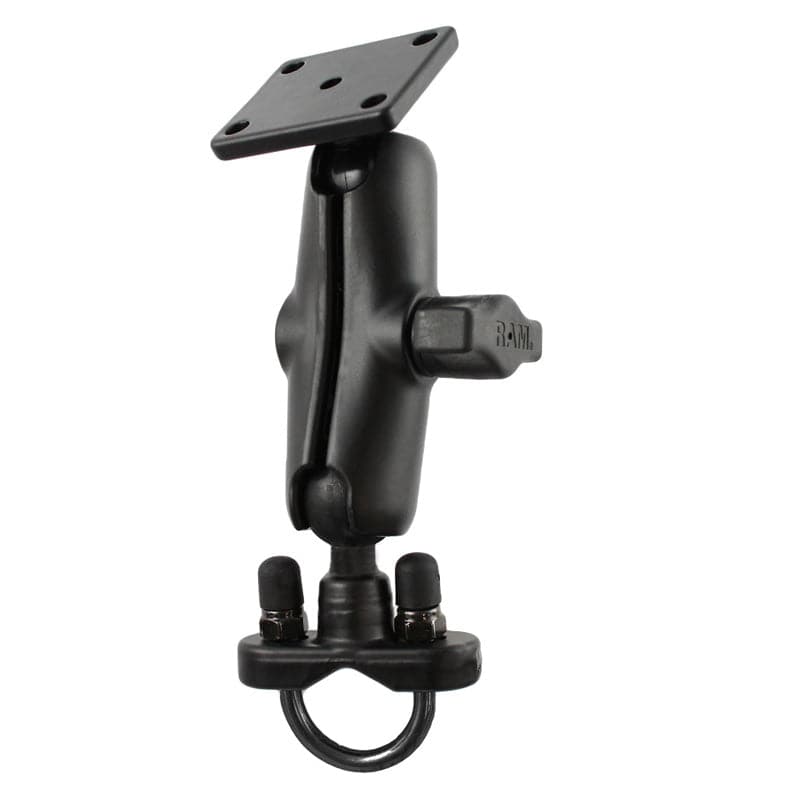

RAM® Handlebar U-Bolt Mount for Garmin zumo 400-660- RAM-B-184U

OVERVIEW

The RAM-B-184U consists of a zinc coated u-bolt base, double socket arm and 2" x 1.7" rectangular base that contains the universal AMPs hole pattern. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.65 lbs.

RAM Rail Base with B Size 1" Ball. Zinc Coated U-Bolt for Rails from 0.5" to 1.25" in Diameter - RAM-B-231ZU

RAM Double Socket Arm for B Size 1" Balls - RAM-B-201U

RAM 2" x 1.7" Base with 1" Ball that Contains the Universal AMPs Hole Pattern for the Garmin zumo, TomTom Rider & Urban Rider - RAM-B-347U

Garmin

 Drawing File - U-Bolt Ball Base - PDF
