      Home / Products / RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - RAM-B-231Z-366U
      RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - RAM-B-231Z-366U - OC Mounts
      RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - RAM-B-231Z-366U - OC Mounts
      RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - RAM-B-231Z-366U - OC Mounts
      RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - RAM-B-231Z-366U - OC Mounts

      RAM-B-231Z-366U

      RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - RAM-B-231Z-366U

      Out of Stock    ( Chat Live to get an ETA )

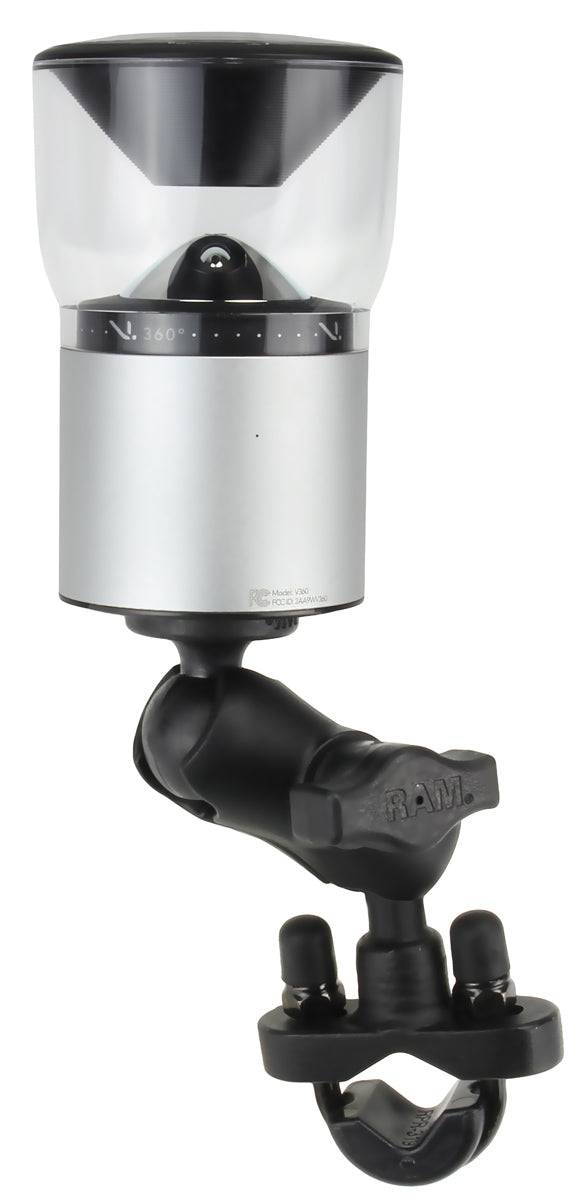

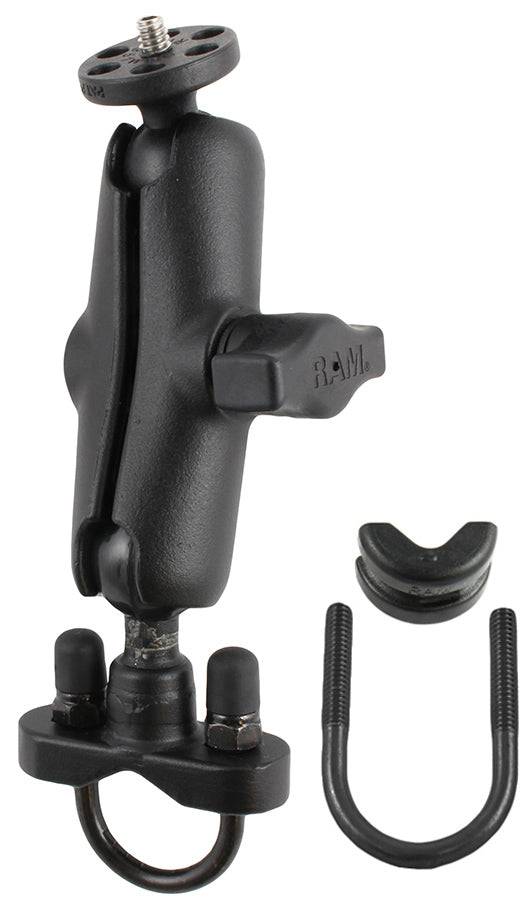

      The RAM-B-231Z-366U consists of a zinc coated u-bolt base, double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

      U-Bolt Dimensions:
      0.50" to a maximum of 1.25"

      Material:
      Powder Coated Marine Grade Aluminum and High Strength Composite

      Ball Size:
      B Size 1" Rubber Ball

      Note:
      The "U" in the part number reflects product packaged in poly bag.

      Weight:
      0.6 lbs.

      RAM Handlebar Rail Mount with 1/4"-20 Camera Threaded Adapter

      RAM® Mounts for Motorcycles

      RAM® Mounts for Action Cameras - GoPro Hero, Sony Action Cam, GoBandit, Ion Air Pro

      Additional Mounting Base Options

      RAM Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1" Ball for Rails to 3.15" in Diameter - RAM-B-231Z-2URAM Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1" Ball for Rails to 3.15" in Diameter - RAM-B-231Z-2U

      RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238URAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

      RAM 2.25" x 0.87" Motorcycle Base with 11mm Hole and 1" Ball - RAM-B-252URAM 2.25" x 0.87" Motorcycle Base with 11mm Hole and 1" Ball - RAM-B-252U

      RAM Motorcycle Brake/Clutch Reservoir Cover Base with 1" Ball Offset - RAM-B-346URAM Motorcycle Brake/Clutch Reservoir Cover Base with 1" Ball Offset - RAM-B-346U

      RAM Yoke Clamp Base with 1" Rubber Ball - RAM-B-121BURAM Yoke Clamp Base with 1" Rubber Ball - RAM-B-121BU

      RAM Motorcycle Brake/Clutch Reservoir Base with 1" Ball - RAM-B-309-1URAM Motorcycle Brake/Clutch Reservoir Base with 1" Ball - RAM-B-309-1U

      RAM 2.5" Round Base with the AMPs Hole Pattern, 1" Ball & Triple Magnetic Base Adapter - RAM-B-202-339URAM 2.5" Round Base with the AMPs Hole Pattern, 1" Ball & Triple Magnetic Base Adapter - RAM-B-202-339U

      RAM Rail Base with Stainless Steel U-Bolt & 1" Ball for Rails from 0.5" to 1" in Diameter - RAM-B-231URAM Rail Base with Stainless Steel U-Bolt & 1" Ball for Rails from 0.5" to 1" in Diameter - RAM-B-231U

      RAM Flex Adhesive Base with 1" Ball - RAP-B-378URAM Flex Adhesive Base with 1" Ball - RAP-B-378U

      RAM Universal Small Tough-Clamp™ with 1" Diameter Rubber Ball - RAP-B-397-1URAM Universal Small Tough-Clamp™ with 1" Diameter Rubber Ball - RAP-B-397-1U

      RAM Double Socket Arm for B Size 1" Balls - RAM-B-201URAM Double Socket Arm for B Size 1" Balls - RAM-B-201U

      RAM Rail Base with B Size 1" Ball. Zinc Coated U-Bolt for Rails from 0.5" to 1.25" in Diameter - RAM-B-231ZURAM Rail Base with B Size 1" Ball. Zinc Coated U-Bolt for Rails from 0.5" to 1.25" in Diameter - RAM-B-231ZU

      RAM 1" Ball With 1/4-20 Stud For Cameras, Video & Camcorders - RAP-B-366URAM 1" Ball With 1/4-20 Stud For Cameras, Video & Camcorders - RAP-B-366U

      • Cameras that contain 1/4"-20 Female Threaded Hole
