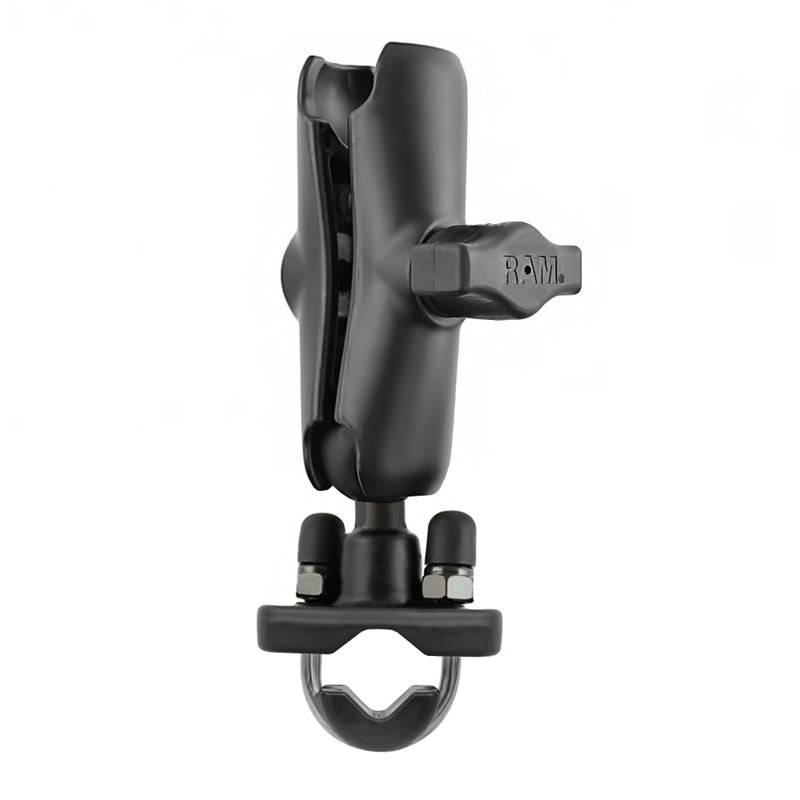

RAM® Handlebar U-Bolt Mount with Double Socket Arm - RAM-B-149-QU1

The RAM-B-149-QU1 consists of a stainless steel u-bolt base and double socket arm. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The zinc coated u-bolt base Accommodates rails from 0.5" to 1" in diameter and includes black cover caps to be placed over the exposed ends of the u-bolt. This is a universal mounting solution for the RAM cradles with a 1 inch ball.

HARDWARE INCLUDED

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1" diameter

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Retail Bag

WEIGHT

1.0 lbs.
