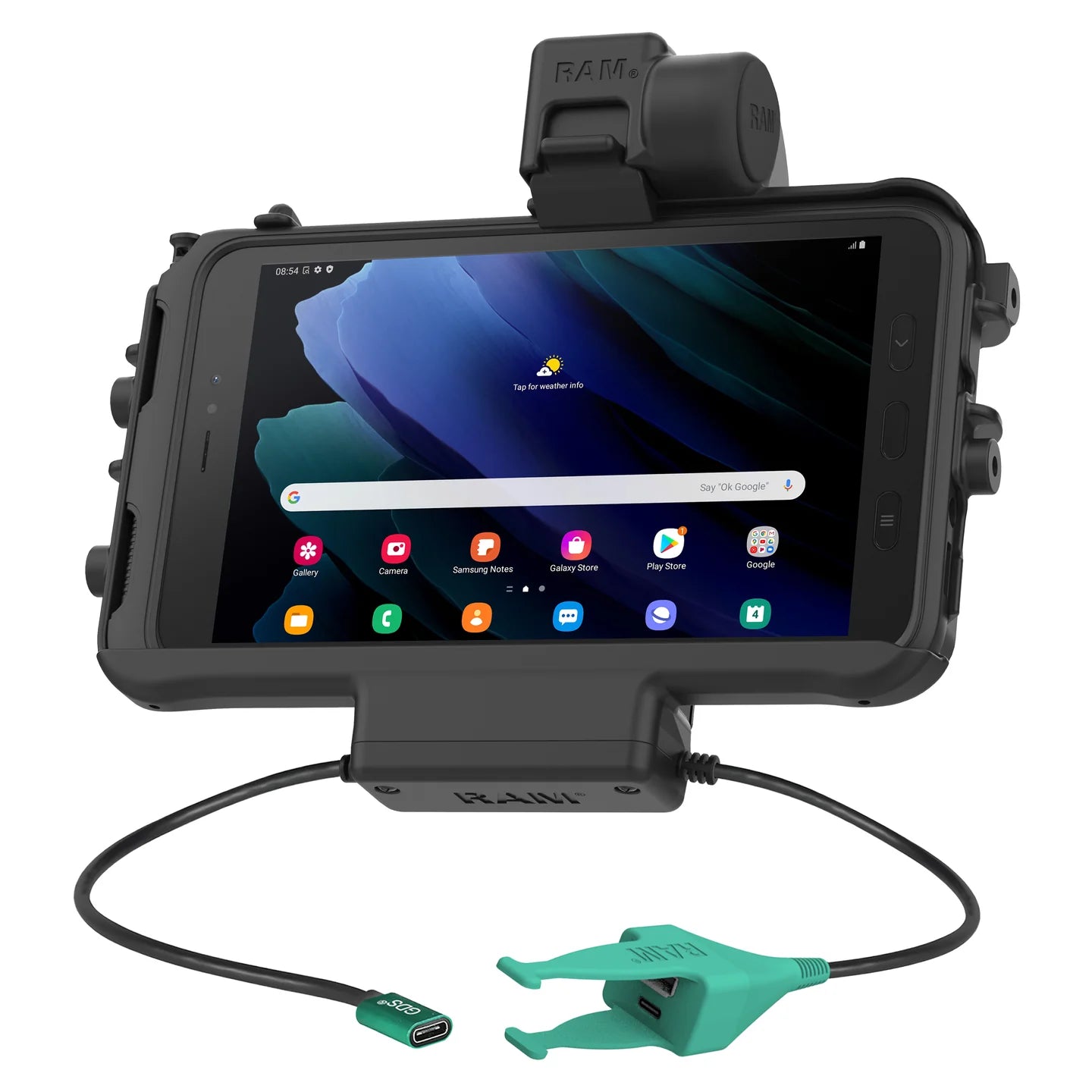

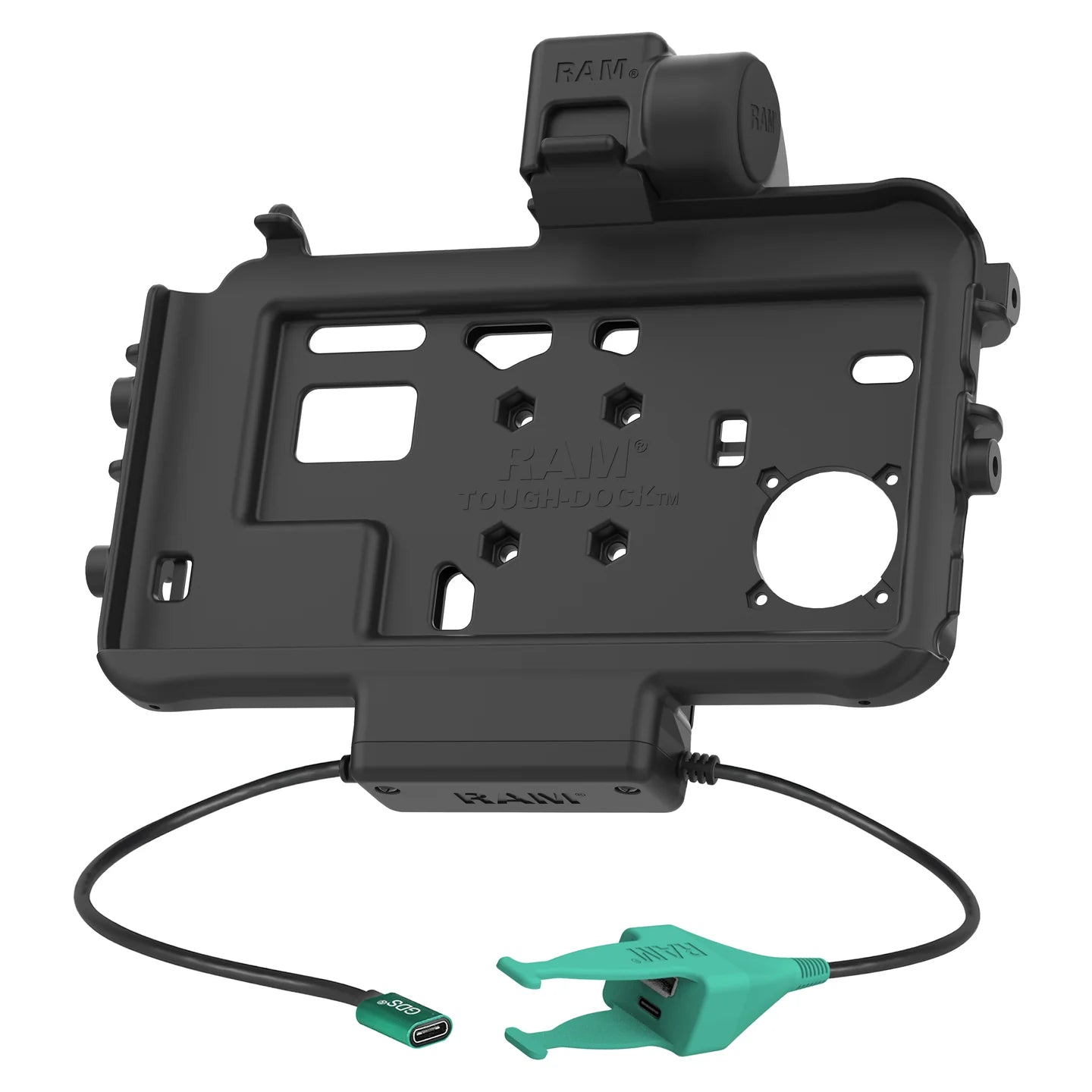

RAM® Locking USB-C Low-Profile Dock + USB-C & USB-A Data for Tab Active5 & 3 - RAM-HOL-SAM58CPT-CAU

The RAM® Locking USB-C Low-Profile Dock + USB-C & USB-A Data for Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPT-CAU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB Type-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. Add up to two peripherals with the built-in dual USB Type-A and Type-C pigtail and connect a keyboard, barcode scanner, printer, and more.

This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is a cable clamp and zip ties for cable management and retention.

• Form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & 3 wrapped in a Samsung OEM protective case or RAM^® Skin^™

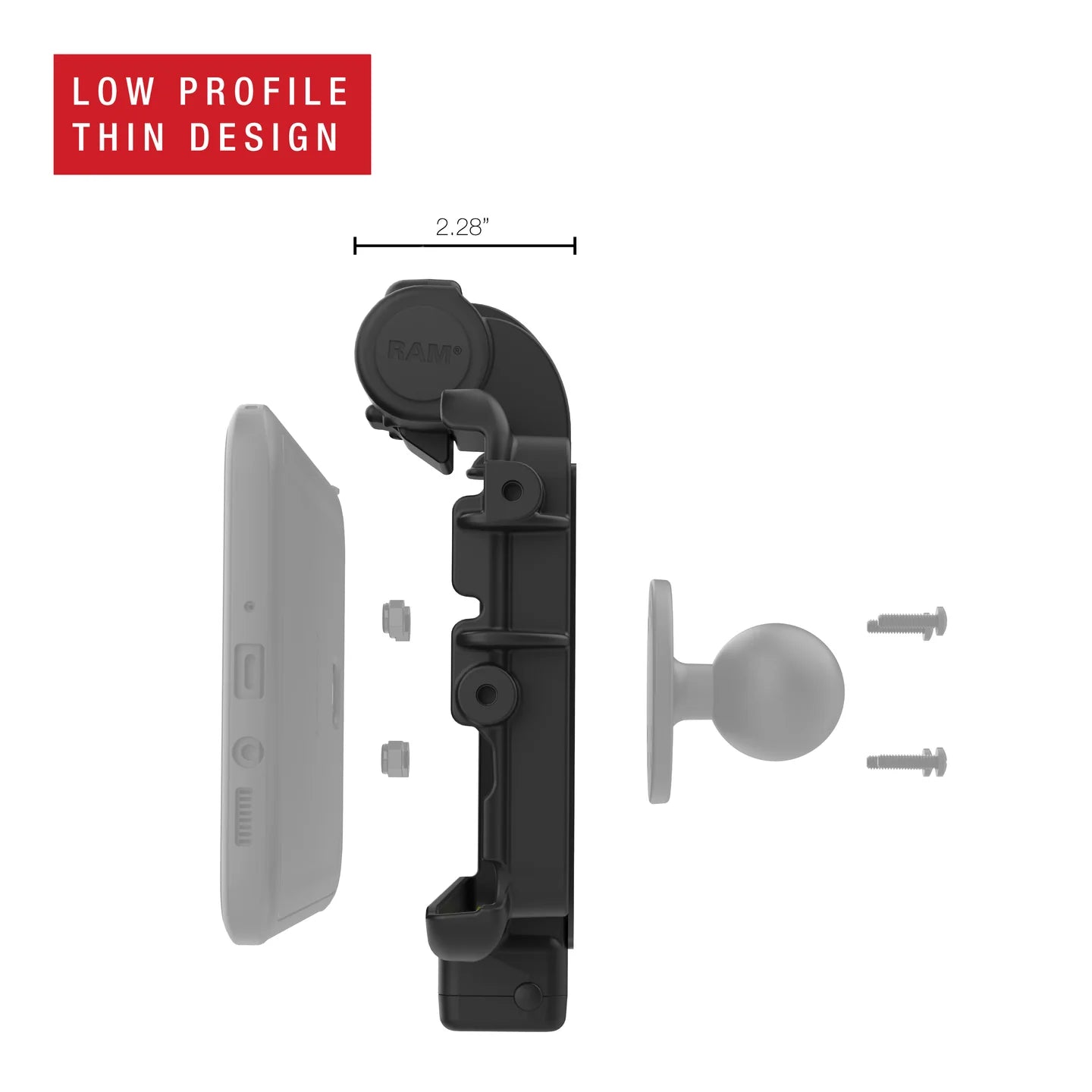

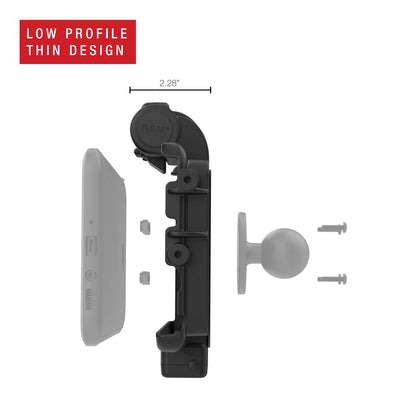

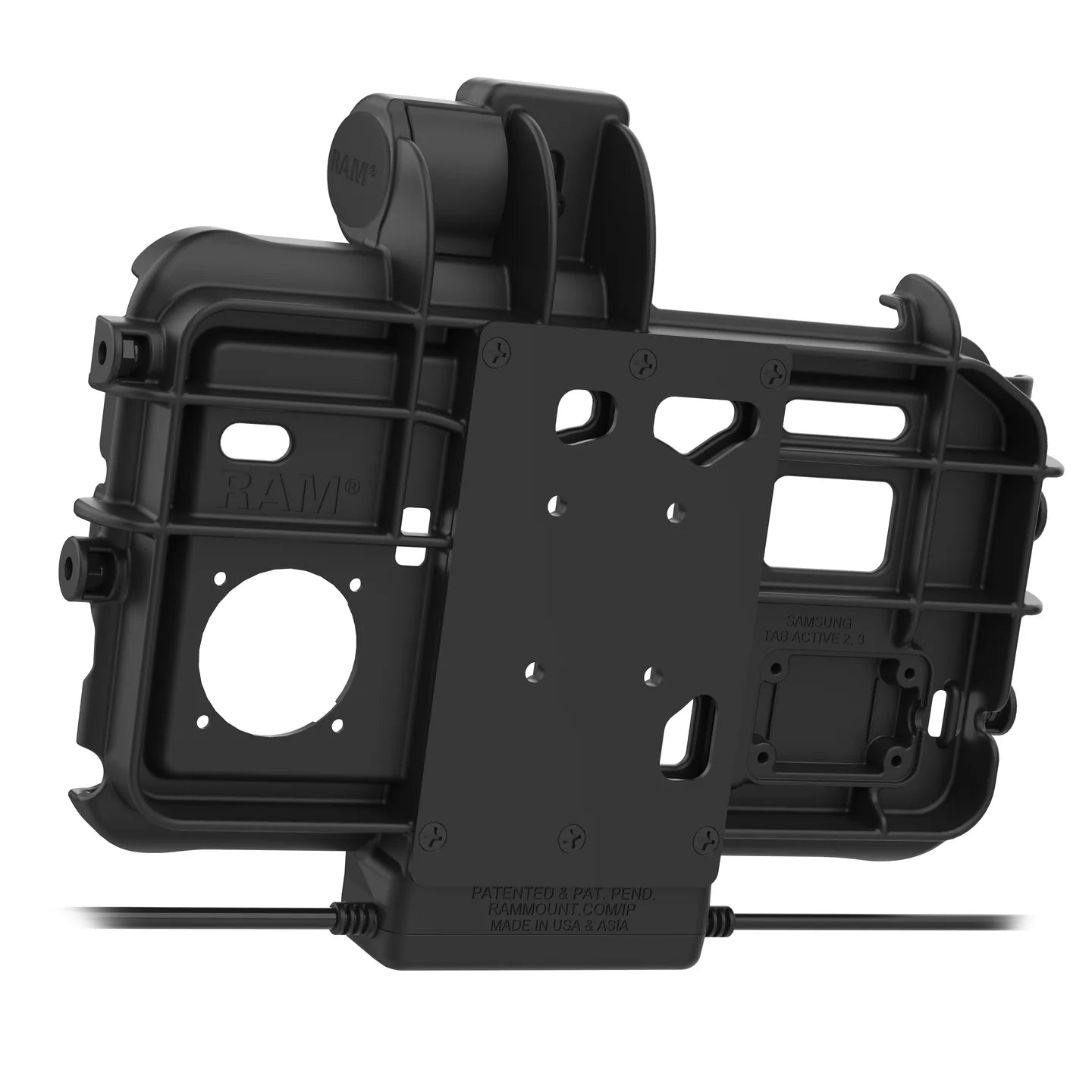

• Slim-profile design at 2.28" depth with metal reinforcement plate

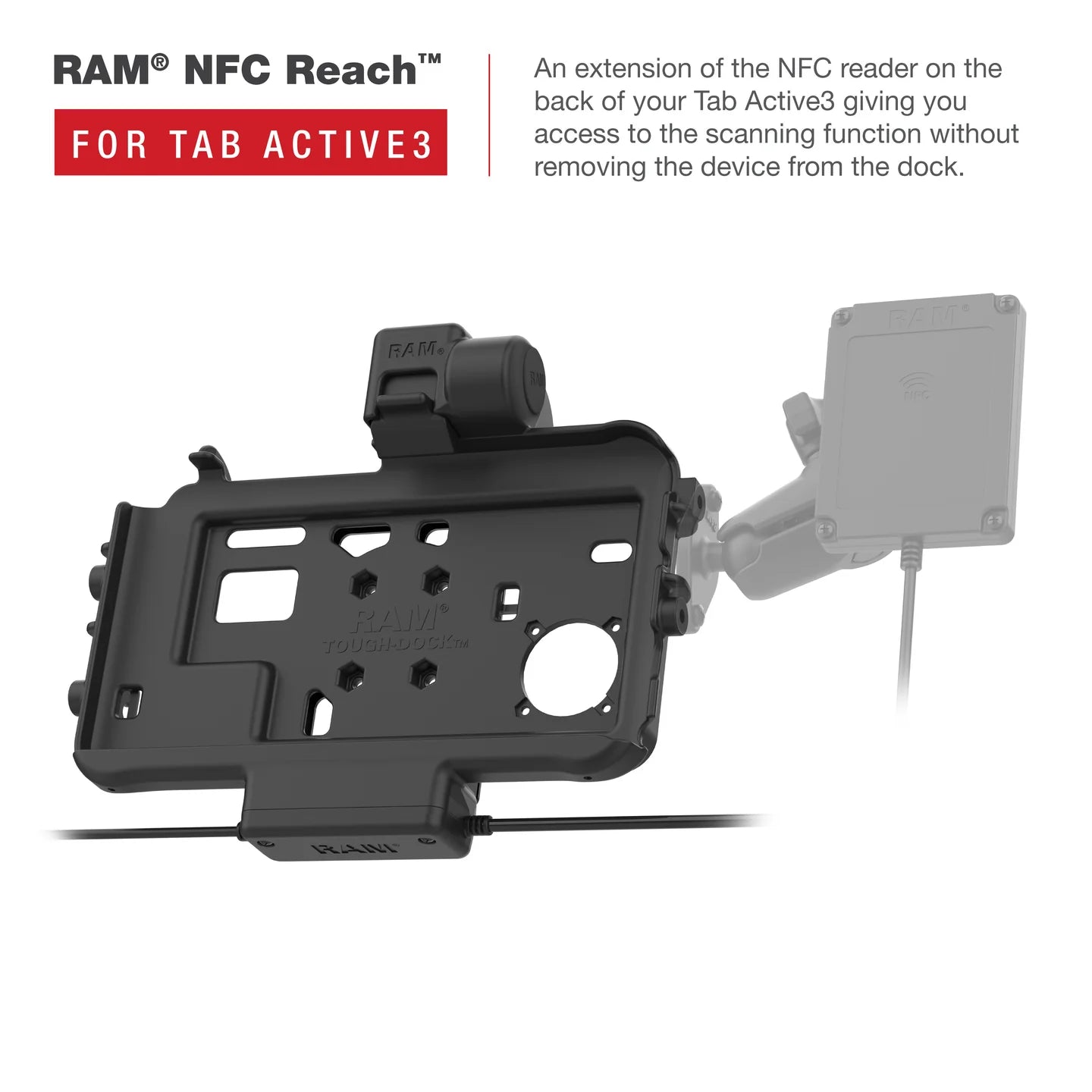

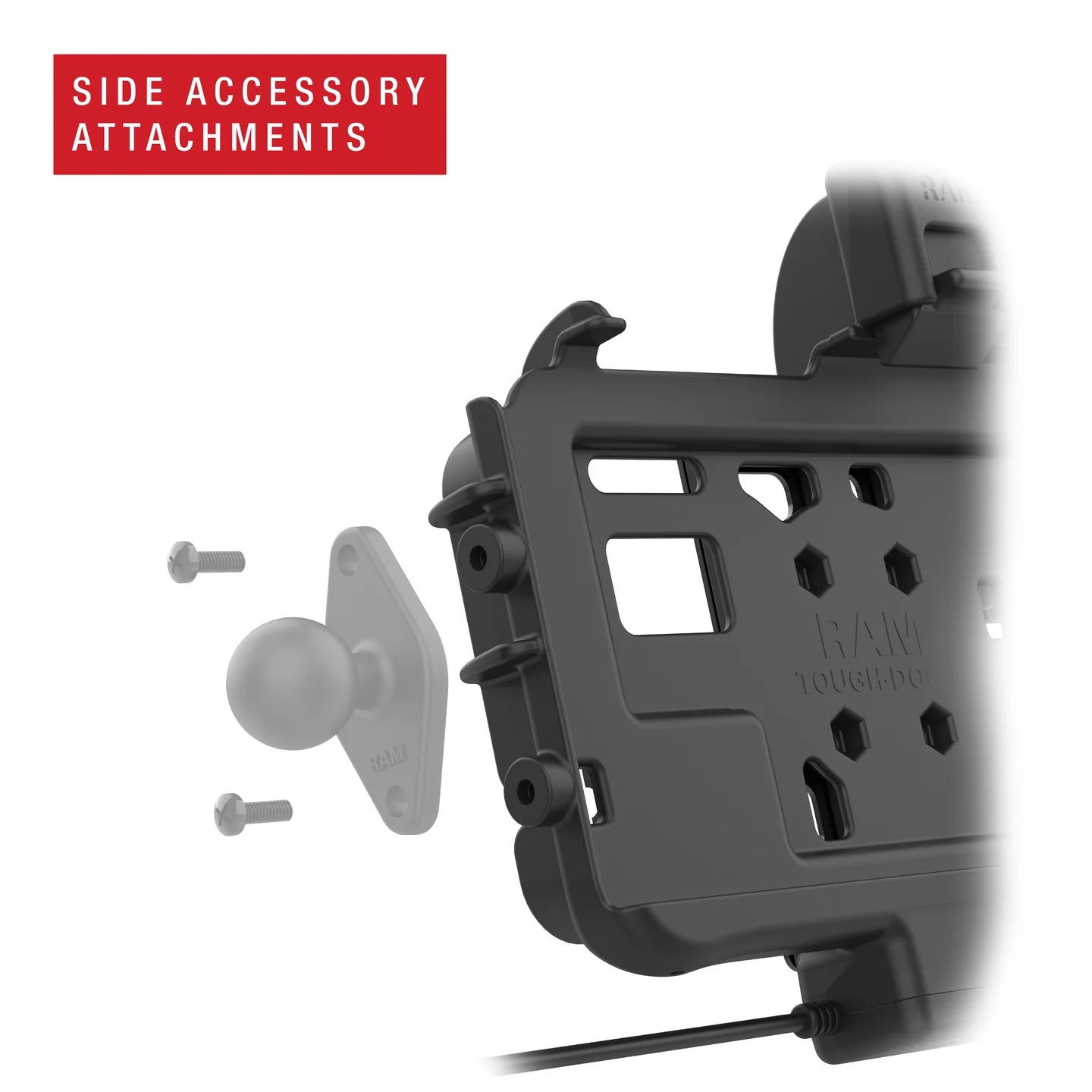

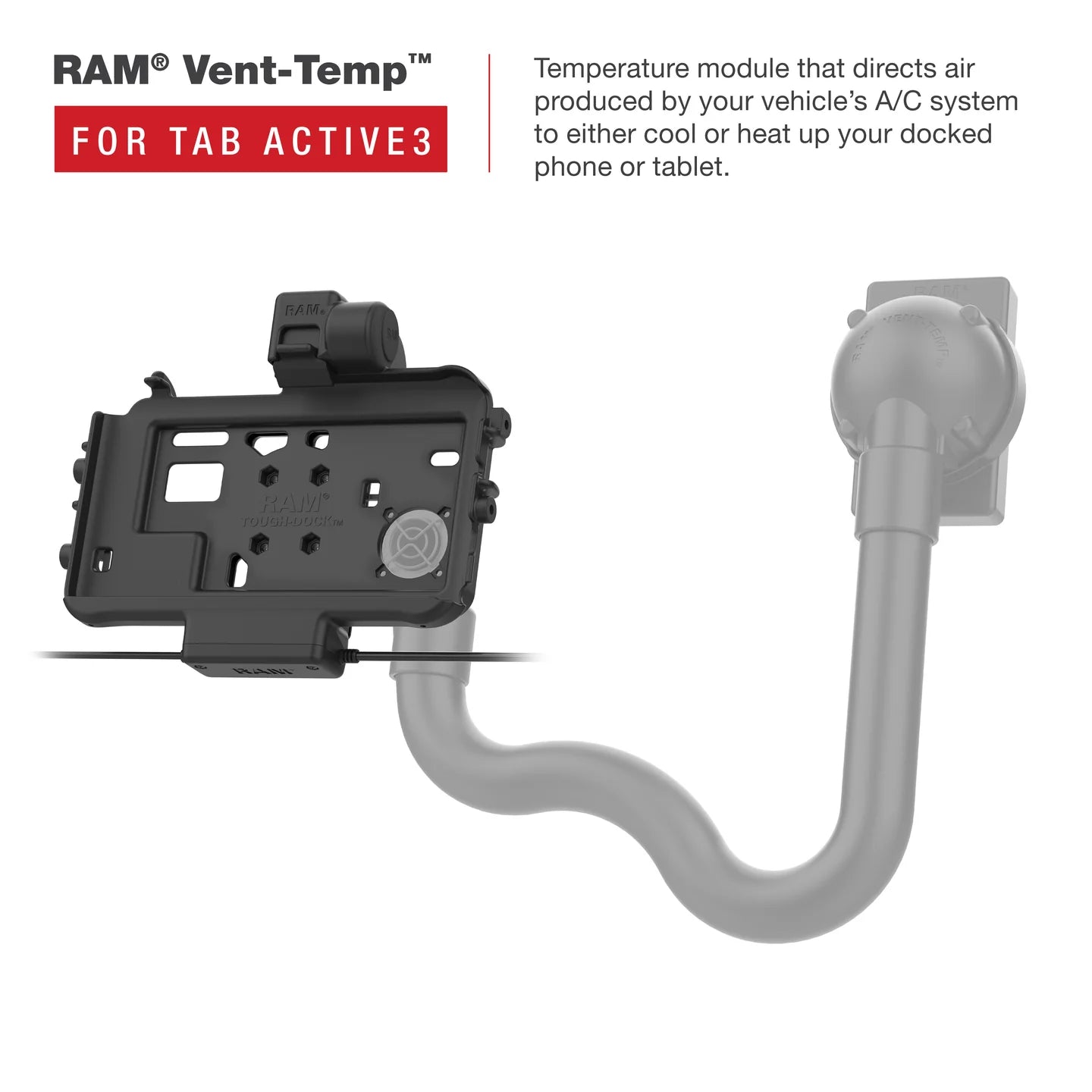

• Compatible with most RAM^® dock accessories including RAM^® Vent-Temp^™, RAM^® NFC Extender, and side accessory attachments

• Provides charging connectivity through integrated pogo pin technology and USB Type-C cable; provides dual-peripheral support via dual USB Type-C and Type-A cable

• Backed by a 3-year warranty

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(8) Small Cable Ties

Samsung Tab Active3

Samsung Tab Active5

RAM^® Double Ball Mount with Two Round Plates - C Size Medium - RAM-101U

  RAM^® Drill-Down Dashboard Mount with Backing Plate - C Size Short - RAM-101-B-225B2U

RAM^® Tough-Claw^™ Large Clamp Double Ball Mount with Round Plate - RAP-401-202U

 GDS^® Type-C and Type-A 48W Premium 2-Port Wall Charger - RAM-GDS-CHARGE-USBC2W

 GDS^® Modular 10-30V Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V7CU

GDS^® Modular 10-30V Power Delivery Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V3C-2U

 RAM^® Vent-Temp^™ with Front Dock Connection for Round Vents - RAM-VENT2-RND-50U

 RAM^® Vent-Temp^™ with Front Dock Connection for Rectangular Vents - RAM-VENT2-RCT-50U

 RAM^® Vent-Temp^™ with Back Dock Connection for Rectangular Vents - RAM-VENT1-RCT-50U

 Dual USB Data Cable Management Instructions
