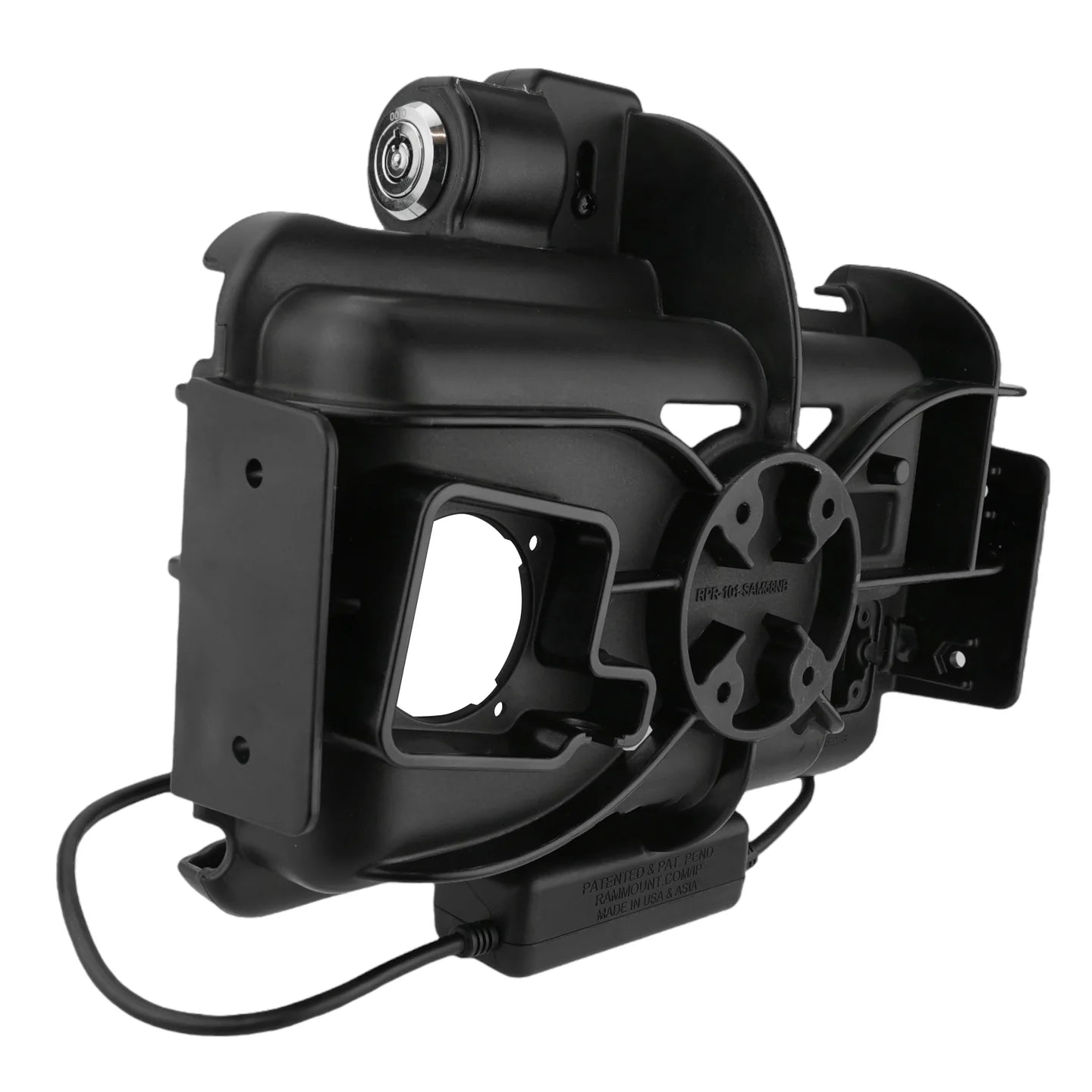

RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3 - RAM-HOL-SAM58CPKLN-CU

The RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-CU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation.

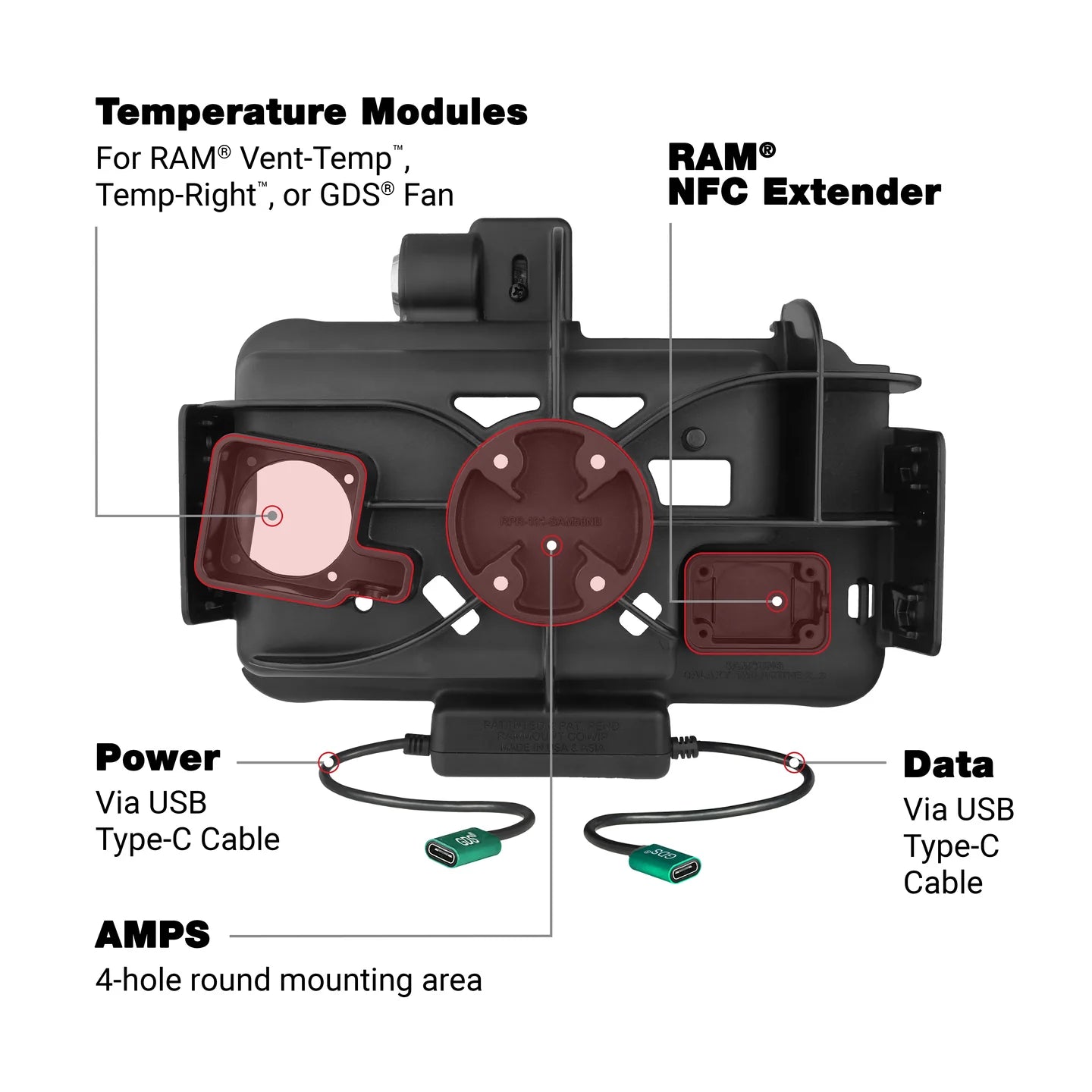

This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties.

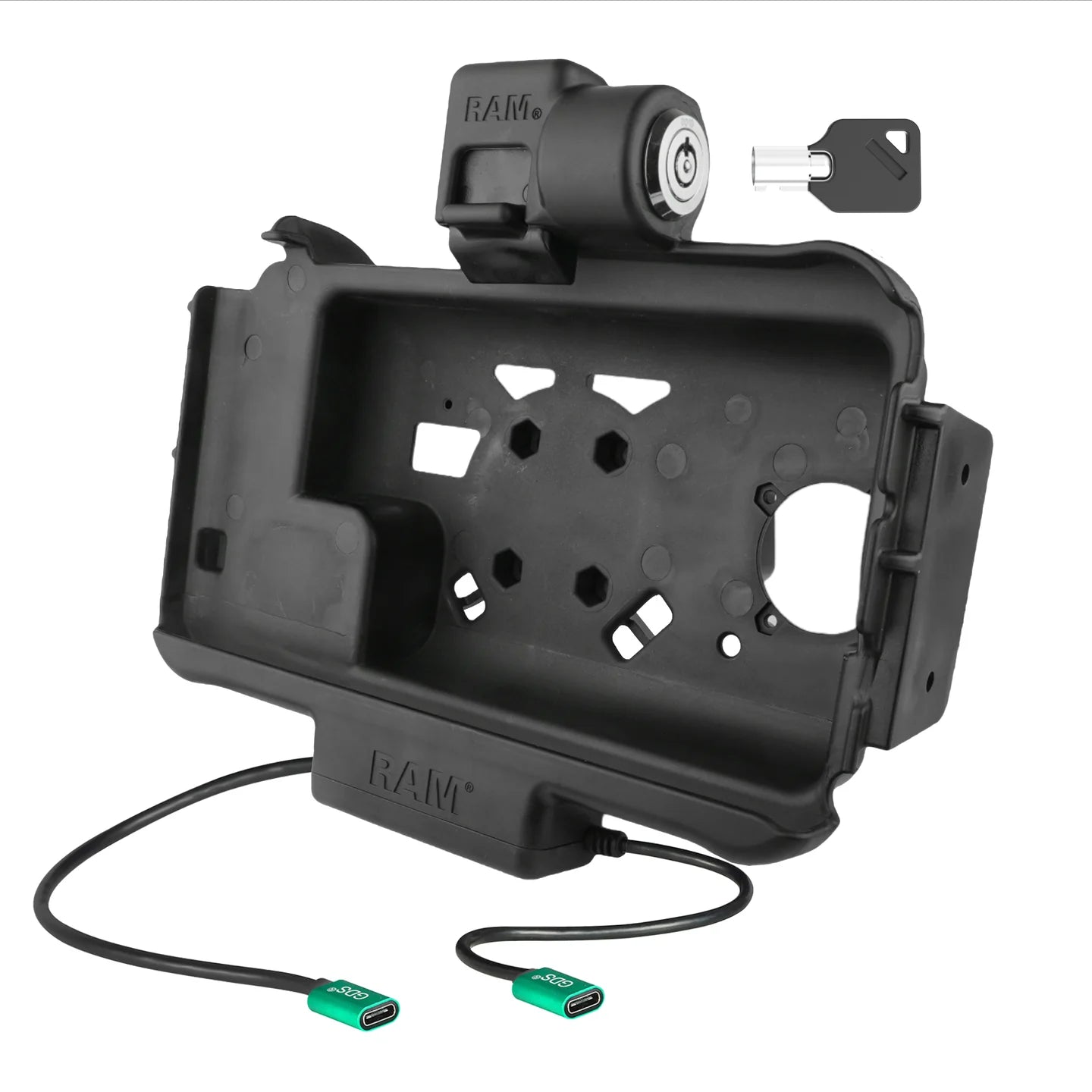

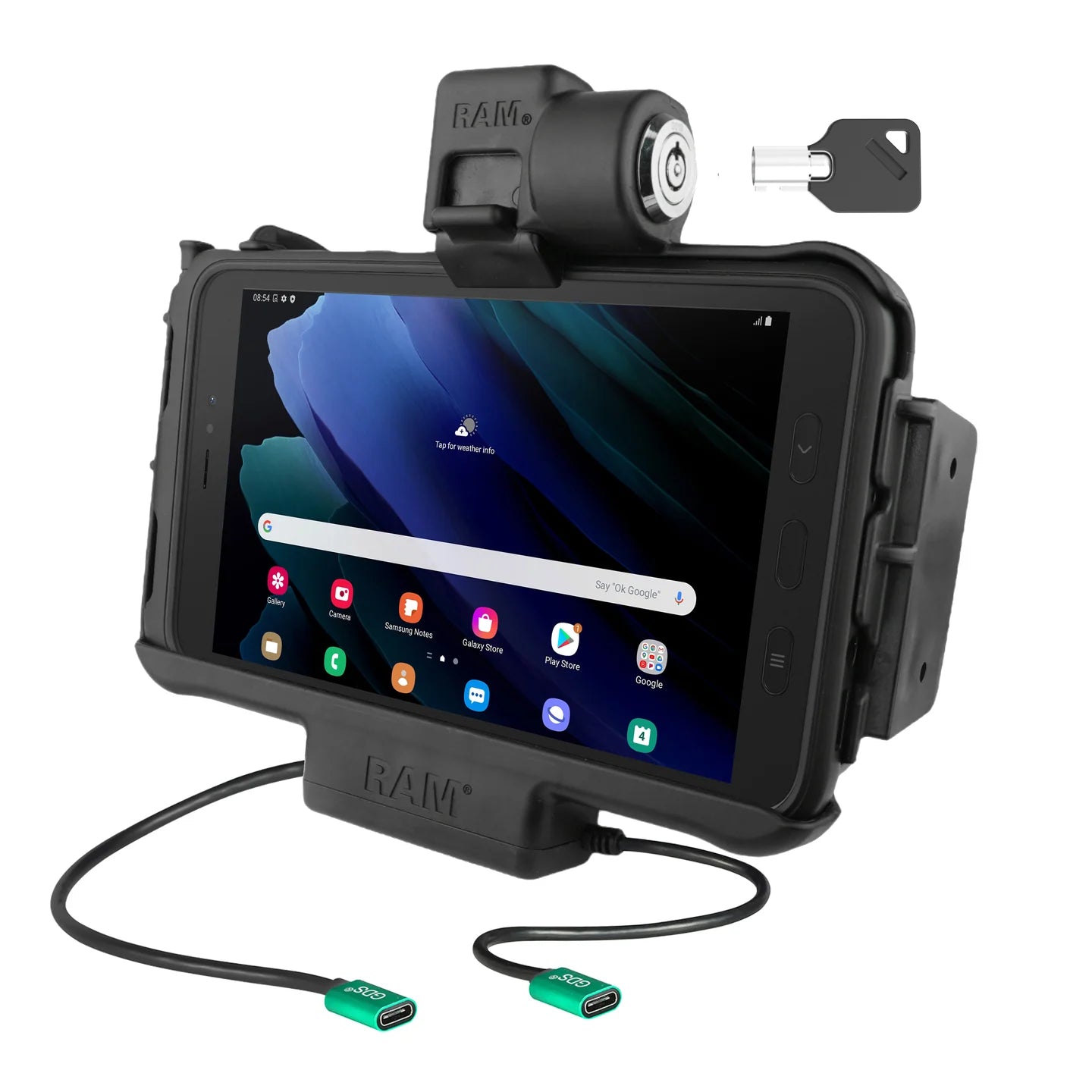

• Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB Type-C cable

• Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments

• Connect one additional peripheral via USB Type-C

• Compatible with the Samsung OEM skin as well as the RAM® Skin™

• Backed by a 3-year warranty

HARDWARE INCLUDED
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Cable Clamps
(4) Large Cable Ties
(10) Small Cable Ties

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

INPUT VOLTAGE
5.3-5.4VDC

OUTPUT VOLTAGE
5VDC

POWER OUTPUT
500mA

INPUT CONNECTOR
USB Type-C Female

INPUT CABLE LENGTH
215mm

OUTPUT CONNECTOR
USB Type-C Female

OUTPUT CABLE LENGTH
215mm

TRANSFER SPEED
480Mbps

WARRANTY
3 year warranty

WEIGHT
1.08 lb

 GDS^® Cable Clamp for mUSB & USB Type-C Cables - RAM-GDS-CAB-CLAMP1U

Samsung

• Tab Active 3

• Tab Active 5
