RAM® No-Drill™ Mount for 5th Gen Ram Pickup Trucks - RAM-VB-186ST1-SW2

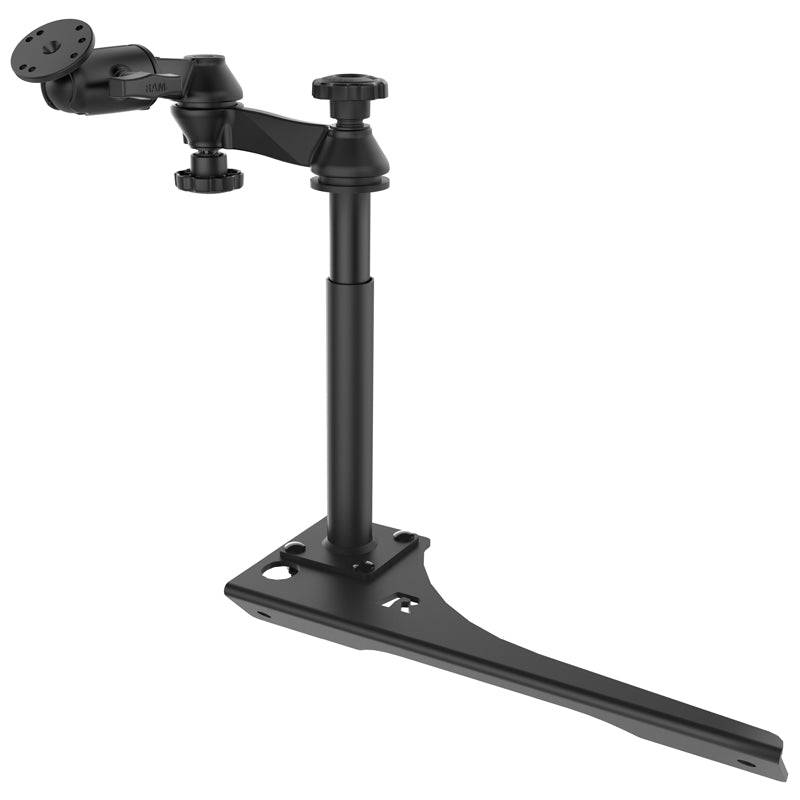

This RAM® No-Drill™ mounting system installs quickly and easily into the 2019-2025 Dodge RAM 1500 (5th Gen Only) using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

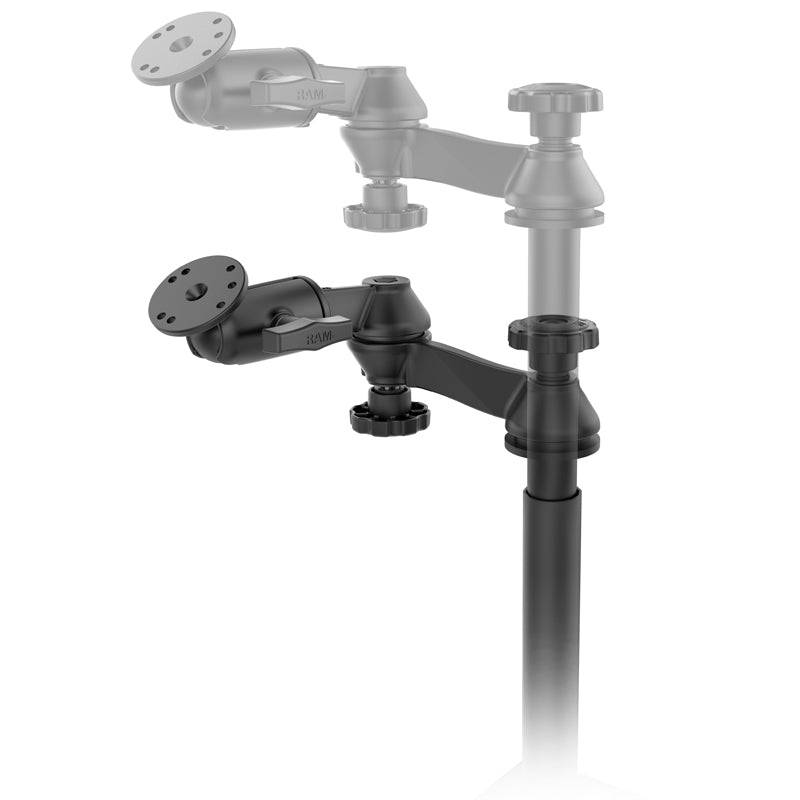

RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

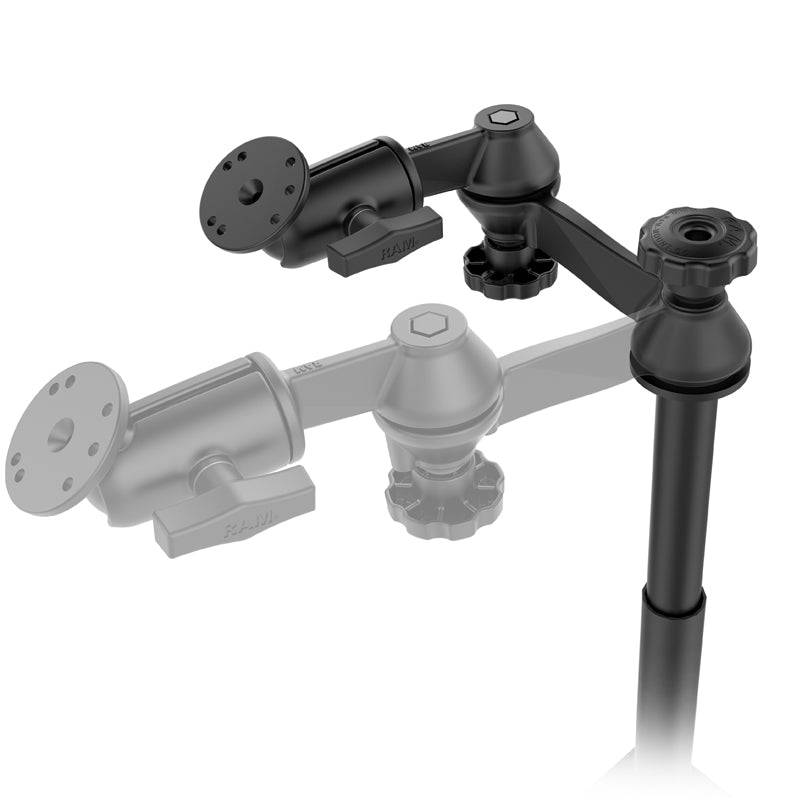

Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders

Made of powder-coated steel and marine-grade aluminum

Backed by a lifetime warranty

HARDWARE INCLUDED

Assembly Hardware
(2) M10-1.5 x 70mm Hex Bolts
(2) 1.68" Stand-Offs
(2) 3/8" Fender Washers

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 15.125" center to center

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

4 lbs

PACKAGING TYPE

Box

ADDITIONAL INFORMATION

This mount is not compatible with the RAM 1500 Classic Body. For the Classic vehicle, please see RAM-VB-178A-SW2.

 RAM No-Drill Seat Bases Instructions 186 Series - PDF

 Upper Tele-Pole Assembly Guide - PDF

• RAM

• 1500 (2019-2025) 5th Gen Body Only
