RAM® Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins - RAM-HOL-HON12PDHU

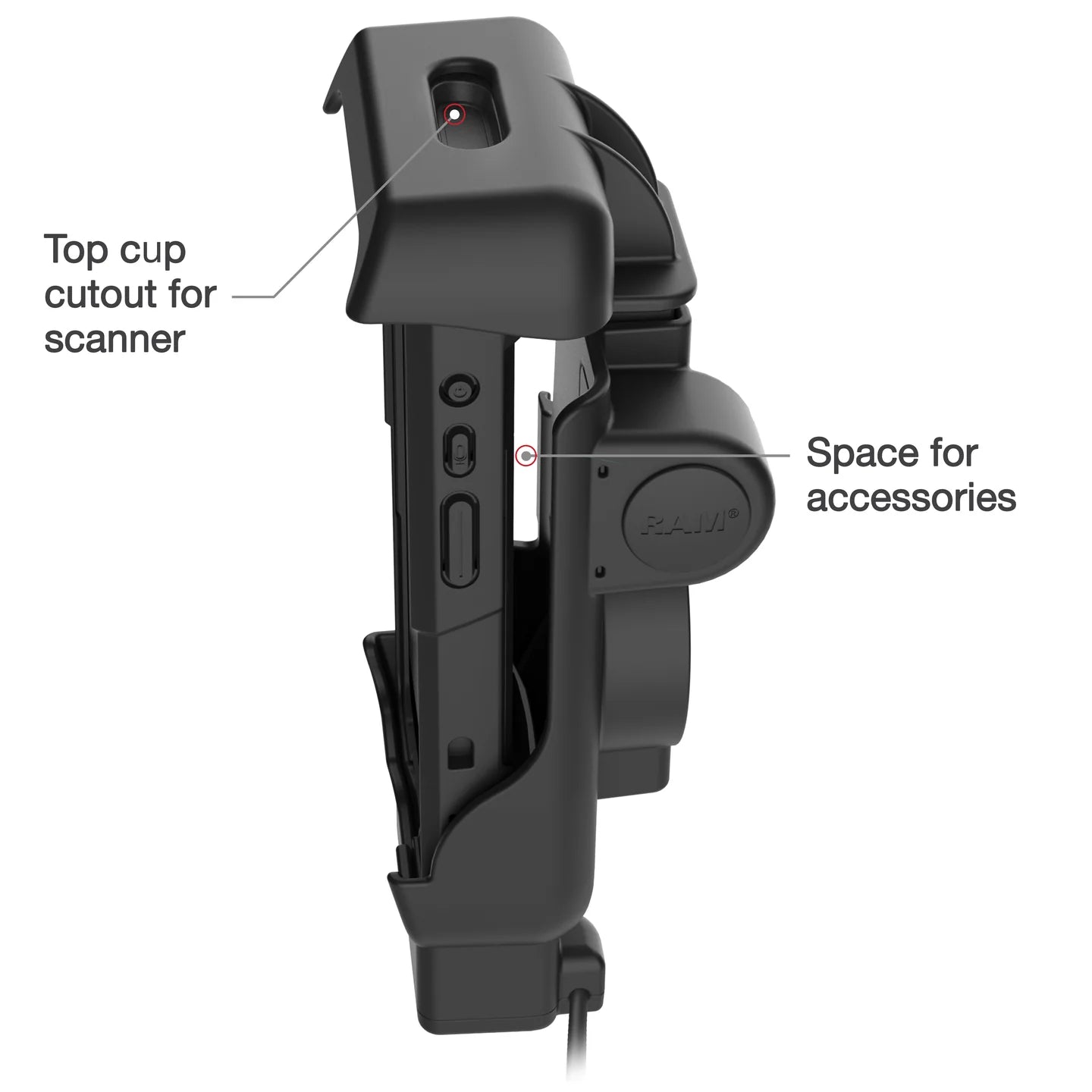

The RAM® Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins (RAM-HOL-HON12PDHU) is a spring-loaded, form-fit powered dock that allows workers to secure and charge their Honeywell device. Power to the device is delivered via a 1m long female 5.5mm DC barrel connector and supports a single peripheral device via USB-A female connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use and is designed to accommodate OEM accessories, such as the hand strap. The top cup of the holder features a cut-out, so workers can utilize the device's scanner while docked.

This holder comes with optional inserts to support devices with or without the protective rubber boot. Combat harsh, freezing environments with heated pogo pins integrated into the dock to ensure a secure connection and prevent the pins from locking up due to ice. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond base and double ball mount, allowing for a wide variety of mounting options (hardware included).

• Spring-loaded form-fit dock perfectly secures the Honeywell CT40/45/47 Handheld Computer; provides power through 1-meter long DC connector and supports a single peripheral via USB Type-A pigtail connector

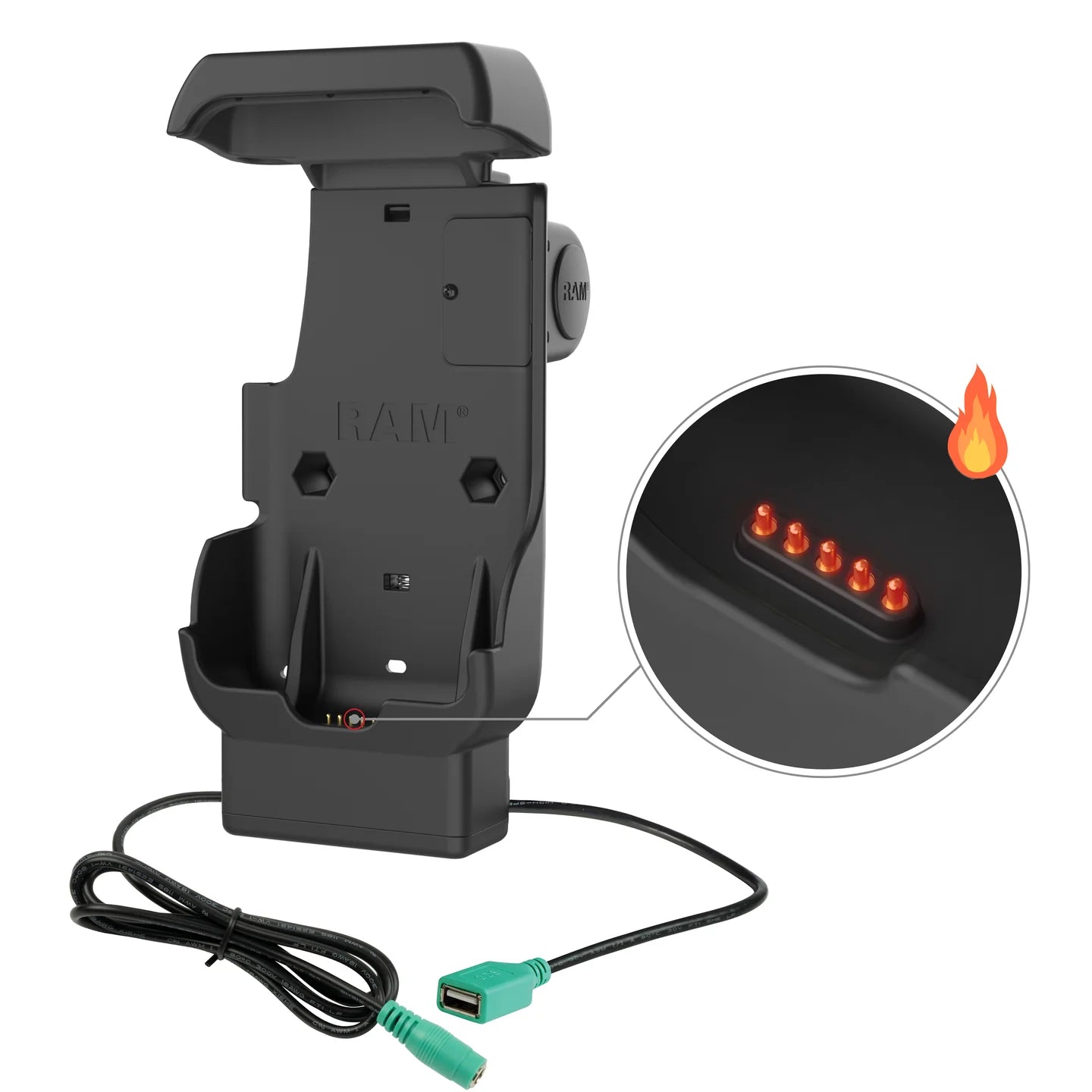

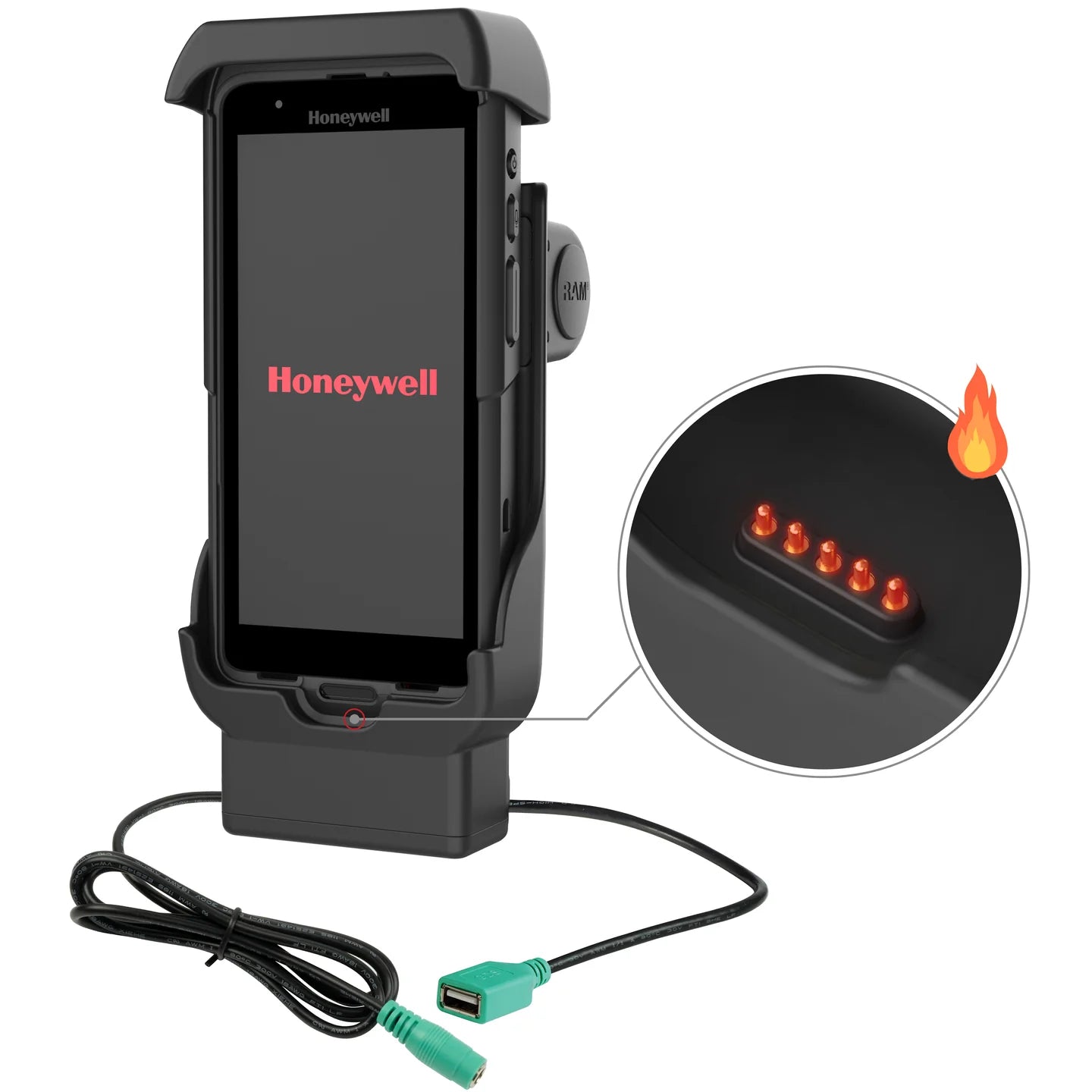

• Heated pogo pins combat ice and ensure a secure connection in harsh, cold environments

• Compatible with RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

• Made of high-strength composites for durability and reliability in the most demanding environments

• Backed by a 3-year warranty

HARDWARE INCLUDED
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

PRODUCT DIMENSIONS
Overall Height: 7.83"
Overall Width: 3.7"
Overall Depth: 3.17"

HOLE PATTERN
2-Hole AMPS: 1.912"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

INPUT VOLTAGE
5 VDC

INPUT CONNECTOR
5.5mm DC Connector

INPUT CABLE LENGTH
1 Meter

OUTPUT CONNECTOR
USB 2.0 Type A Female

OUTPUT CABLE LENGTH
1 Meter

CERTIFICATIONS
FCC, IC, CE, UKCA, RoHS, WEEE

WARRANTY
3 year warranty

Honeywell

• CT40

• CT45

• CT47
