      RAM-101B-225B-SAM60PD-AU-V7B1U

      RAM® Powered Mount for Samsung Tab Active3 and Tab Active2 with Speaker - RAM-101B-225B-SAM60PD-AU-V7B1U

      Out of Stock    ( Chat Live to get an ETA )

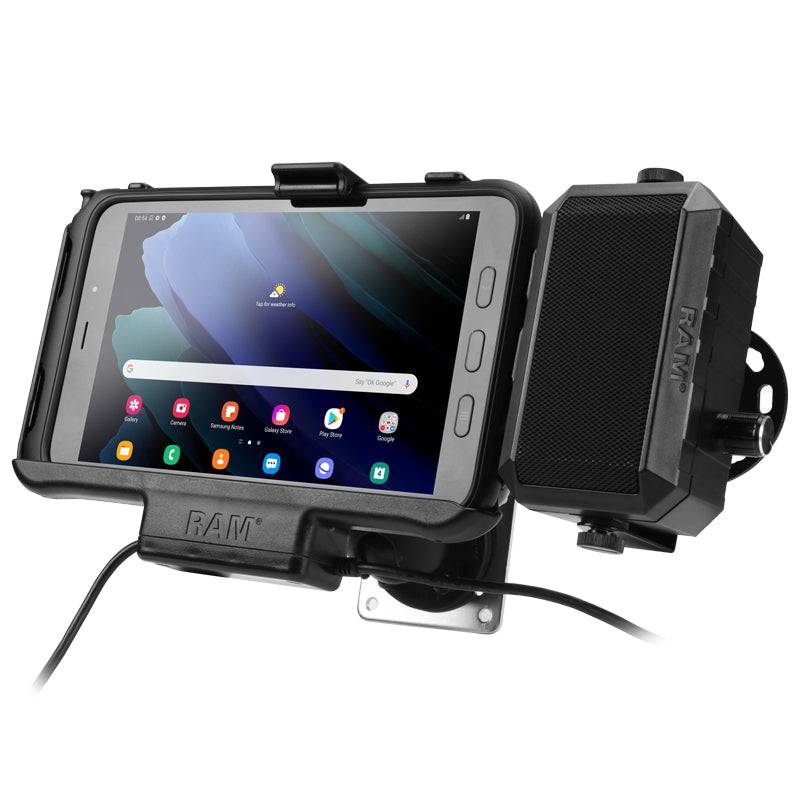

      • Powered dock for Samsung Galaxy Tab Active3 and Tab Active2 provides charging and connects to external speaker through an integrated pogo pin connector

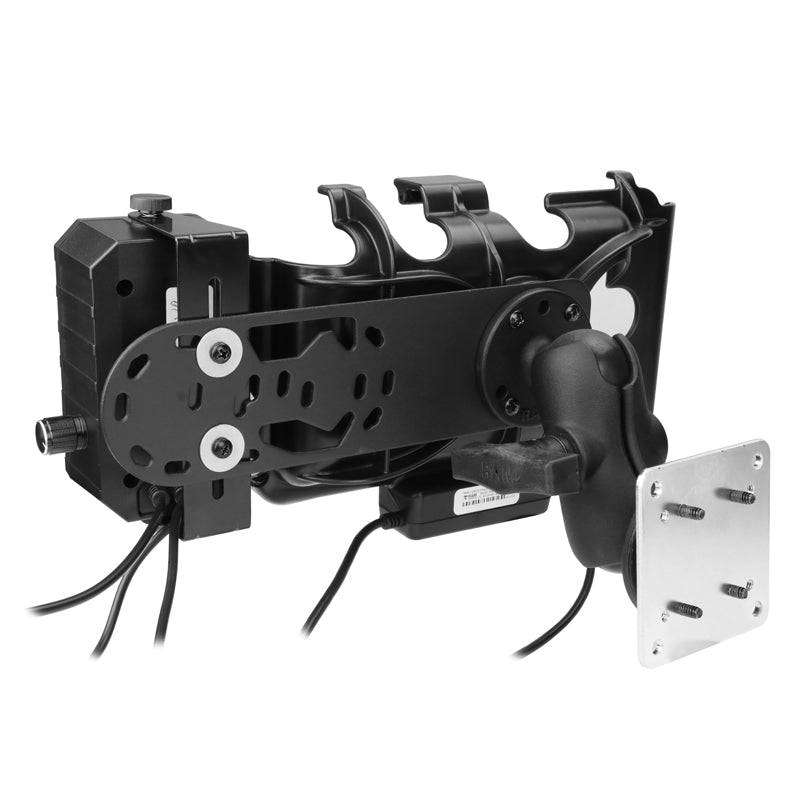

      • Includes RAM® C size double mount, backing plate and hardwire charger for dashboard installation
      • Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
      • PTT-enabled amplification speaker with independent adjustable volume knob, power input cable, audio input cable and audio output cable.
      • Backed by a 3-year warranty

      OVERVIEW

      RAM® Mounts has partnered with Samsung to develop a powered dock for the Samsung Galaxy Tab Active3 and Tab Active2. This dock will keep your tablet powered, as well as connected to the GDS® Audio™ amplified speaker with Push-to-Talk (PTT) breakout feature. This rugged speaker connects to the dock using a 3.5mm Audio connector to USB Type A adapter. The USB power and speaker connect the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. This complete mounting kit includes a 3” x 3” steel backing plate with #10-24 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active3 and Tab Active2. Compatible with the Samsung OEM case as well as the RAM® Skin™, this dock has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more.

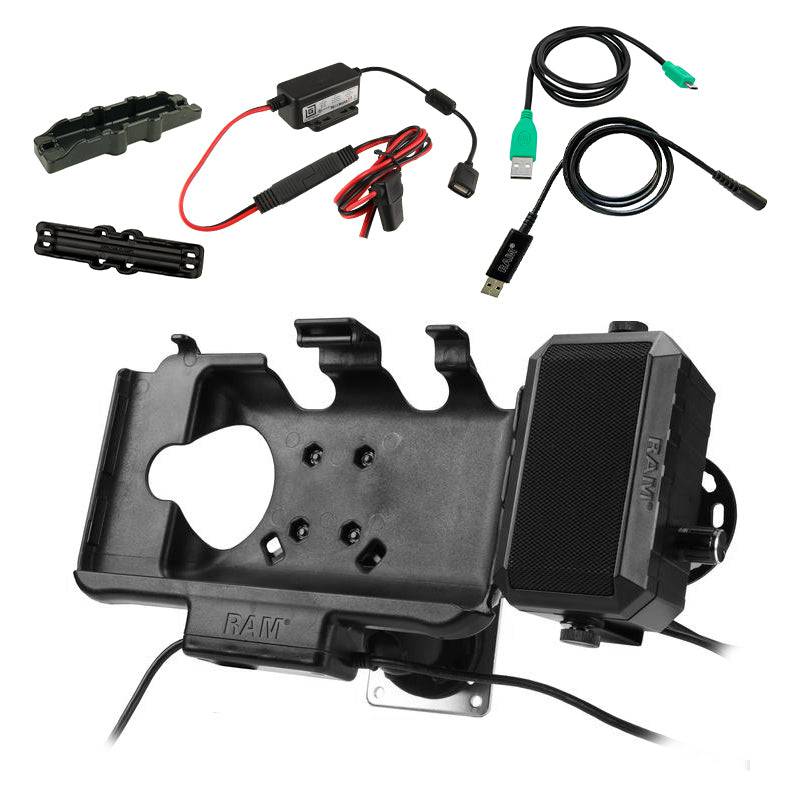

      HARDWARE INCLUDED

       Assembly Hardware
      (1) 3" x 3" Steel Backing Plate
      (4) #10-24 x 1" Thread Locking Screws
      (4) #10-24 Nylock Nuts
      Modular Hardwire Charger

      SPEAKER SPECIFICATIONS

       Independently adjustable volume knob
      Max volume level: 99dB
      8Ω / 10W rated speaker


      SOCKET-TO-SOCKET LENGTH

       2.5"


      HOLE PATTERN

       4-Hole AMPS: 1.181" x 1.496"
      3-Hole 120-Degree: 1.812" Diameter


      BALL/SOCKET SIZE

       C Size (1.5")


      WEIGHT CAPACITY

       Standard Use: 4 lbs
      Heavy-Duty Use: 3 lbs

      MATERIALS

      Marine-grade aluminum
      High strength composite
      Powder coated steel

      PACKAGING TYPE

       Poly Bag


      INPUT VOLTAGE

       10V - 30V DC


      OUTPUT VOLTAGE

       5-9VDC


      OUTPUT CURRENT

       2.5A max


      INPUT CONNECTOR

       mUSB 2.0


      INPUT CABLE LENGTH

       .21 Meter

      OUTPUT CONNECTOR

       USB 1.1 Type A


      OUTPUT CABLE LENGTH

       .2 Meters


      TRANSFER SPEED

       12Mbps


      OPERATING TEMPERATURE

       -10°C to +70°C


      STORAGE TEMPERATURE

       -40°C to +70°C

      COMPLIANCE

       Over Voltage Protection
      Short Circuit Protection
      Reverse Polarity Protection
      RoHS Compliance
      WEEE Compliance
      SAE J-1113-5 Load Dump (Transient Voltage)
      Moisture Resistant


      CERTIFICATIONS

       CE Certification
      e-Mark Certification
      RCM Certification
      FCC Certification

      WEIGHT

       3.85 lbs.

      RAM® Powered Dock For Samsung Tab Active3 And Tab Active2 With Speaker - RAM-HOL-SAM60PD-AUDU

      RAM C Size 1.5" Ball Mount With Short Double Socket Arm & 2/2.5" Round Plate AMPs Hole Pattern - RAM-101U-B

      3 X 3 Backer Plate W/ AMPS And 1.5" X 2" Hole Patterns With Hardware - RAM-202-225BU

      GDS® Modular 10-30V Hardwire Charger With Female USB Type A Connector - RAM-GDS-CHARGE-V7B1U

      GDS® USB Cable Clamp For Rugged Aluminum USB Housings - RAM-GDS-CAB-CLAMP3U

      Samsung

      Tab Active2

      Tab Active3

      Dock + Speaker Assembly Guide -PDF

      Cable Clamp Instructions - PDF
