RAM® Quick-Grip™ Pro XL Phone Mount with Fork Stem Base - Short - RAM-B-176-A-PD7U

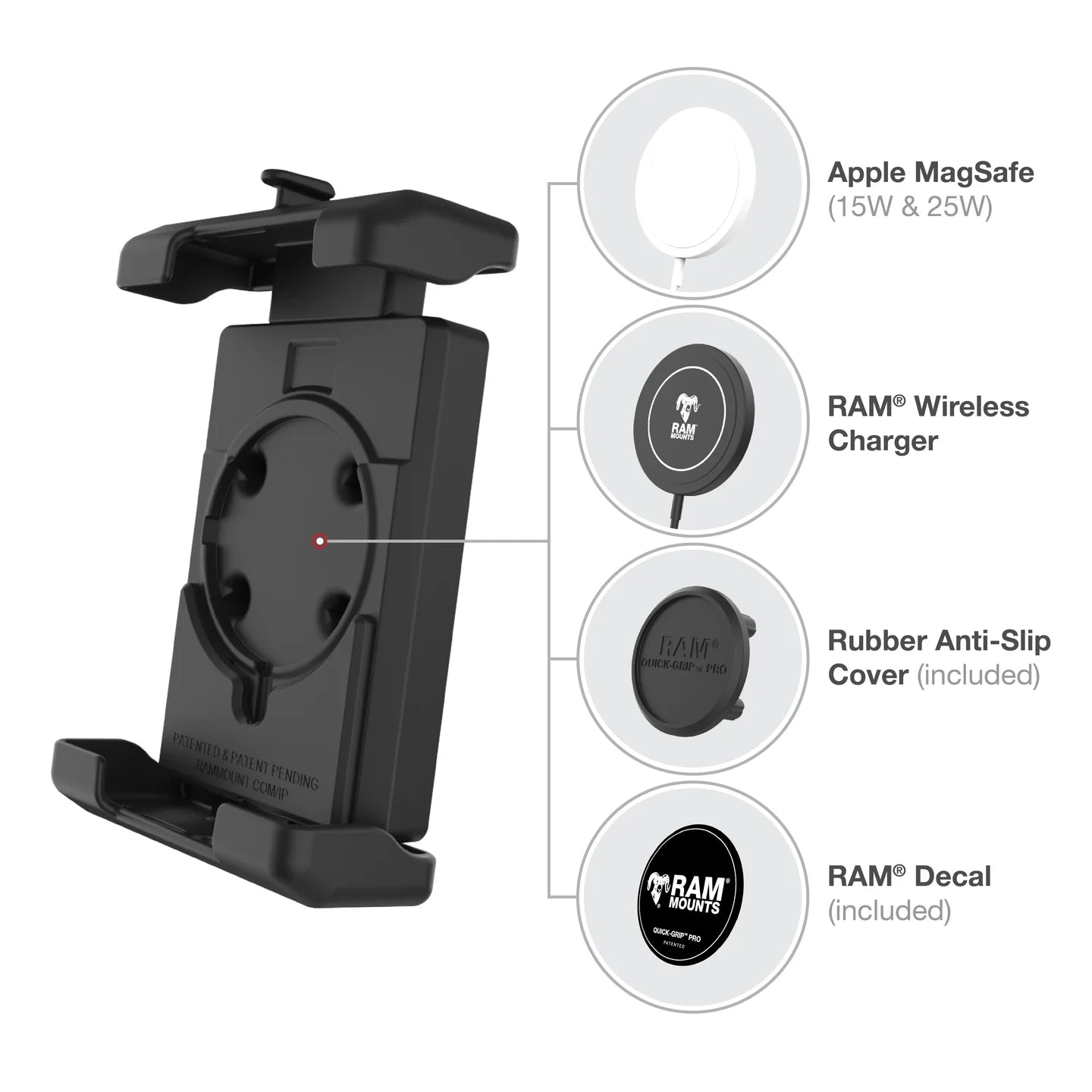

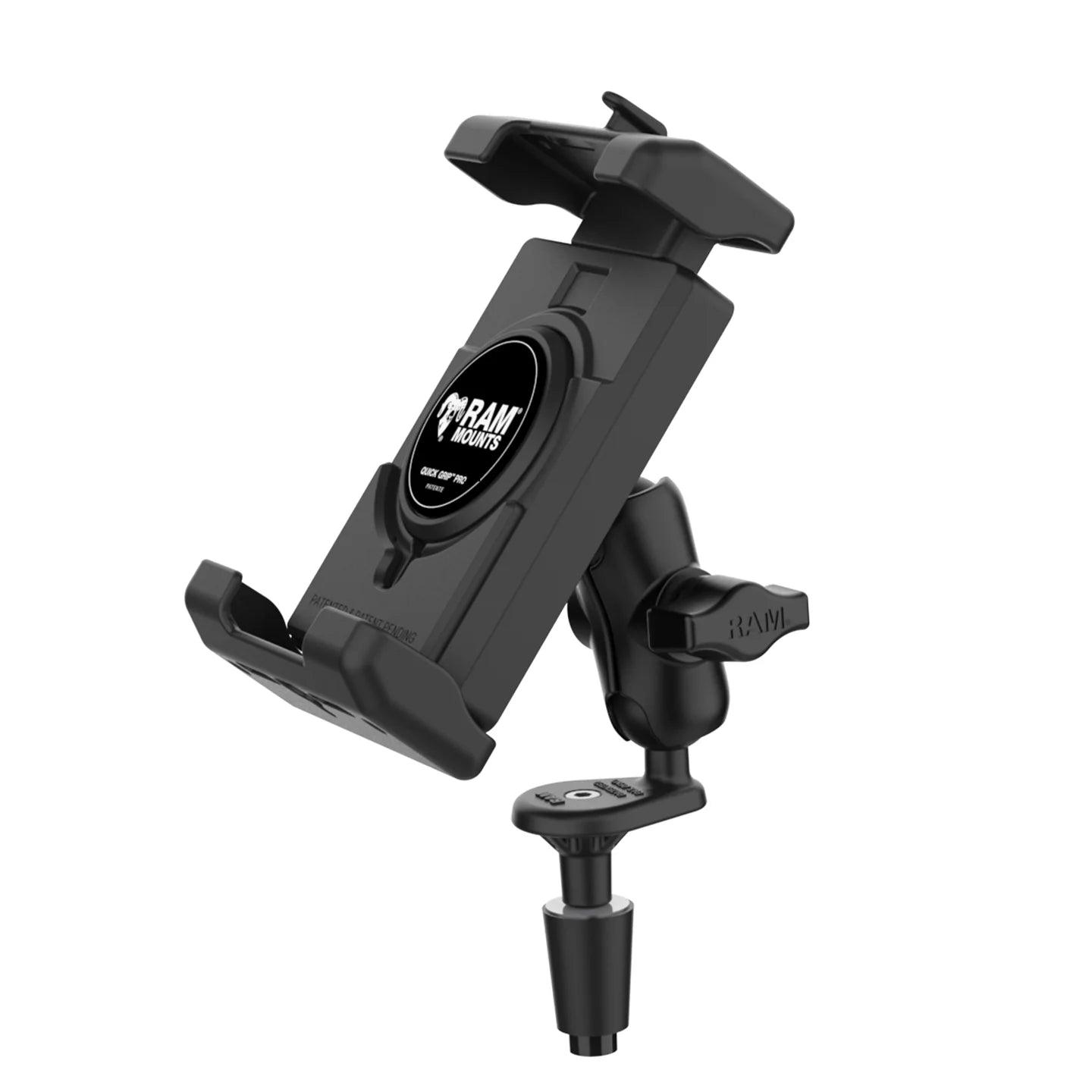

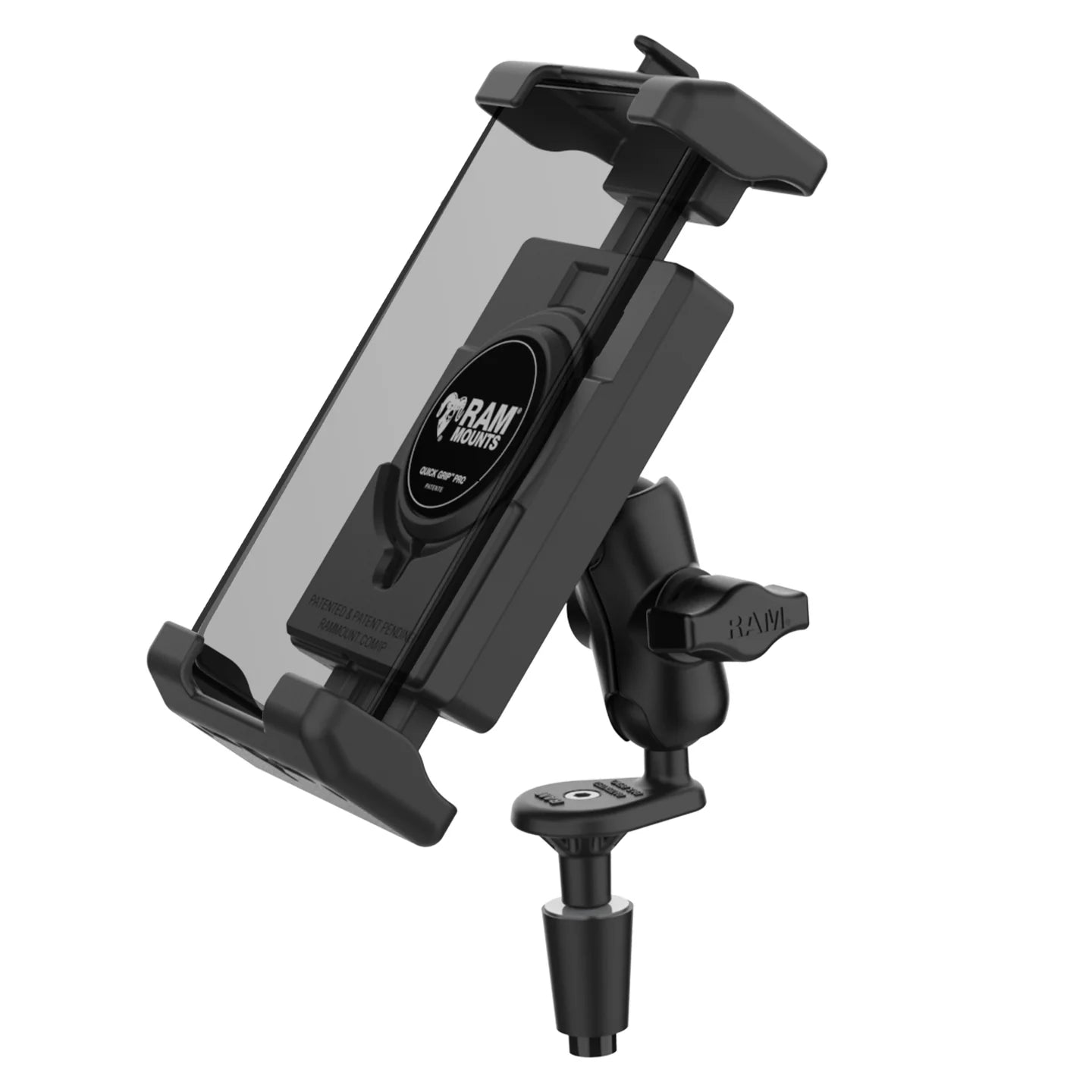

The RAM® Quick-Grip™ Pro XL Phone Mount with Motorcycle Fork Stem Base (RAM-B-176-A-PD7U) secures into the cylindrical bore wall of fork stems and features the next evolution of the RAM® Quick-Grip™ series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder features an integrated cavity for an Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed.

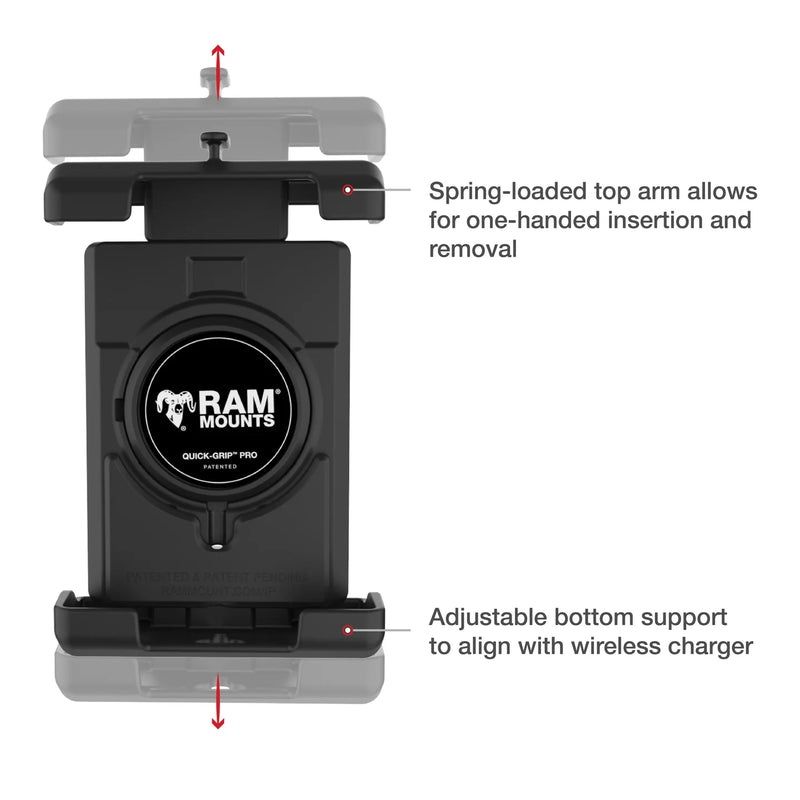

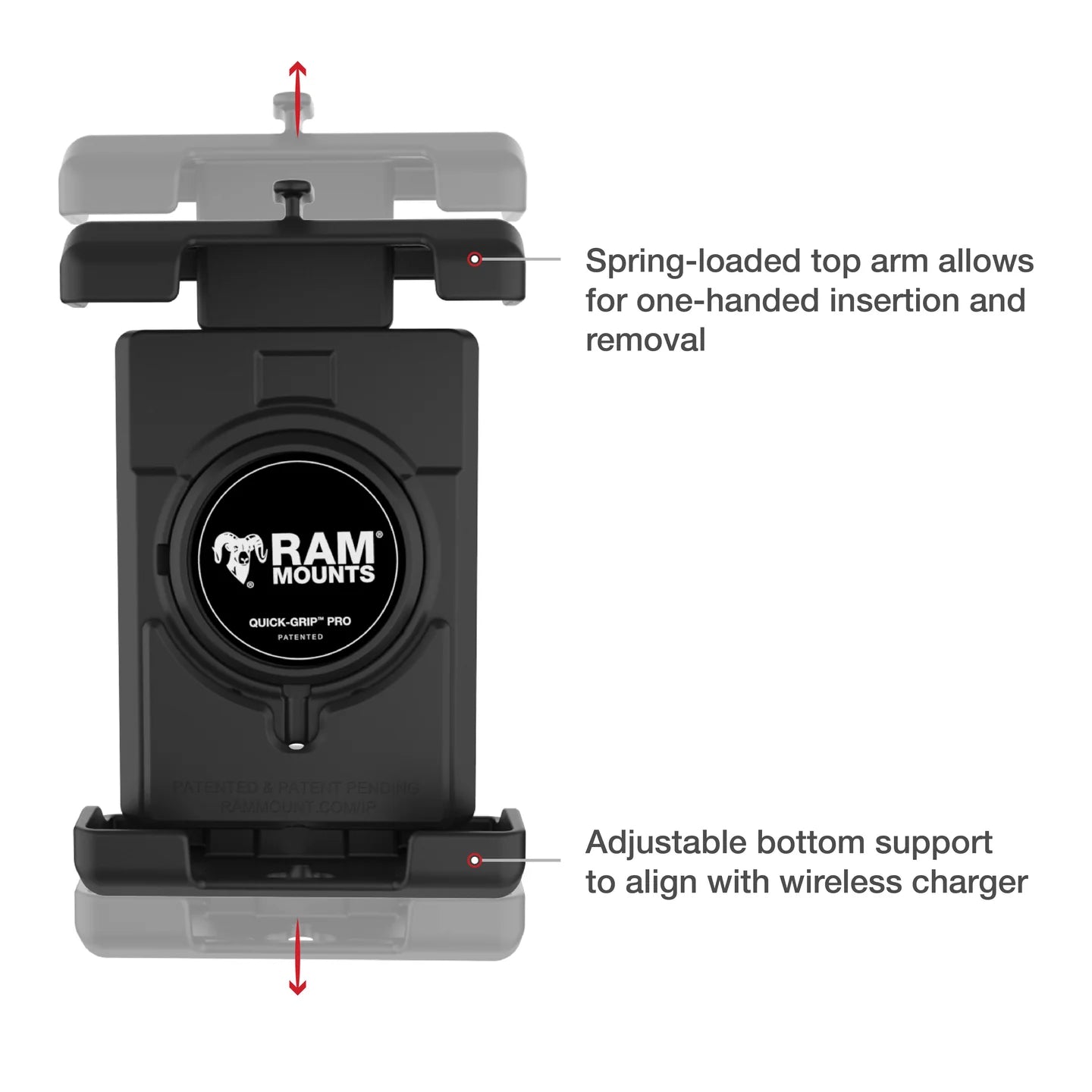

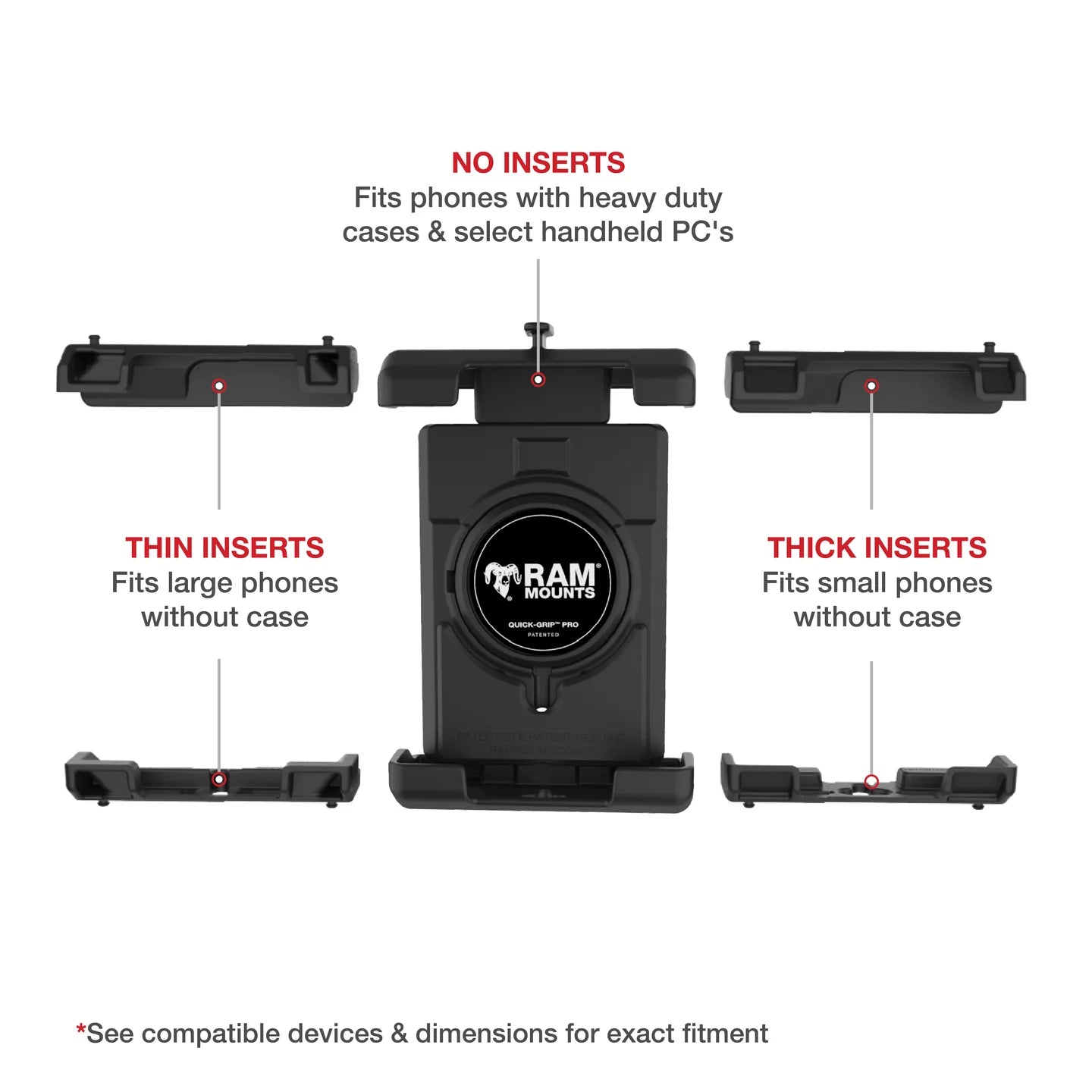

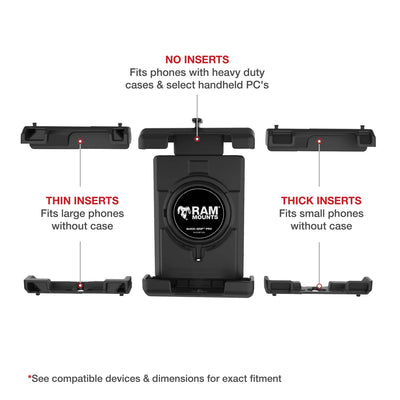

The RAM® Quick-Grip™ Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. This kit's included motorcycle fork stem base fits into the cylindrical bore wall of fork stems that that measure 12mm to 38mm (.5” to 1.49”) in diameter. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

• Spring-loaded holder provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand

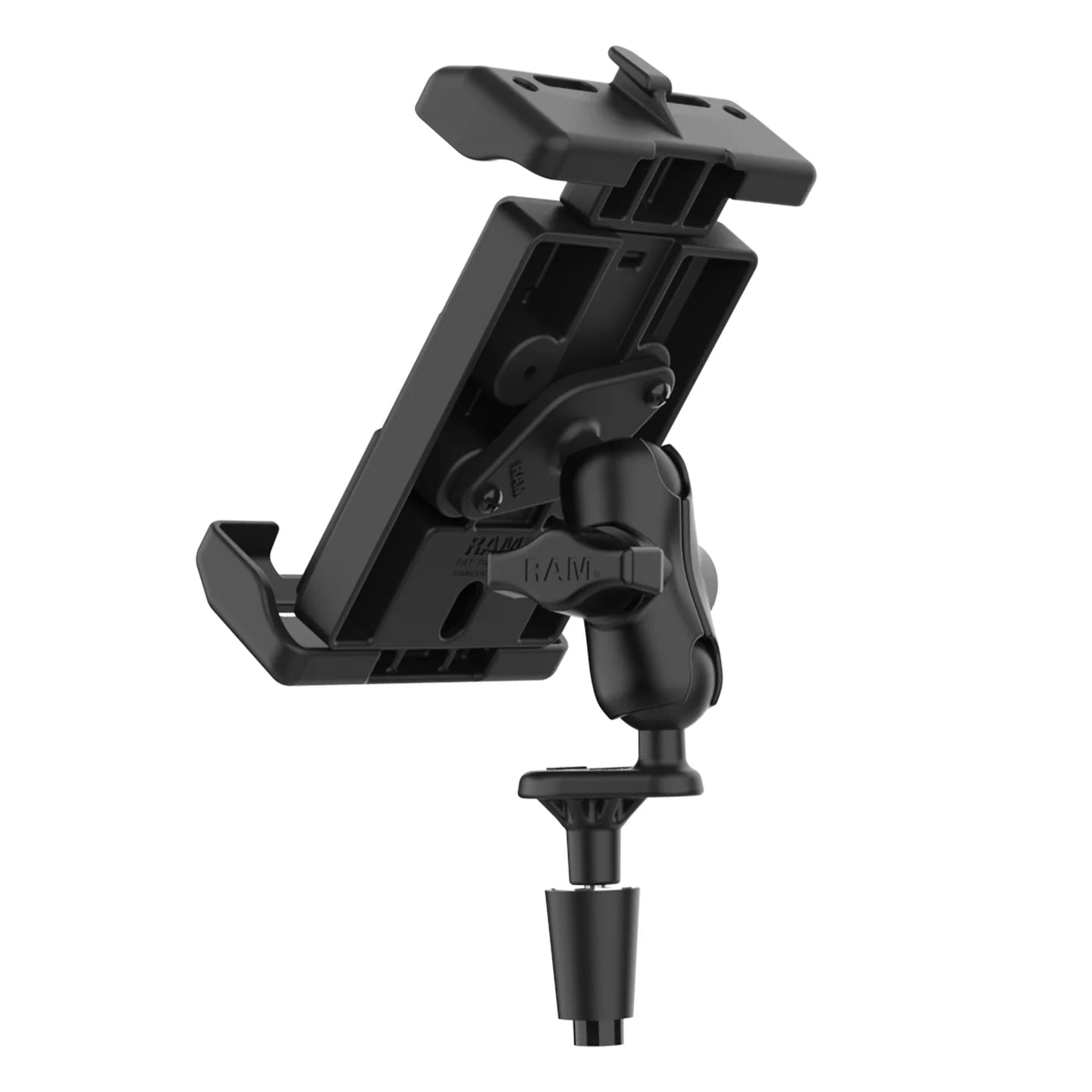

• Includes motorcycle fork stem base that works with stems 12mm to 38mm in diameter and short length, B size RAM® double socket arm; ball and socket

• Center cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included

• Comes with optional device tether for open cockpit environments

• Backed by a lifetime warranty

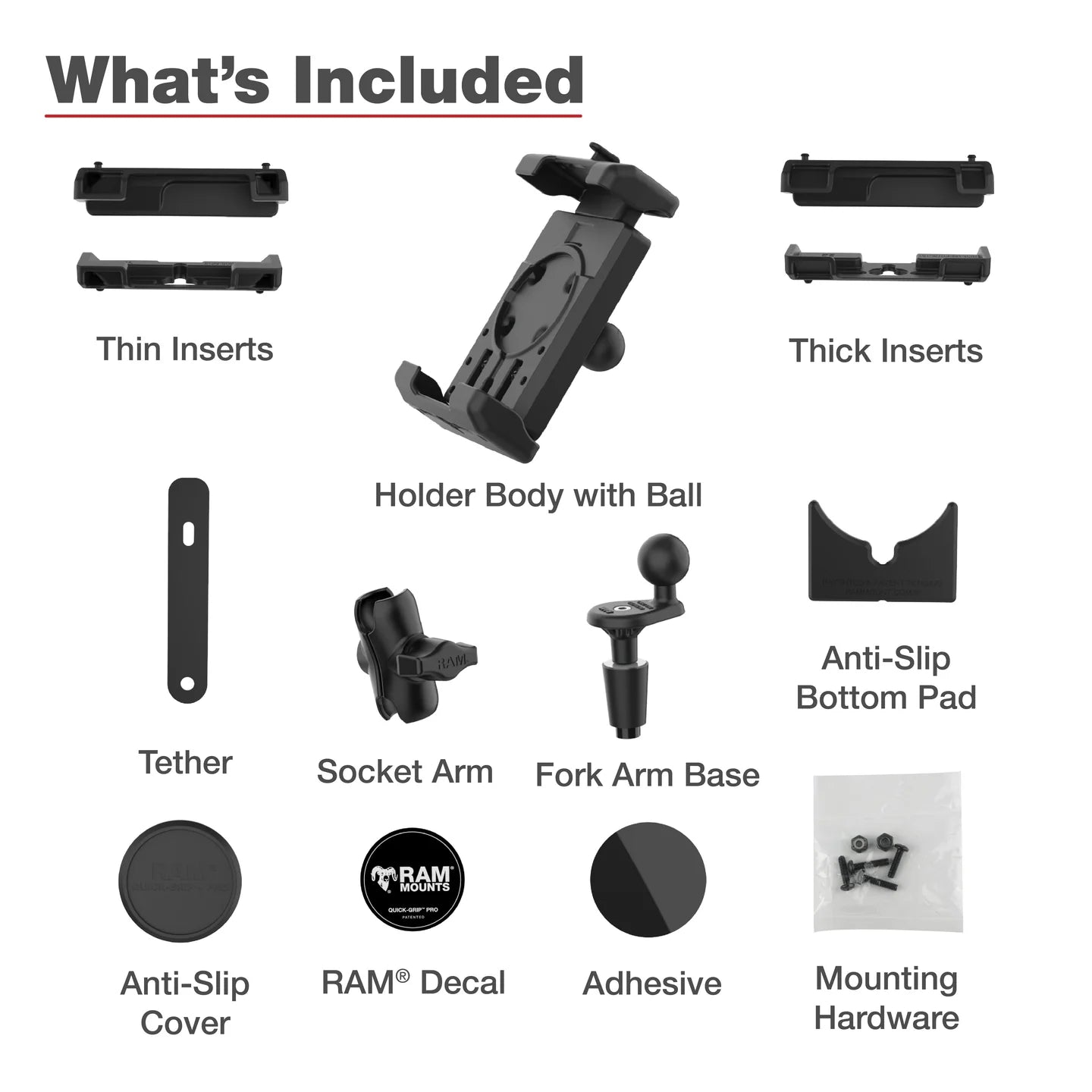

hardware included:
Assembly Hardware
(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut

holder dimensions:
Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"

socket to socket length:
1.75"

ball size:
B Size (1")

weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:
Marine-grade aluminum
High strength composite

packaging type:
Poly Bag

RAM® Quick-Grip™ Pro XL Phone Holder - RAM-HOL-PD7U

RAM Short Double Socket Arm for B Size 1" Balls - RAM-B-201U-A

RAM Motorcycle Fork Stem Base with 1" Ball - RAM-B-342U
