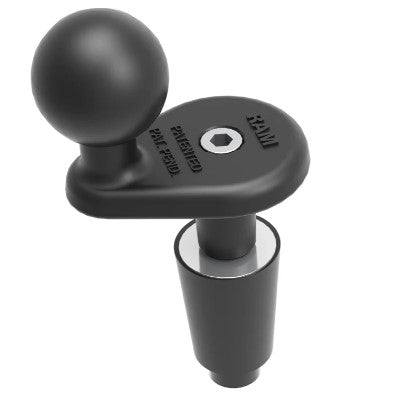

RAM Motorcycle Fork Stem Base with 1" Ball - RAM-B-342U

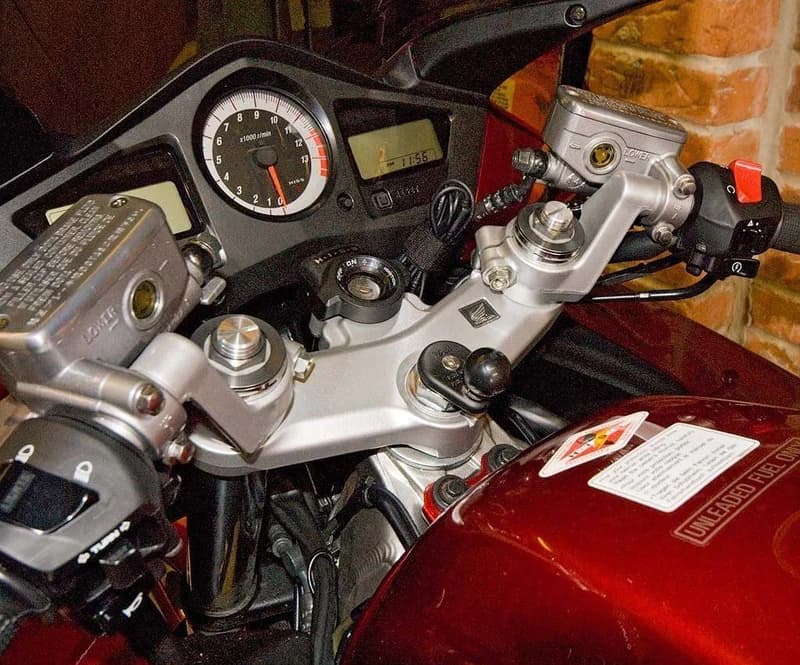

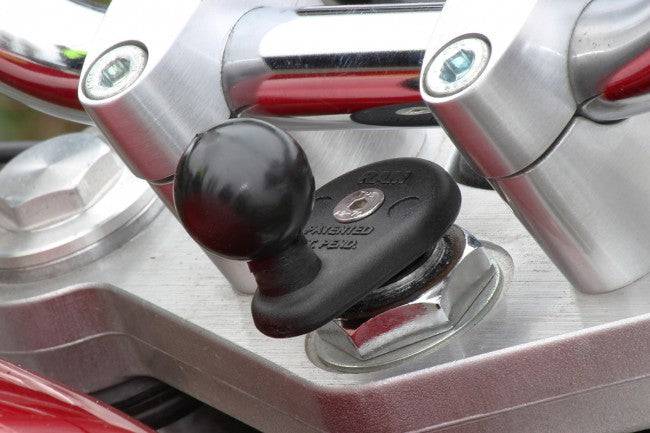

The RAM^® Motorcycle Fork Stem Base is one of the cleanest and most popular solutions for mounting your device cleanly on the center of your bike. This part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12 - 33mm (.5” – 1.29”).

Specs & Features

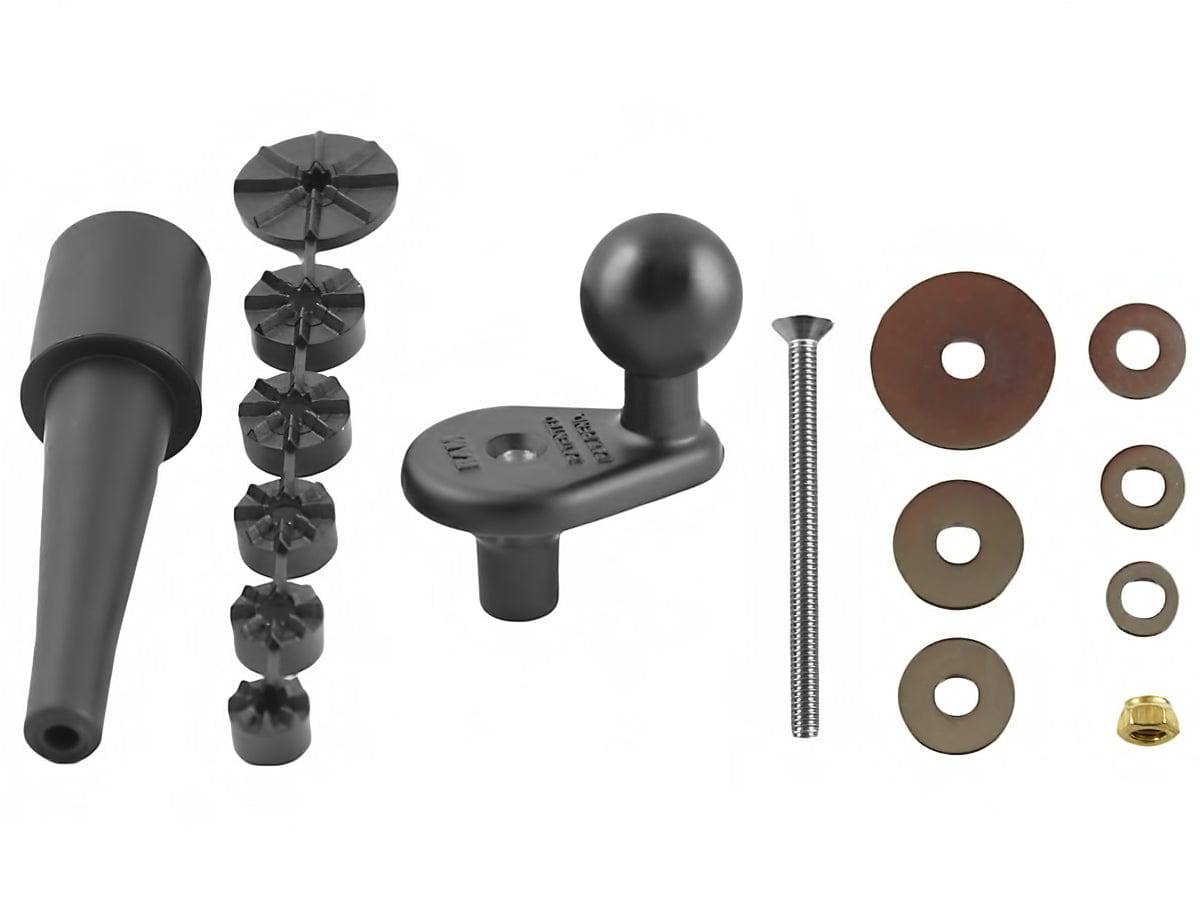

Hardware Included:
(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Weight:
0.25 lbs.

Instructions

 Fork Stem Base Installation Instructions - PDF

Fork Stem Mount Installation

Video

RAM® Mounts Motorcycle Fork Stem Mount Installation Demo



Compatible With

Compatible Arms and Mounts

RAM® X-Grip® Cell Phone Cradle with Double Socket Arm - RAP-HOL-UN7B-201U

RAM® X-Grip® Cradle with 1" Ball & Medium Length Double Socket Arm for 7"-8" Tablets - RAM-HOL-UN8B-201U

RAM Universal Action Camera Adapter with Double Socket Arm - RAM-B-202-GOP1-201U

RAM Double Socket Arm for B Size 1" Balls - RAM-B-201U

RAM Short Double Socket Arm for B Size 1" Balls - RAM-B-201U-A

RAM Long Length Double Socket Arm for B Size 1" Balls - RAM-B-201U-C

RAM Composite Double Socket Arm for 1" Balls - RAP-B-201U

RAM Composite Short Double Socket Arm for 1" Balls - RAP-B-201U-A

RAM Double Socket Swivel Arm for 1" Balls (Overall Length: 6.25") - RAP-B-200-2U

RAM Composite Double Socket Swivel Arm for 1" Balls - RAP-B-200-12U

RAM Medium Double Socket Arm, Long Double Socket Arm & Double Ball Adapter for B Size 1" Balls - RAM-B-201-201U-C

RAM Double Socket Arm with Retention Knob for B Size 1" Balls - RAM-B-201-ALA1-KRU

RAM Short Double Socket Arm with Retention Knob for B Size 1" Balls - RAM-B-201-A-ALA1-KRU

RAM Long Double Socket Arm with Retention Knob for B Size 1" Balls - RAM-B-201-C-ALA1-KRU

RAM Composite Double Socket Swivel Arm for 1" Balls - RAP-B-200-2NKU

RAM Long Length Double Socket Arm with Retention Arm for B Size 1" Balls - RAM-B-201U-C-ALA1

RAM Double Socket Arm with RAM® Pin-Lock™ Security Knob and Key Knob for B Size 1" Balls - RAM-B-201-SU

RAM 18" Long Rigid Aluminum Rod & (2 QTY) Single Socket Arms for 1" Balls - RAP-B-200-1-18U

RAM 18" Long Extension Pole with (2 qty) 1" Single Open Sockets - RAP-BB-201-18U

RAM 14" Long Extension Pole with (2 qty) 1" Single Open Sockets - RAP-BB-201-14U

RAM 1" Ball Medium Length Double Socket Arm with Diamond Base - RAM-B-103-238U

RAM 1" Ball Short Length Double Socket Arm with Diamond Base - RAM-B-103-A-238U

RAM 1" Ball Long Length Double Socket Arm with Diamond Base - RAM-B-103-C-238U

RAM 1" Ball Medium Length Double Socket Arm with 2.5" Round Base that contains the AMPs Hole Pattern - RAM-B-103U

RAM 1" Ball Short Length Double Socket Arm with 2.5" Round Base that contains the AMPs Hole Pattern - RAM-B-103U-A

RAM 1" Ball Long Length Double Socket Arm with 2.5" Round Base that contains the AMPs Hole Pattern - RAM-B-103U-C
