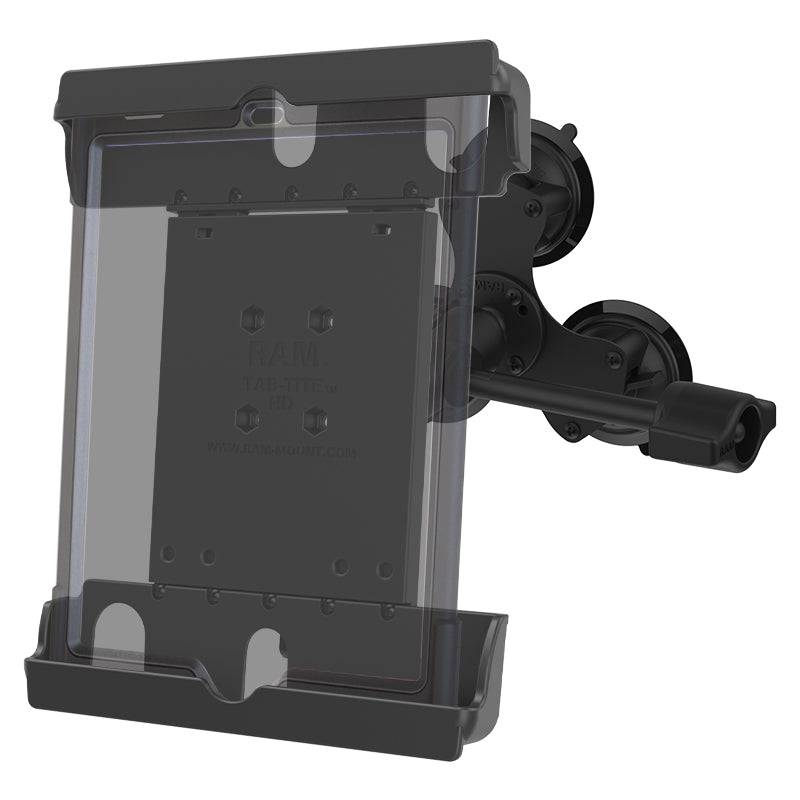

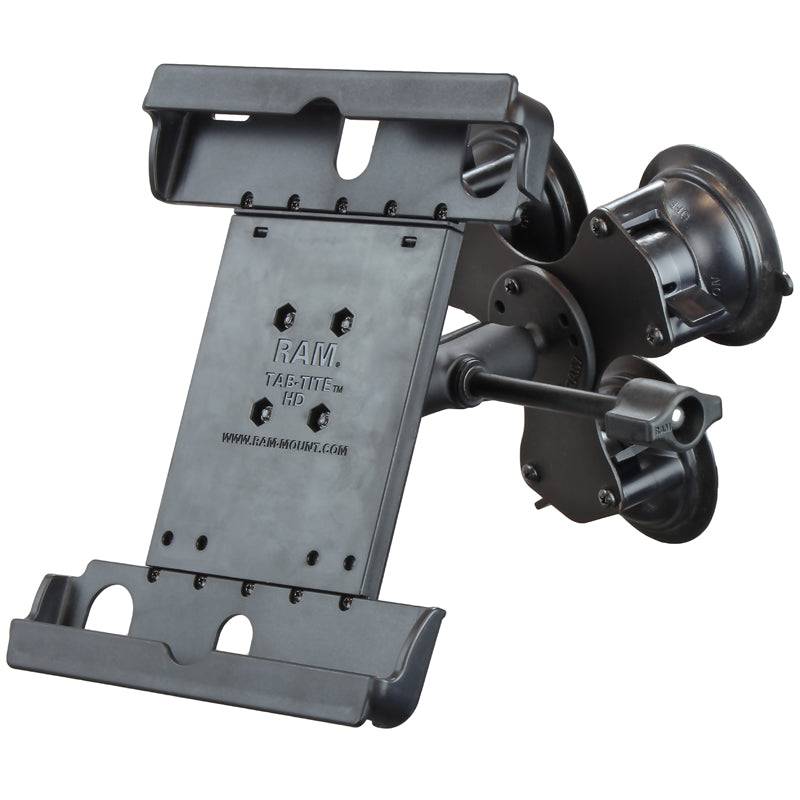

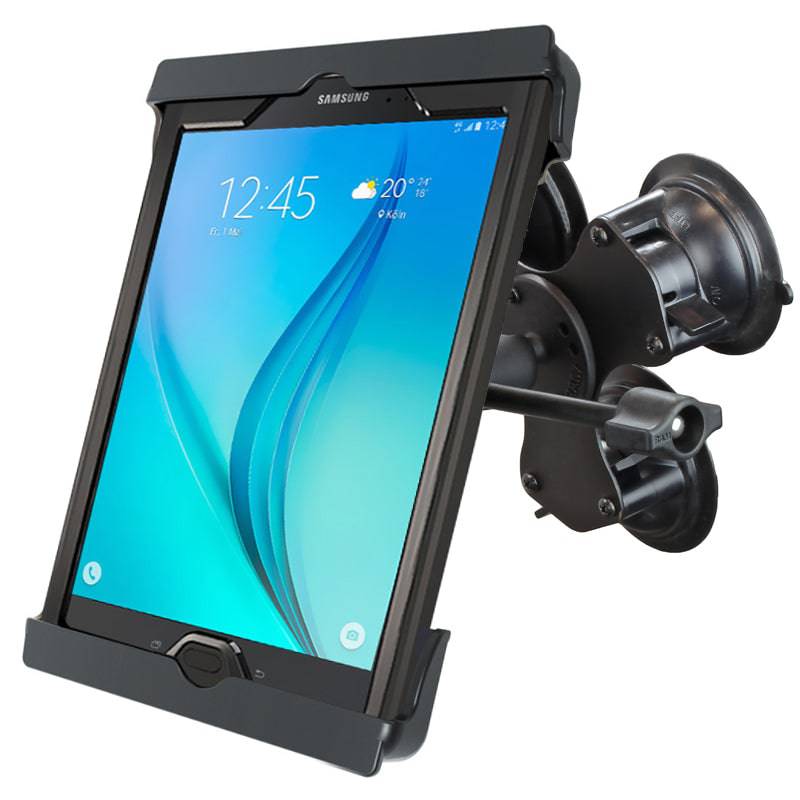

RAM® Tab-Tite™ with RAM® Twist-Lock™ Triple Suction for 9"-10.5" Tablets - RAM-333-224-1-ALA1-TAB20U

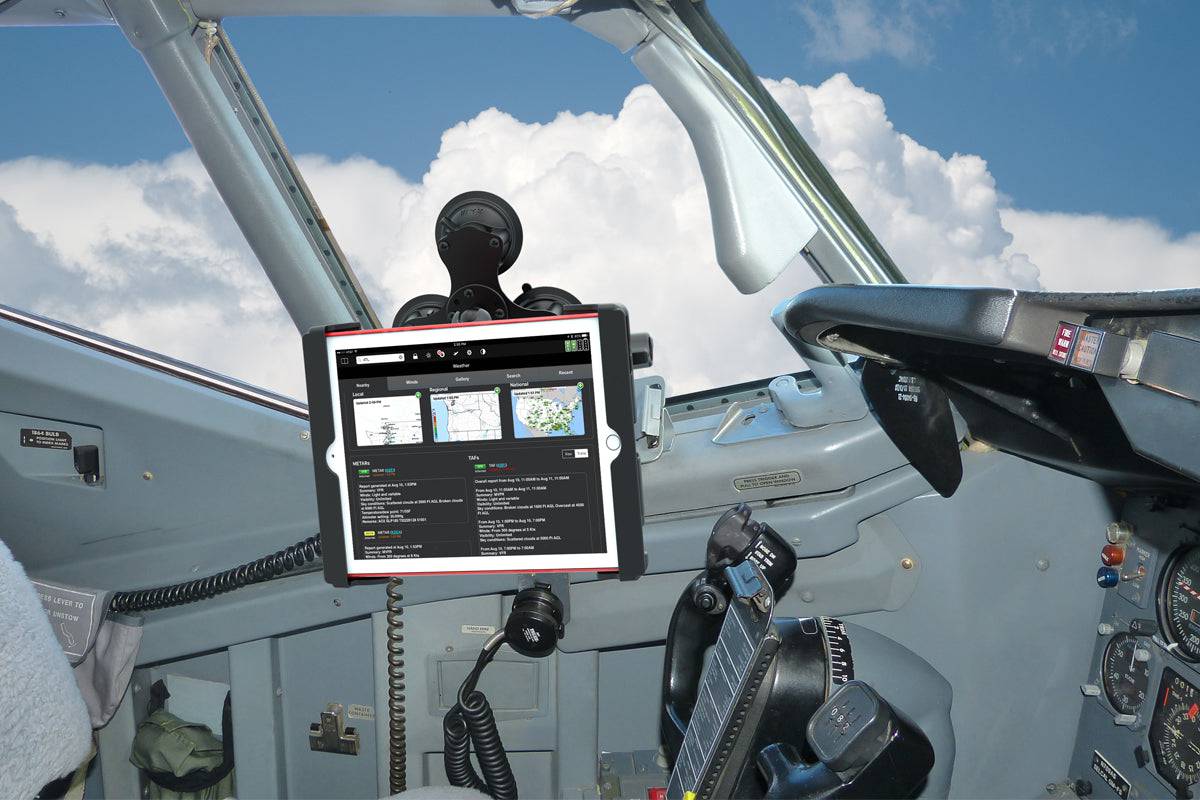

The RAM-333-224-1-ALA1-TAB20U is a triple suction cup base for commercial aviation EFB iPad AIR 2. The triple suction cup base offers redundancy in the cockpit for a secure mount for the demanding environment of the modern flight deck. Designed to be used in either the Captian of the FO seat. This mount gives the operator the ability to adjust easily with the aviation designed double socket arm and the extended knob that is always in the sight of the operator.

HARDWARE INCLUDED

Assembly Hardware

HOLDER DIMENSIONS

Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

SUCTION SIZE

(3) 3.3" Diameter Bases, Total Width 7.95"

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.94 lbs.
