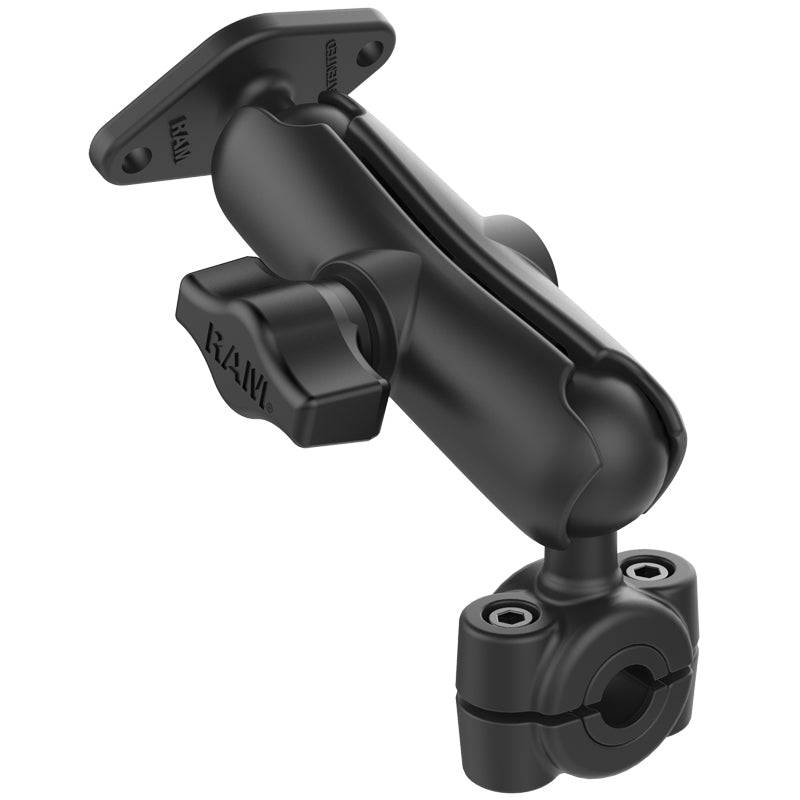

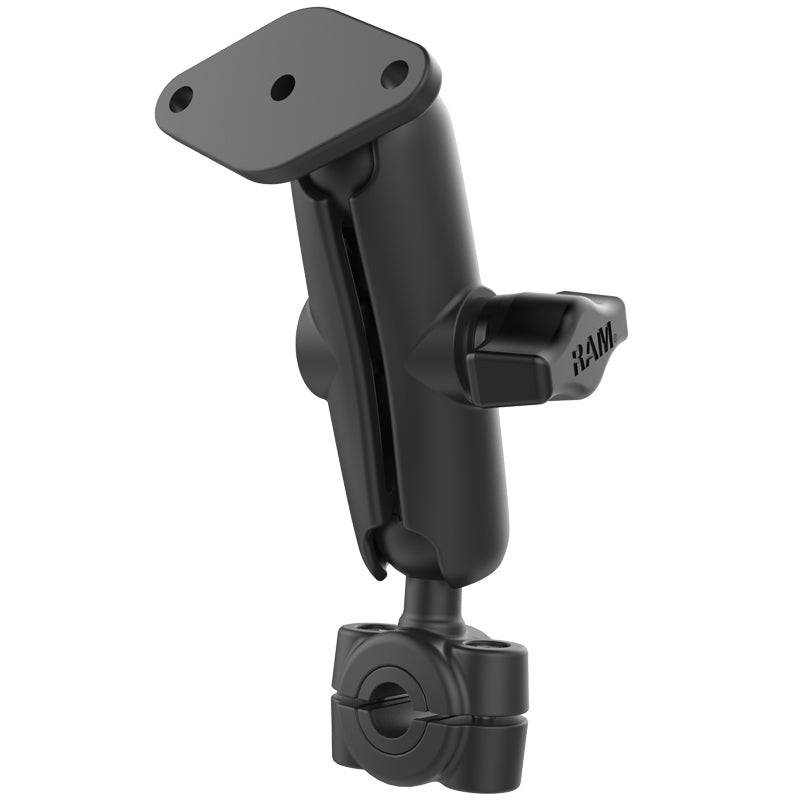

RAM® Torque™ Small Rail Base with Diamond Plate - RAM-B-408-37-62-238U

Take your mobile entertainment on the road with the new RAM^® Torque^™ handlebar and rail mounting base. We’ve paired a B-sized 1" ball base that accommodate bars 3/8" to 5/8” in diameter with a B-sized standard length arm and diamond base so that you can connect any of the RAM Mounts cradles or anything else with the AMPS hole pattern. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment.

HARDWARE INCLUDED

(2) #8-32 x .75" Socket Head Cap Screws
(2) #8-32 Nylock Nuts
(2) .32" Composite Bushings
(2) .4" Composite Bushings
(2) .47" Composite Bushings
(2) .55" Composite Bushings
(1) 57.2mm Rubber Strip
(1) 9/64" Hex Key Wrench

CLAMP RANGE

.375" - .625" diameter

SOCKET-TO- SOCKET LENGTH

3"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

2 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.56 lbs.

 Drawing File - Diamond Ball Plate

 Torque Base Installation Guide - PDF
