RAM® Track Ball™ Mount for Garmin Striker + More - RAM-B-202-G4-TRA1U

• Designed for track mounting systems including the RAM® Tough-Track™; includes 1" B size rubber ball
• Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
• Standard RAM® double socket arm provides an ideal overall length of 3.73" and a socket-to-socket length of 3"
• Made of high-strength composite and steel components for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

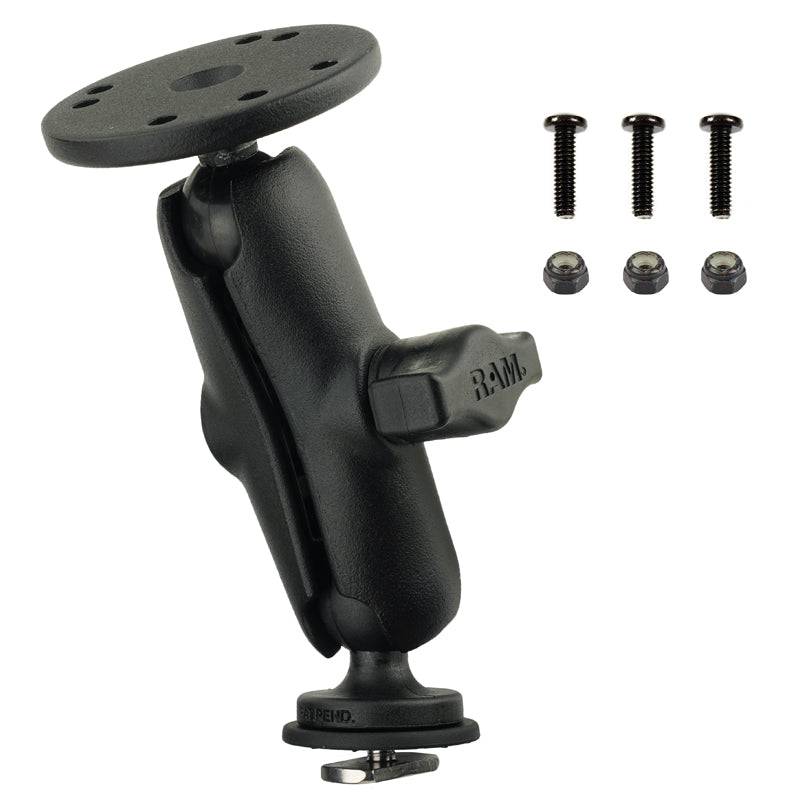

The RAM^® Track Ball^™ bundle is a rugged mount including the RAM^® Track Ball^™, the RAM^® Double Socket B Size Arm, and the RAM^® Round Plate with Ball & Mounting Hardware for Garmin Striker and other fishfinder models.

The RAM^® Track Ball^™ consists of a B size 1" rubber ball molded to a high-strength composite base, a rubber friction washer, and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the RAM^® Track Ball^™ into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball. The included, RAM-B-201U consists of a medium double socket arm that accommodates 1" B size ball bases, device holders, and adapters. With an overall length 3.73", this is the standard RAM^® double socket arm size.The easy to adjust knob allows for near-infinite adjustability for your connected device.

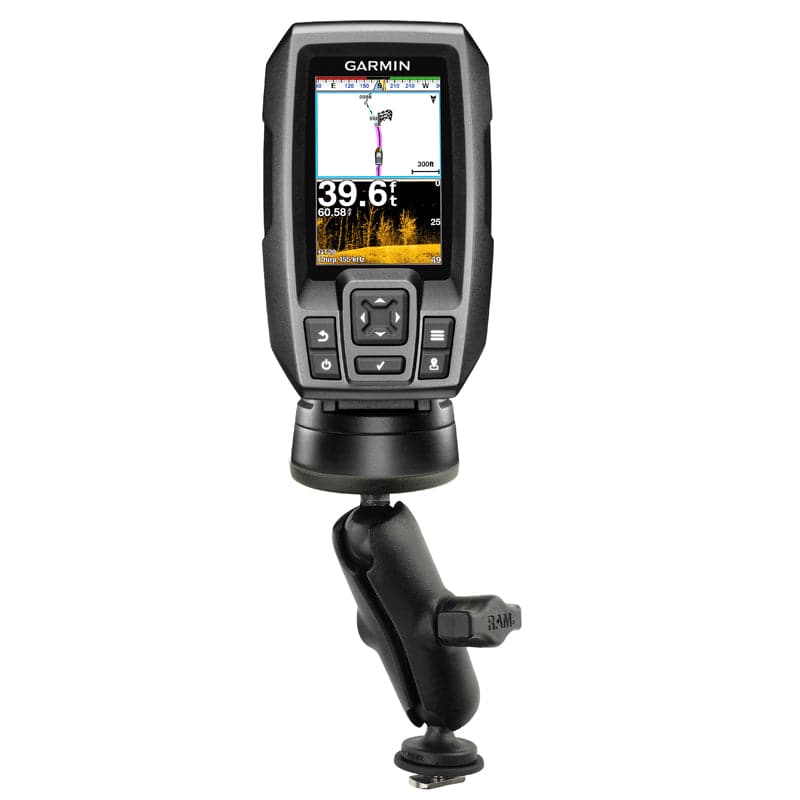

This Garmin Striker mount consists of a 1" diameter rubber ball connected to a flat 2.5" diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern. Included are 3x (#8-32 x 5/8” PH PD Mach Screws) and 3x (#8-32 SS Nylock Nuts) that will connect the RAM-202-G4U to the bottom of the Garmin echo^™ and Striker^™ 4 Series.

HARDWARE INCLUDED

(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts

T-BOLT DIMENSIONS

.48" x .95"

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.58 lbs.
