RAM® Twist-Lock™ Suction Cup Mount for Raymarine Dragonfly - RAM-B-224-1-379-M616U

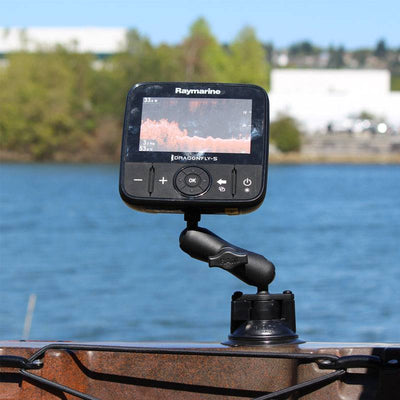

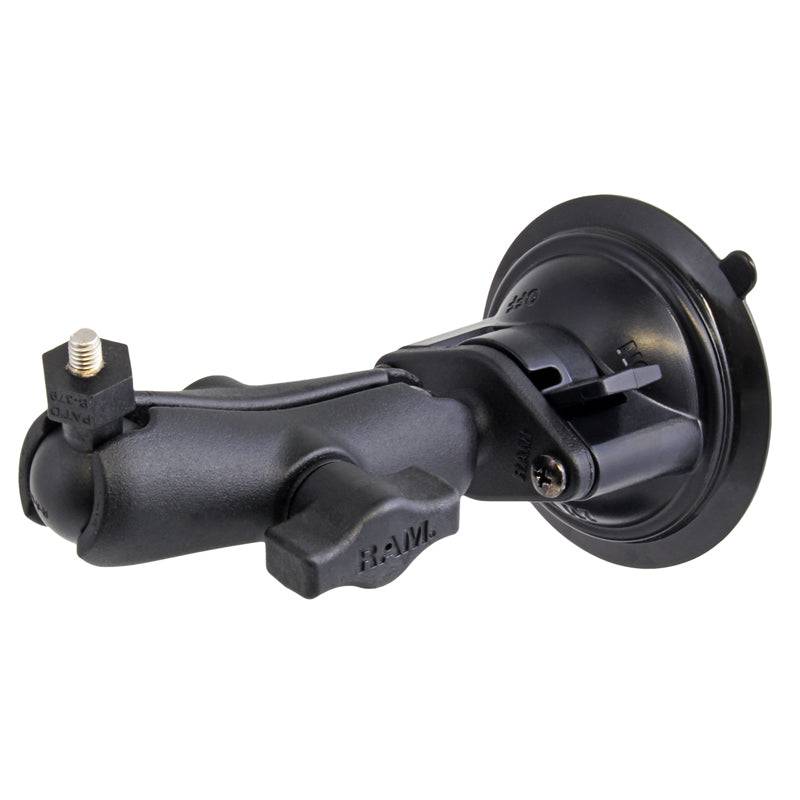

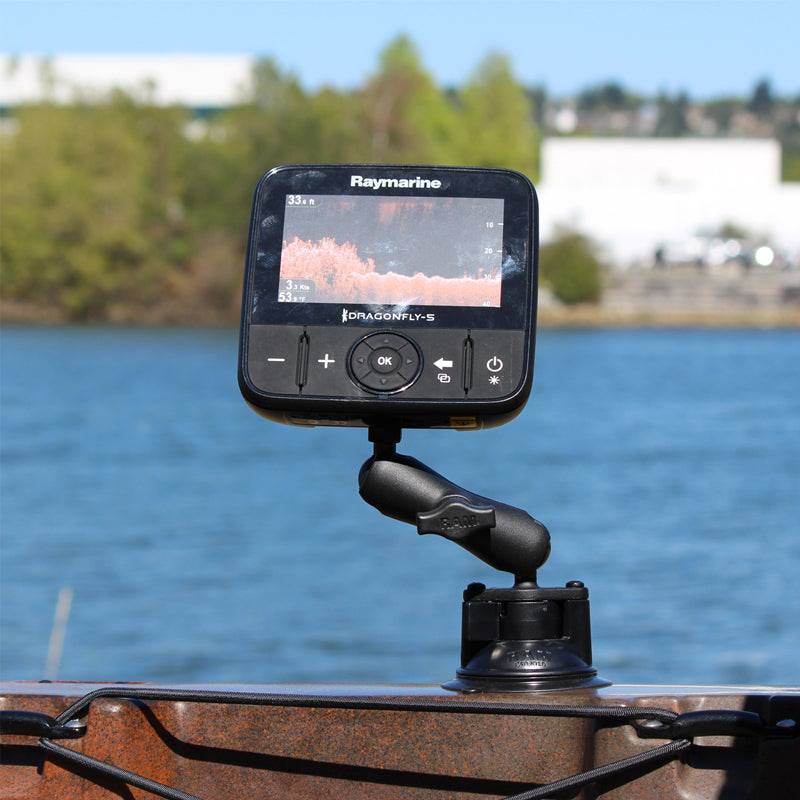

The RAM-B-224-1-379-M616U consists of a 3.3" diameter suction cup twist lock base, STANDARD length double socket arm and 1" diameter ball, containing a M6 x 30 SS HEX head bolt. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces. The RAM-B-224-1-379-M616U reduces the mounting footprint, compared to old dragonfly units that contain a large neck. This mount allows for a seamless marriage of RAM components into your Raymarine system, opening up the ball and socket system and all of our mounting options to you.

Material:
High Strength Composite & Powder Coated Marine Grade Aluminum

Ball Size:
B Size 1" Rubber Ball

Note:
The "U" in the part number reflects product packaged in poly bag. Raymarine device not included with purchase.

Weight:
0.6 lbs.

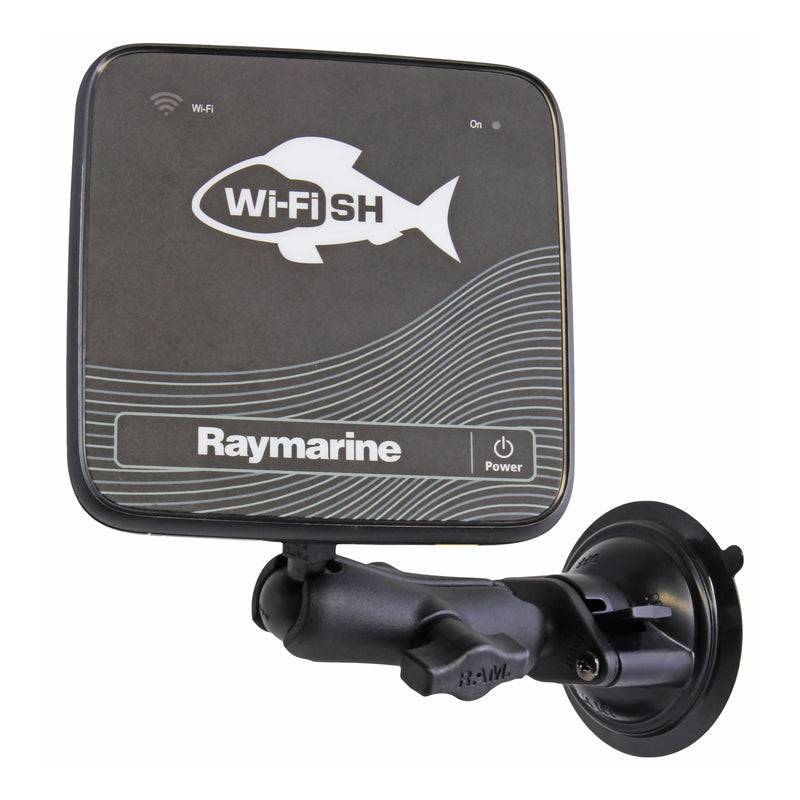

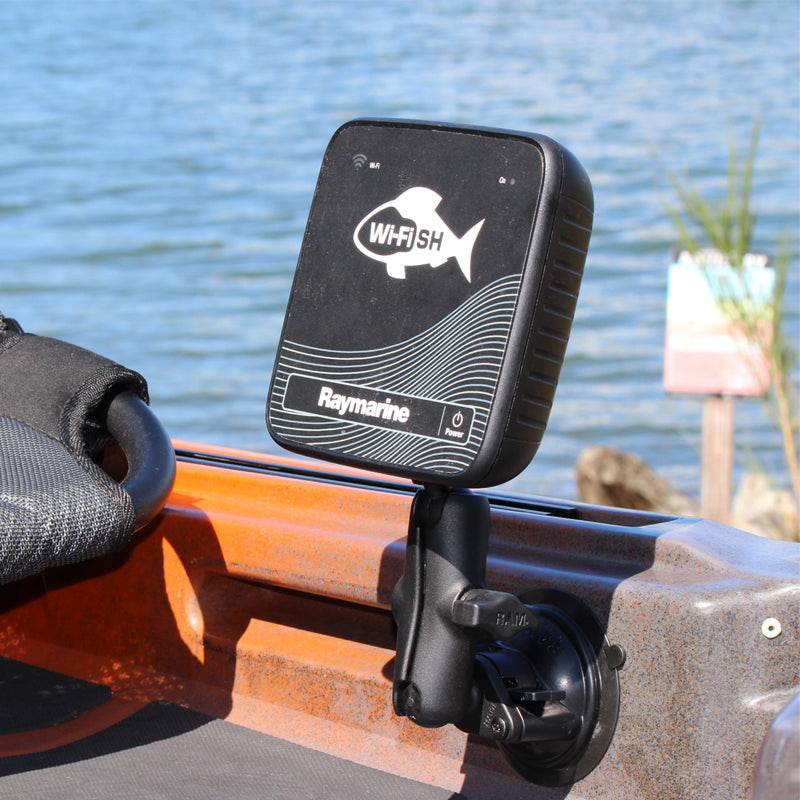

RAM Mounts® for Raymarine Dragonfly 4, 5 & WiFish

Additional Mounting Base Options

RAM V-Shape Base with 1" Ball for Rails and Yokes - RAM-B-108BU

RAM Motorcycle Handlebar Clamp Base with M8 Screws - RAM-B-367U

RAM® Torque™ 1 1/8" - 1 1/2" Diameter Handlebar/Rail Base with 1" Ball - RAM-B-408-112-15U

RAM Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1" Ball for Rails to 3.15" in Diameter - RAM-B-231Z-2U

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

RAM 2.25" x 0.87" Motorcycle Base with 11mm Hole and 1" Ball - RAM-B-252U

RAM Motorcycle Brake/Clutch Reservoir Cover Base with 1" Ball Offset - RAM-B-346U

RAM 2.5" Round Base with the AMPs Hole Pattern, 1" Ball & Triple Magnetic Base Adapter - RAM-B-202-339U

RAM Rail Base with Stainless Steel U-Bolt & 1" Ball for Rails from 0.5" to 1" in Diameter - RAM-B-231U

RAM Flex Adhesive Base with 1" Ball - RAP-B-378U

RAM 3.3" Diameter Suction Cup Base with B Size 1" Ball - RAM-B-224-1U

RAM Double Socket Arm for B Size 1" Balls - RAM-B-201U

RAM 1" Tough-Ball™ with M6-1 X 6MM Male Threaded Post - RAP-B-379U-M616

• Raymarine Dragonfly 7 Pro
• Raymarine Dragonfly-5 M
• Raymarine Dragonfly-5 DVS
• Raymarine Dragonfly-5 Pro
• Raymarine Dragonfly-4 DV
• Raymarine Dragonfly-4 DVS
• Raymarine Dragonfly-4 PRO
• Raymarine WiFish
