RAM® USB-C Modular Dock + USB-C & USB-A Data for Samsung Tab Active5 & 3 - RAM-HOL-SAM60CPN-CAU

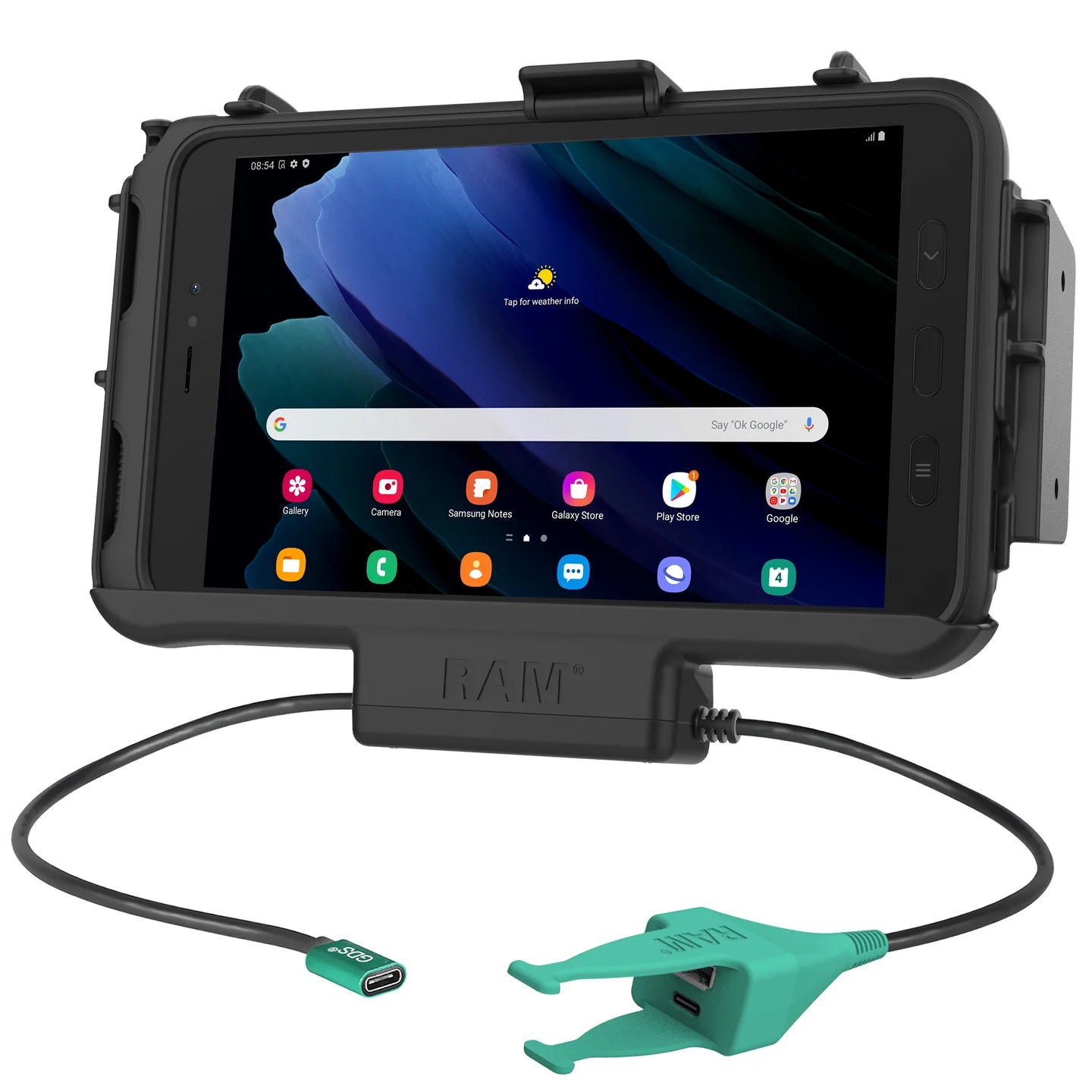

The RAM® USB-C Modular Dock + USB-C & USB-A Data for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CPN-CAU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB Type-C and USB Type-A pigtail to support up to two additional peripheral devices, making this the ideal, compact mounting solution for your mobile workstation.

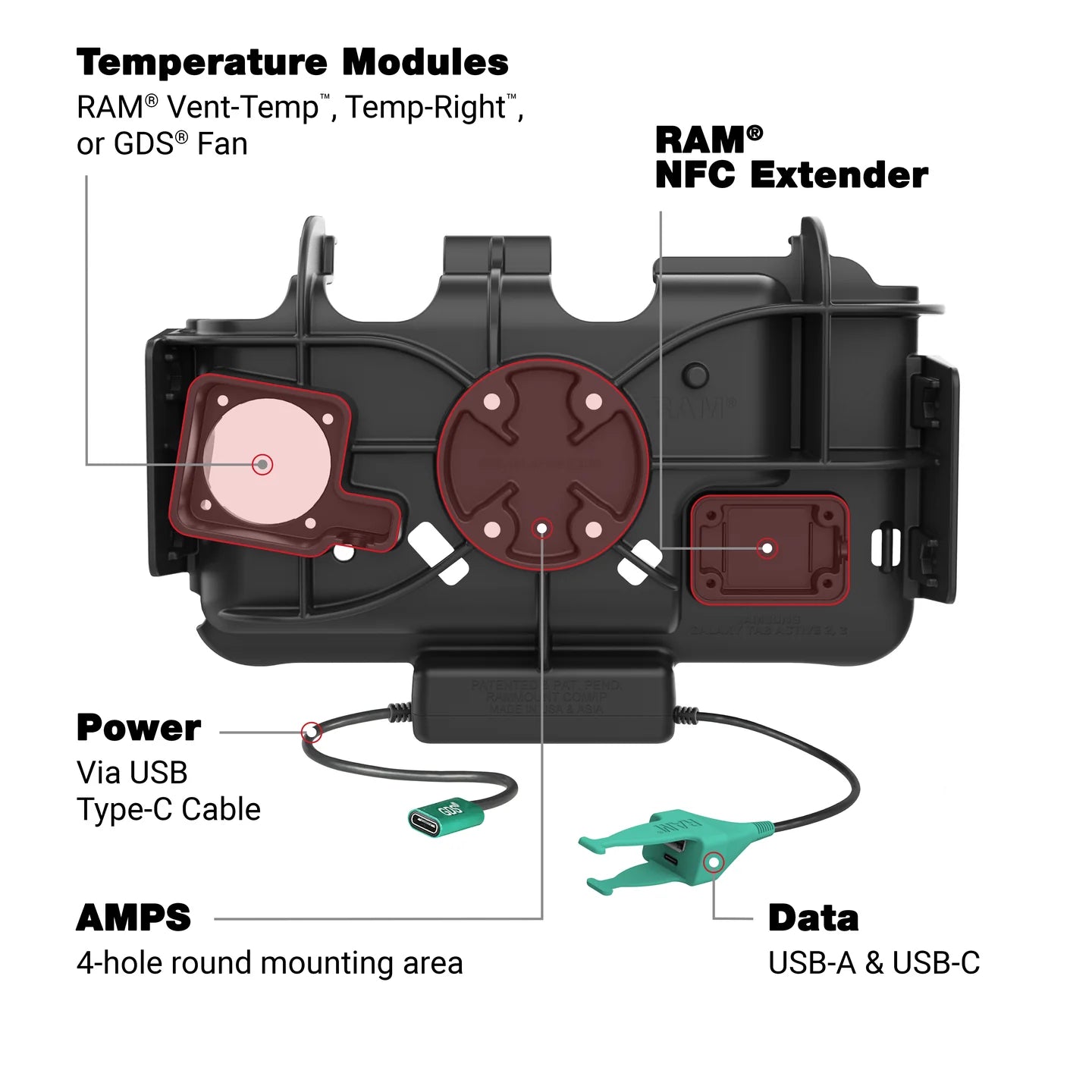

This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.

• RAM^® EZ-Roll'r^™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & 3; provides charging through an integrated pogo pin connection and USB-C cable

• Compatible with most RAM^® dock accessories including Temperature Control Accessories, RAM^® NFC Extender, GDS^® Roto-Mag^™, and side accessory attachments

• Connect up to two additional peripheral devices via USB Type-C and USB Type-A ports

• Compatible with the Samsung OEM skin as well as the RAM^® Skin^™

• Backed by a 3-year warranty

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

INPUT VOLTAGE
5.3-5.4VDC

OUTPUT VOLTAGE
5VDC

POWER OUTPUT
900mA

INPUT CONNECTOR
(1) USB-C Female
(1) USB-A Female

INPUT CABLE LENGTH
215mm

TRANSFER SPEED
480Mbps

WARRANTY
3 year warranty

WEIGHT
1.14 lb

Samsung Tab Active5

Samsung Tab Active3

Samsung Tab Active2
