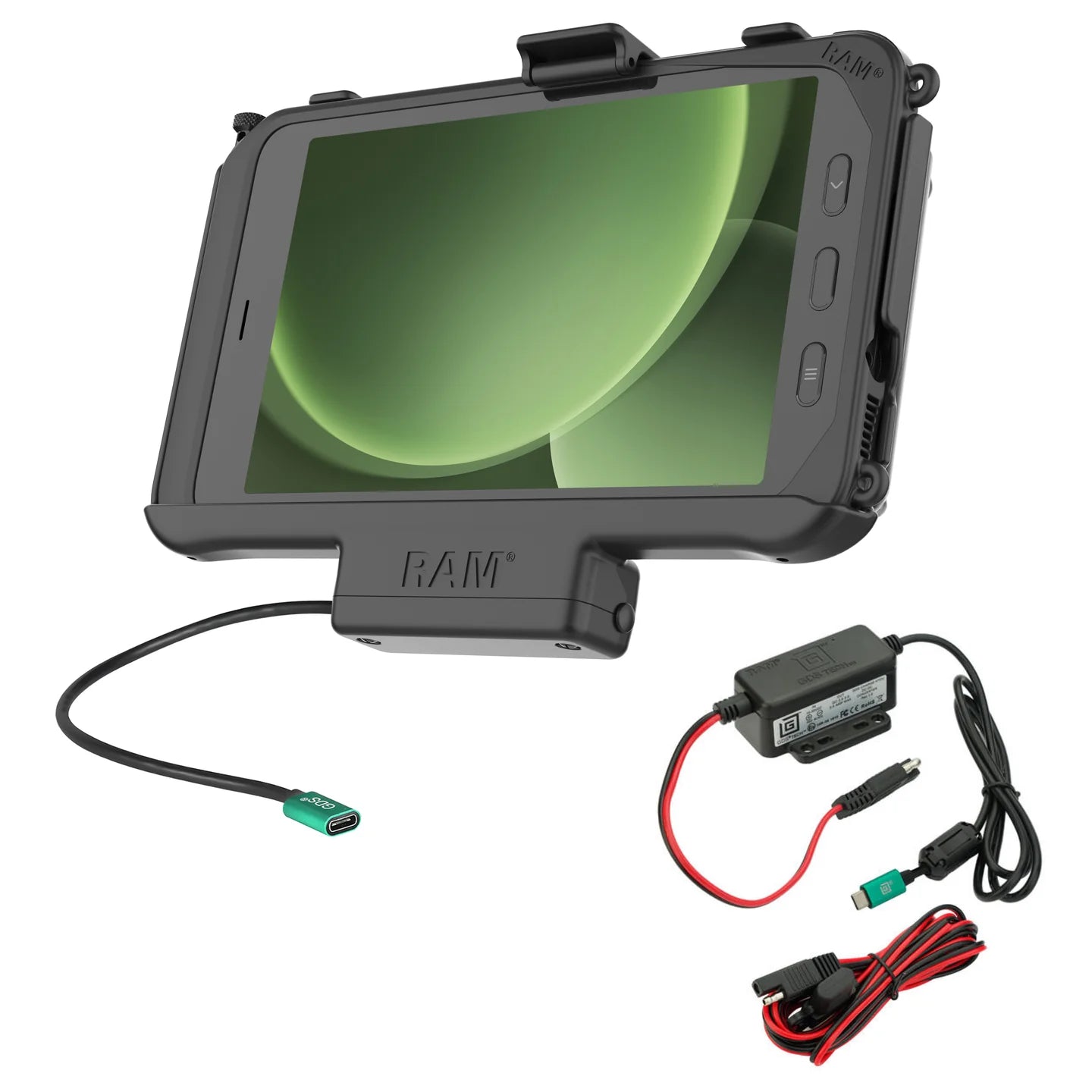

RAM® USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger - RAM-HOL-SAM60CP-V7CU

The RAM® USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60CP-V7CU) meets the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode.

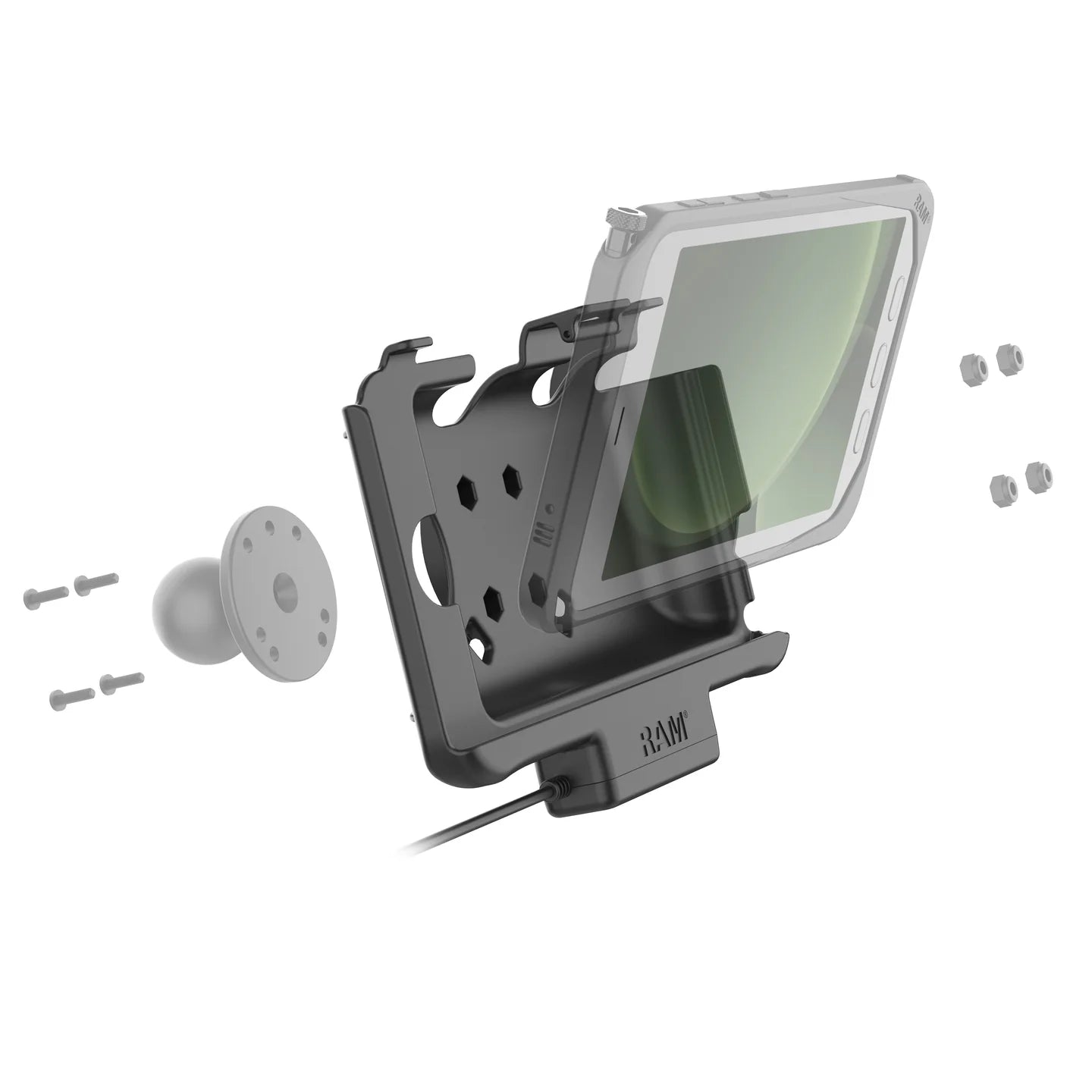

This cradle is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. The dock delivers power via the USB Type-C female pigtail and Modular 10-30V Hardwire Charger. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern and USB-C cable clamp with zip ties for cable management and retention.

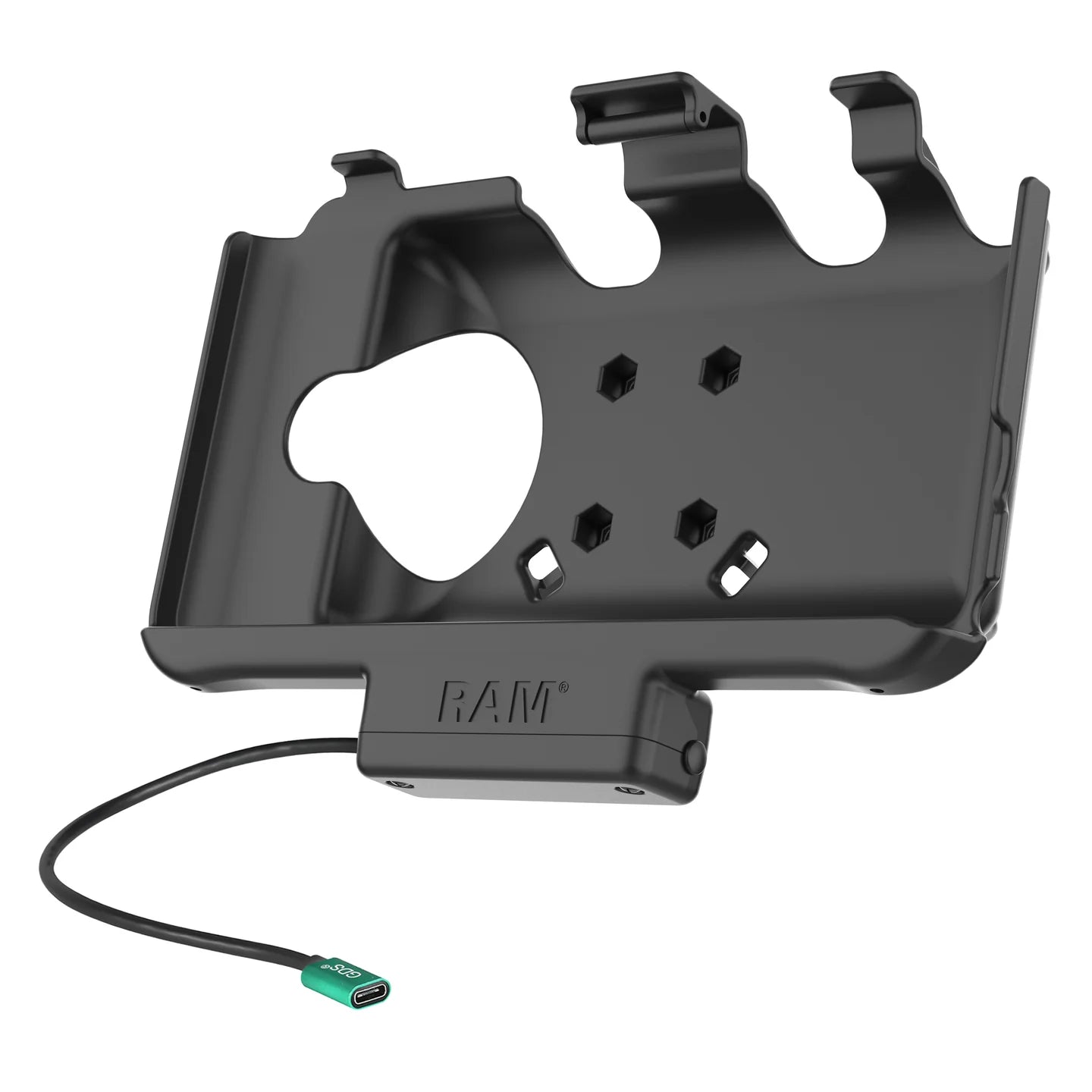

• RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable

• Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility

• Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

• Vehicle hardwire charger included

• Back by a 3-year warranty

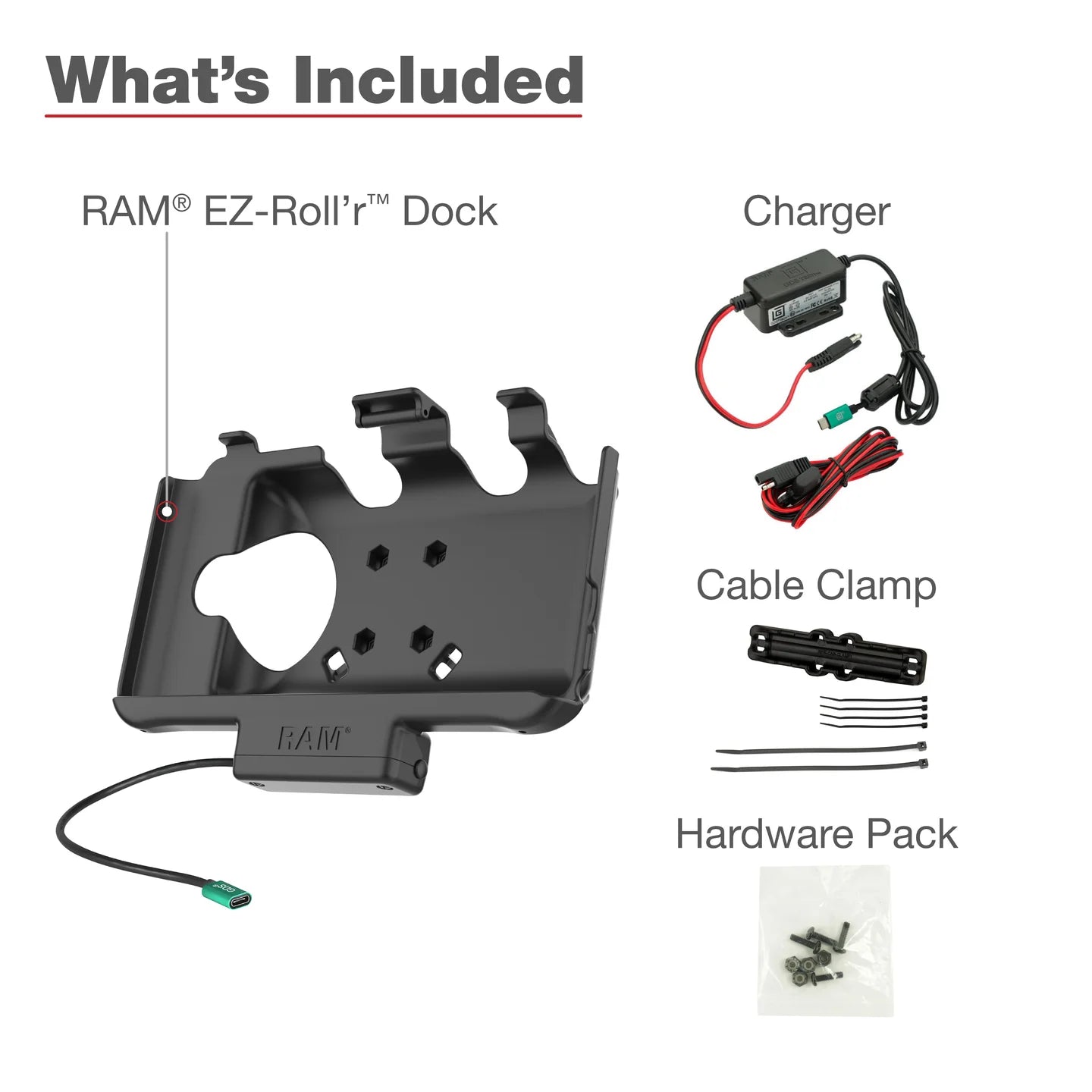

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(1) Hardwire Charger

PRODUCT DIMENSIONS
Width: 9.24"
Height: 6.34"
Depth: 2.57"

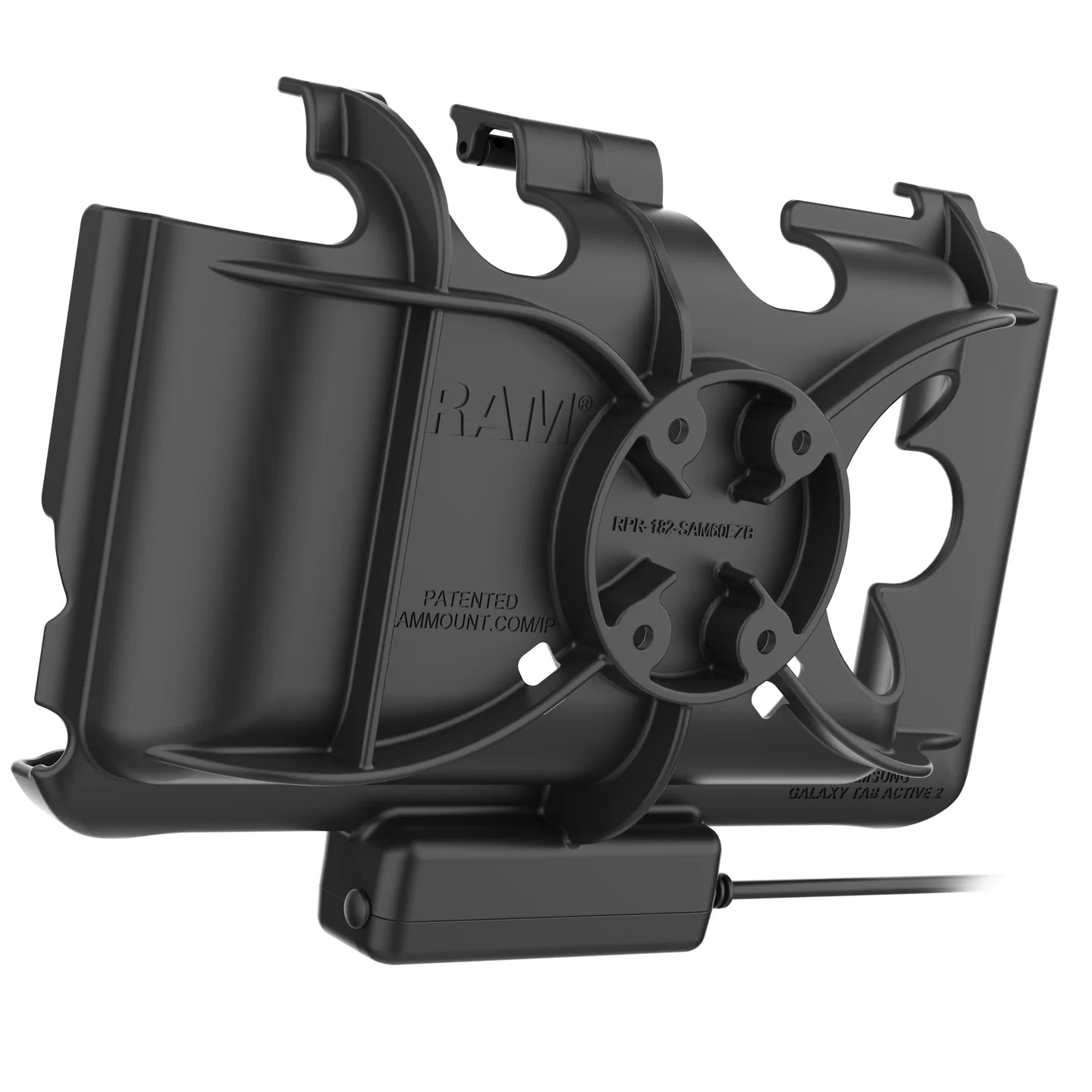

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

INPUT VOLTAGE
5.3-5.4VDC

OUTPUT VOLTAGE
5VDC

POWER OUTPUT
500mA

INPUT CONNECTOR
USB Type-C Female

INPUT CABLE LENGTH
215mm

WARRANTY
3 year warranty

WEIGHT
1.09 lb

Samsung

• Tab Active5

• Tab Active3

• Tab Active2
