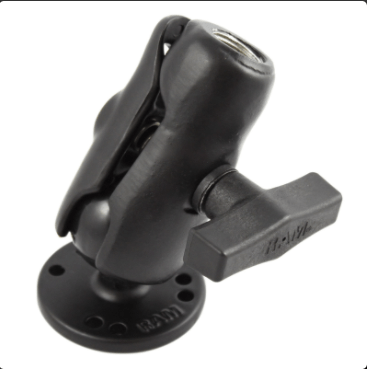

RAM® VHF Antenna Mount with 1/2" NPT Thread - RAM-112-1U

• Complete flat surface, drill-down mount for VHF antennas with a 1/2" NPT thread pitch
• Includes C size single socket arm with 1/2" NPT threaded hole and 2.5" diameter flat surface drill-down base; RAM® Mounts ball and socket technology allows for near-infinite adjustability
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

The RAM antenna mount is designed to hold most VHF and similar antennas.  The patented rubber ball and socket system securely mounts the antenna while allowing for almost infinite adjustment.  Mount the antenna on a horizontal or vertical surface or anywhere in between.  The ball base is made from a light weight marine grade aluminum with powder coat.  The ball socket with female 1/2" NPT hole are made from light weight marine grade aluminum.  The RAM antenna mount will work with any standard antenna that has a 1/2" NPT male interface.

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.82 lbs.
