RAM® X-Grip® with RAM® Twist-Lock™ Dual Suction Mount for 9"-10" Tablets - RAM-B-189-A-UN9U

OVERVIEW

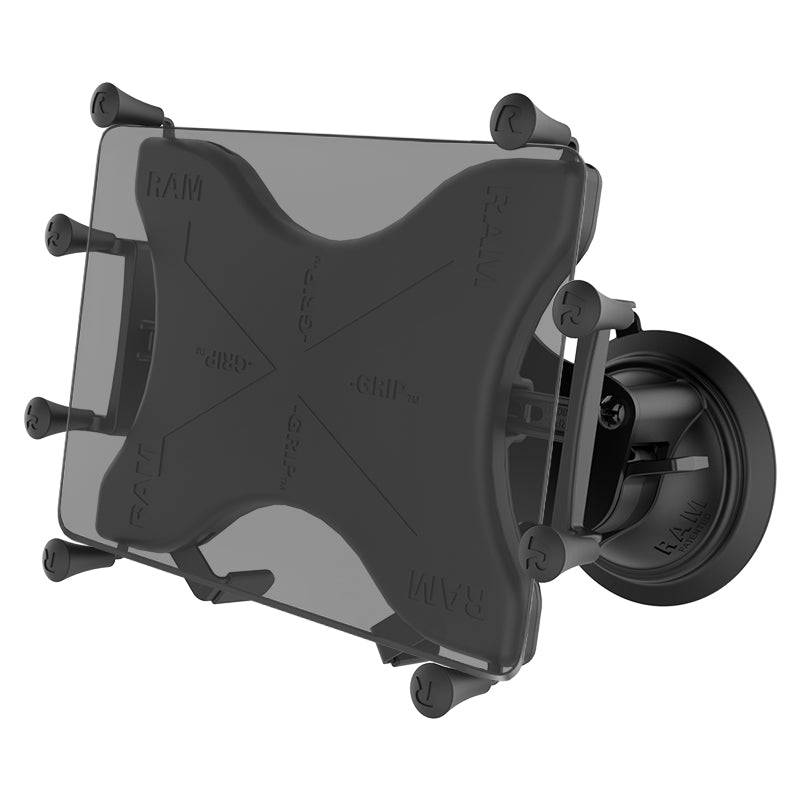

The RAM-B-189-A-UN9U consists of a double 3.25" twist lock suction cup base, SHORT double socket arm, round base adapter and universal X-Grip^® cradle for 10" tablets. The double suction cup base is designed to have an "EXTRA STRONG" hold on glass and non-porous plastic surfaces. The X-Grip^® cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware

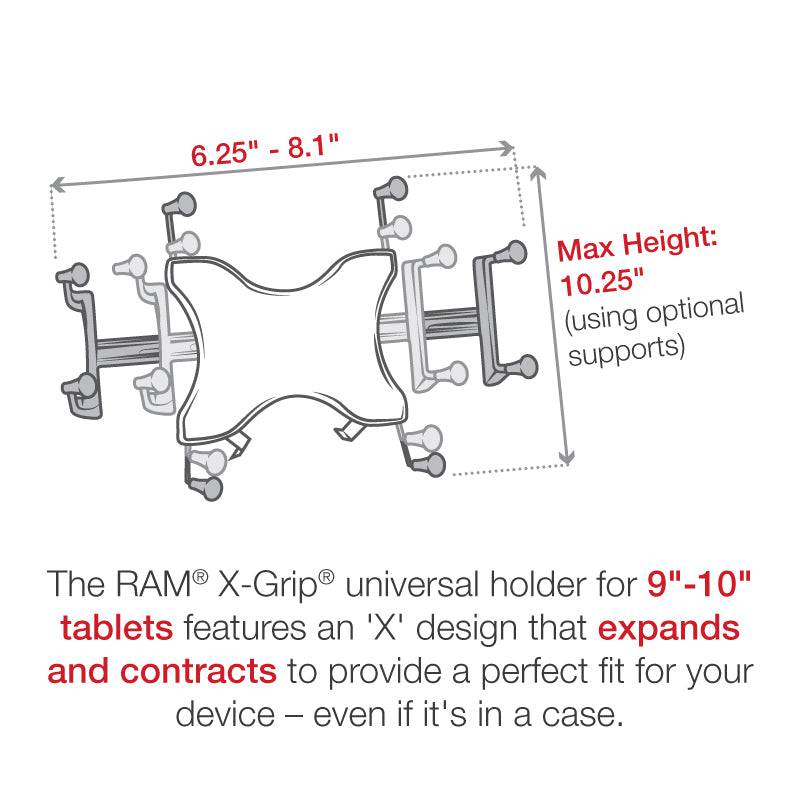

HOLDER DIMENSIONS

Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

SUCTION SIZE

(2) 3.3" Diameter Bases, Total Width 7.95"

SOCKET-TO-SOCKET LENGTH

1.75"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

2.47 lbs.

RAM® X-Grip® Cradle For 10" Large Tablets - RAM-HOL-UN9U

RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U

RAM Short Double Socket Arm with Retention Knob for B Size 1" Balls - RAM-B-201-A-ALA1-KRU

RAM Double Suction Cup Base With B Size 1" Ball - RAM-B-189B-202U

Large RAM® X-Grip® Assembly Guide - PDF

RAM® Twist-Lock™ Suction Cup Assembly Guide - PDF
