RAM® Yoke Clamp Base with Ball for Pilatus PC-12NG - RAM-B-380U

OVERVIEW

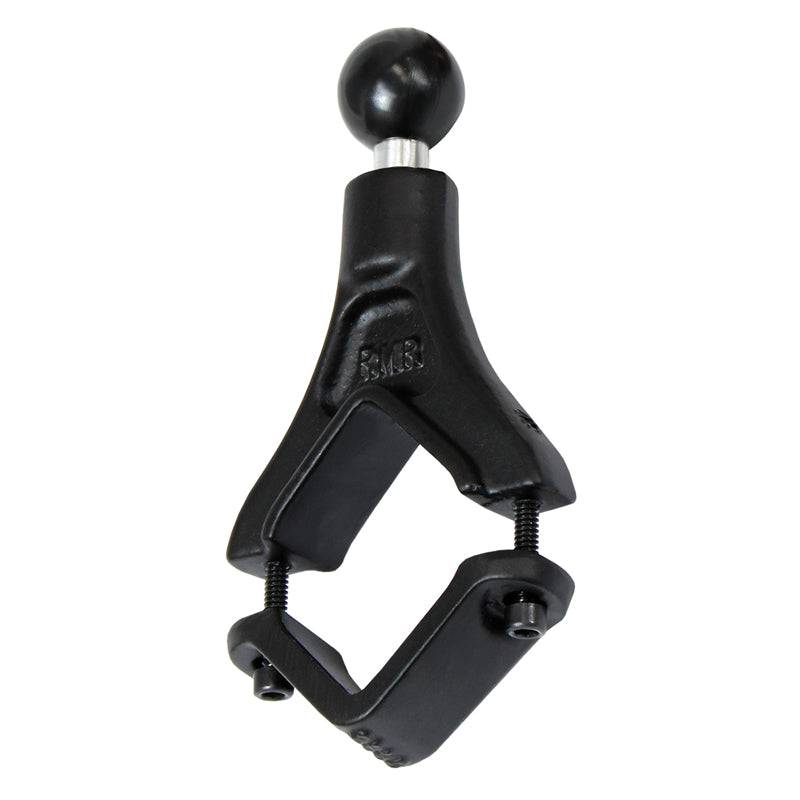

The RAM-B-380U consists of a 1" rubber ball connected to a yoke clamp base. The yoke clamp base is designed with the Pilatus PC-12NG in mind; however, if your aircraft yoke has an outer diameter within the compatible range, this product will fit your yoke. The yoke clamp base will accommodate an outer diameter range of 1.25" – 1.625".

HARDWARE INCLUDED

(2) #10-24 x 1" Socket Head Cap Screws
(2) #10 Stainless Steel Washers
(2) #10 Screw Retaining Rings
(1) 2" x 7.5" Rubber Adhesive Strip

CLAMP RANGE

1.25" - 1.625"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag+

WEIGHT

0.38
