      Home / Products / RAM® Double Ball Yoke Clamp Mount with Round Plate - RAM-B-121-C-202
      RAM® Double Ball Yoke Clamp Mount with Round Plate - RAM-B-121-C-202 - OC Mounts
      RAM® Double Ball Yoke Clamp Mount with Round Plate - RAM-B-121-C-202 - OC Mounts
      RAM® Double Ball Yoke Clamp Mount with Round Plate - RAM-B-121-C-202 - OC Mounts
      RAM® Double Ball Yoke Clamp Mount with Round Plate - RAM-B-121-C-202 - OC Mounts

      RAM-B-121-C-202

      RAM® Double Ball Yoke Clamp Mount with Round Plate - RAM-B-121-C-202

      Out of Stock    ( Chat Live to get an ETA )

      OVERVIEW

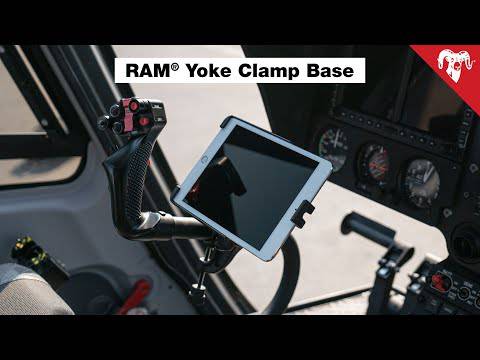

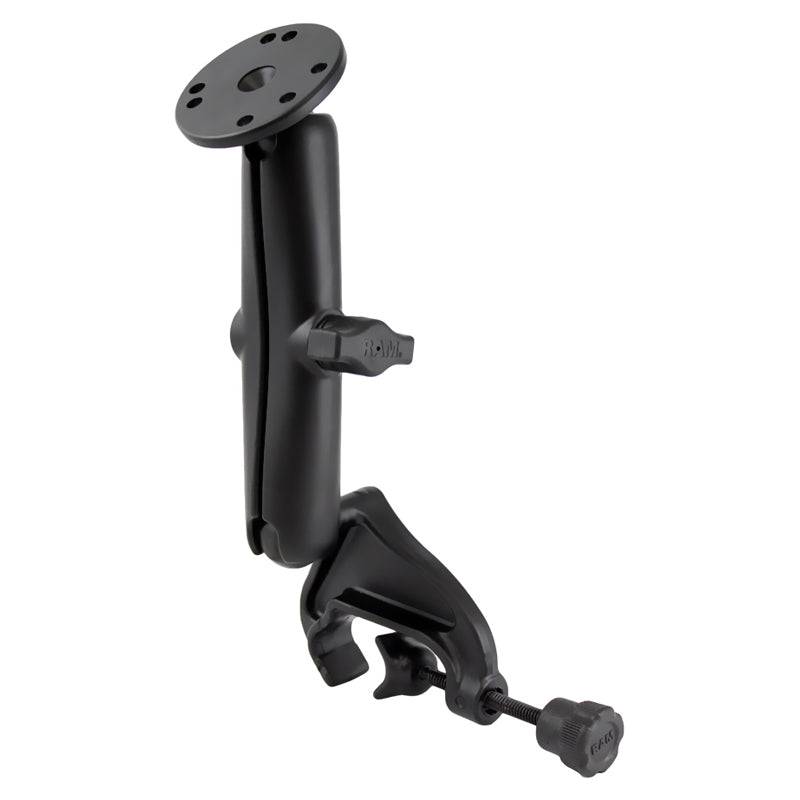

      The RAM-B-121-C-202 consists of a yoke clamp base, LONG length double socket arm and round 2.5" base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

      CLAMP RANGE

      .625" - 1.25"

      SOCKET-TO-SOCKET LENGTH

      5.31"

      HOLE PATTERN

      4-Hole AMPS: 1.181" x 1.496"
      3-Hole 120-Degree: 1.812" Diameter

      BALL/SOCKET SIZE

      B Size (1")

      WEIGHT CAPACITY

      Standard Use: 2 lbs
      Heavy-Duty Use: 1 lbs

      MATERIALS

      Marine-grade aluminum

      PACKAGING TYPE

      Retail Bag

      WEIGHT

      1.09 lbs.

      RAM Yoke Clamp Base with 1" Rubber Ball - RAM-B-121BURAM Yoke Clamp Base with 1" Rubber Ball - RAM-B-121BU

      RAM Long Length Double Socket Arm for B Size 1" Balls - RAM-B-201U-C

      RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202URAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U

       Drawing File - Yoke Clamp Base - PDF

      RAM 1" Add-A-Ball™ Accessory Base for any B-size Socket Arm - RAM-B-273U
