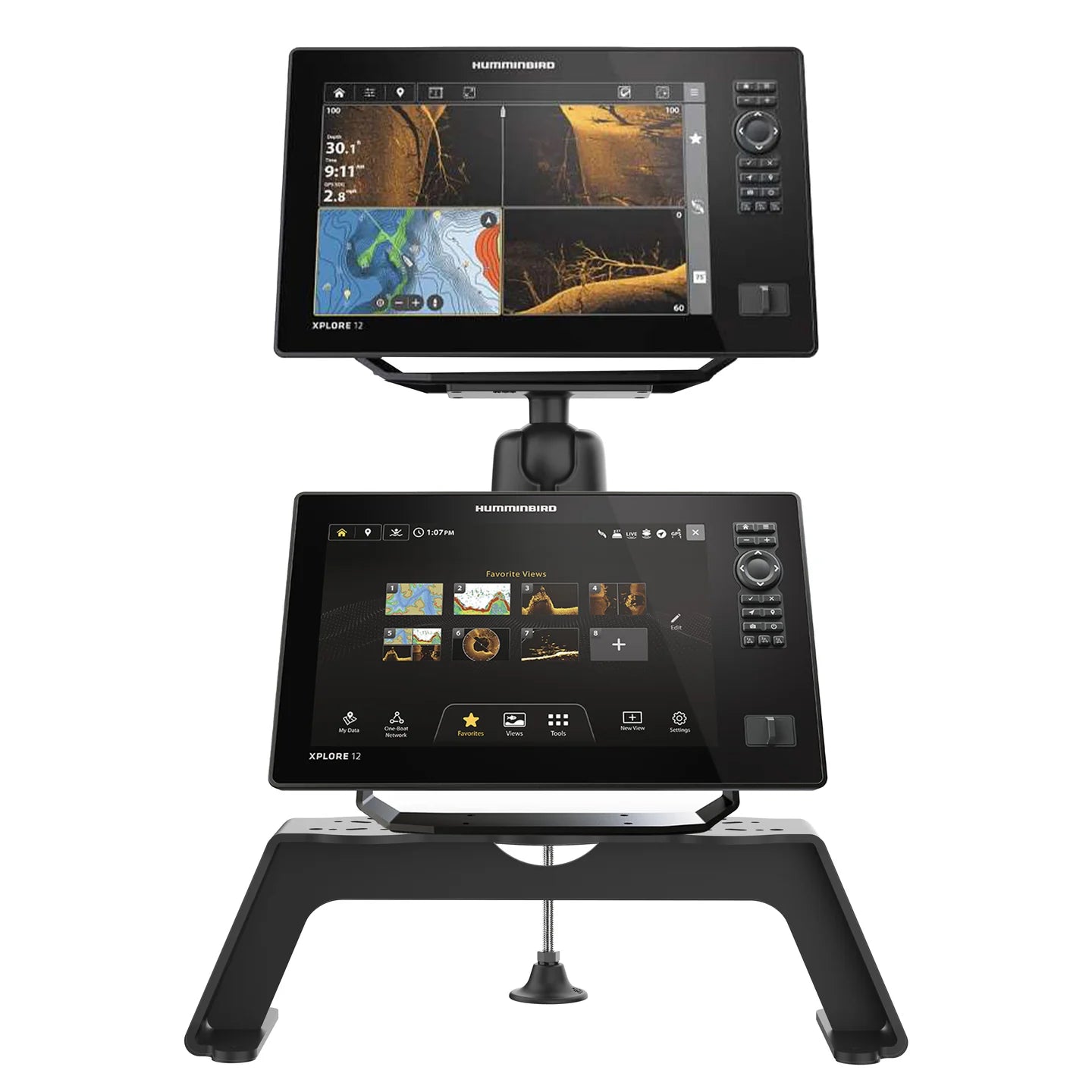

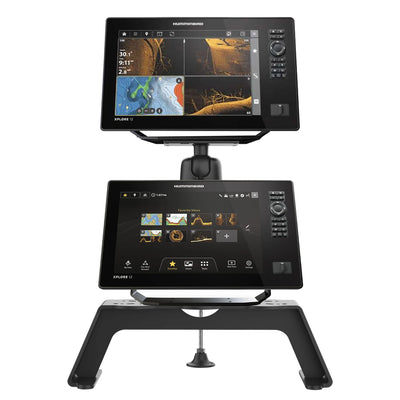

RAM® Fishfinder Deck Kit with Humminbird Helix 8-10 & XPLORE Mount - RAM-FF1-D-202-25-202

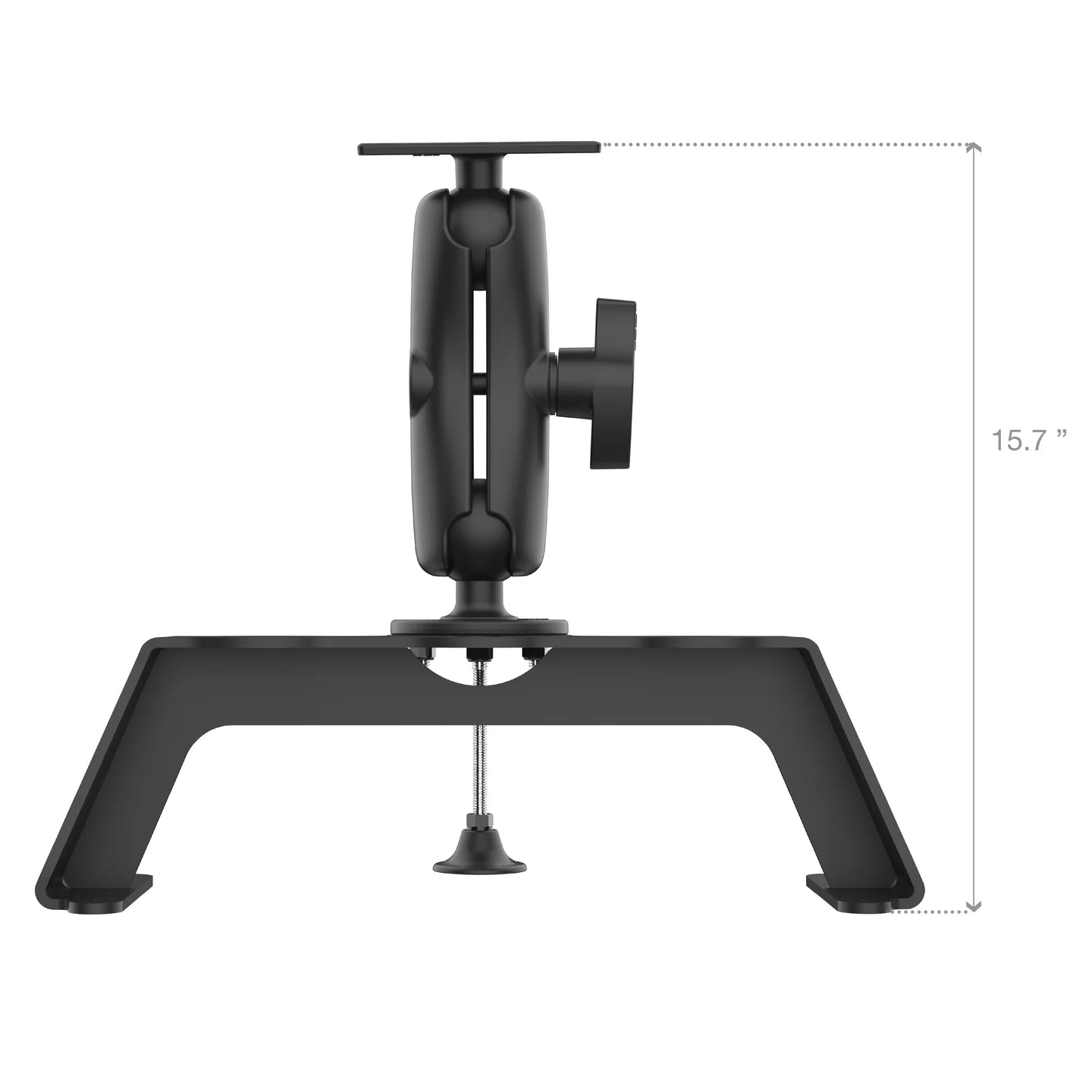

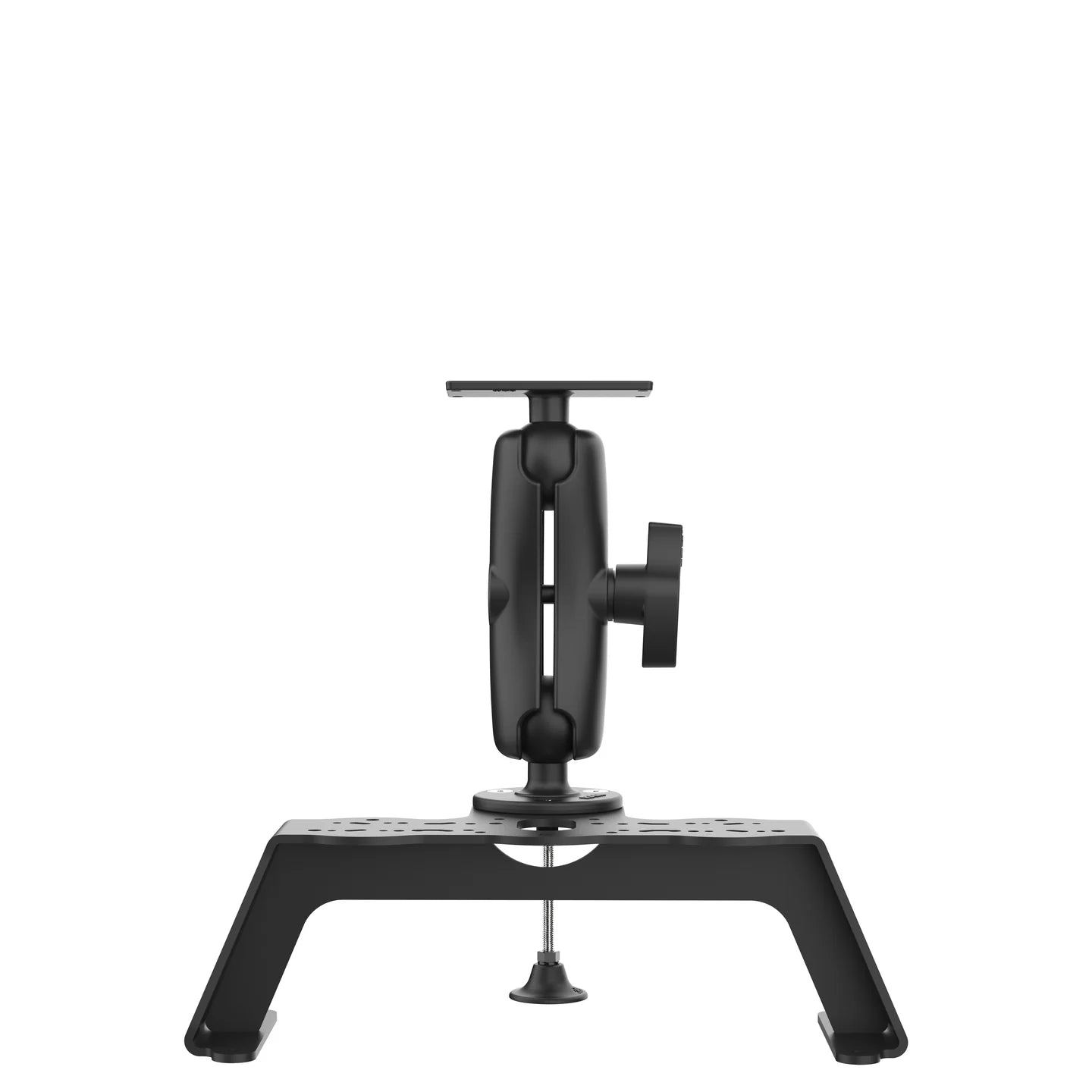

The RAM® Fishfinder Deck Kit with Humminbird Helix 8-10 & XPLORE Mount (RAM-FF1-D-202-25-202) is a robust, powder-coated aluminum bracket configured with a single D size fishfinder mount that allows you to mount two Humminbird fishfinders simultaneously. Whether you're trolling deep waters or scanning shallow coves, this heavy-duty mount helps you take in more data for smarter navigation and better results. Built for versatility, the Deck Mount features a wide array of pre-drilled hole patterns, including three sets of 4-hole AMPS patterns and three sets of tri-hole patterns for seamless integration with RAM® Mounts D size bases.

This solution comes with the RAM® Foot Stabilizer for added support and stability in rough waters. Crafted from marine-grade aluminum, this fishfinder mounting bracket is corrosion-resistant and engineered to withstand harsh marine environments—lasting longer than your boat and standing up to the roughest conditions. In fact, we guarantee it with a Lifetime Warranty for all RAM® components.

• Supports up two fishfinders for maximum data intake; ideal for bow or rear-mounted fishfinder setups

• Compatible with Humminbird Helix 8-10 & XPLORE

• Includes AMPS and tri-hole patterns for RAM® D size bases

• Marine-grade aluminum construction with powder-coated finish

• Back by a Lifetime Warranty

hardware included:
Mounting Hardware
(1) RAM® Hi-Torq™ Wrench
(1) Foot Stabilizer

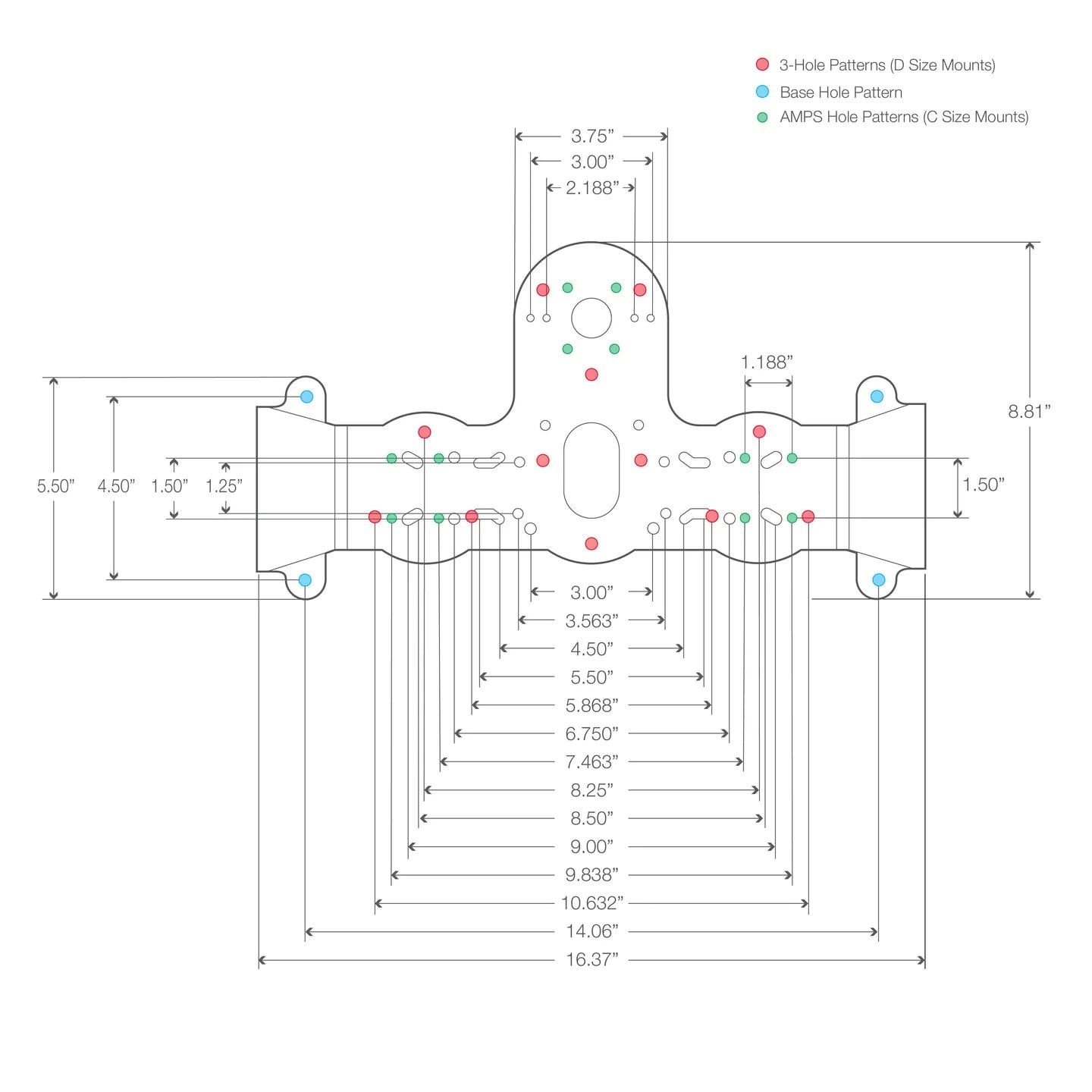

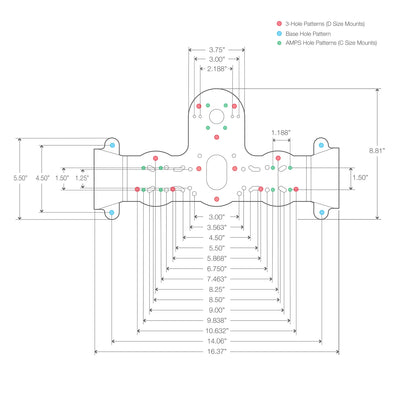

hole pattern:
See Drawing

ball size:
D Size (2.25")

weight capacity:
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

materials:
Marine-grade aluminum

packaging type:
Poly Bag

RAM^® Heavy Duty Fishfinder Deck Mount - RAM-FF1U

RAM^® Large Round Plate with Ball - D Size - RAM-D-202U

RAM^® Double Socket Arm - D Size Medium - RAM-D-201U

RAM^® Ball Base with 1.5" x 4.5" 4-Hole Pattern - D Size - RAM-D-202U-25

RAM^® Hi-Torq^™ Wrench for D Size Socket Arms - RAM-KNOB9HU

Humminbird

Apex 13

Apex 16

Helix 8

Helix 9

Helix 10

Helix 12

Helix 15

Solix 10

Solix 12

Solix 15

XPLORE 9

XPLORE 10

XPLORE 12
