RAM-HOL-SAM57CPKL-CU
Out of Stock
( Chat Live to get an ETA )

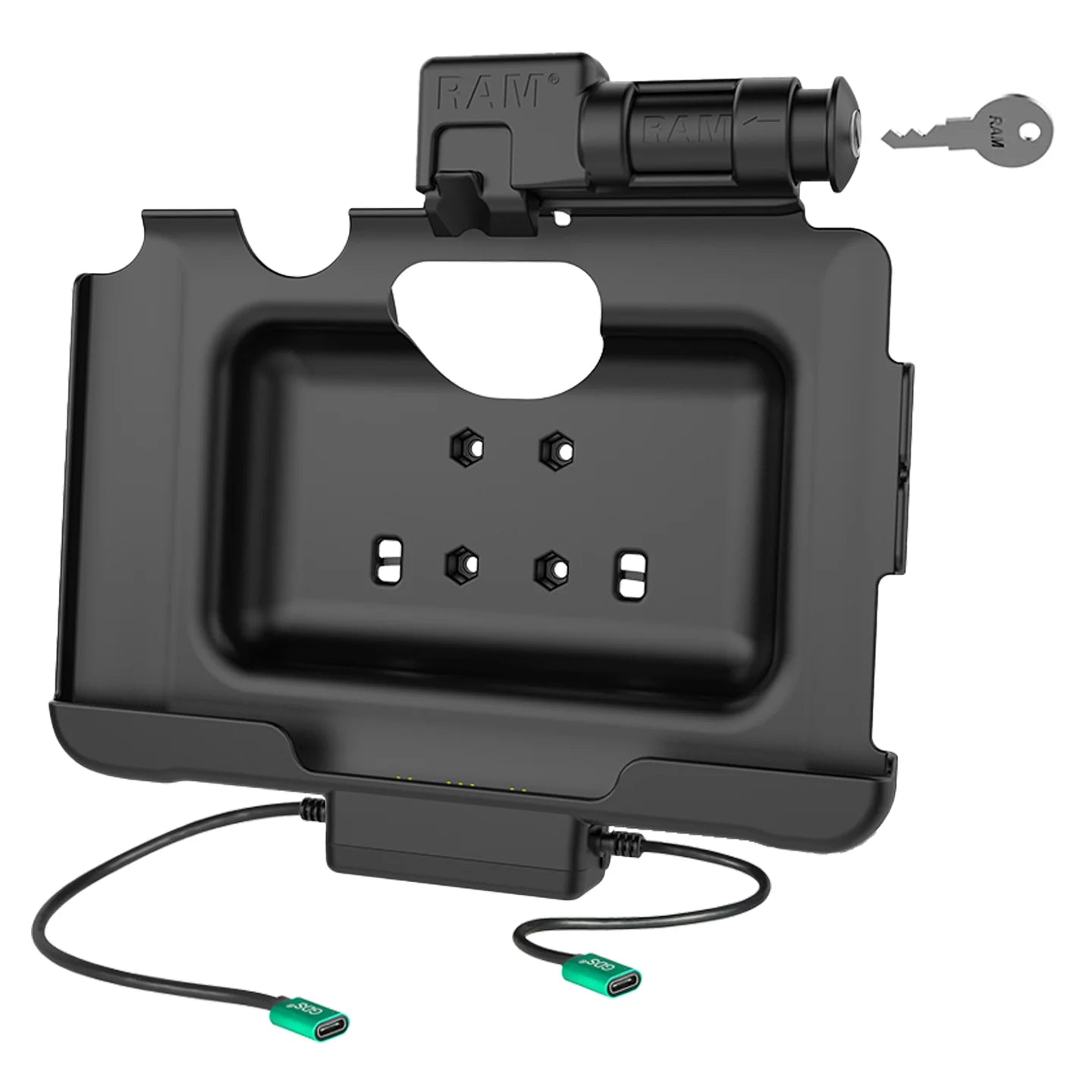

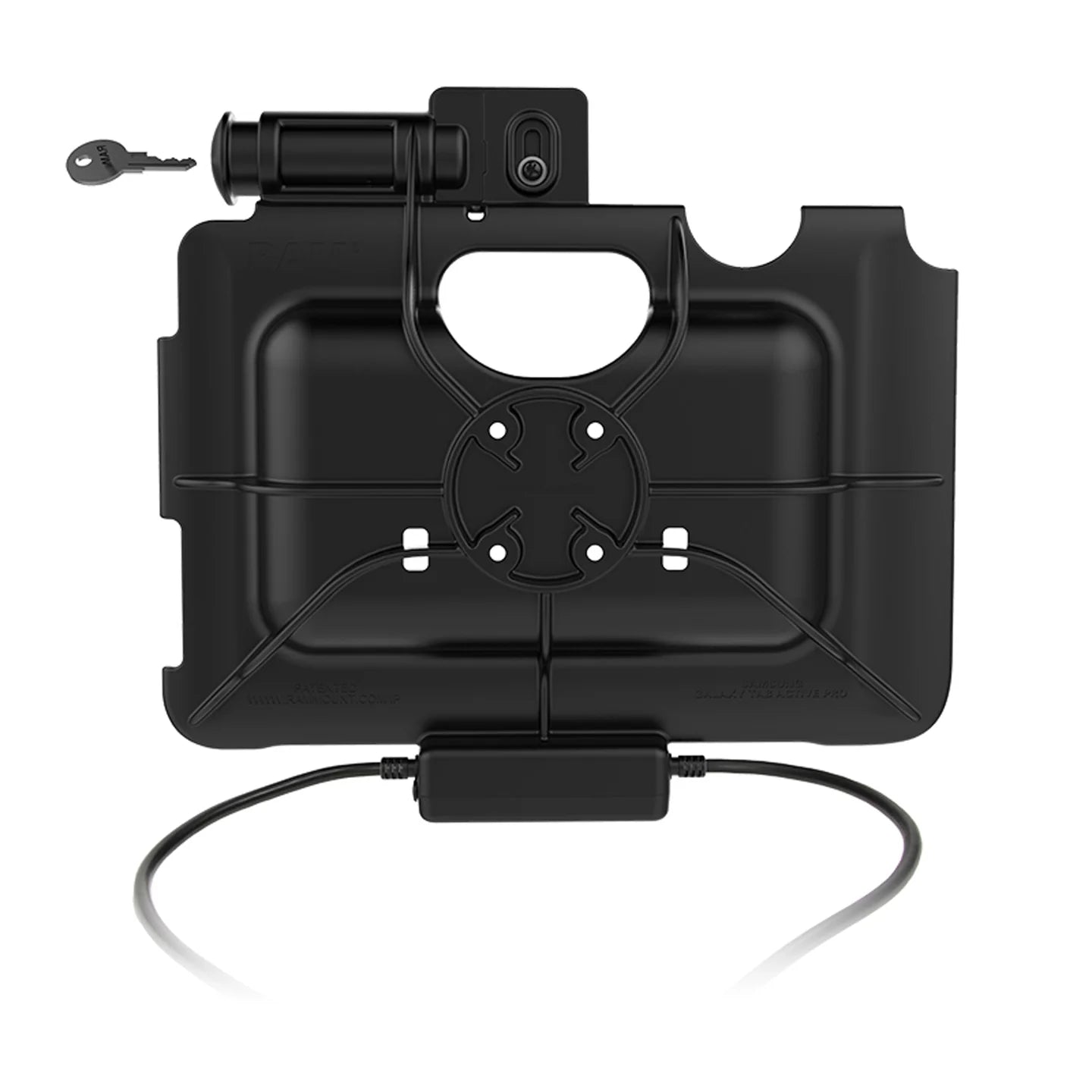

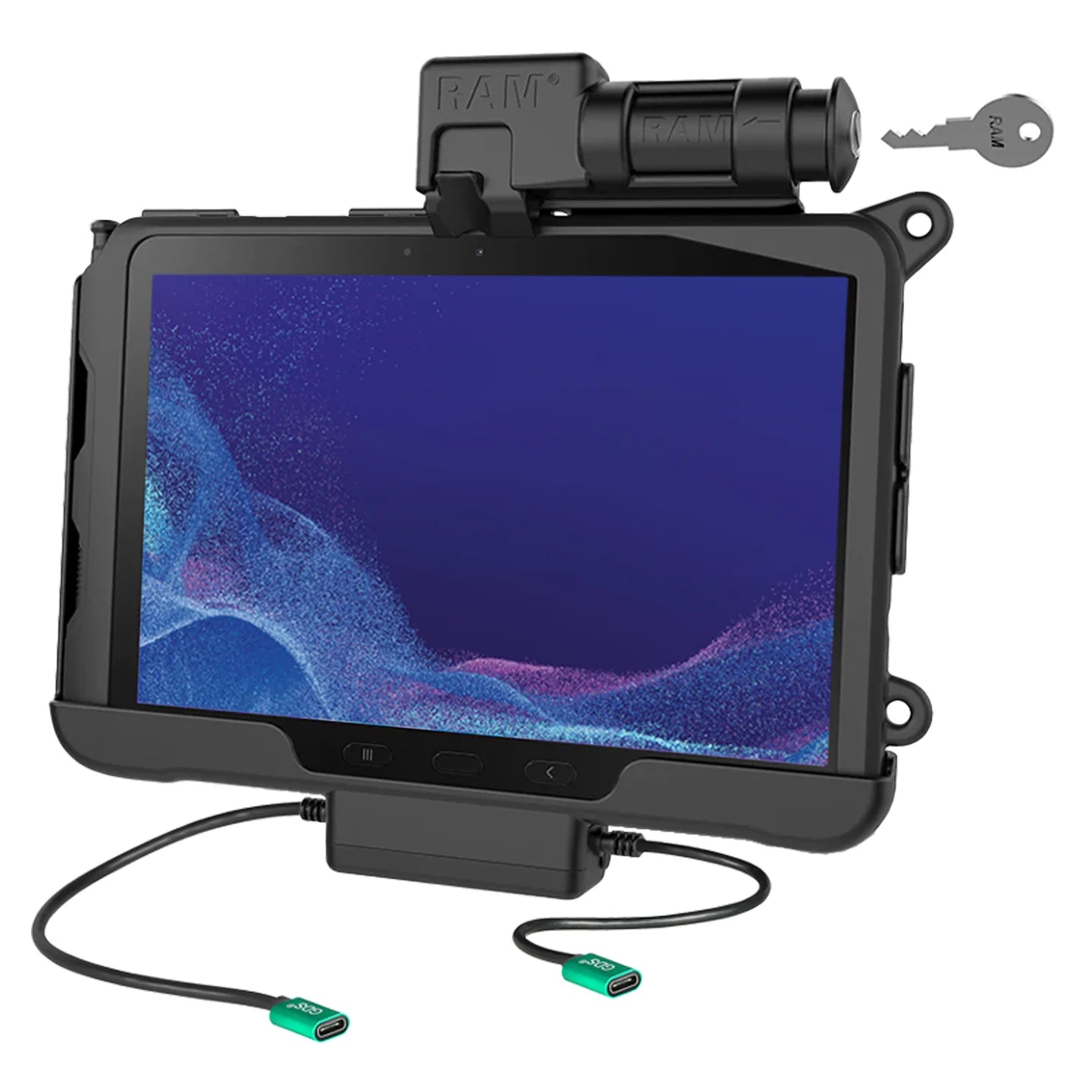

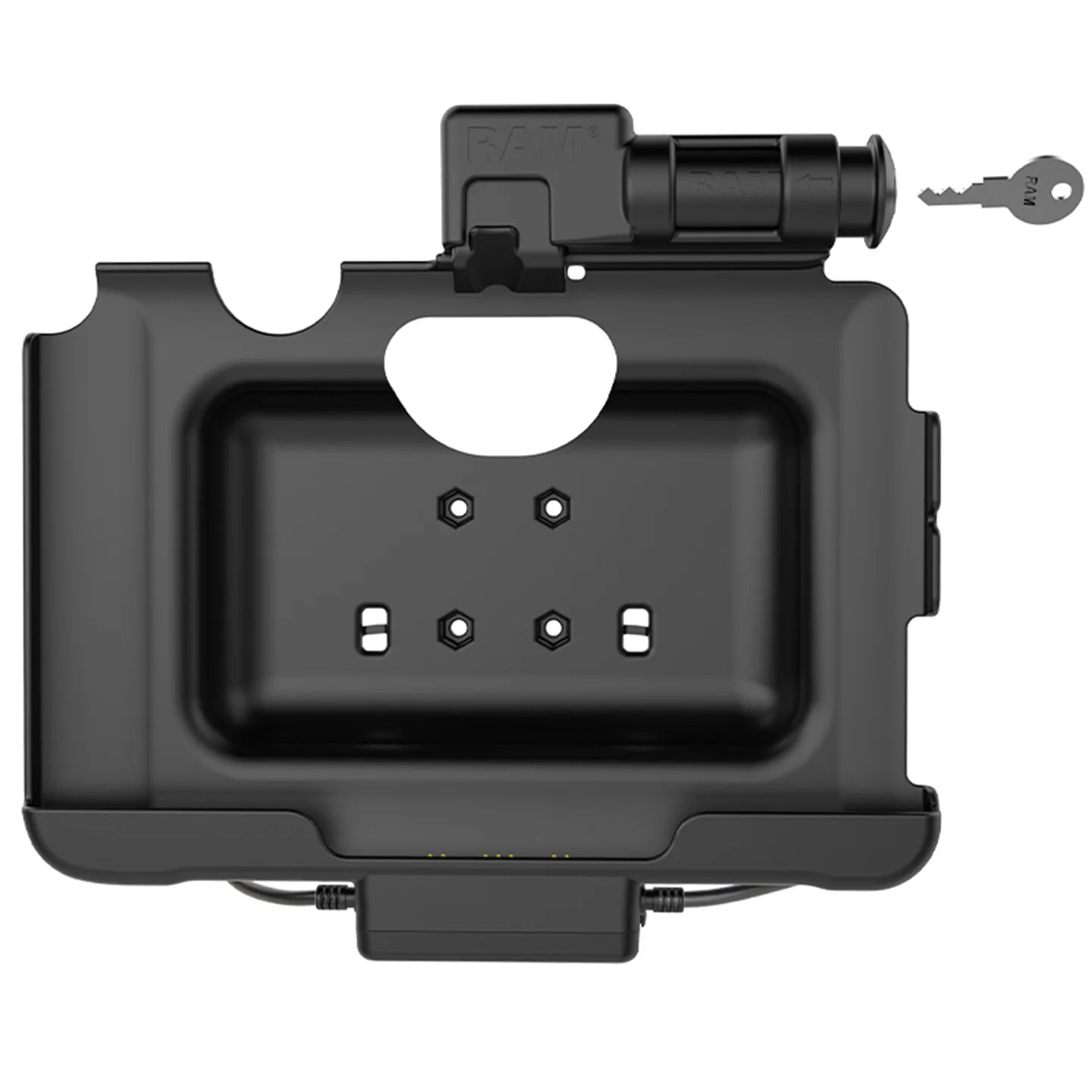

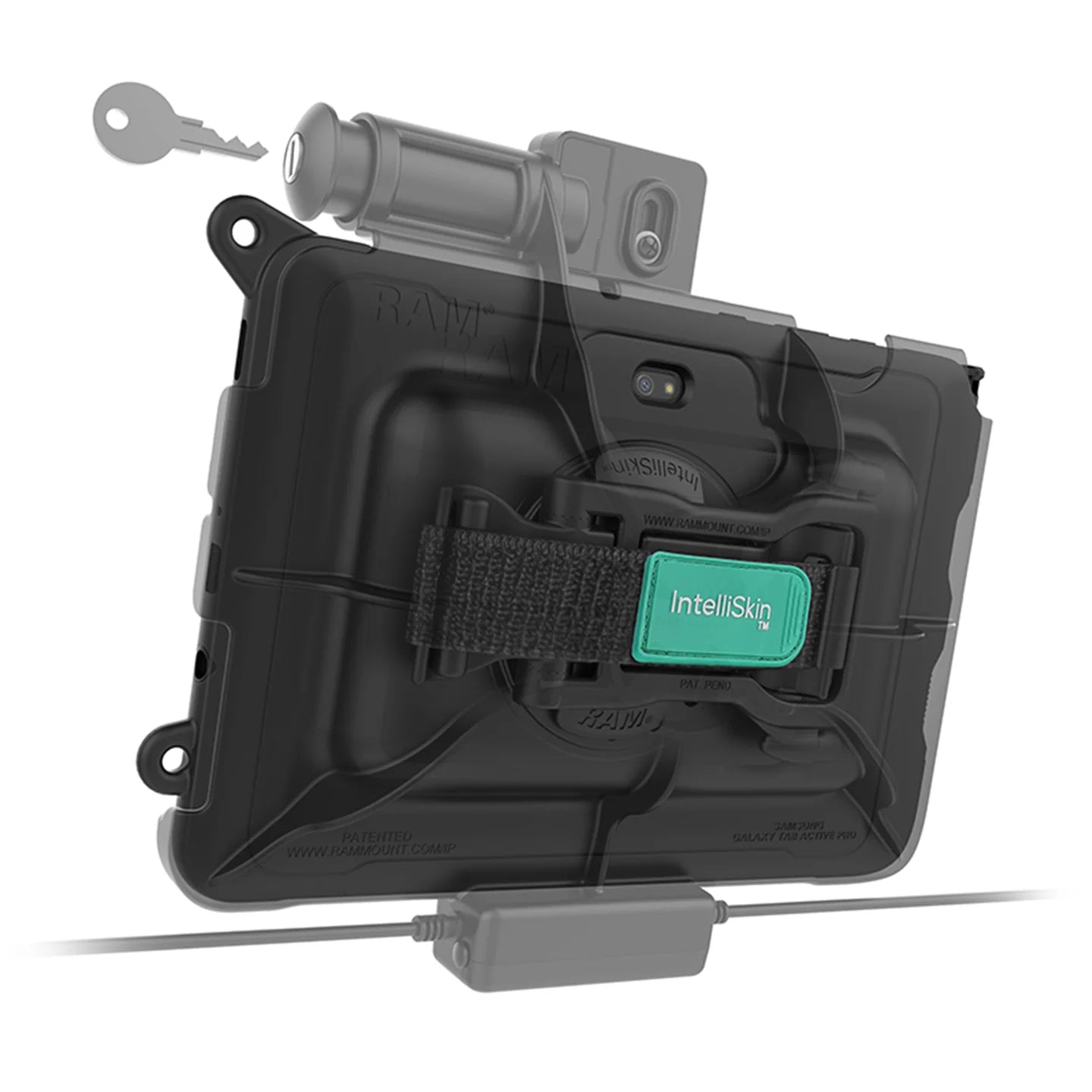

The RAM® Locking USB-C Powered Dock + USB-C Data for Tab Active4 Pro (RAM-HOL-SAM57CPKL-CU) is designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a key-lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the dual USB Type-C female pigtail, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V8CU hardwire charger or the RAM-GDS-CHARGE-CIGC cigarette vehicle charger for supplying power. Key locking powered dock supports the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector Connect two additional peripherals via dual USB Type-C RAM® Mounts Compatible™ with AMPS 4-hole pattern components Made of high-strength composite materials for durability and reliability in the most demanding environments Backed by a 3-year warranty HARDWARE INCLUDED HOLE PATTERN MATERIALS PACKAGING TYPE INPUT VOLTAGE OUTPUT VOLTAGE POWER OUTPUT INPUT CONNECTOR INPUT CABLE LENGTH OUTPUT CONNECTOR OUTPUT CABLE LENGTH TRANSFER SPEED WARRANTY Samsung Tab Active Pro Tab Active 4 Pro
Description
Specs & Features
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(6) Small Cable Ties
4-Hole AMPS: 1.181" x 1.496"
High strength composite
Poly Bag
5.3-5.4VDC
5VDC
500mA
USB Type-C Female
215mm
USB Type-C Female
215mm
480Mbps
3 year warranty
Compatibility
Mounting Options Accessories
GDS® Type-C and Type-A 48W Premium 2-Port Wall Charger - RAM-GDS-CHARGE-USBC2W
GDS® Modular 10-30V Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V7CU
GDS® Modular 10-30V Power Delivery Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V3C-2U
RAM® Vent-Temp™ with Front Dock Connection for Round Vents - RAM-VENT2-RND-50U
RAM® Vent-Temp™ with Front Dock Connection for Rectangular Vents - RAM-VENT2-RCT-50U
Additional Information
RAM® Drill-Down Dashboard Mount with Backing Plate - C Size Short - RAM-101-B-225B2U
RAM® Tough-Claw™ Large Clamp Double Ball Mount with Round Plate - RAP-401-202U
