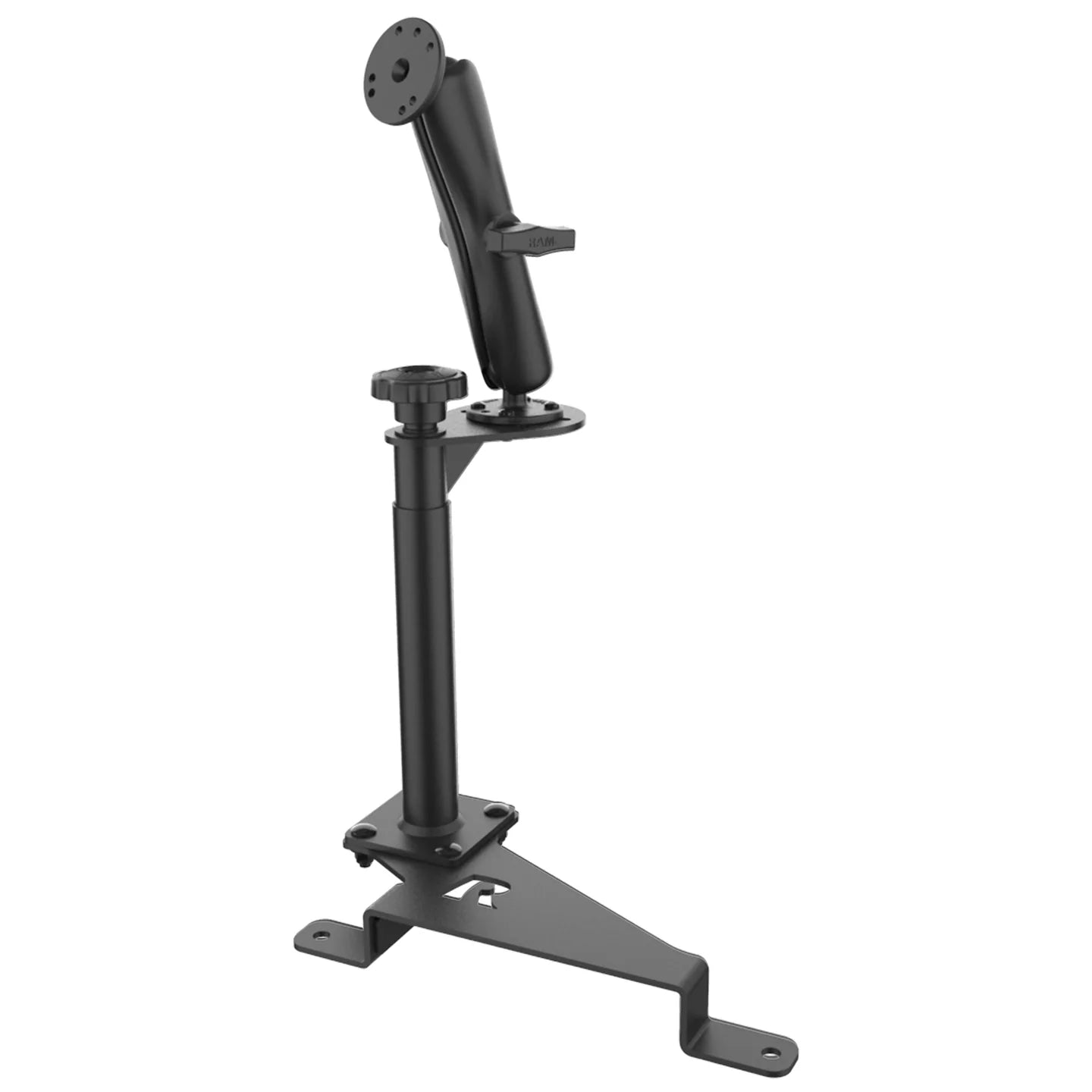

RAM® No-Drill™ Ball Mount for '15-25 Ford F-150, ’17-25 F-250 + More - RAM-VB-195-DB2

The RAM® No-Drill™ Ball Mount for '15-25 Ford F-150, ’17-25 F-250 + More (RAM-VB-195-DB2) installs quickly and easily into a variety of Dodge, Ford, and Jeep vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. The 3-part ball and socket system attached to the pole is compatible with a variety of device holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

• Custom laptop vehicle mount designed specifically for 2015-2025 Ford F-150, 2017-2025 F-250, and much more

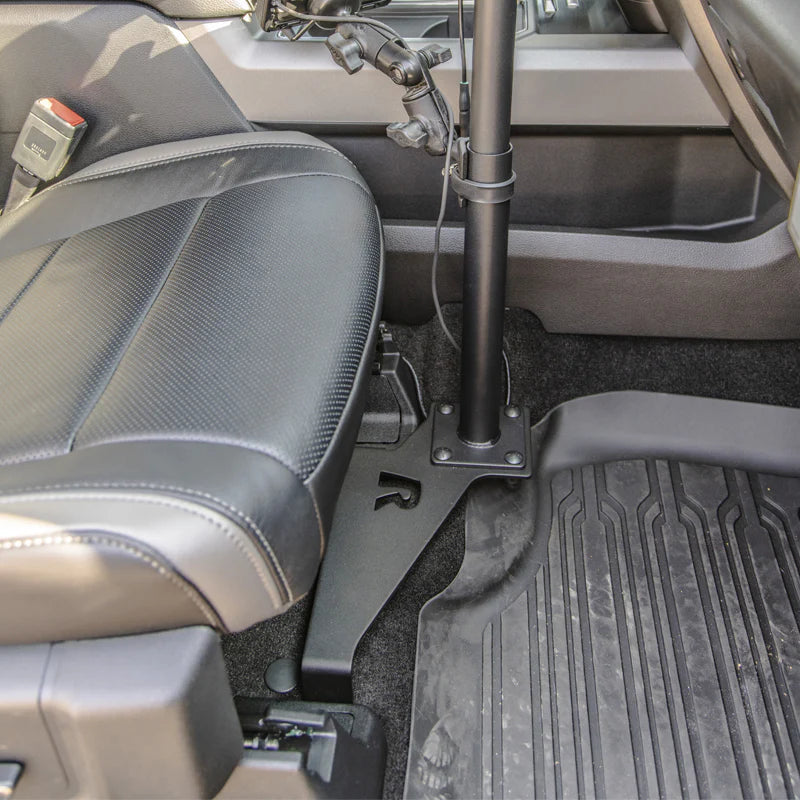

• Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts

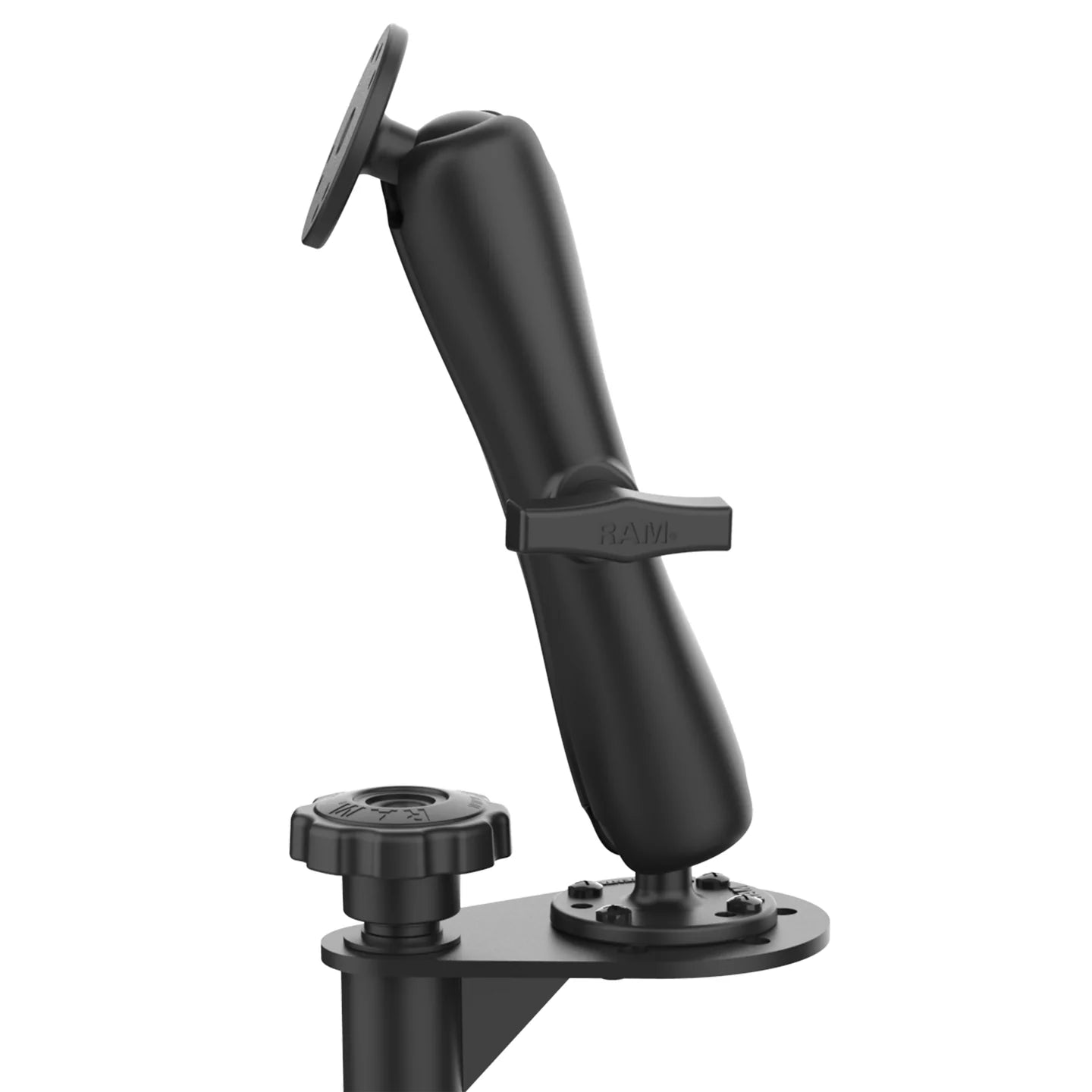

• Ball and socket mounting system offers shock and vibration damping

• Compatible with any RAM® holders or GDS® docks with a 4 hole AMPS pattern

• Backed by a lifetime warranty

HARDWARE INCLUDED
Assembly Hardware
Stabilizer Foot

SOCKET TO SOCKET LENGTH
8"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 13.625" center to center

PLATE SIZE
2.5" Diameter

BALL SIZE
C Size (1.5")

WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS
Powder coated steel
Marine grade-aluminum

PACKAGING TYPE
Box

WEIGHT
11.22 lb

IMPORTANT INFORMATION

This kit is intended to support tablets and not laptops.

Components

RAM^® No-Drill^™ Vehicle Base for '15-25 Ford F-150, ’17-25 F-250 + More - RAM-VB-195

RAM^® 12" Lower Pole - RAM-VP-TBF12U

RAM^® 12" Upper Flange Pole with Double Ball Mount - RAM-VP-TTMF12-101U-D

Dodge

• Journey (2011-2020)

Ford

GDS^® Keyboard^™ with Track Pad - RAM-KB2-USB

GDS^® Keyboard^™ with 10-Key Numeric Pad - RAM-KB4-USB

RAM^® 12" Double Swing Arm with Round Plate - C Size - RAM-VB-110-1U

RAM^® X-Grip^® Universal Holder for 12"-13" Tablets - RAM-HOL-UN11U

RAM^® Tab-Tite^™ Holder for 9"-10.5" Tablets with Heavy Duty Cases - RAM-HOL-TAB20U

RAM^® X-Grip^® Universal Holder for 9"-11" Tablets - RAM-HOL-UN9U

RAM No-Drill Seat Bases Instructions 195 Series

RAM^® Tele-Pole^™ Assembly Instructions
