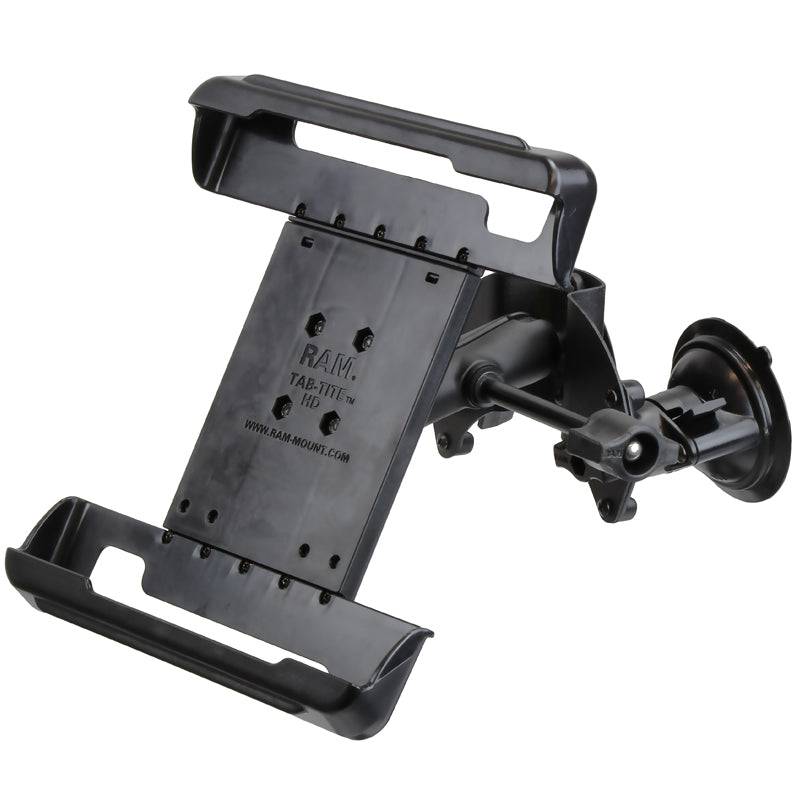

RAM® Tab-Tite™ with RAM® Twist-Lock™ Pivot Suction for Toughpad FZ-A1 - RAM-B-189-PIV1-TAB10-ALA1-KRU

OVERVIEW

The RAM-B-189-PIV1-TAB10-ALA1_KRU consists of a dual articulating 3.3" twist lock suction cup base, double socket arm, and universal Tab-Tite^™ cradle for 10" Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. The Tab-Tite^™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware

HOLDER DIMENSIONS

Height Range: 9.75" - 12"
Width Range: 6.38" - 8.62"
Depth Range: .13" - 1"

SUCTION SIZE

(2) 3.3" Diameter Bases, Total Width 7.95"

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

2.04 lbs.

RAM Tab-Tite™ Spring Loaded Cradle for 9-10" Tablets - RAM-HOL-TAB10U

RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U

RAM Double Socket Arm with Retention Knob for B Size 1" Balls - RAM-B-201-ALA1-KRU

RAM Dual Articulating Suction Cup Base With 1" Ball Base - RAM-B-189B-PIV1U

Dell

Latitude 5285

HP

Pro X2 612

Panasonic

Toughpad FZ-A1

Microsoft

Surface 4 PRO in Incepto Case (Requires RAM-HOL-TAB-RISER2U when used with hand strap)
