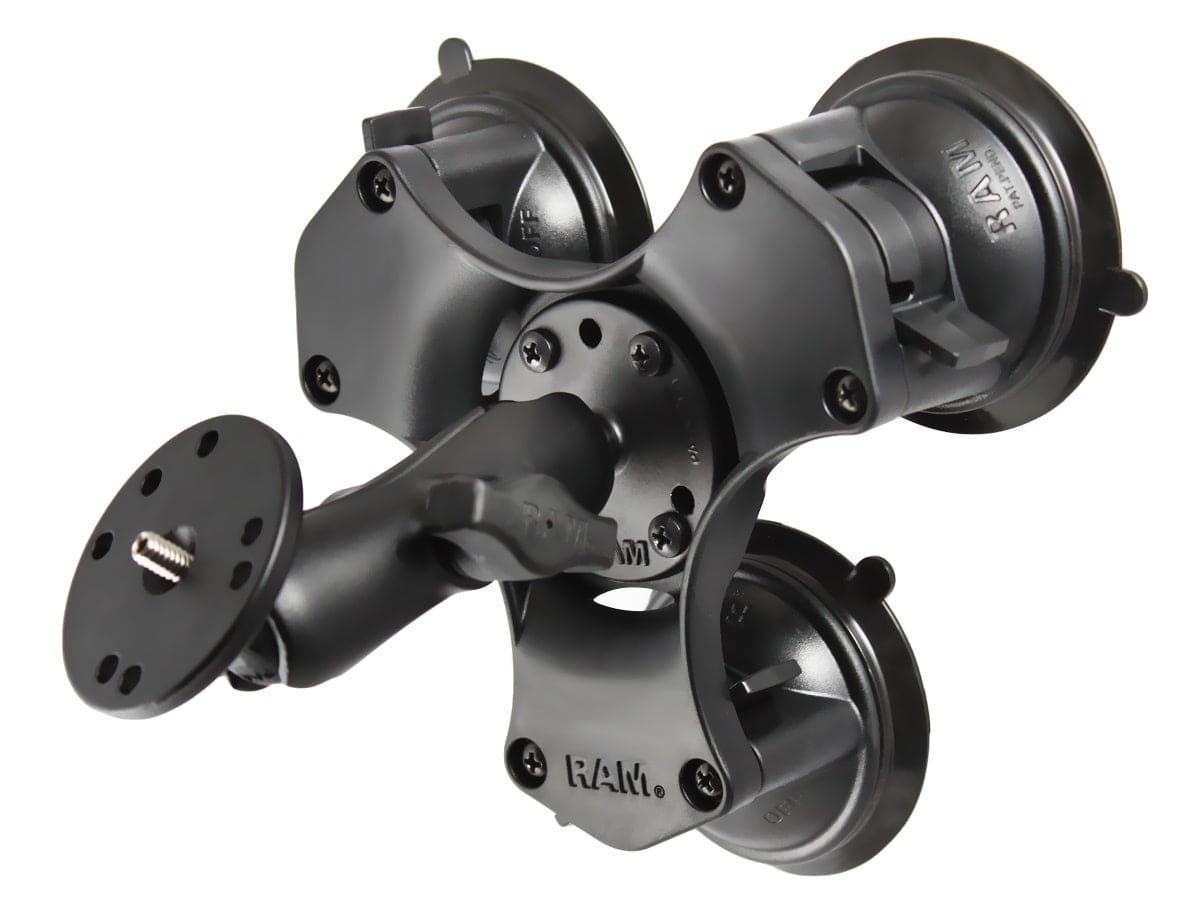

RAM® Twist-Lock™ Triple Suction Mount with Round Plate and 1/4"-20 Stud - RAP-B-365-224-202AU

OVERVIEW

The RAP-B-365-224-202AU consists of a triple 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

Assembly Hardware

SUCTION SIZE

(3) 3.3" Diameter Bases, Total Width 7.95"

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

THREAD PITCH

1/4"-20 x .25"

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.26 lbs.

RAM® Twist-Lock™ Suction Cup Assembly Guide - PDF

RAM Triple Suction Cup Base With 1" Dia. Ball - RAP-B-365-224-1U

RAM Double Socket Arm for B Size 1" Balls - RAM-B-201U

RAM 2.5" Round Base With 1" Ball & 1/4-20 Threaded Male Post For Cameras - RAM-B-202AU
