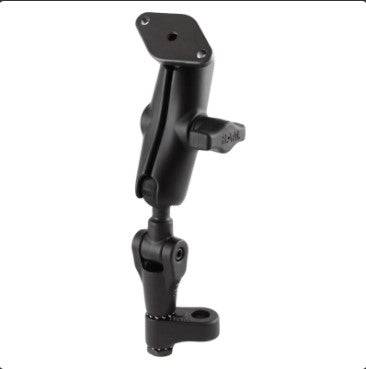

RAM® Twist-N-Tilt™ Motorcycle Mirror Mount - RAM-B-181U

OVERVIEW

RAM Twist and Tilt^™ mount for motorcycle handlebar or mirror bracket attachment. Simply choose your preferred mounting location and the possibilities become endless. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. The versatile mounting base in this kit pivots up, down, left and right affording you the ultimate in adjustablitly. With a turn of a single comfortable to grasp knob, viewing adjustments can be made and the sleek hourglass shape of the arm assembly compliments the lines of any motorcycle. High quality materials insure your electronic device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device.

HARDWARE INCLUDED

(1) M10-1.25 x 40mm Socket Head Cap Screw
(1) M8-1.25 x 40mm Socket Head Cap Screw
(2) M10-1.25 Hex Nuts
(2) M8-1.25 Hex Nuts
(1) M10-1.25 x 20mm Socket Head Cap Screw
(1) M8-1.25 x 20mm Socket Head Cap Screw
(3) M10 Tooth Lock Washers

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.51 lbs.

ADDITIONAL INFORMATION

It is not suggested, nor is it recommended that users remove any existing stainless steel screw and replace it with the Twist and Tilt RAM Mount base. An example of this would be the handlebar yoke clamp bracket or other vital attachments which hold essential structural components together.
