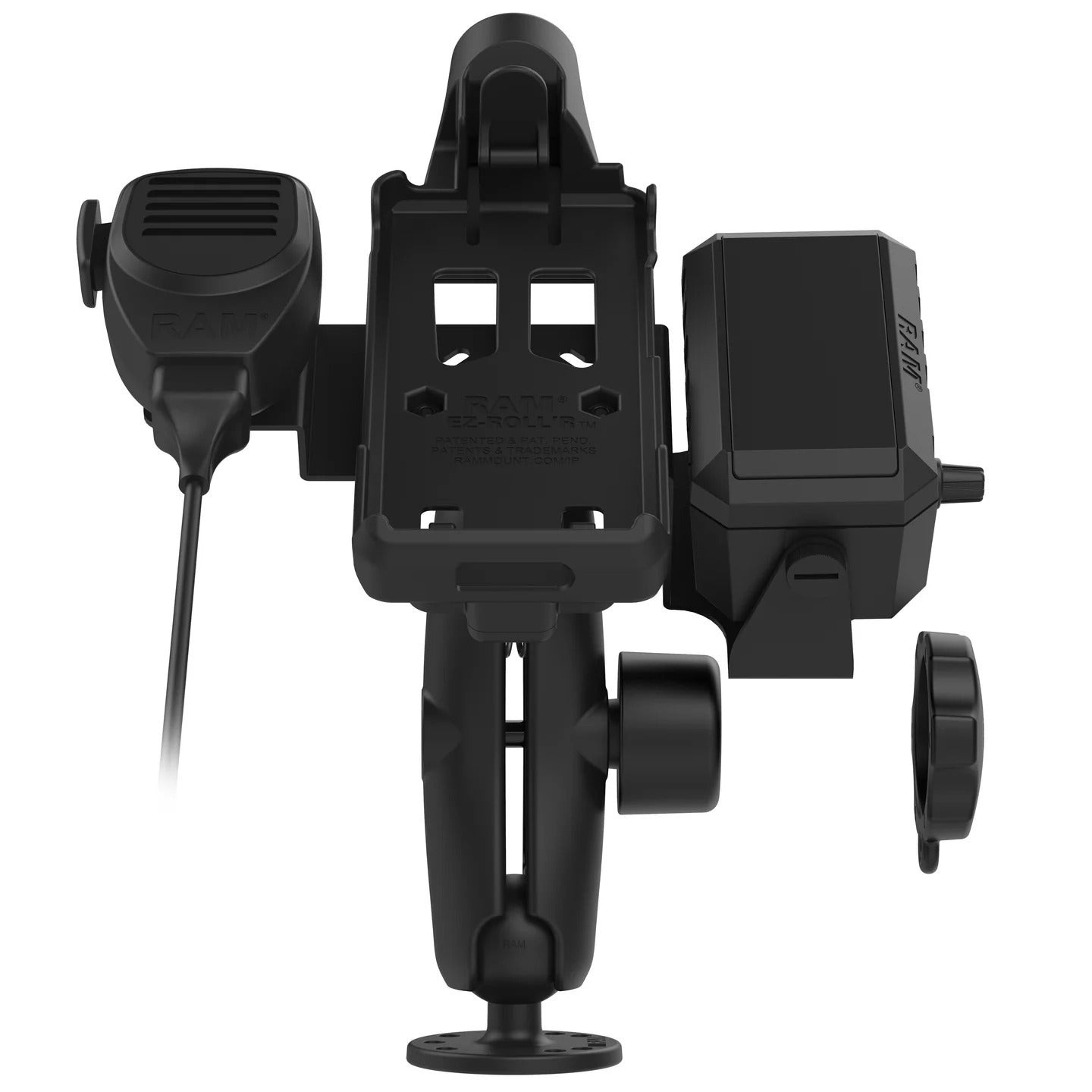

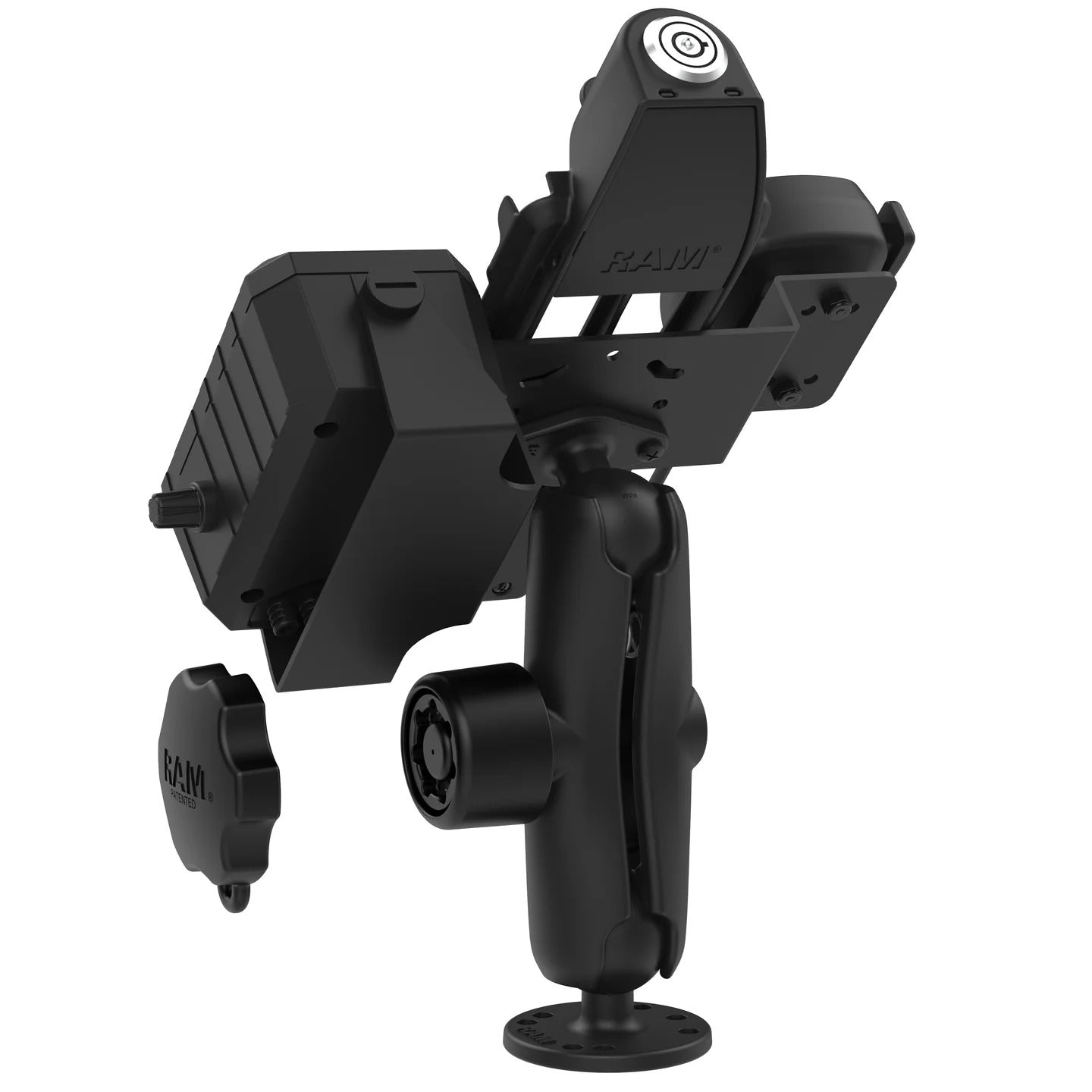

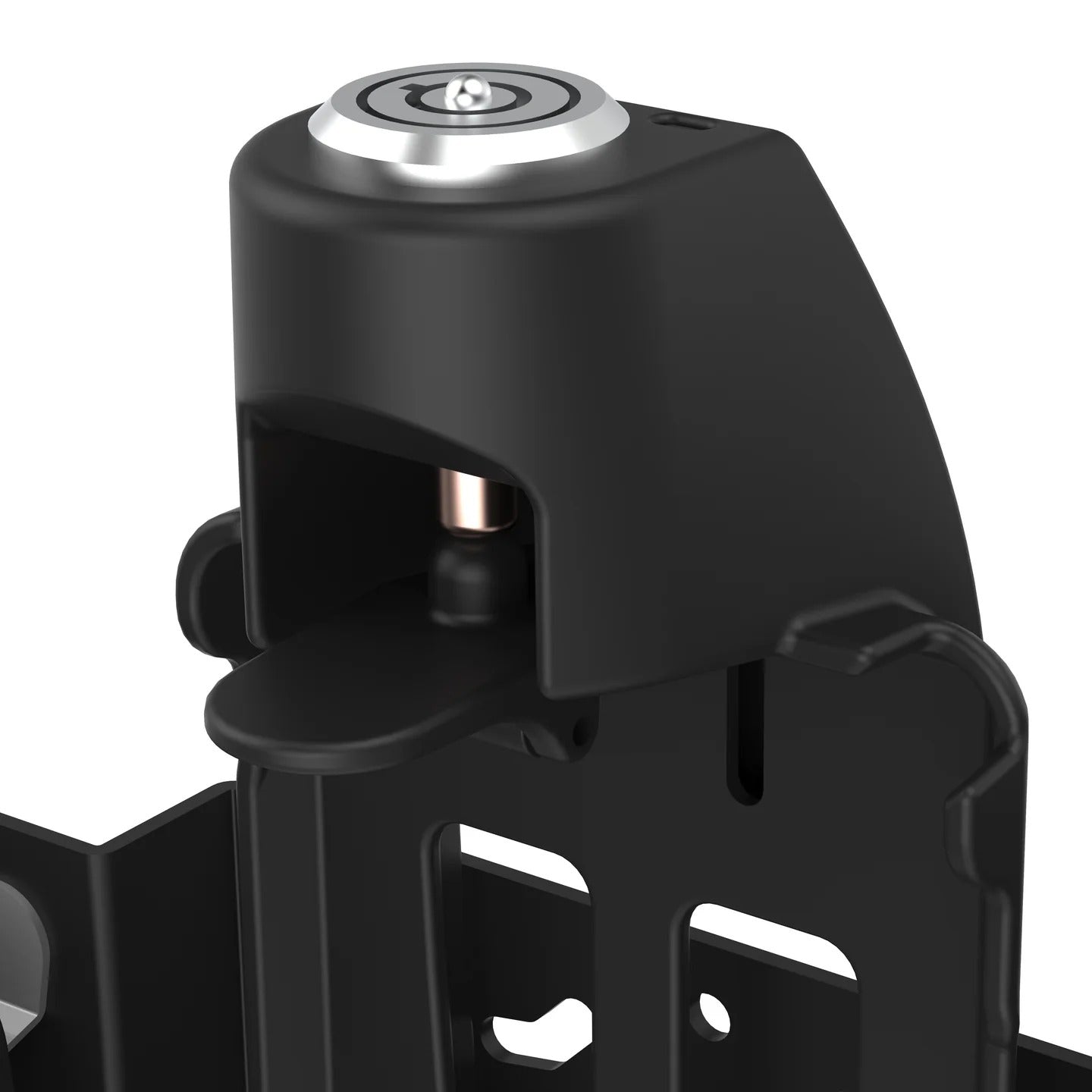

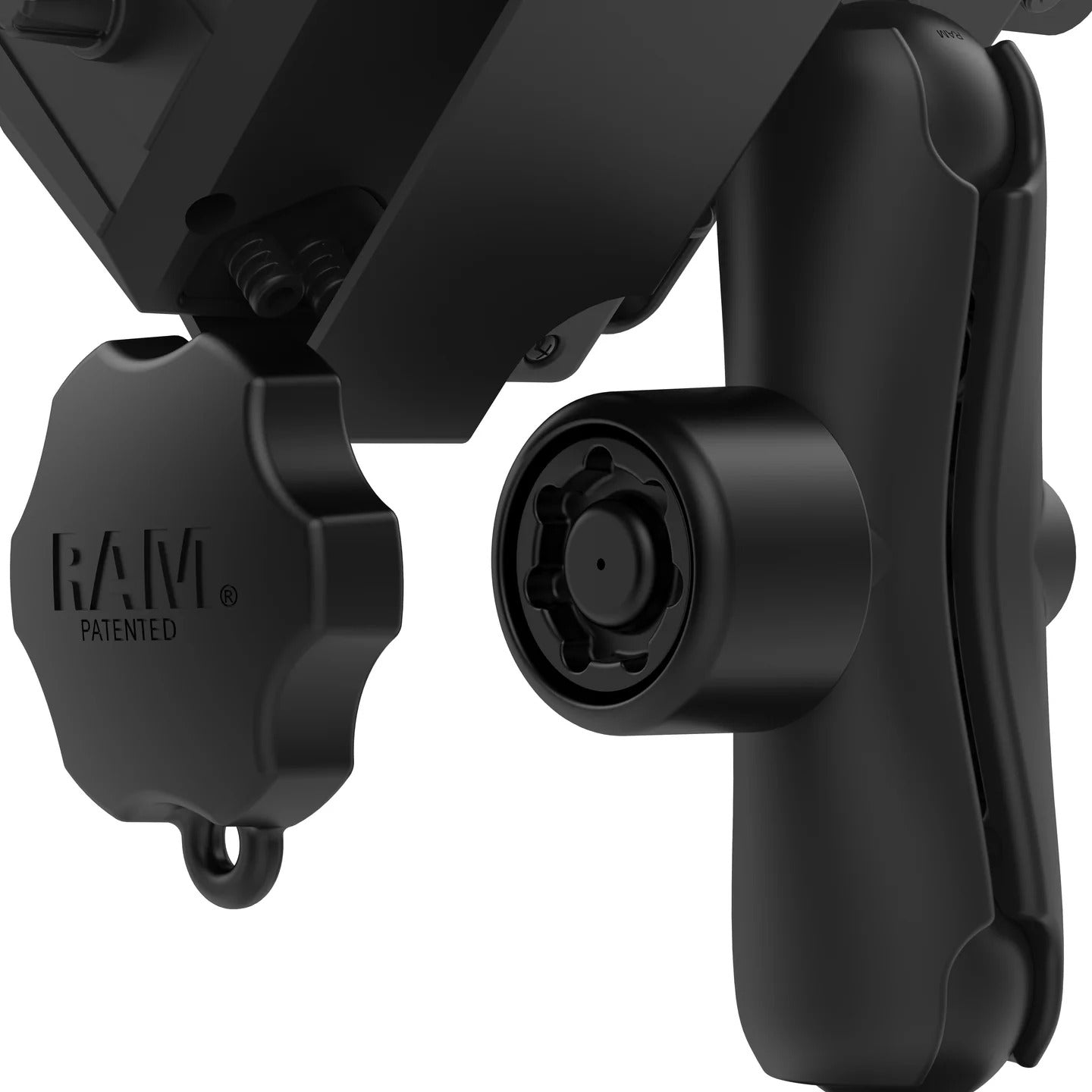

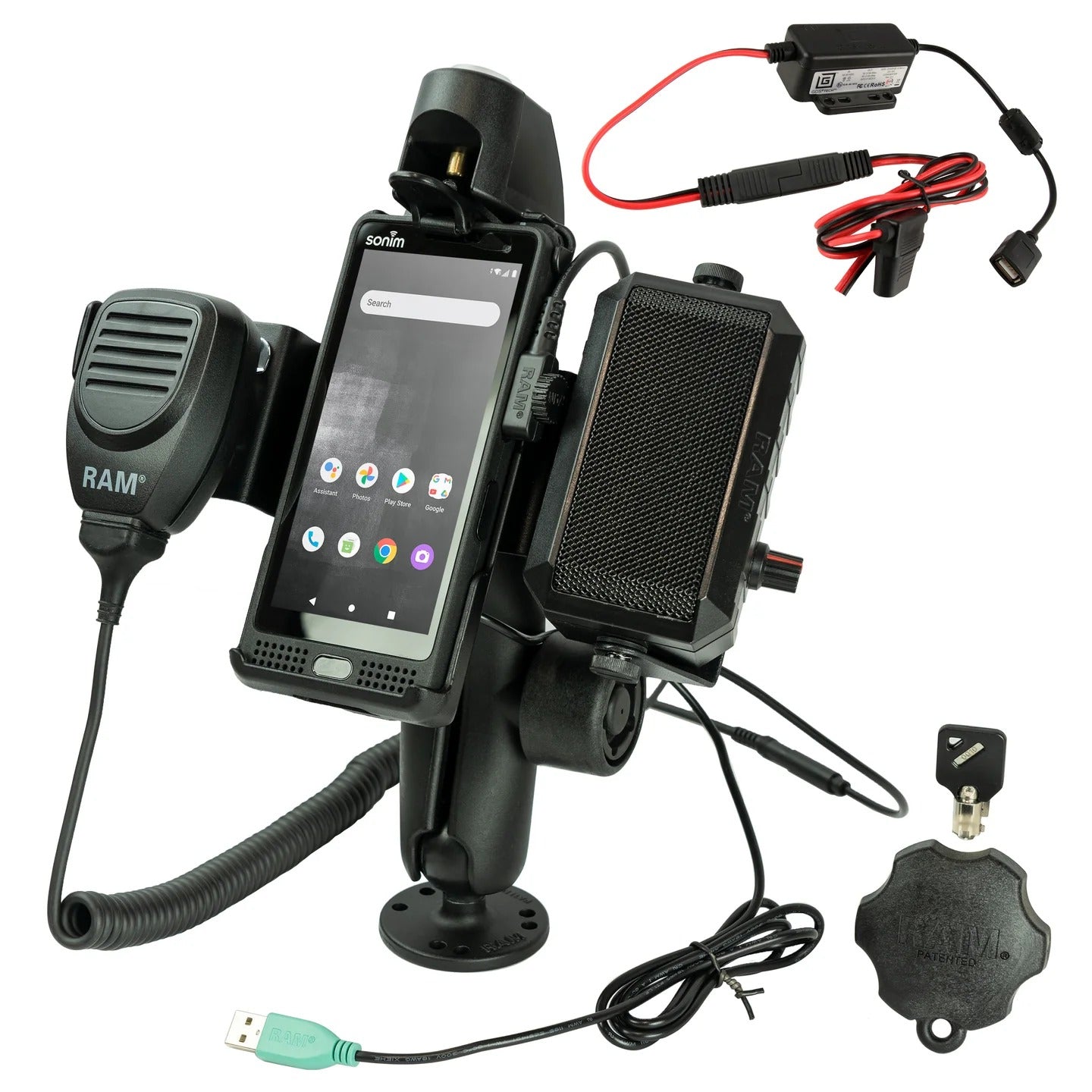

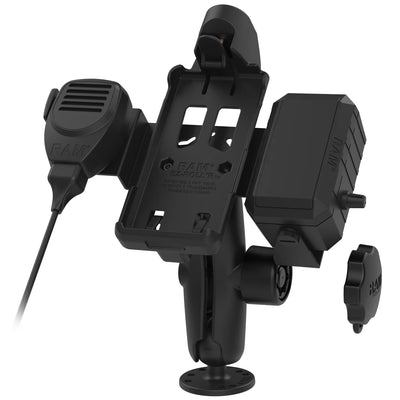

RAM® Double Ball Mount for Sonim XP10 with Speaker & Hardwire Bundle - RAM-138-S-SNM4PL-V7B1U

This Sonim XP10 bundle includes the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP10, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP10 and keeps your peripherals together and connected as one unit. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.

• Bundle for Sonim XP10 includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
• Powered RAM® EZ-Roll'r™ form-fit dock provides a perfect fit for your device while keeping the device charged
• Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
• RAM® components backed by lifetime warranty; dock and electronics backed by a 3-year warranty

HARDWARE INCLUDED:
Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob
(1) 10-pin to 3.5 Audio Adapter Cable
(1) Modular Hardwire Charger

SPEAKER SPECIFICATIONS:
Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker

SOCKET TO SOCKET LENGTH:
4.66"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE:
2.5" Diameter

BALL SIZE:
C Size (1.5")

WEIGHT CAPACITY:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS:
Marine-grade aluminum
High strength composite
Powder-Coated Steel

PACKAGING TYPE:
Poly Bag

INPUT VOLTAGE:
10V - 30V DC

OUTPUT VOLTAGE:
5-9VDC*

OUTPUT CURRENT:
2.5A max

INPUT CONNECTOR:
Charger: Female USB Type A

INPUT CABLE LENGTH:
1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH:
.2 Meter

OPERATING TEMPERATURE:
-10°C to +70°C

STORAGE TEMPERATURE:
-40°C to +70°

COMPLIANCE:
Over Temperature Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS:
CE Certification
e-Mark Certification
RCM Certification
FCC Certification

WARRANTY:
3 year warranty

WEIGHT:
3 lb

ADDITIONAL INFORMATION:
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
